Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04

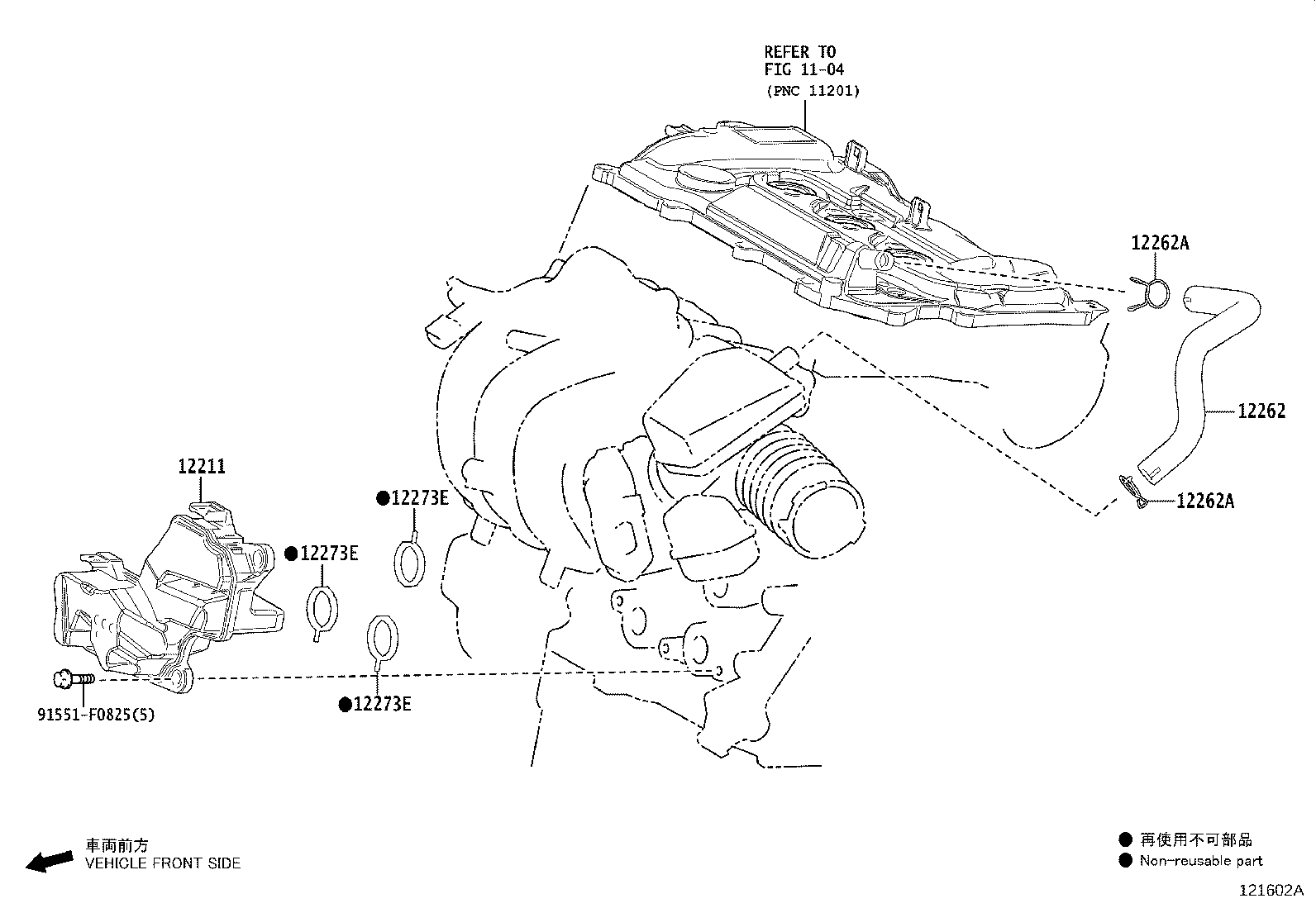

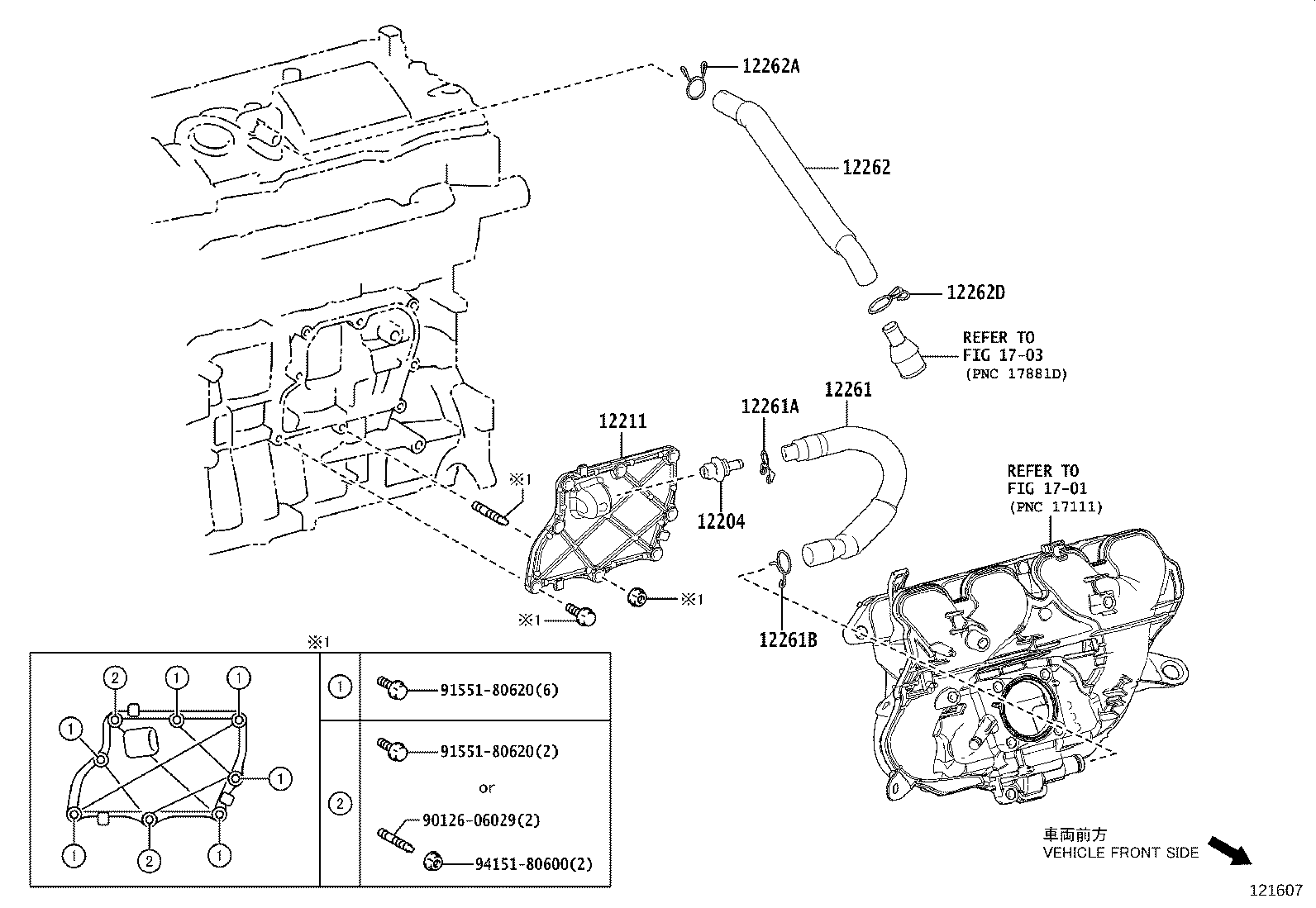

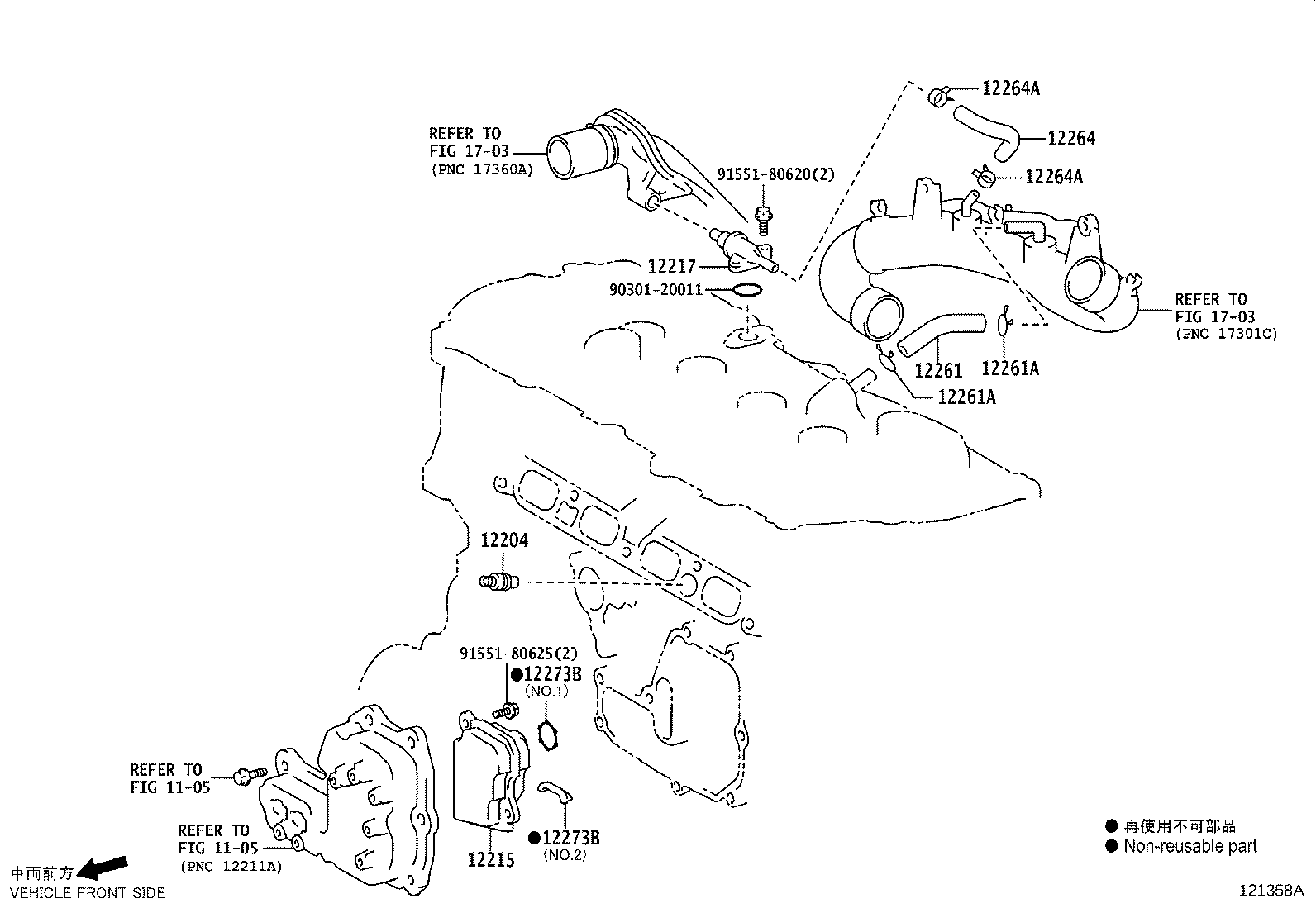

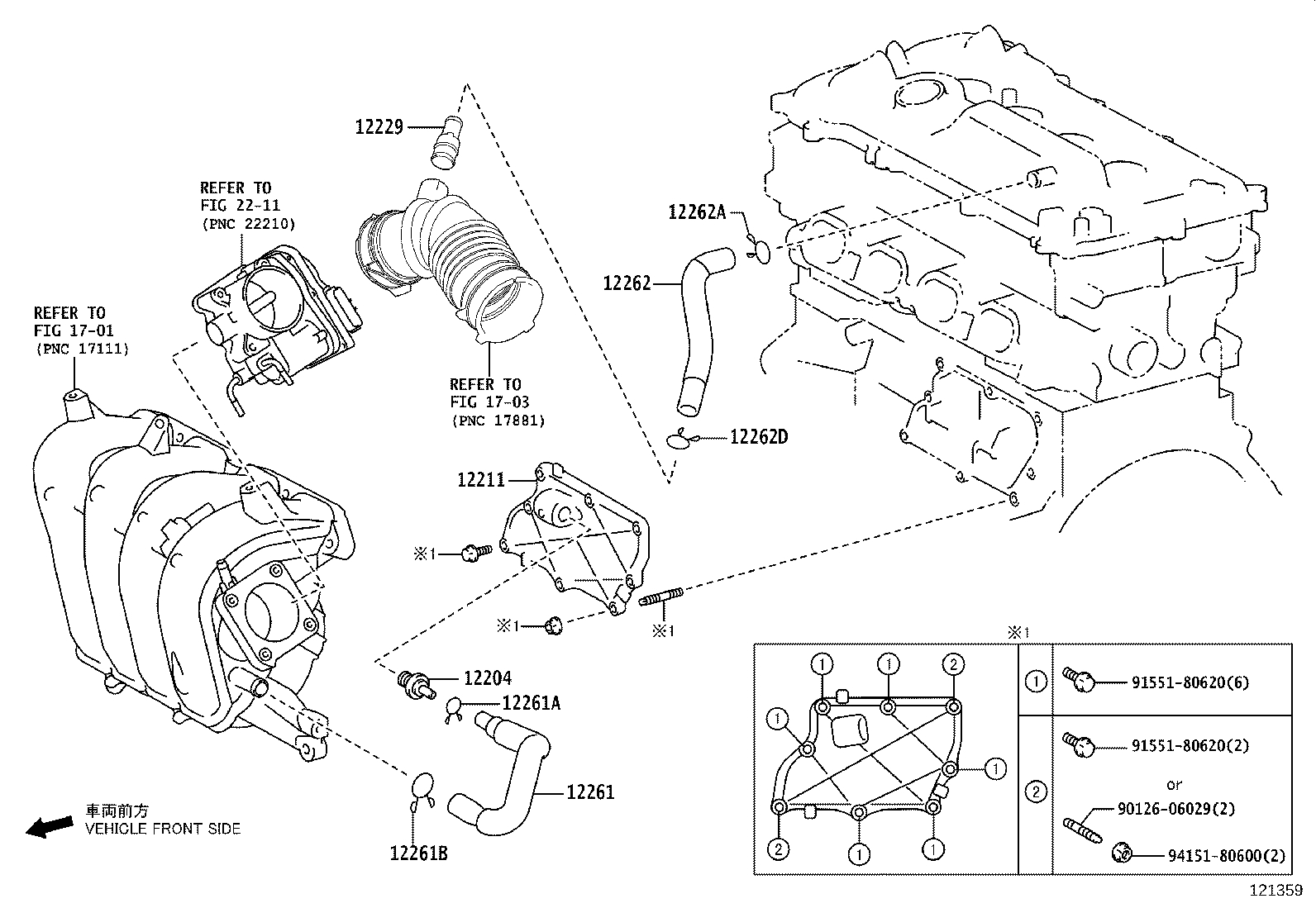

Ventilation Hose
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12211 | Case, Ventilation, NO.1 |
| 12215 | Separator, Case |
| 12217 | Ejector, Ventilation |
| 12229 | Pipe, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12262D | Clip(FOR VENTILATION HOSE NO.2) |
| 12264 | Hose, Ventilation, NO.4 |
| 12264A | Clip(FOR VENTILATION HOSE) |
| 12273B | Gasket, Oil Separator |
| 12273E | Gasket(FOR VENTILATION CASE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
