Radiator & Water Outlet

152 part groups · 14 illustrations

Illustrations

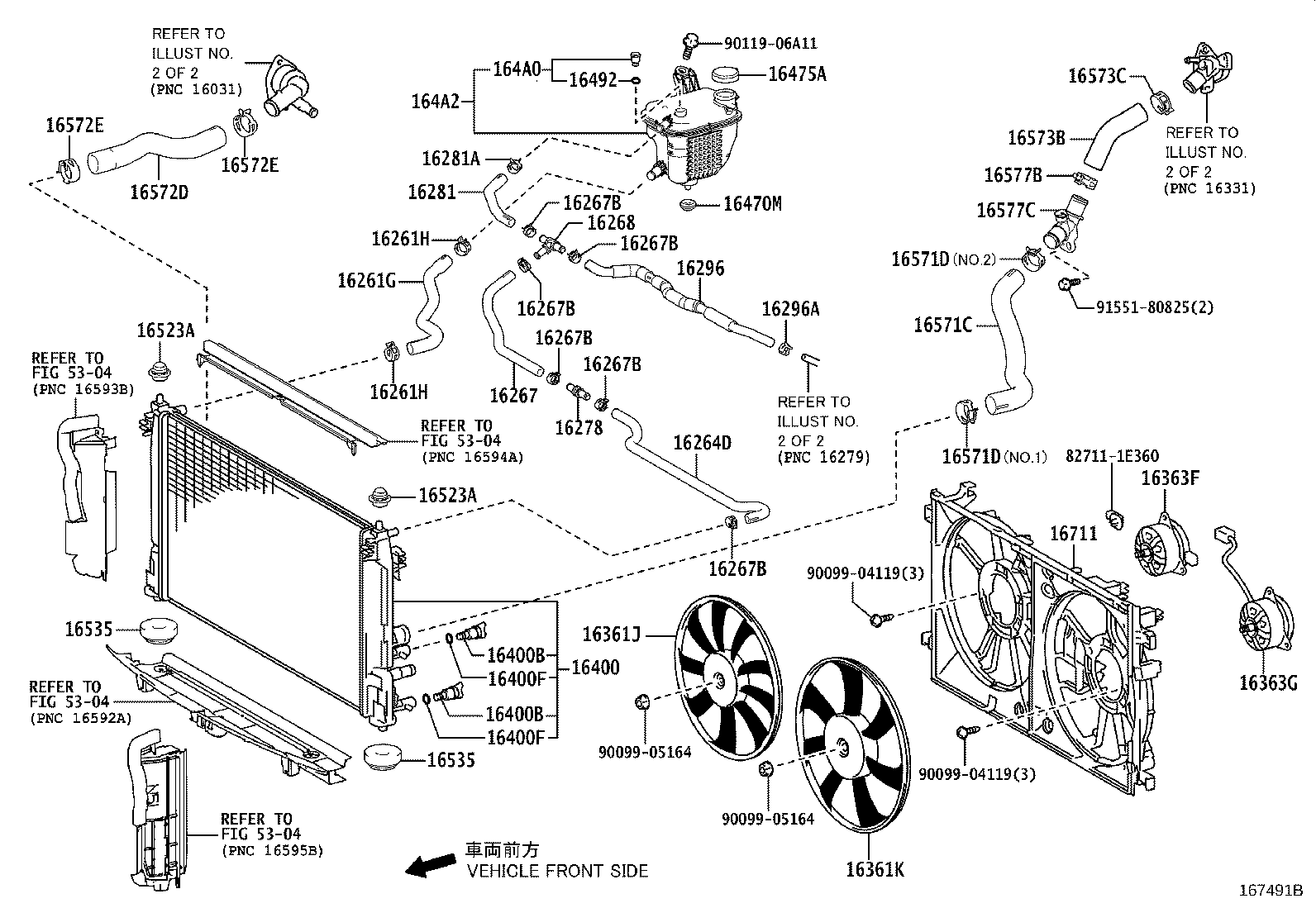

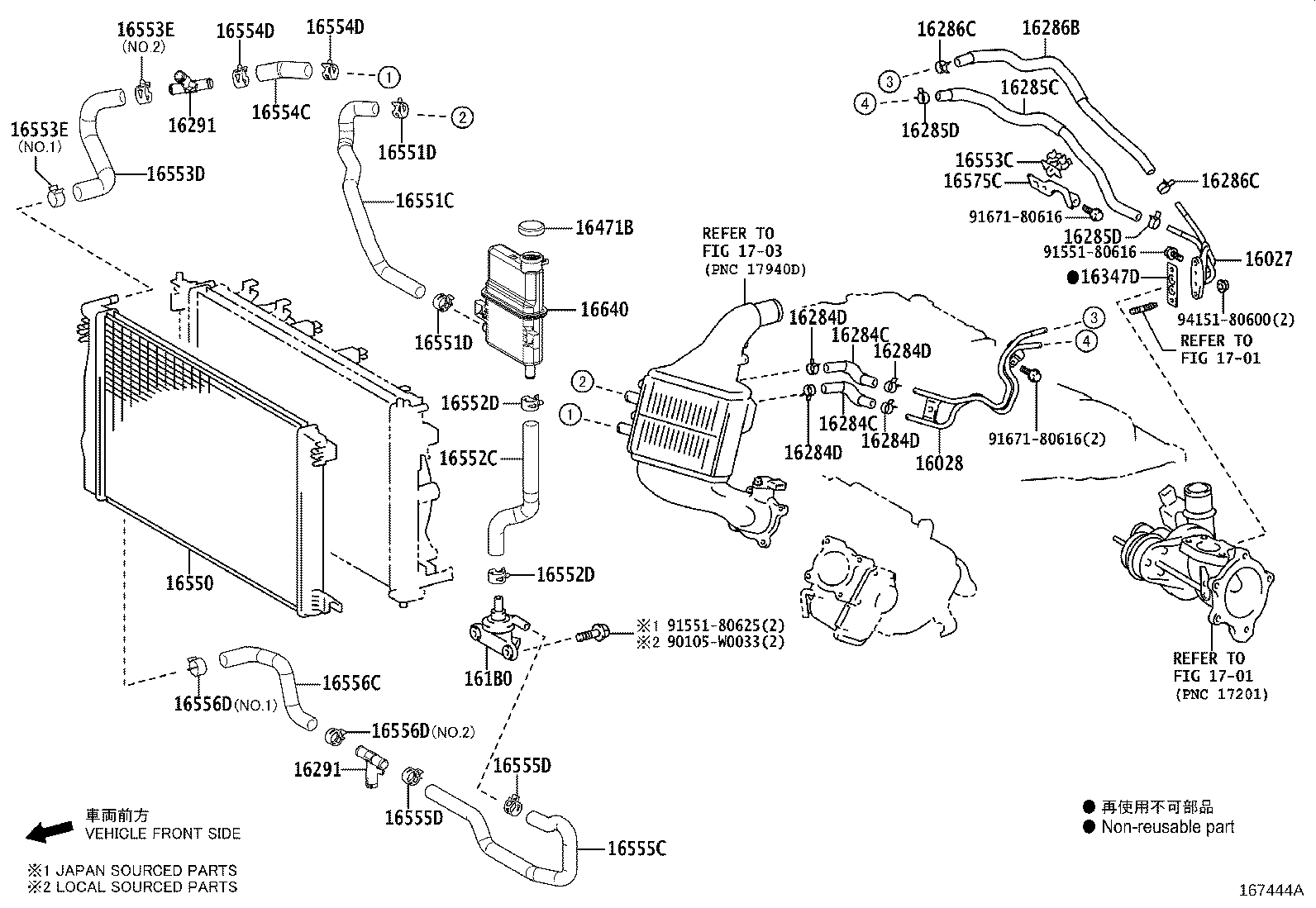

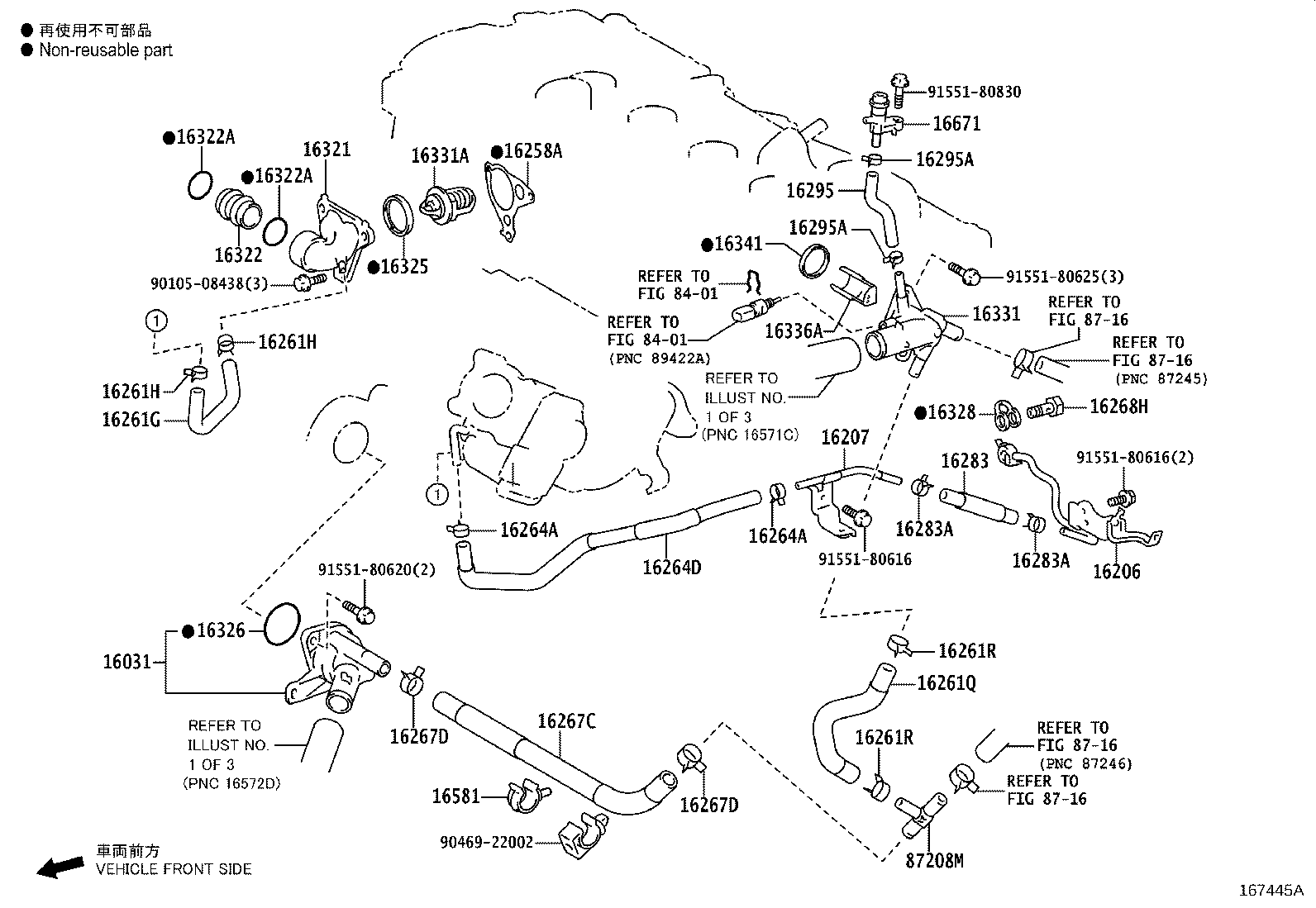

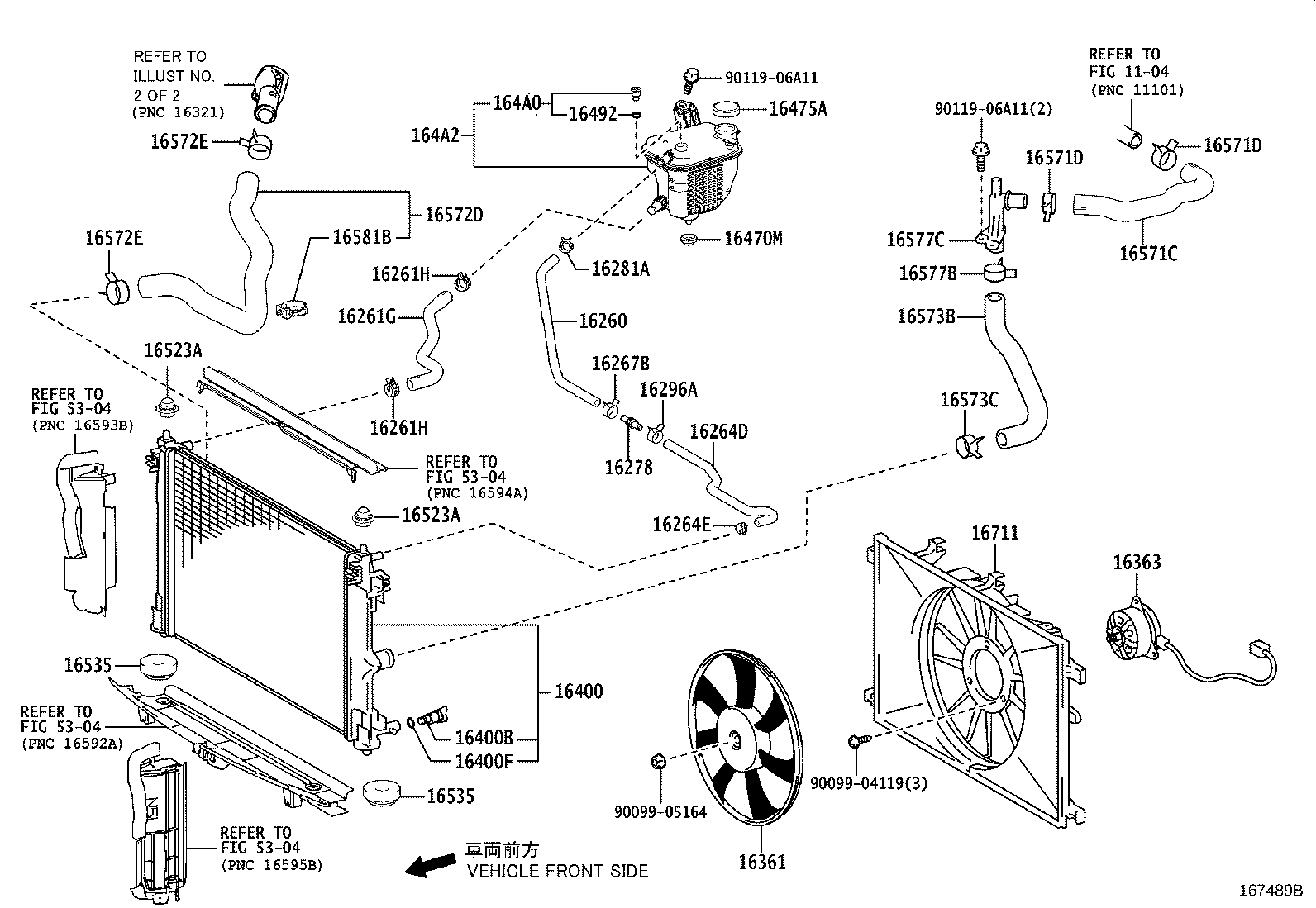

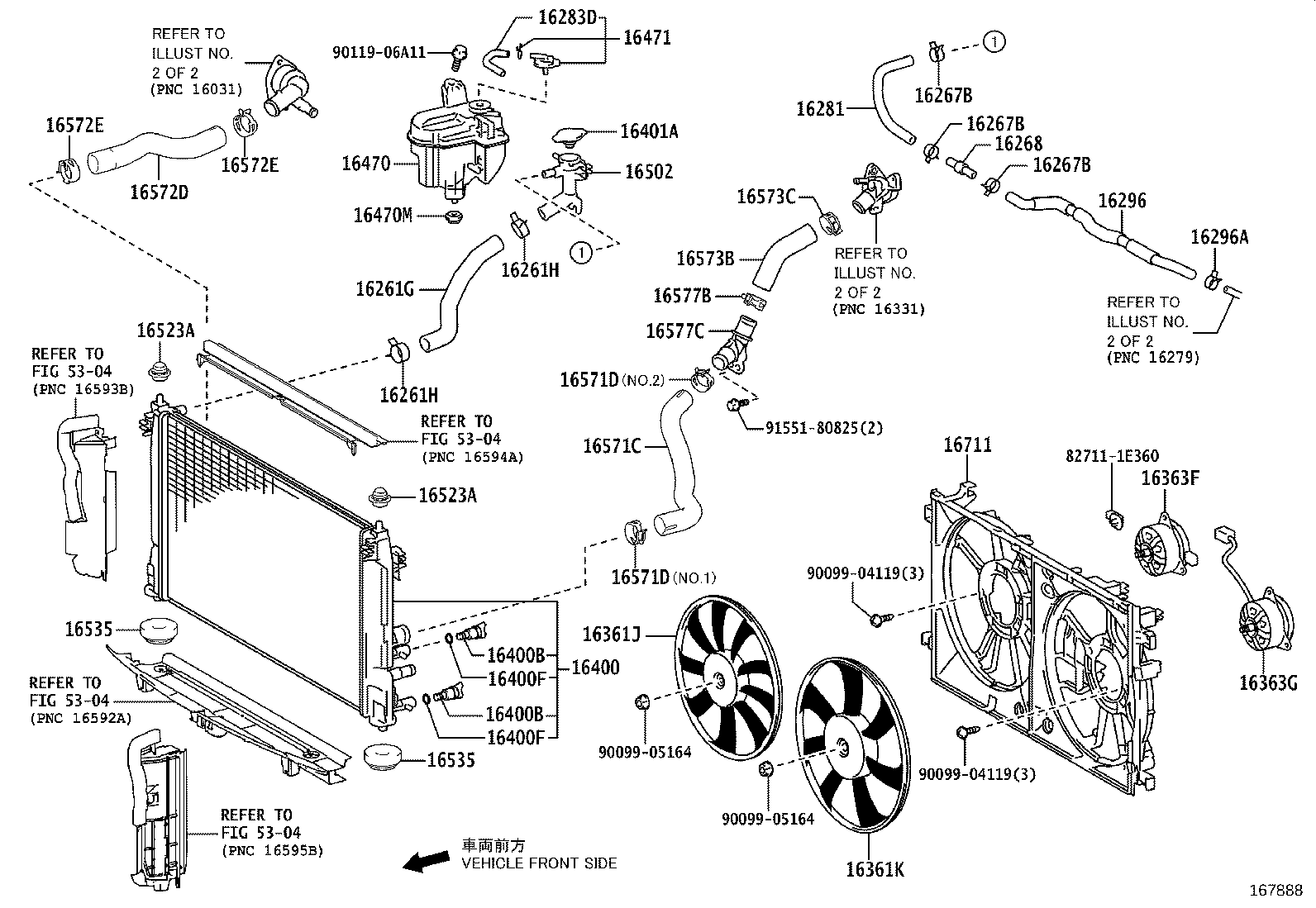

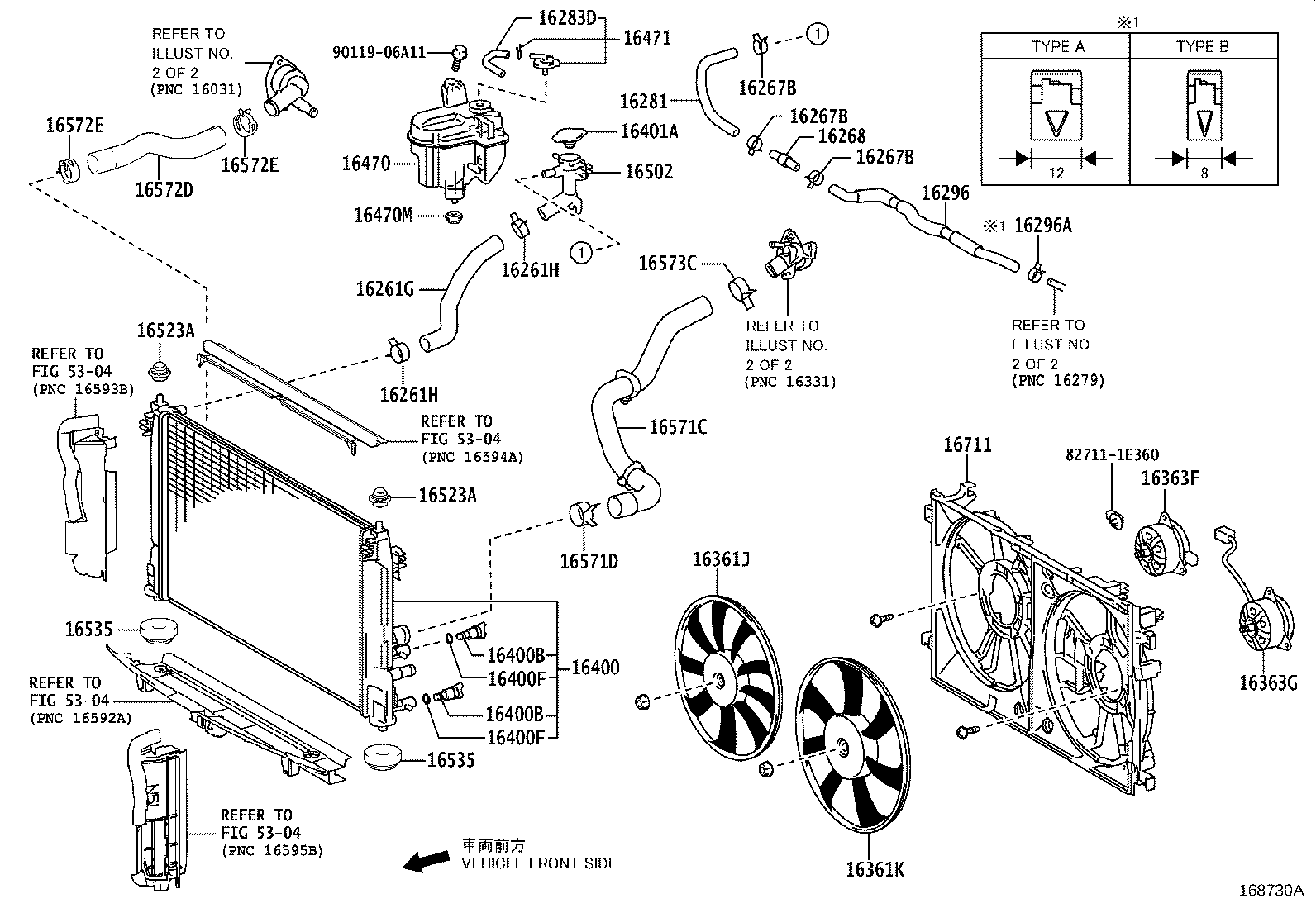

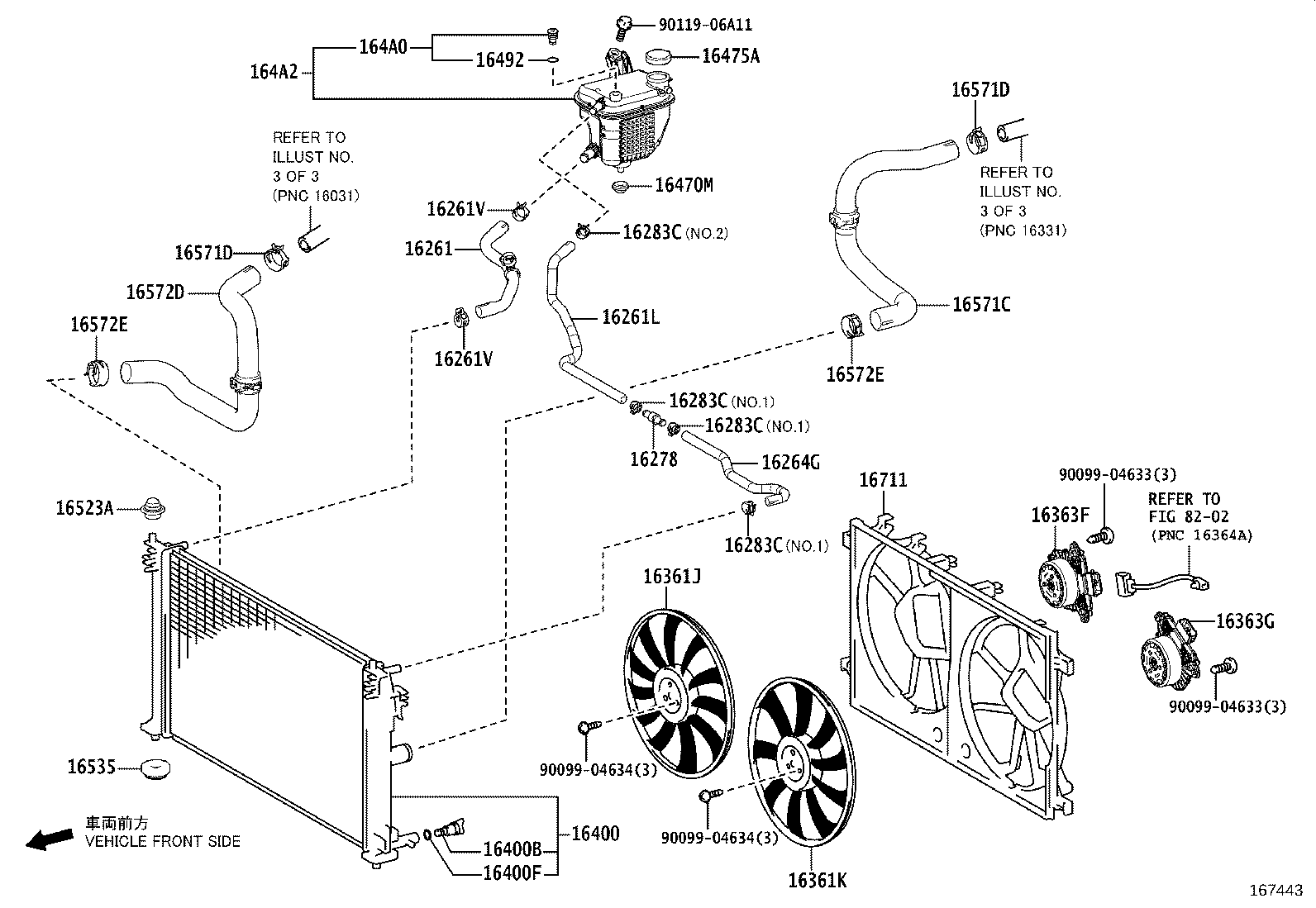

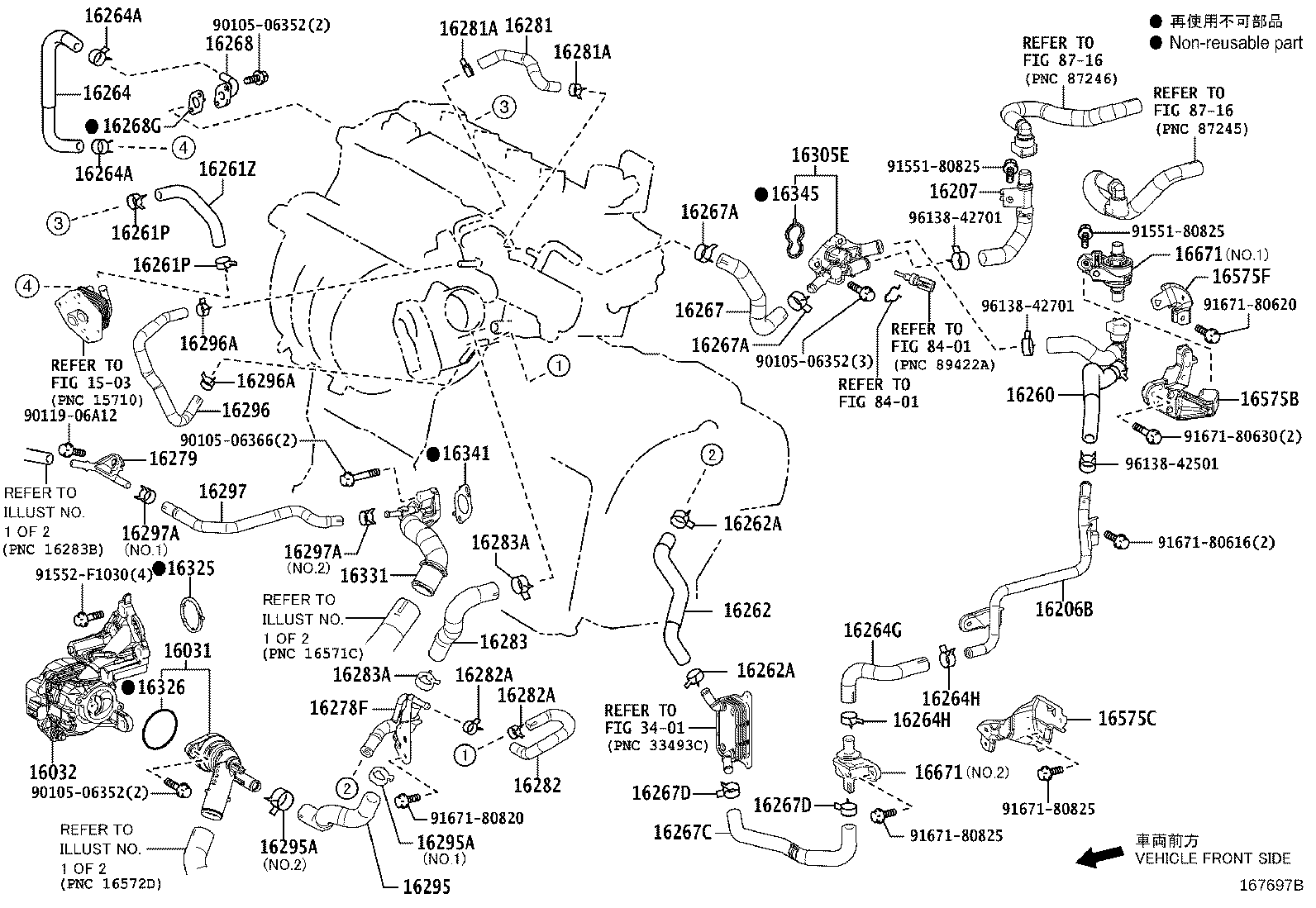

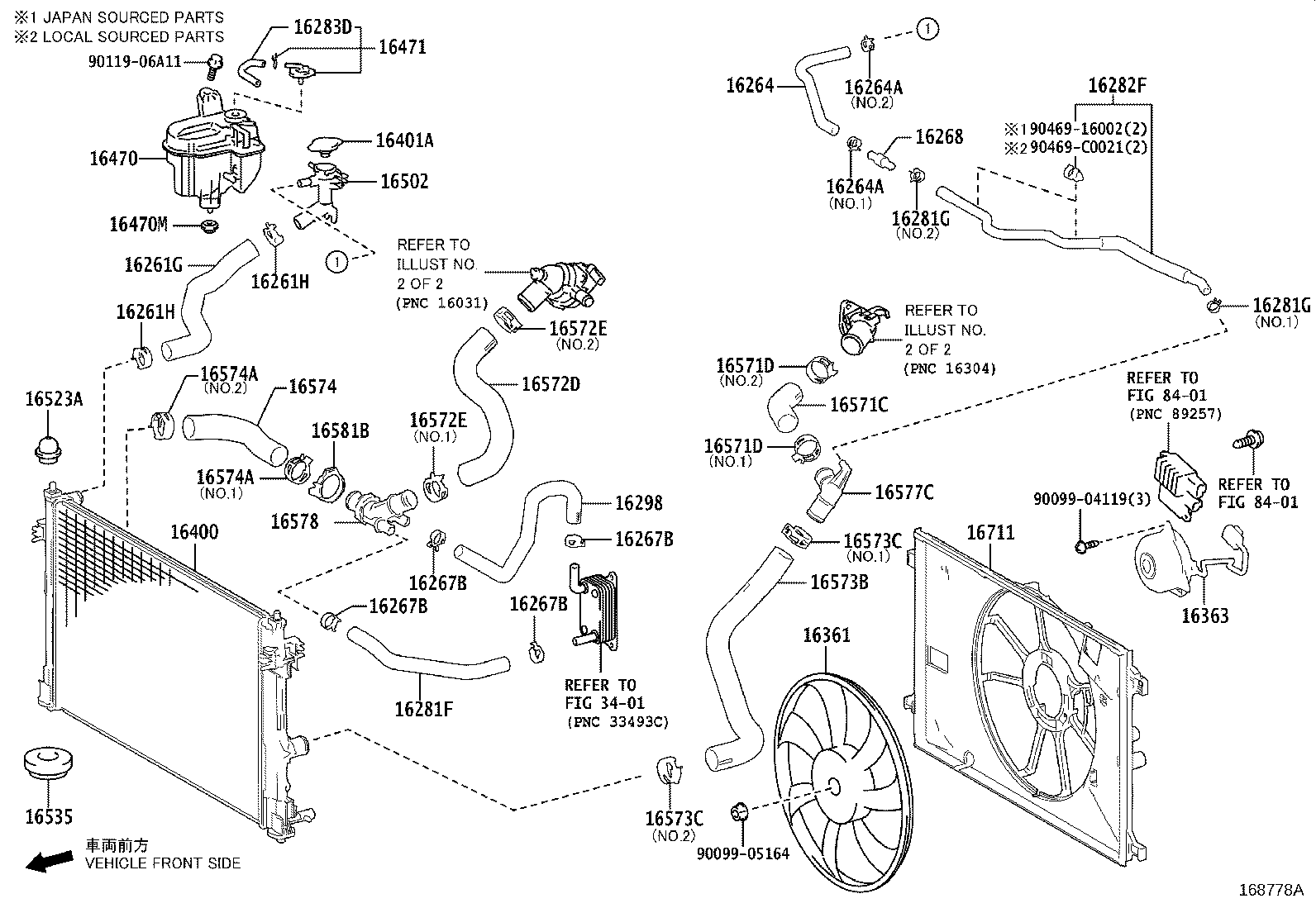

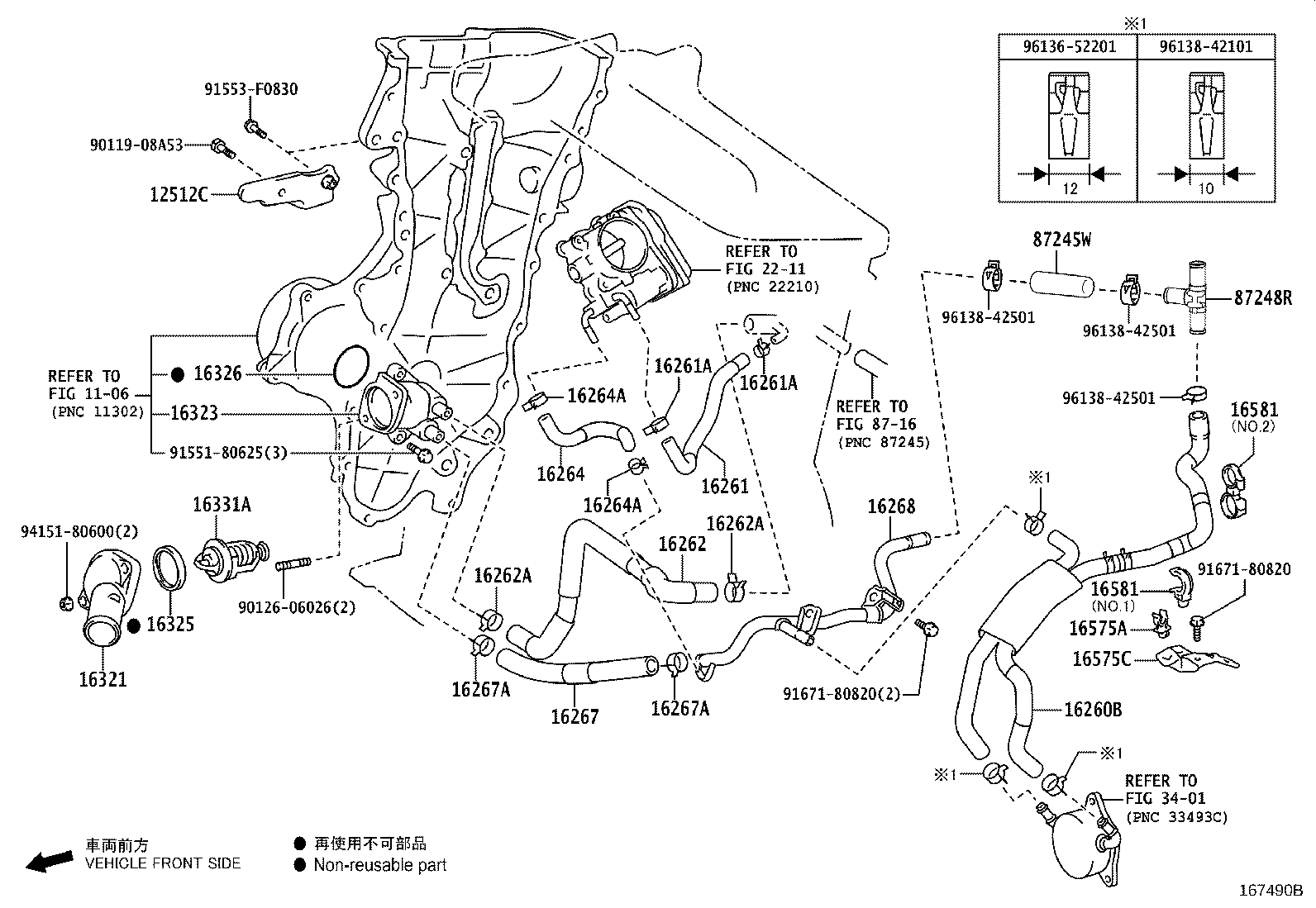

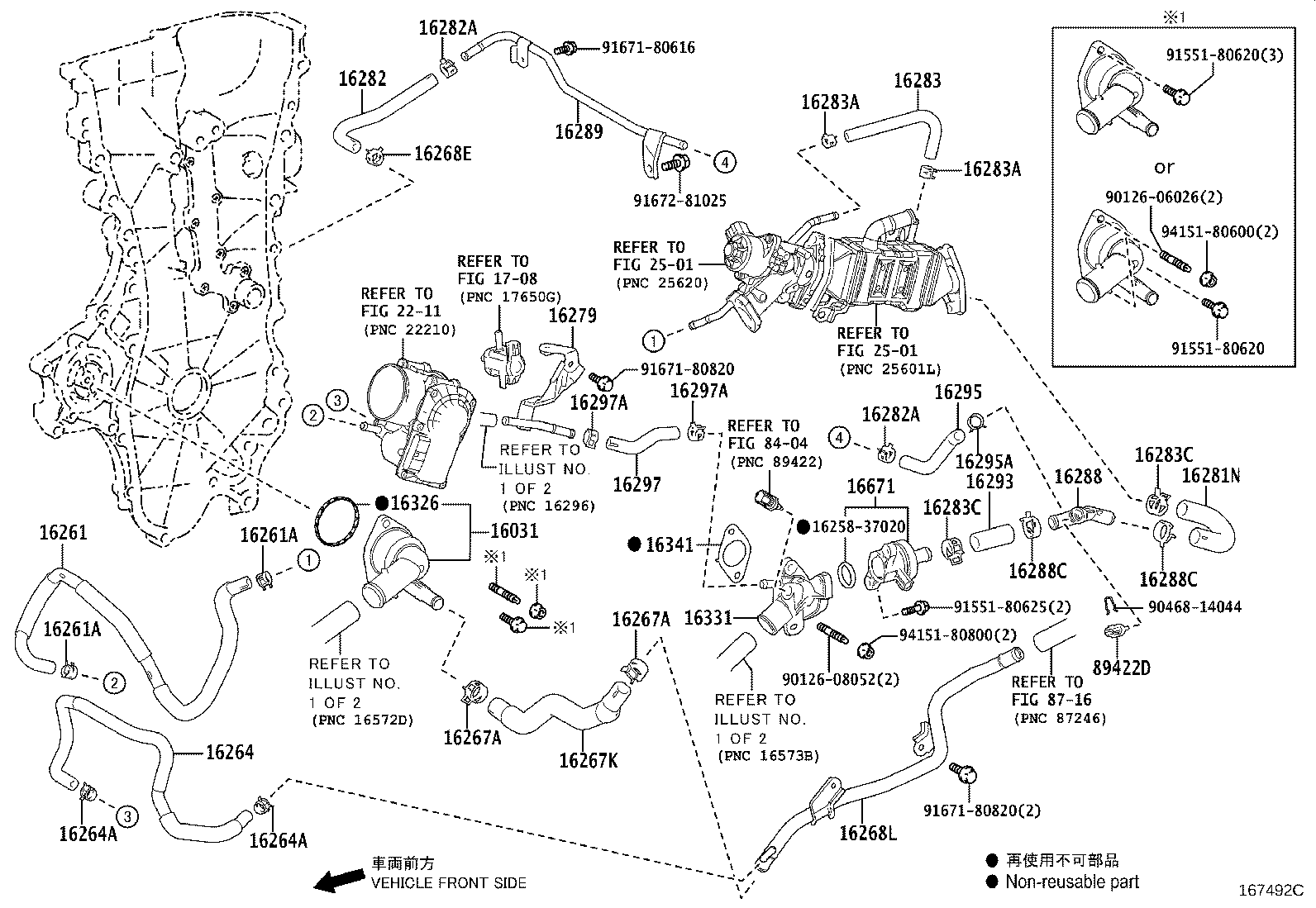

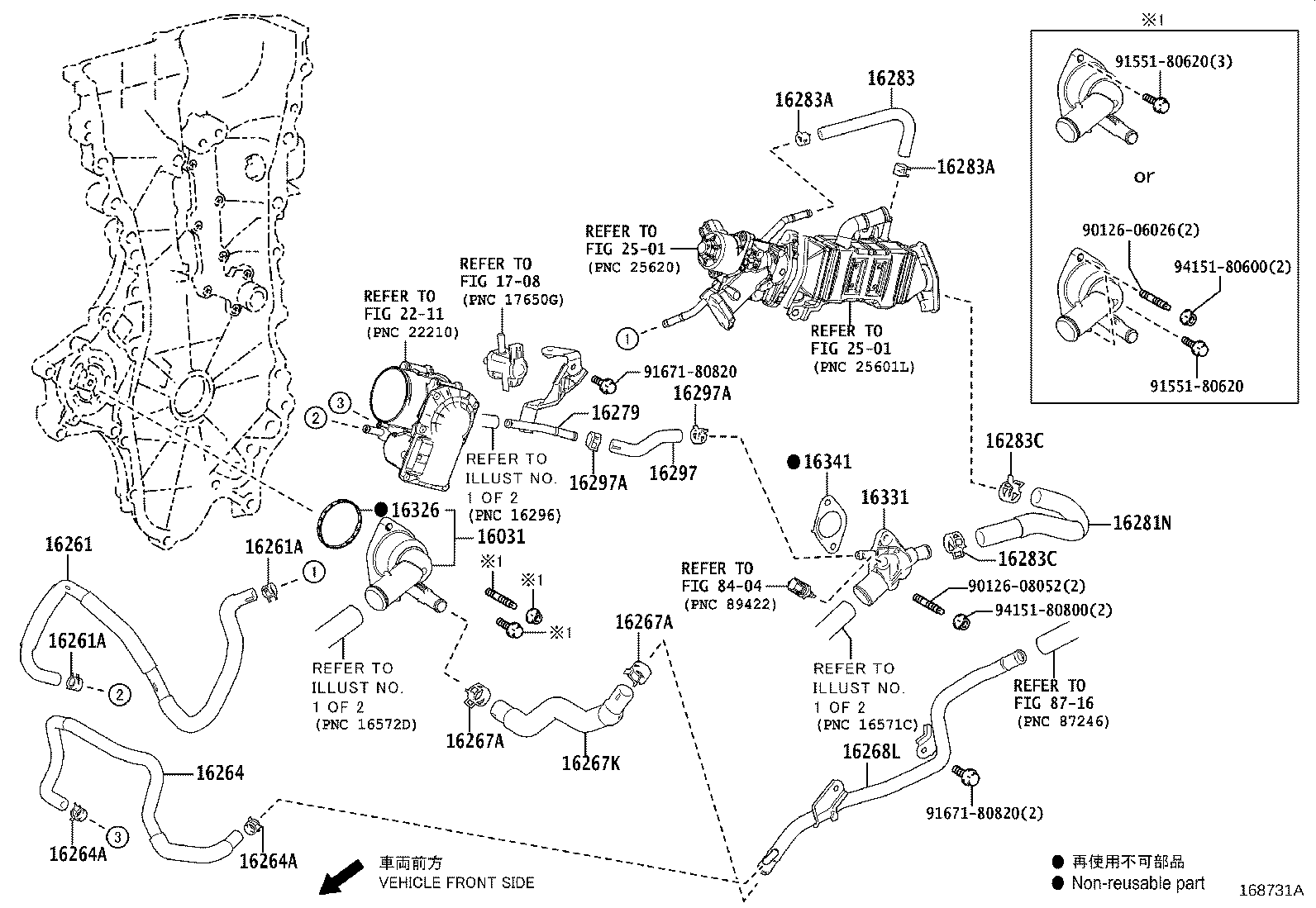

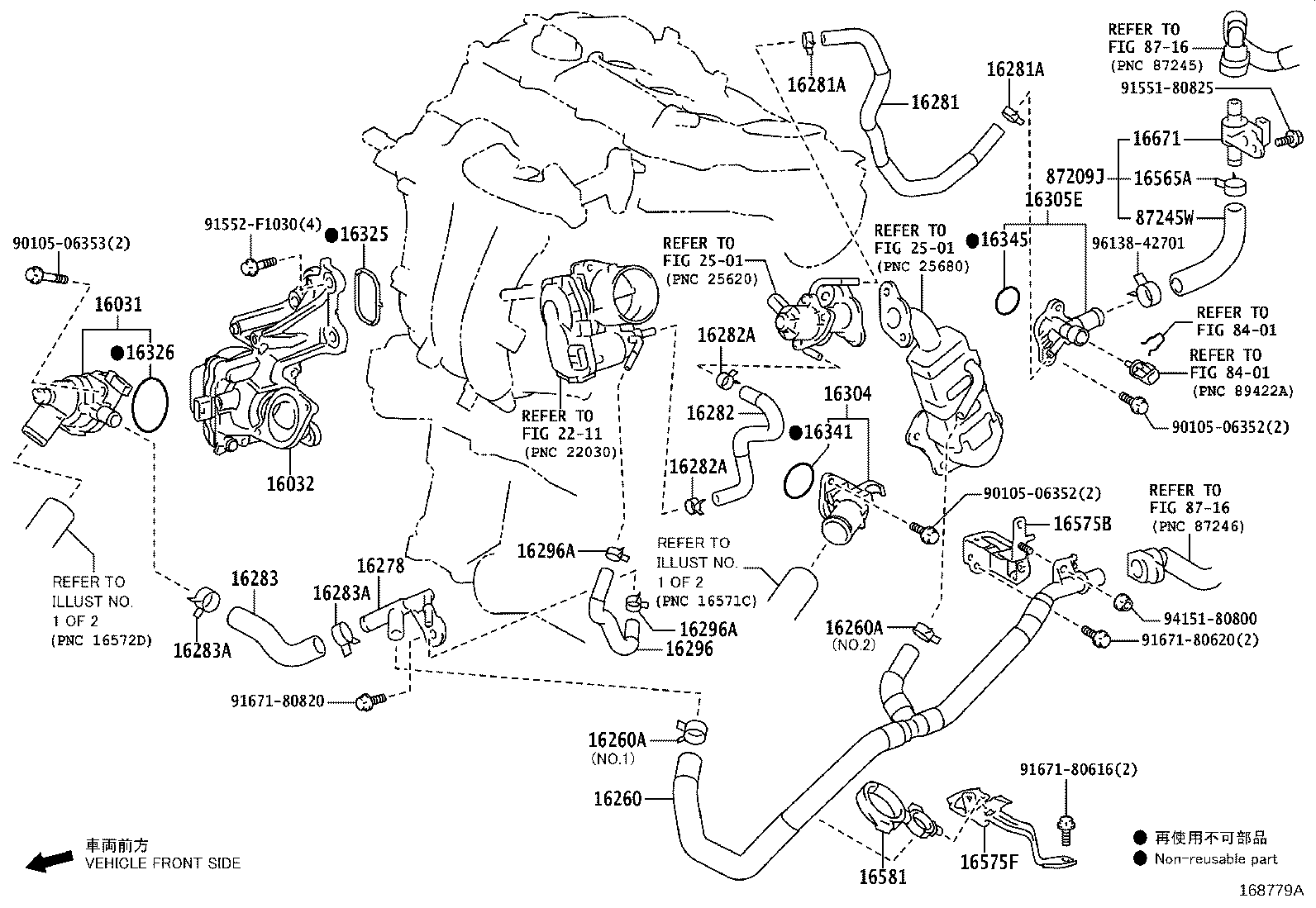

Figure 167696 167696 2020-06 → — Figure 167697B 167697B 2020-06 → — Figure 168778A 168778A 2022-10 → — Figure 168779A 168779A 2022-10 → — Figure 167443 167443 2019-08 → — Figure 167444A 167444A 2019-08 → — Figure 167445A 167445A 2019-08 → — Figure 167489B 167489B 2019-08 → — Figure 167491B 167491B 2019-08 → 2020-10 Figure 167888 167888 2020-10 → — Figure 168730A 168730A 2022-10 → — Figure 167490B 167490B 2019-08 → — Figure 167492C 167492C 2019-08 → — Figure 168731B 168731B 2022-10 → —

Part groups

PNCDescription
12512C Bracket, Alternator, NO.2
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16031 Water Inlet Sub-assy, W/Thermostat
16032 Housing Sub-assy, Water Inlet W/Water Pump
161B0 Pump Assy, Electric Water
16206 Pipe Sub-assy, Water By-pass
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16260 Hose Assy, Water By-pass
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16260B Pipe Assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16261Q Hose, Water By-pass
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261Z Hose, Water By-pass, NO.1
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16264G Hose, Water By-pass, NO.3
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268E Clamp, Hose(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16268H Bolt, Union(FOR WATER BY-PASS PIPE)
16268L Pipe, Water By-pass
16278 Pipe, Water By-pass, NO.2
16278F Hose, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16281N Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16282F Hose, Water By-pass, NO.5
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283B Hose, Water By-pass
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16283D Hose, Water By-pass, NO.6
16284C Hose, Intercooler Water, NO.1
16284D Clip(FOR INTERCOOLER WATER HOSE NO.1)
16285C Hose, Intercooler Water, NO.2
16285D Clip(FOR INTERCOOLER WATER HOSE NO.2)
16286B Hose, Intercooler Water, NO.3
16286C Clip(FOR INTERCOOLER WATER HOSE NO.3)
16288 Pipe, Water By-pass, NO.4
16288C Clip(FOR WATER BY-PASS PIPE NO.4)
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16293 Hose, Water By-pass, NO.10
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16304 Outlet Sub-assy, Water
16305E Outlet Sub-assy, Water By-pass
16321 Inlet, Water
16322 Pipe, Water Inlet
16322A Ring, O(FOR WATER INLET)
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16336A Insert, Water Outlet
16341 Gasket, Water Outlet
16345 Gasket, Water Outlet Pipe
16347D Gasket, Water By-pass
16361 Fan
16361J Fan, RH
16361K Fan, LH
16363 Motor, Cooling Fan
16363F Motor, Cooling Fan, RH
16363G Motor, Cooling Fan, LH
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401A Cap Sub-assy, Radiator Reserve Tank
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16471B Cap, Reserve Tank
16475A Cap, Reserve Tank
16492 Ring, O(FOR RADIATOR RESERVE TANK COCK)
164A0 Cock Assy, Reserve Tank
164A2 Tank, Reserve Sealed W/O Cap
16502 Filler Sub-assy, Water
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C Hose, Intercooler Cooling Water, NO.2
16552D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
16553C Clamp, Hose
16553D Hose, Intercooler Cooling Water, NO.3
16553E Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
16554C Hose, Intercooler Cooling Water, NO.4
16554D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16555C Hose, Intercooler Cooling Water, NO.5
16555D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16556C Hose, Intercooler Cooling Water, NO.6
16556D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16565A Clip
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16575A Clip, Radiator Hose, NO.5
16575B Bracket, Water Hose Clamp, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16575F Bracket, Water Hose Clamp, NO.3
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16640 Tank Assy, Intercooler Reserve
16671 Valve, Water
16711 Shroud, Fan
87208M Pipe Sub-assy, Water
87209J Hose Sub-assy, Water
87245W Hose, Water
87248R Pipe, Water
89422D Sensor, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
