Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

26 part groups · 7 illustrations

Illustrations

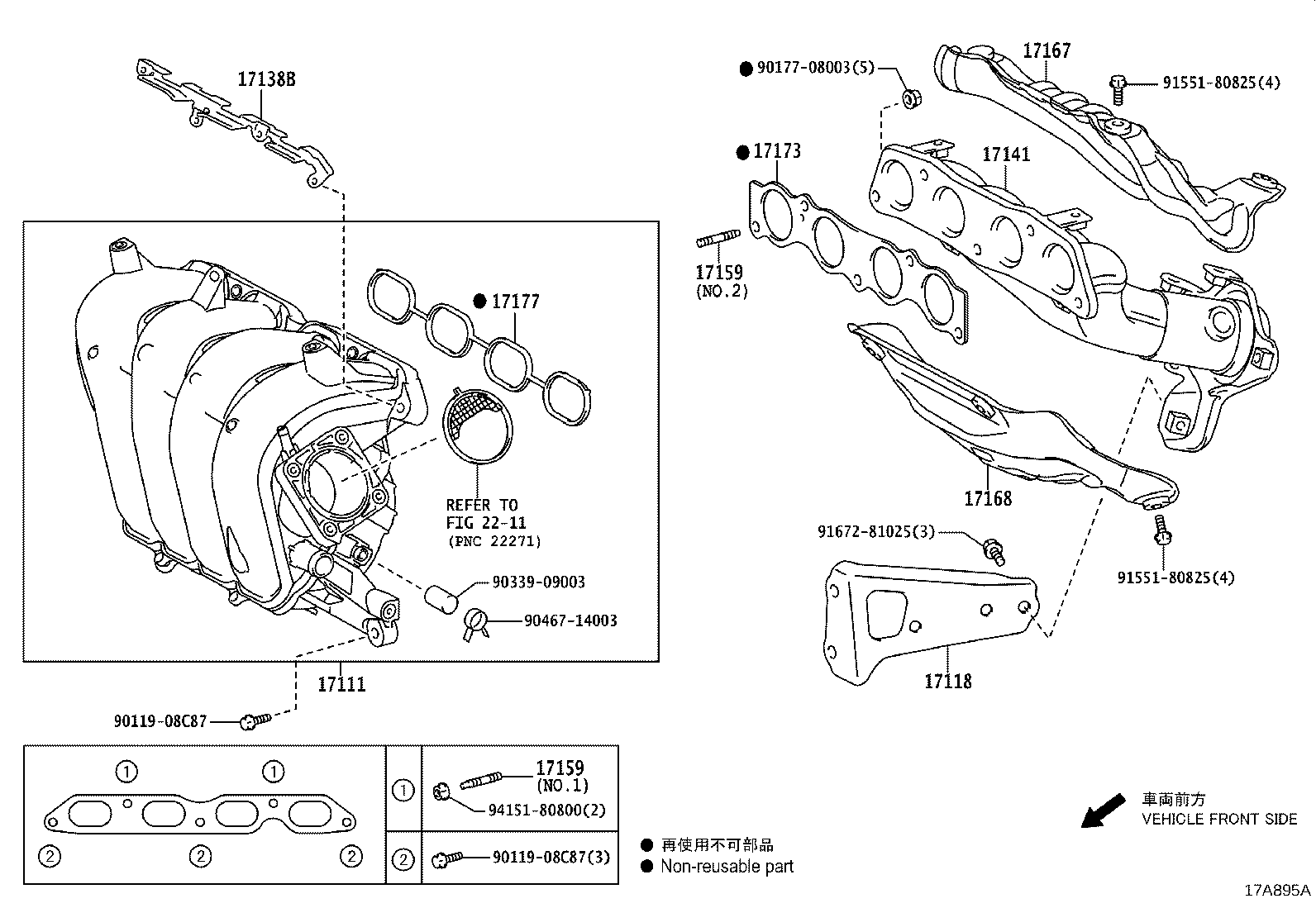

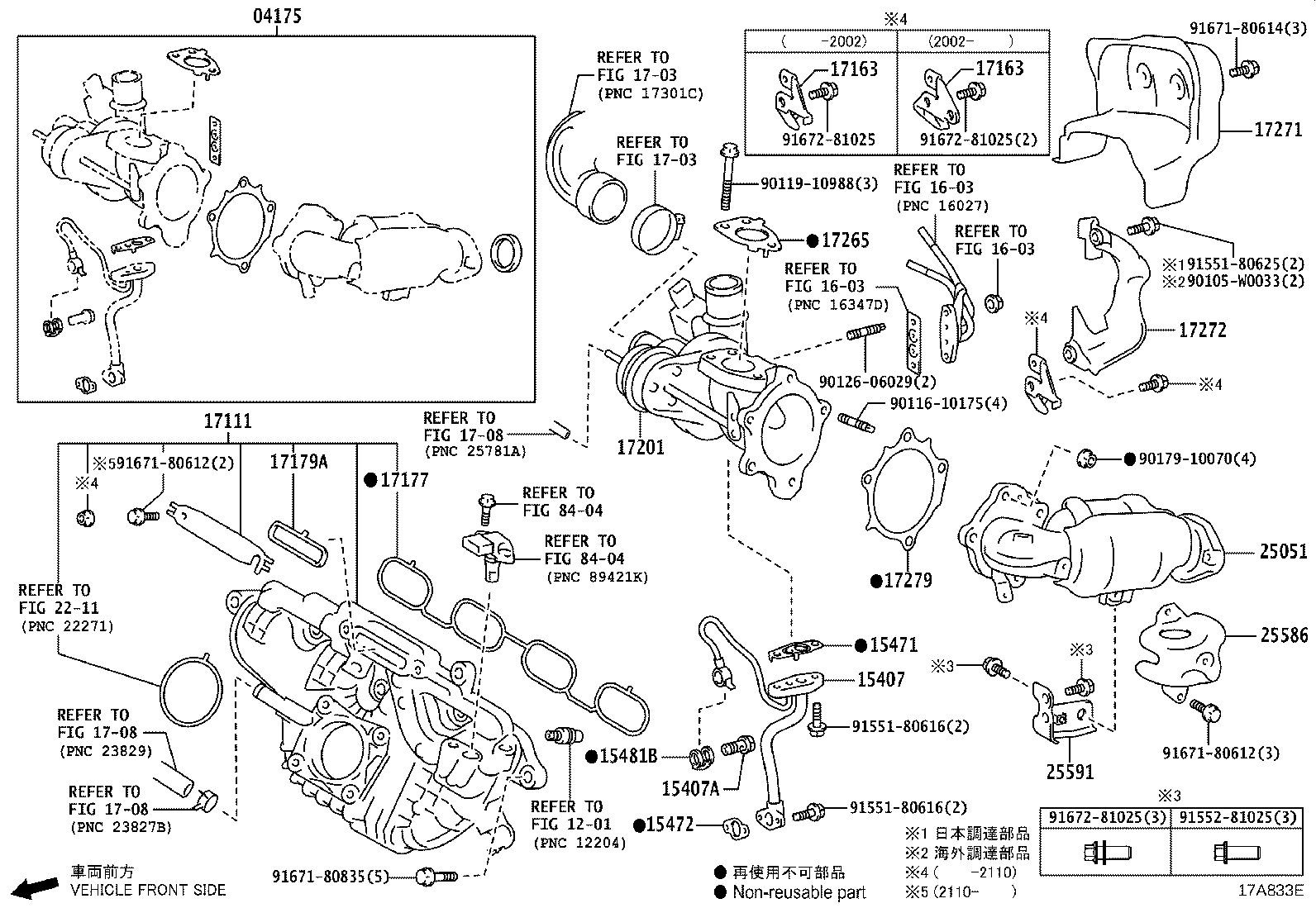

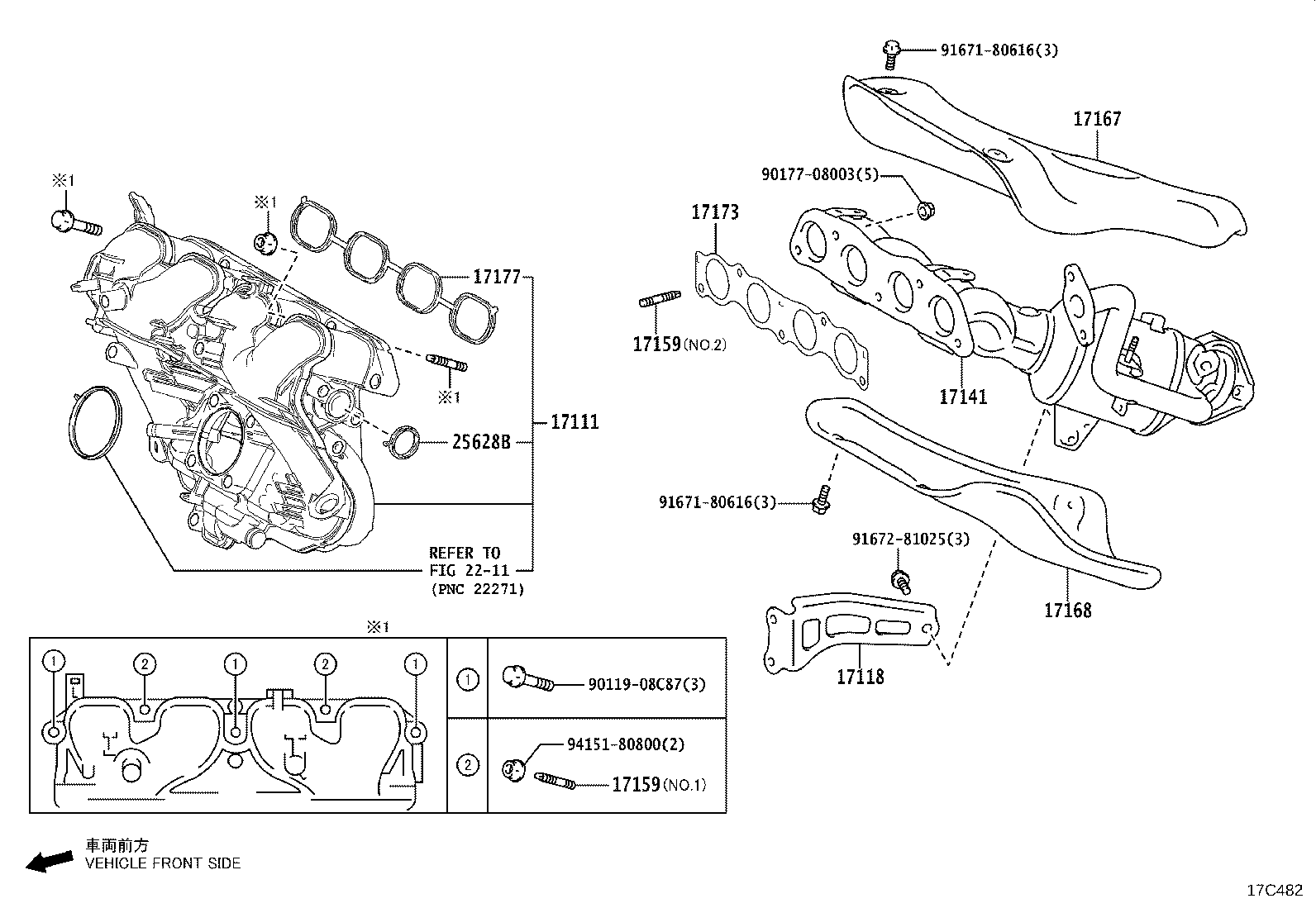

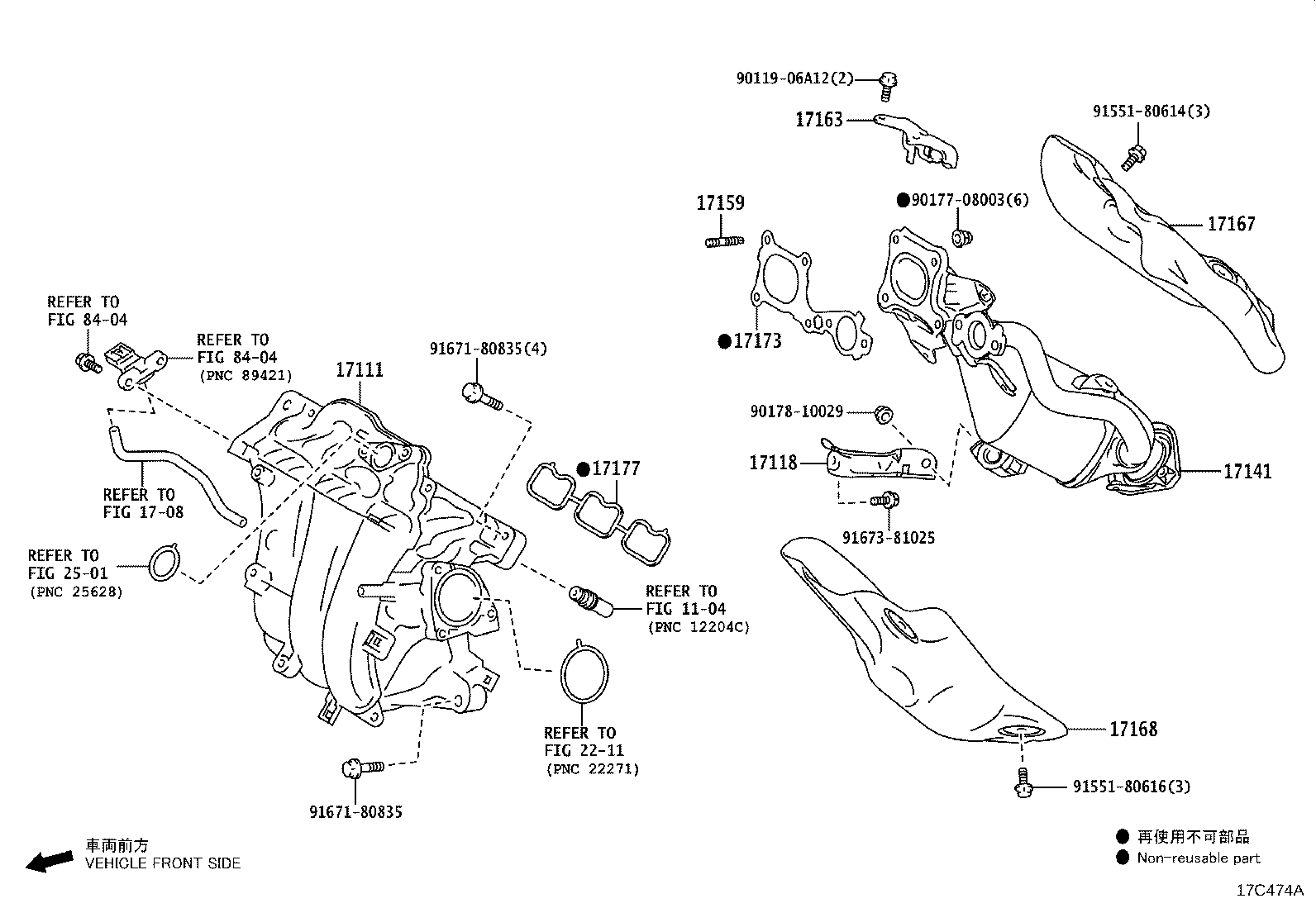

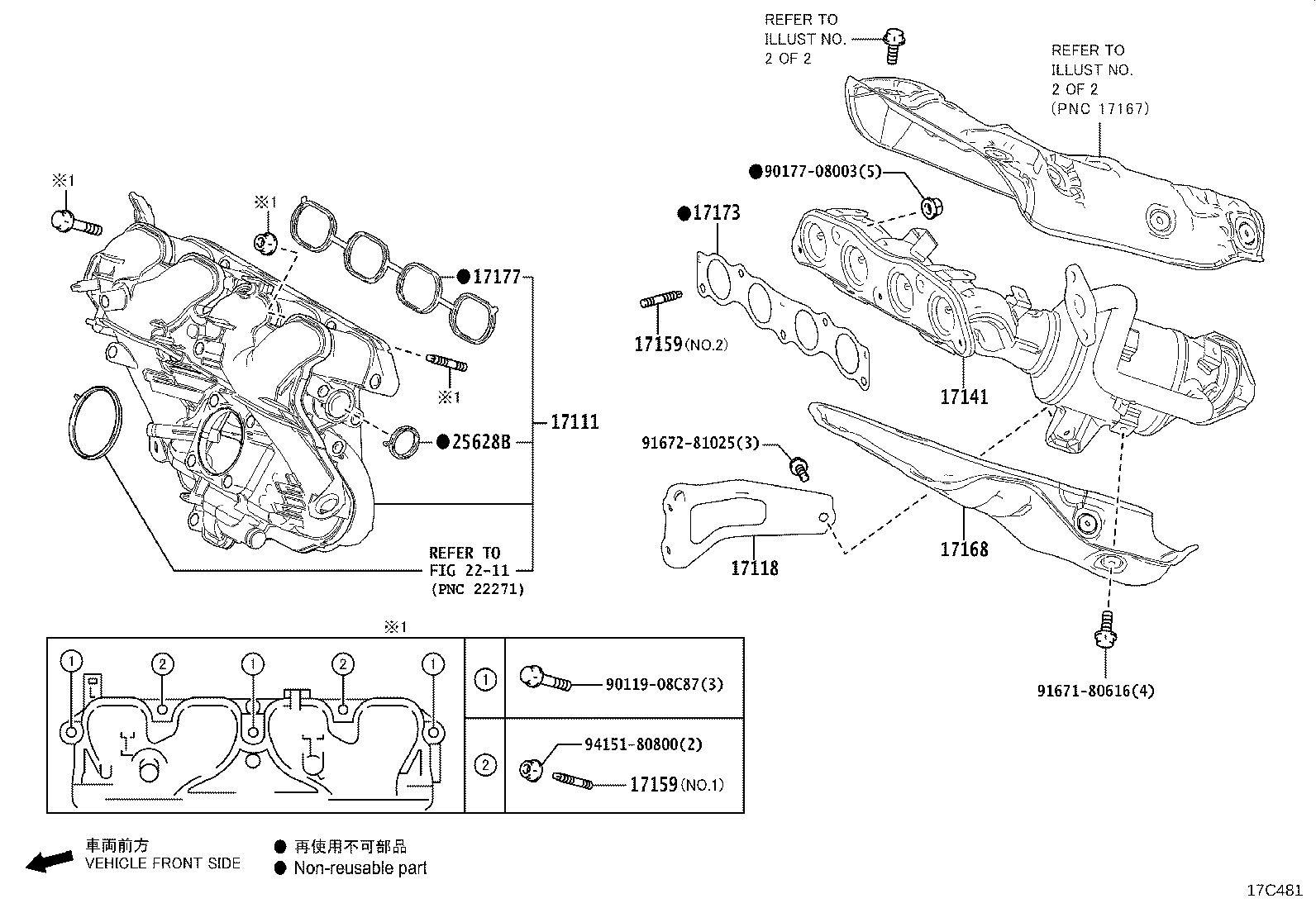

Figure 17B184A 17B184A 2020-06 → — Figure 17C474A 17C474A 2022-10 → — Figure 17A833E 17A833E 2019-08 → — Figure 17A895A 17A895A 2019-08 → — Figure 17C481 17C481 2019-08 → — Figure 17C054 17C054 2019-08 → — Figure 17C482 17C482 2022-10 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17265 Gasket, Turbocharger
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17279 Gasket, Turbine Outlet Elbow
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25591 Bracket, Manifold Support
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
