Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

7 part groups · 7 illustrations

Illustrations

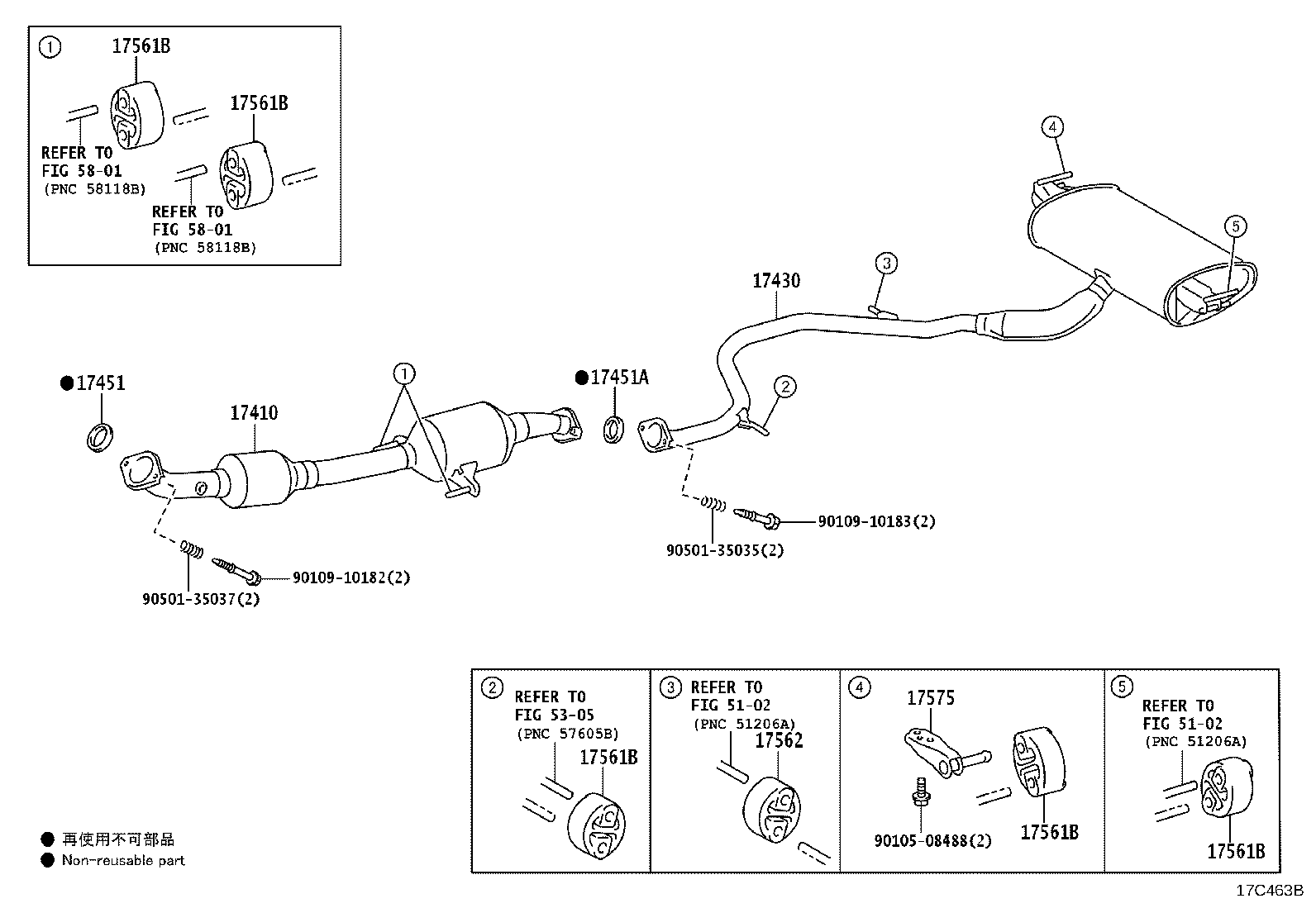

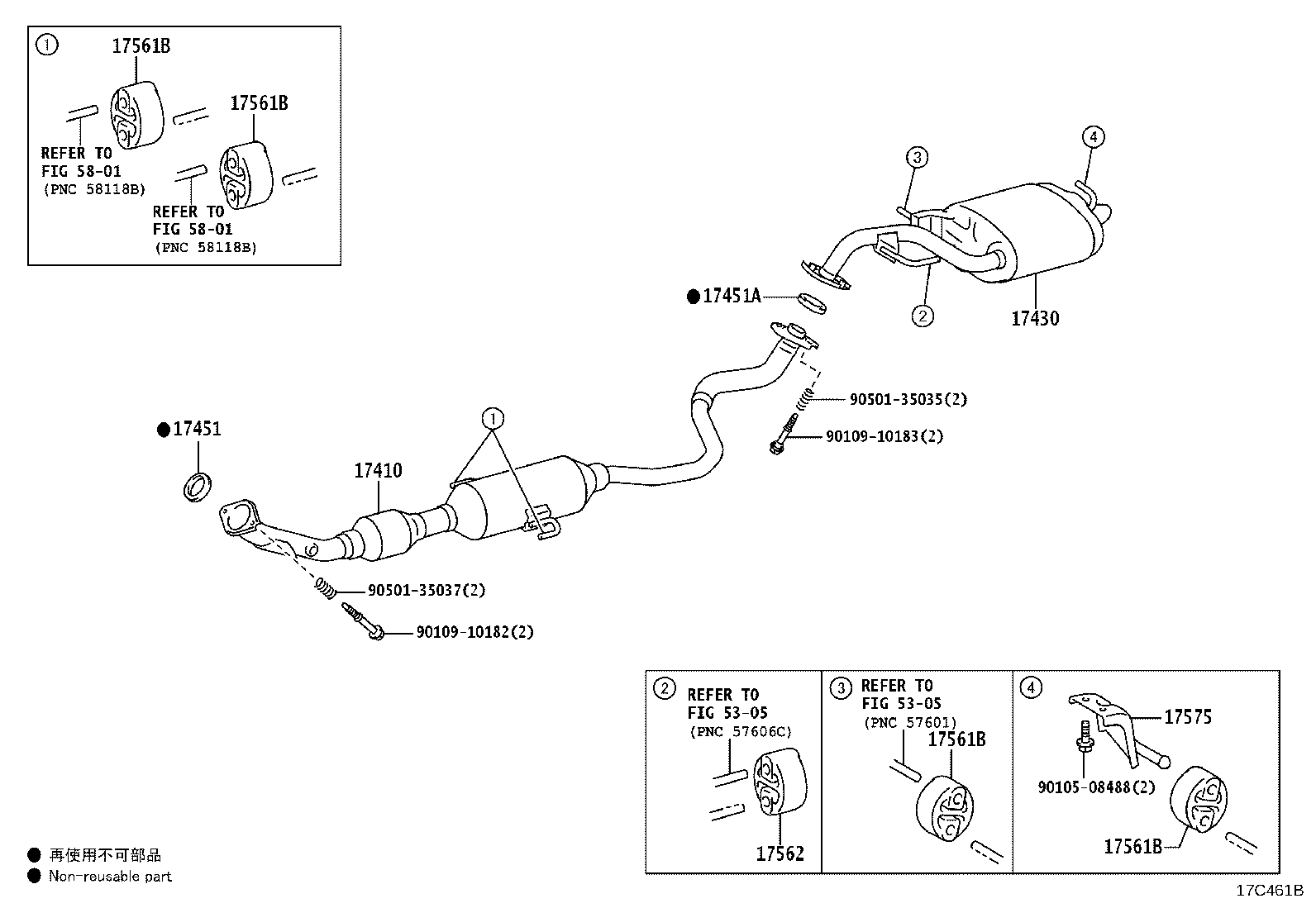

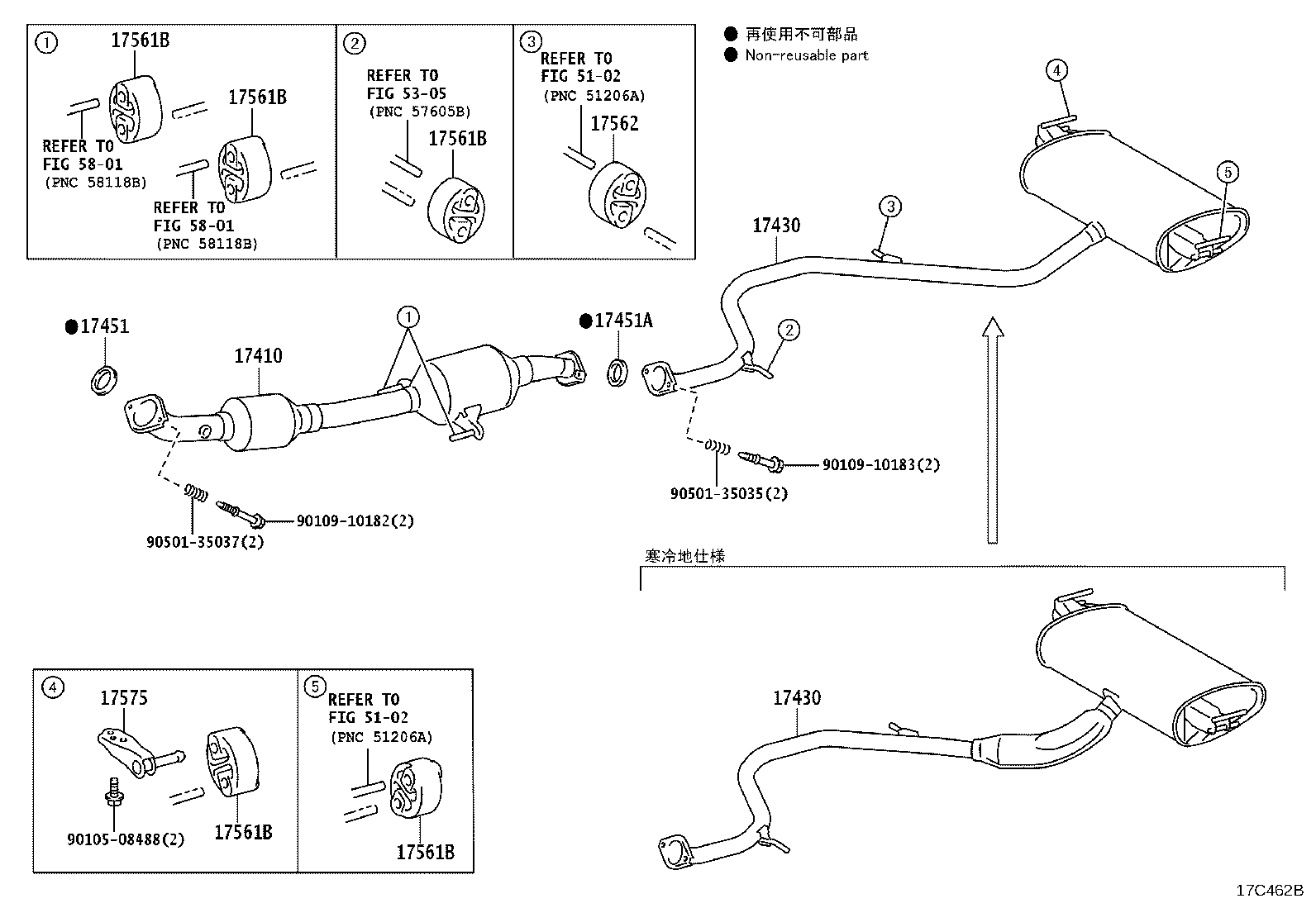

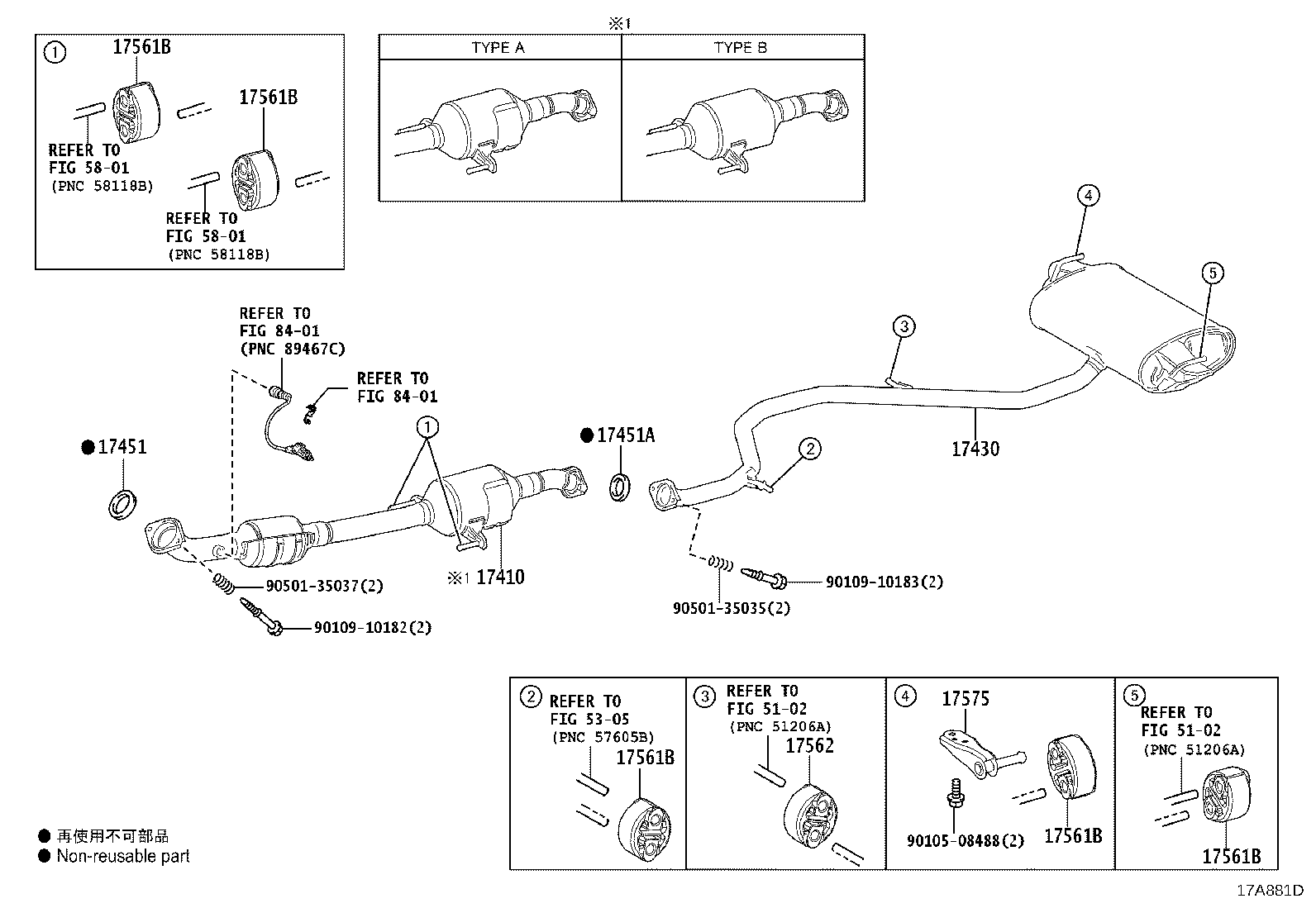

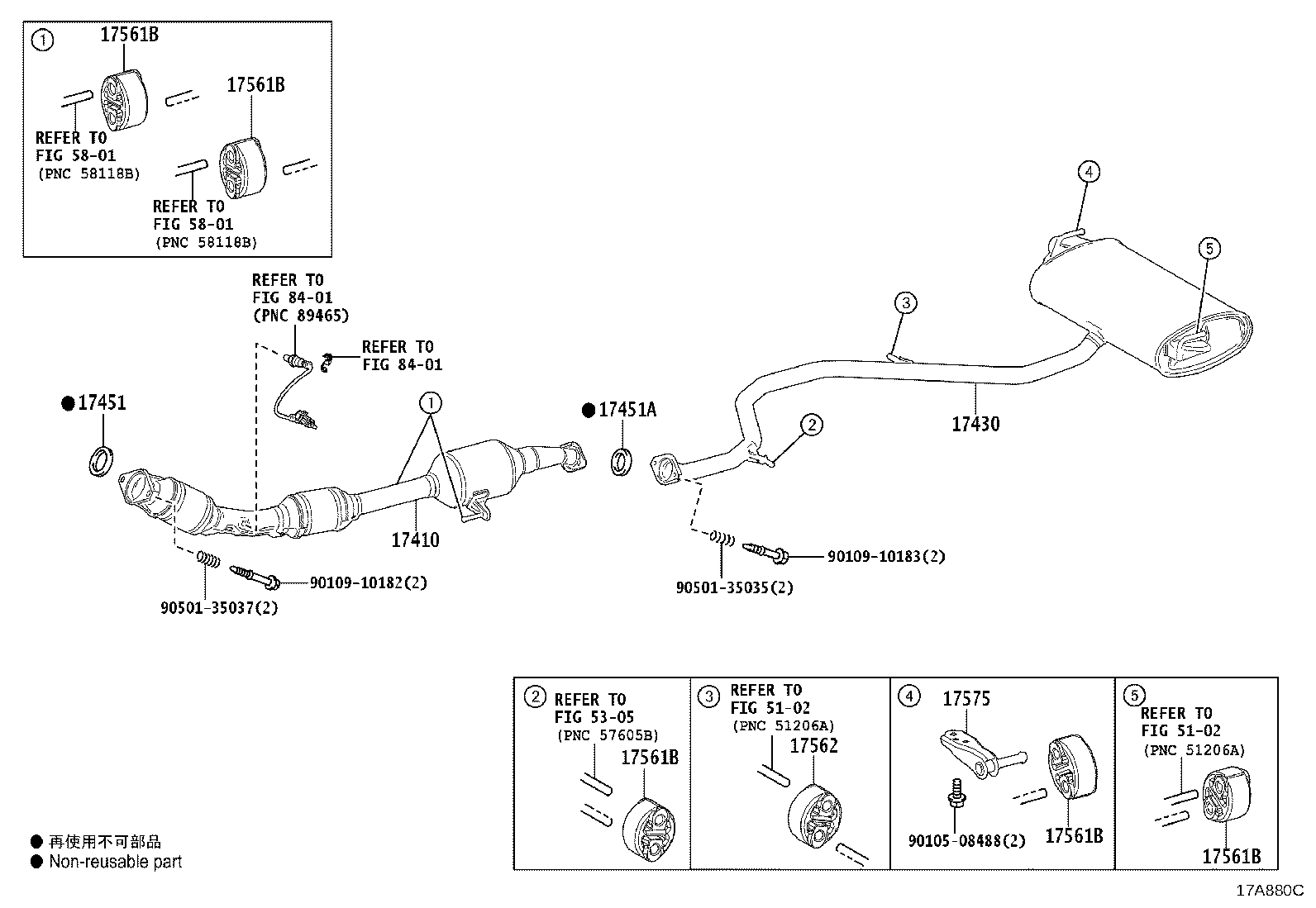

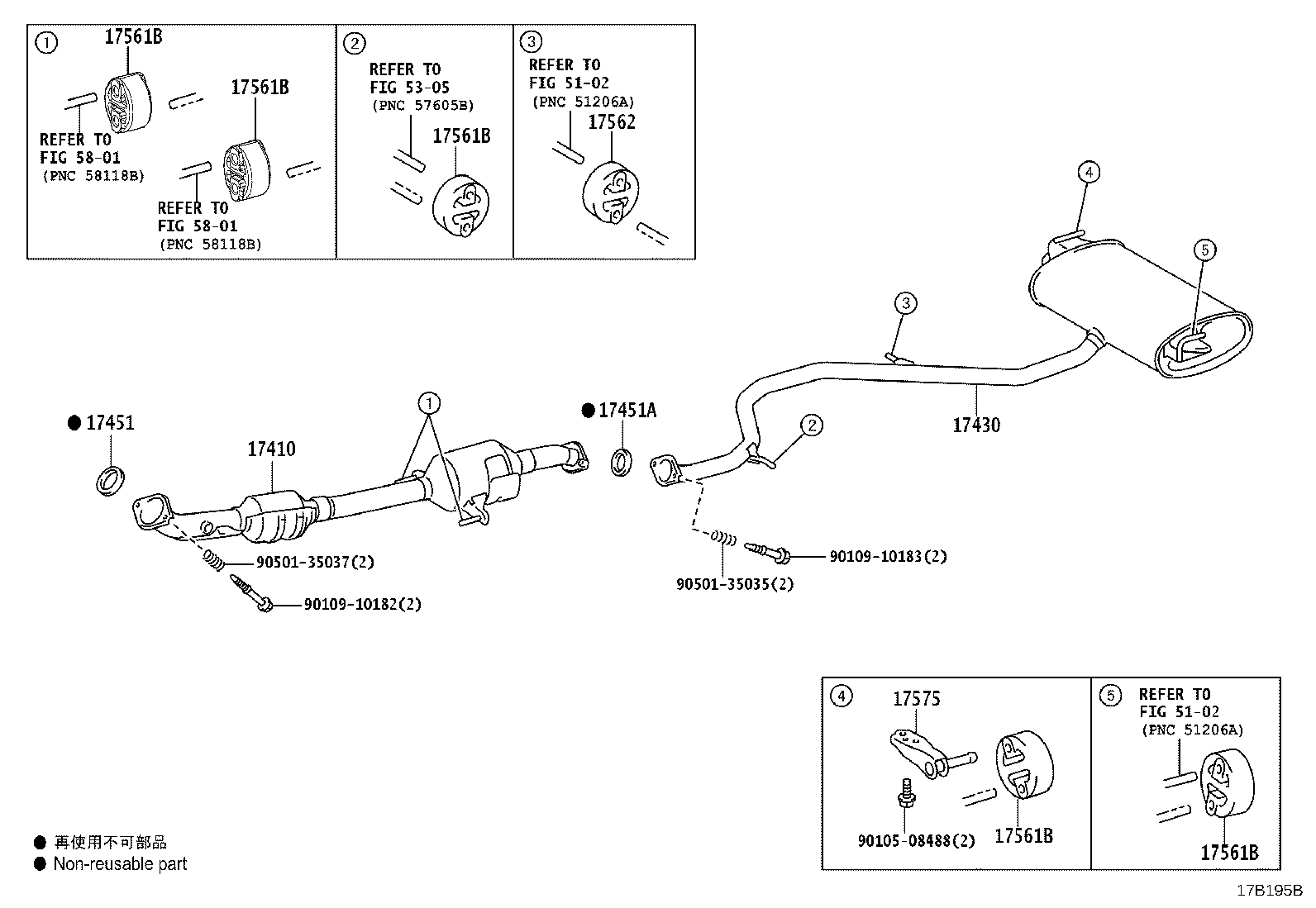

Figure 17A879C 17A879C 2019-08 → — Figure 17A880C 17A880C 2019-08 → — Figure 17A881D 17A881D 2019-08 → — Figure 17B195B 17B195B 2020-06 → — Figure 17C461B 17C461B 2022-10 → — Figure 17C462B 17C462B 2022-10 → — Figure 17C463B 17C463B 2022-10 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
