Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

13 part groups · 3 illustrations

Illustrations

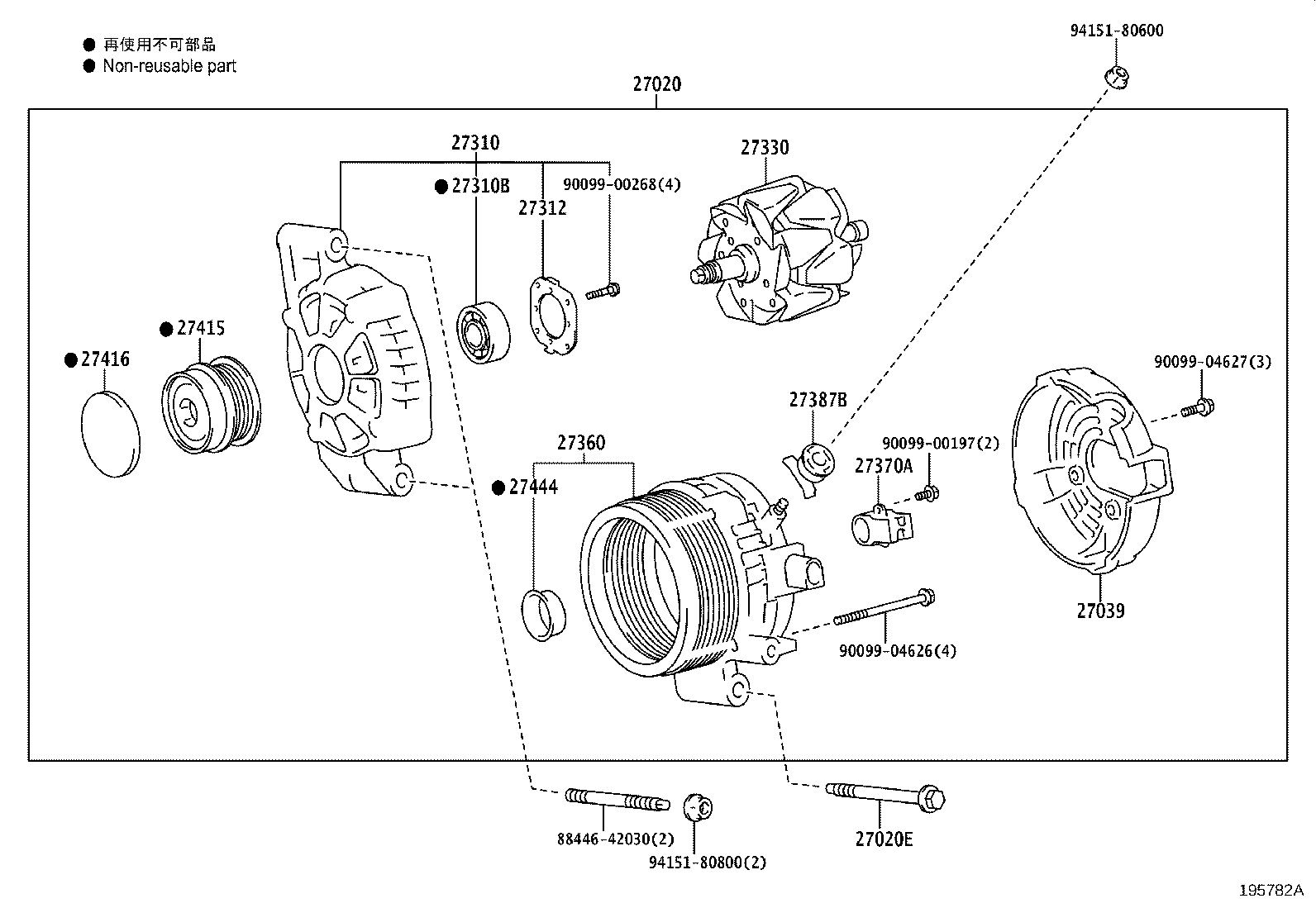

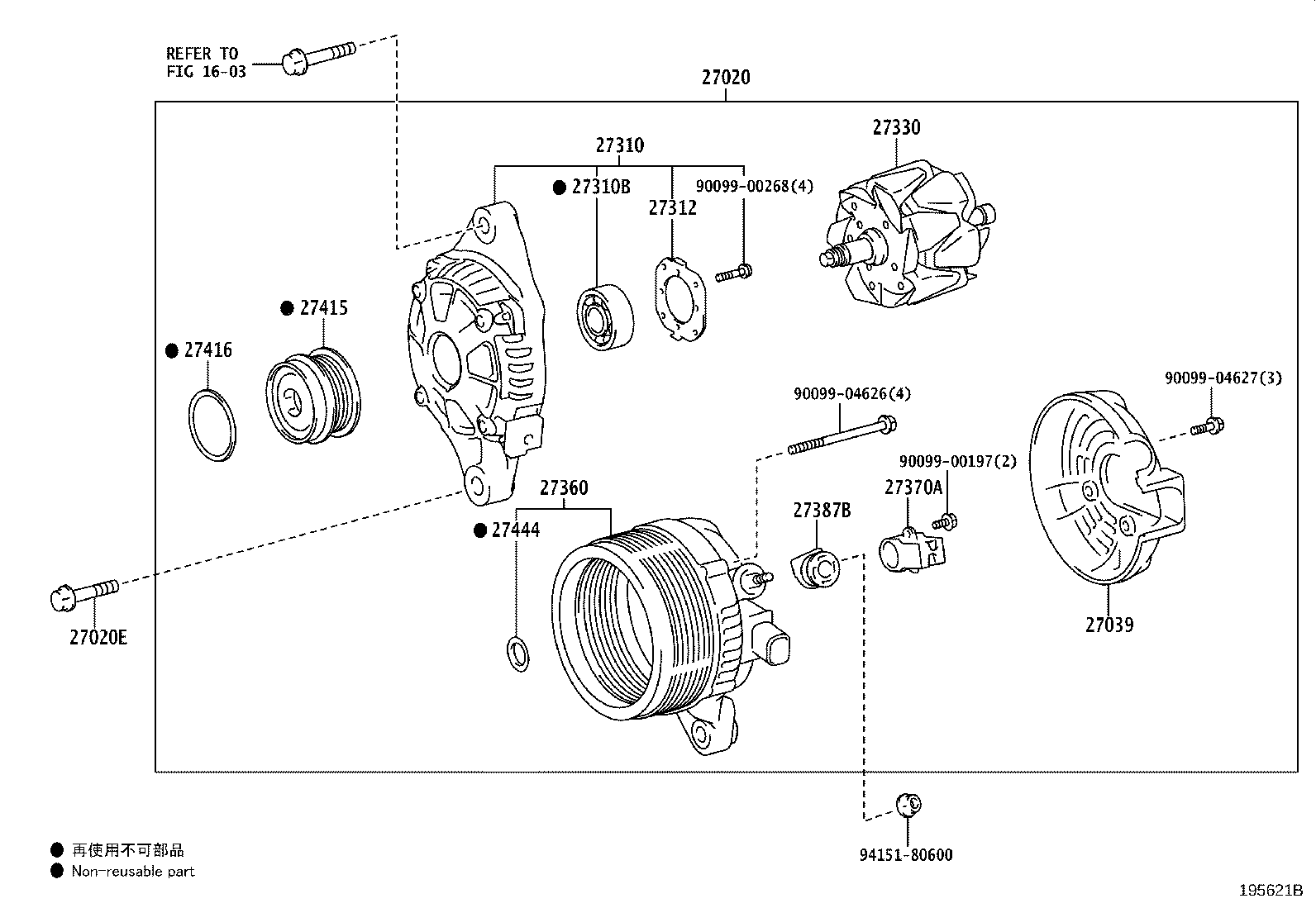

Figure 195620B 195620B 2019-08 → — Figure 195621B 195621B 2019-08 → — Figure 195782A 195782A 2020-06 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370A Holder Assy, Alternator Brush
27387B Insulator, Alternator Terminal
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
