Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04

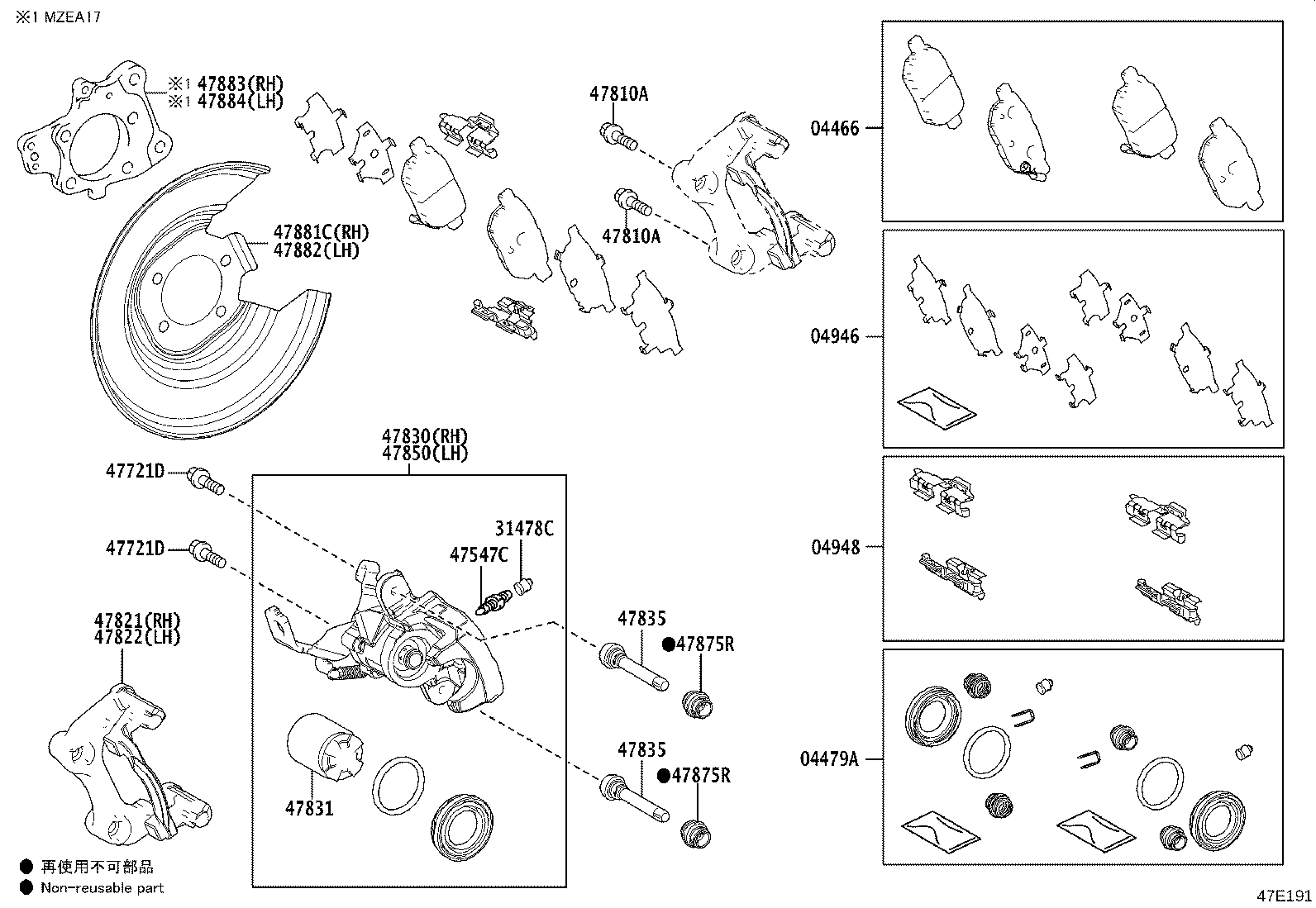

Rear Disc Brake Caliper & Dust Cover
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47721D | Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) |
| 47769A | Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
| 47814 | Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) |
| 47815 | Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE) |
| 47821 | Mounting, Rear Disc Brake Cylinder, RH |
| 47822 | Mounting, Rear Disc Brake Cylinder, LH |
| 47830 | Cylinder Assy, Disc Brake, Rear RH |
| 47831 | Piston, Rear Disc Brake |
| 47835 | Pin, Rear Disc Brake Pad Guide |
| 47850 | Cylinder Assy, Disc Brake, Rear LH |
| 47875R | Boot, Bush Dust(FOR REAR DISC BRAKE) |
| 47881C | Cover, Disc Brake Dust, Rear RH |
| 47882 | Cover, Disc Brake Dust, Rear LH |
| 47883 | Bracket, Caliper Support, Rear RH |
| 47884 | Bracket, Caliper Support, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
