Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

26 part groups · 3 illustrations

Illustrations

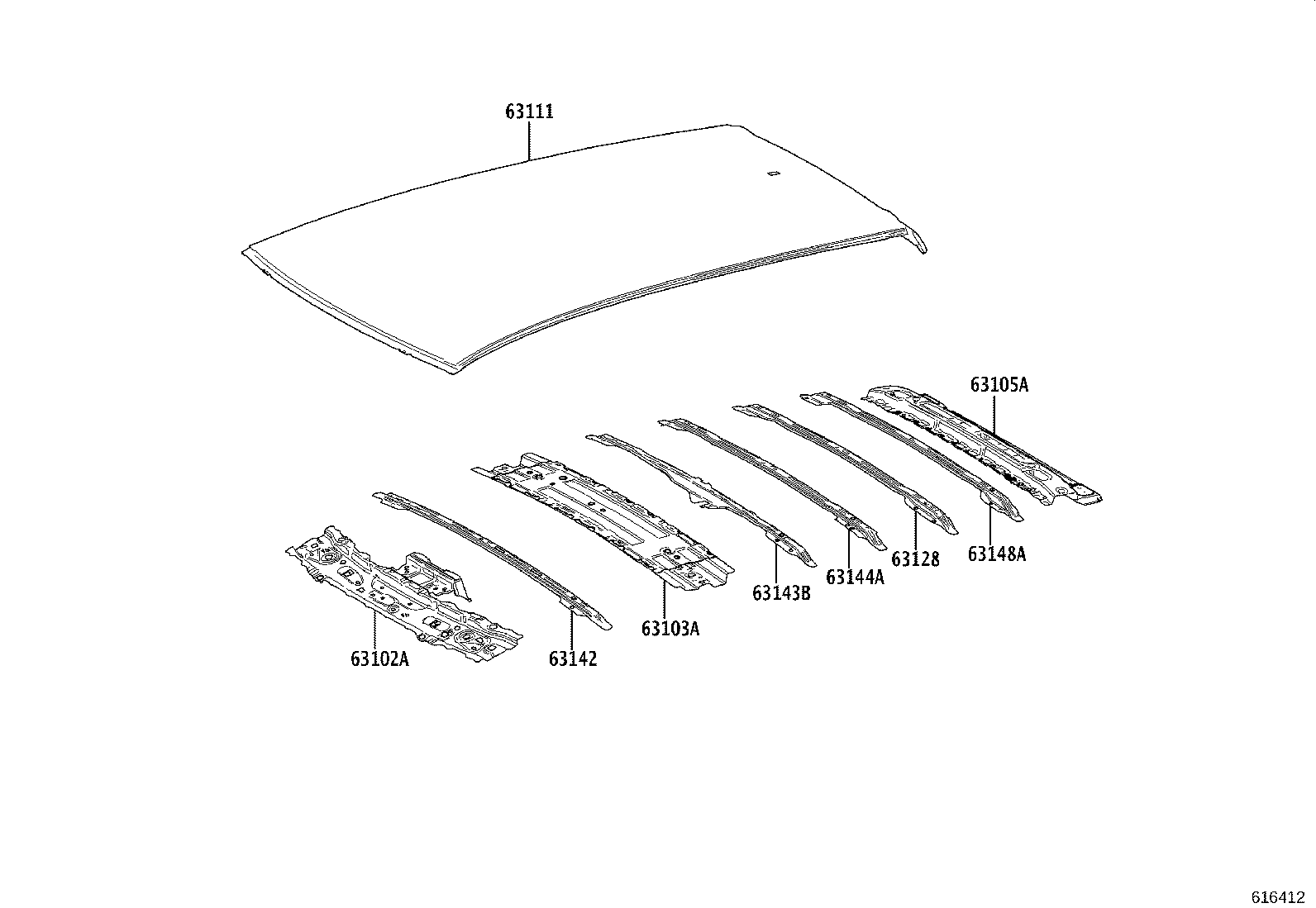

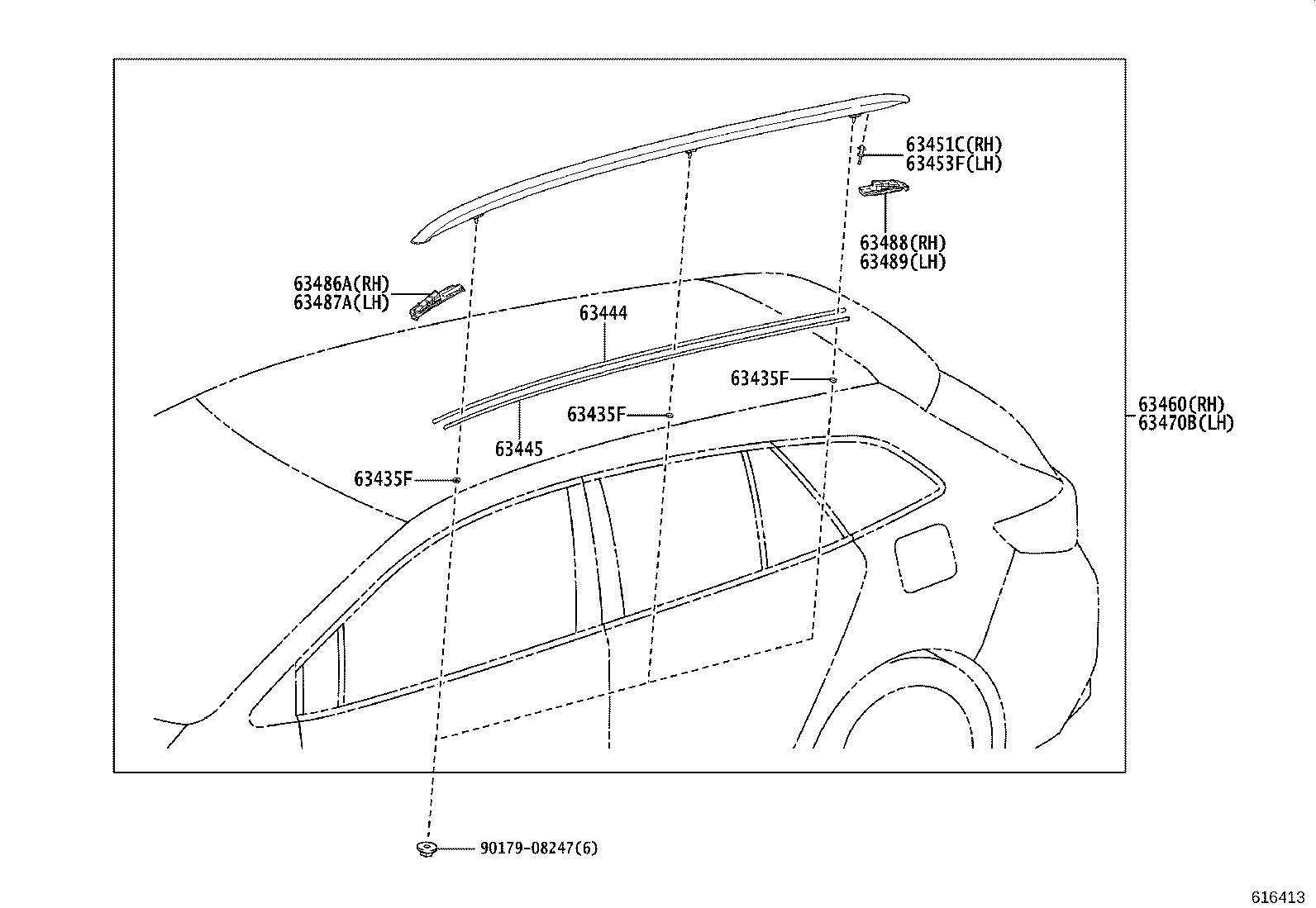

Figure 616411C 616411C 2019-08 → — Figure 616412 616412 2019-09 → — Figure 616413 616413 2019-09 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63128 Reinforcement, Roof Panel, NO.6
63133B Frame, Back Window
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63435F Seal, Roof Carrier, NO.1
63444 Protector, Roof Carrier, NO.1
63445 Protector, Roof Carrier, NO.2
63451C Retainer, Roof Rack, Front RH
63453F Retainer, Roof Rack, Front LH
63460 Rack Assy, Roof
63470B Rack Assy, Roof, LH
63486A Cushion, Roof Rack Leg, Front RH
63487A Cushion, Roof Rack Leg, Front LH
63488 Cushion, Roof Rack Leg, Rear RH
63489 Cushion, Roof Rack Leg, Rear LH
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
