Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 6 illustrations

Illustrations

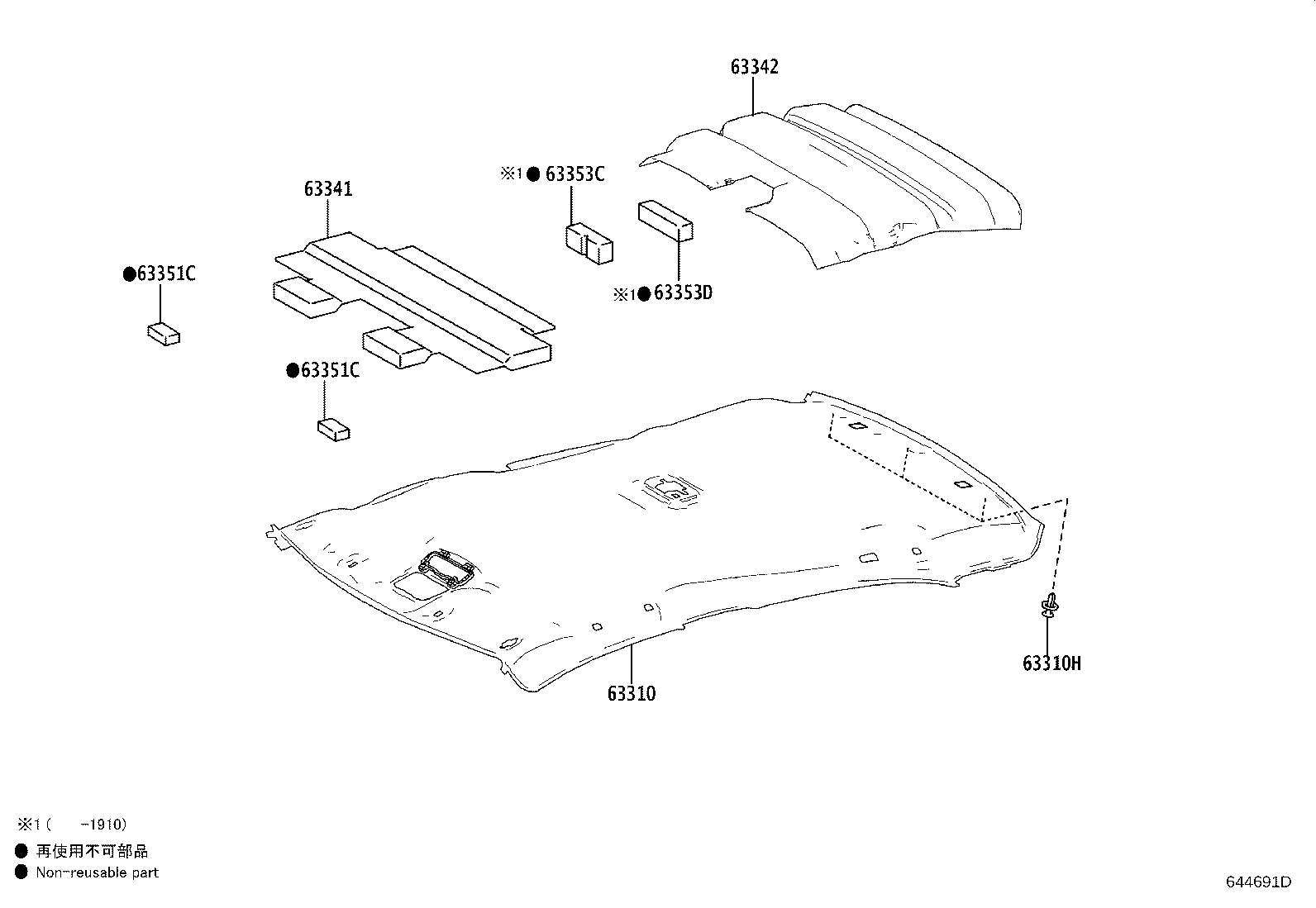

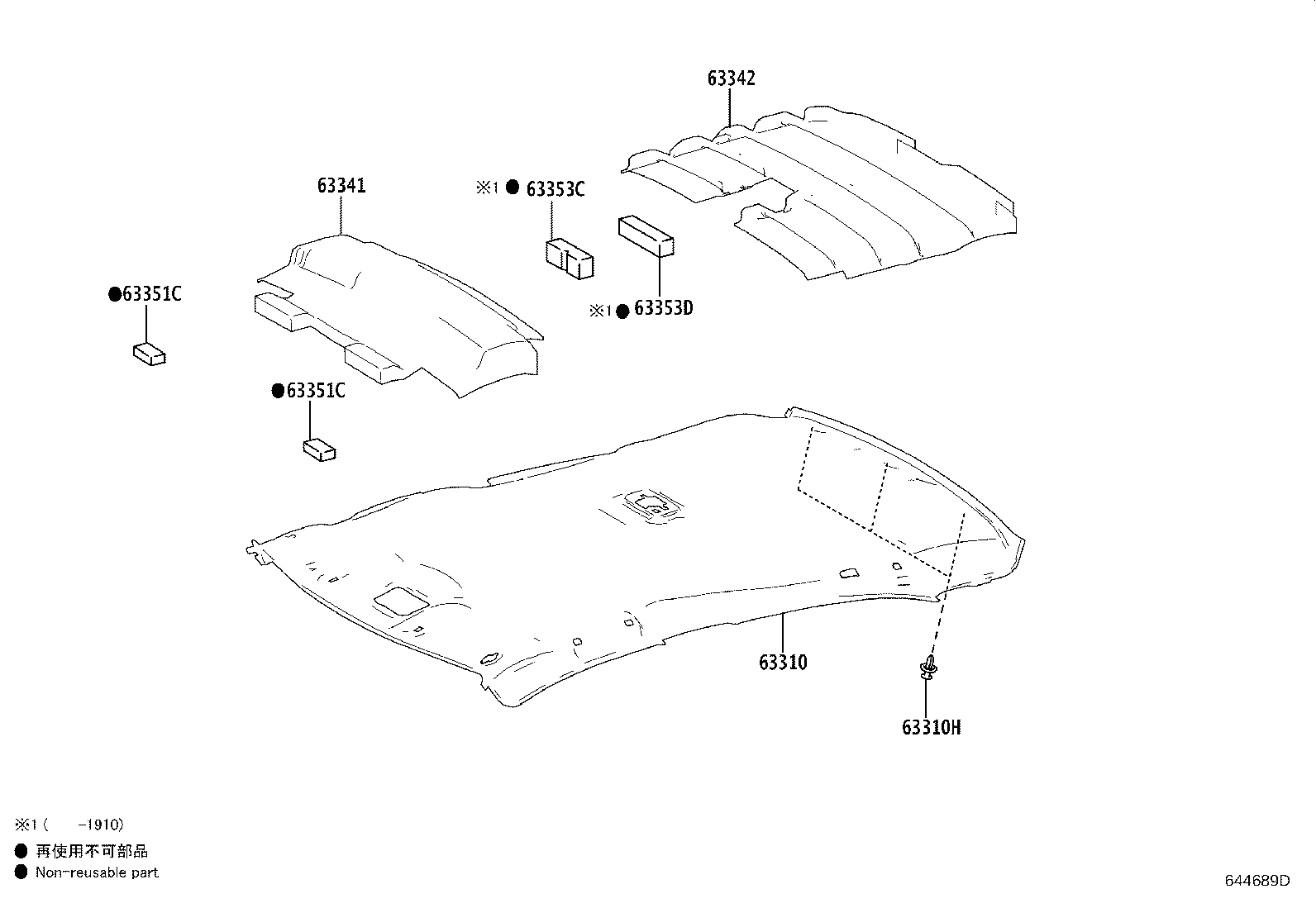

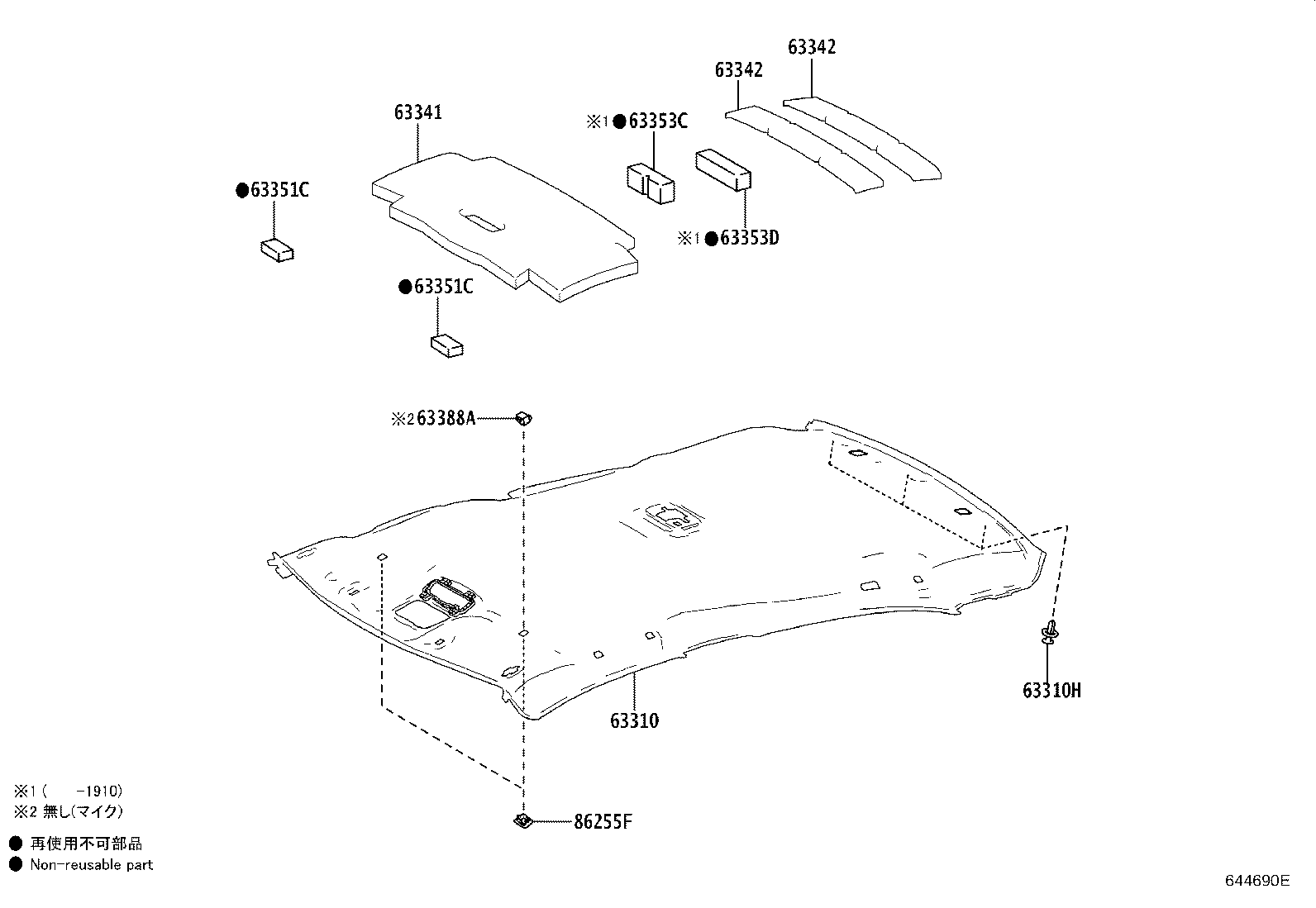

Figure 644688E 644688E 2019-08 → — Figure 644688E 644688E 2021-08 → — Figure 644689D 644689D 2019-08 → 2021-08 Figure 644690E 644690E 2019-09 → — Figure 644690E 644690E 2021-08 → — Figure 644691D 644691D 2019-09 → 2021-08

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351C Pad, Roof Headlining
63353C Pad, Roof Headlining, Center
63353D Pad, Roof Headlining, Center
63388A Cover, Roof Headlining Holder
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
