Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04
Package Tray Panel & Luggage Compartment Mat

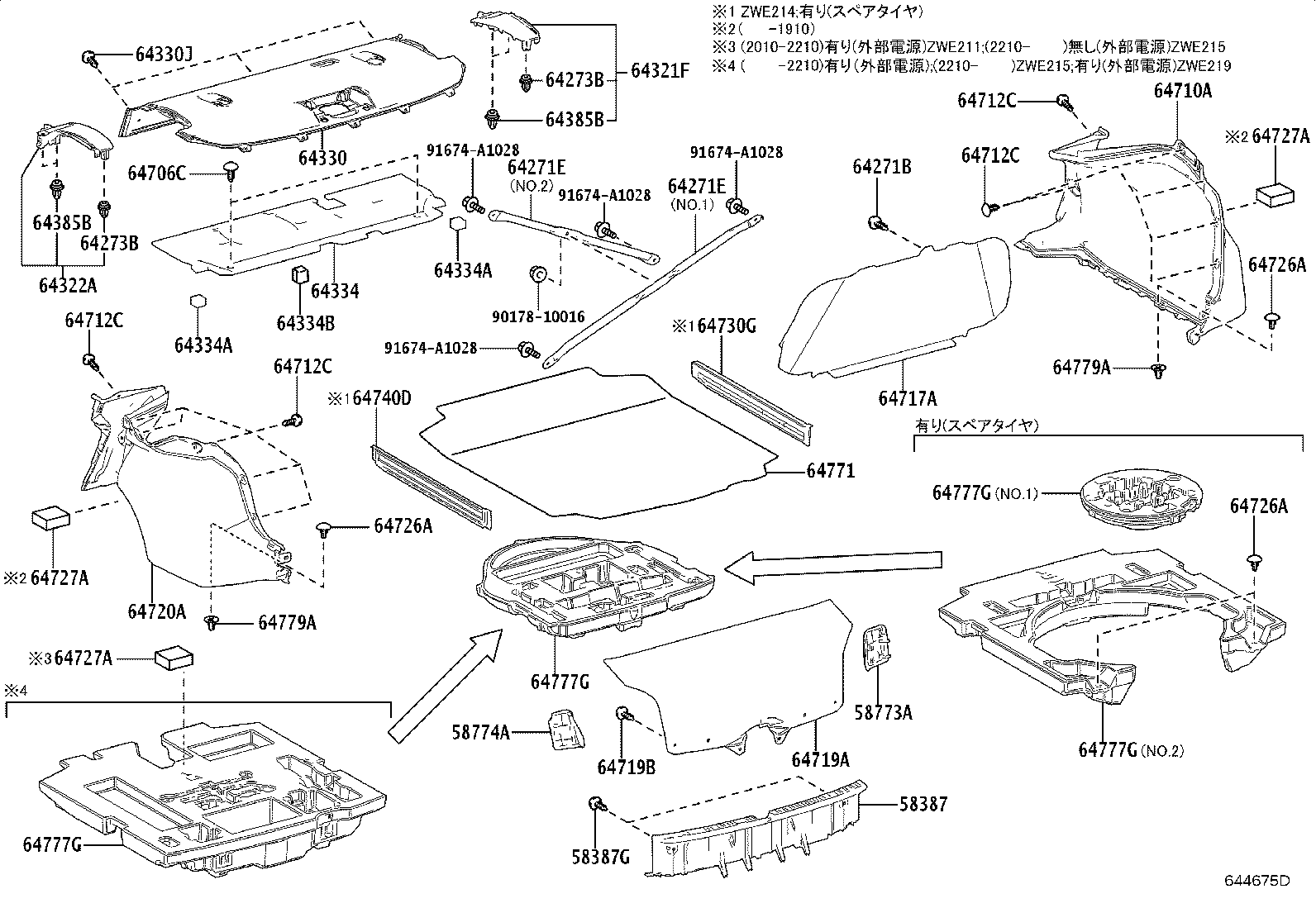

29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387G | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58773A | Cover, Luggage Compartment Side, RH |
| 58774A | Cover, Luggage Compartment Side, LH |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271E | Panel, Room Partition |
| 64273B | Clip |
| 64321F | Bracket, Package Tray Trim, RH |
| 64322A | Bracket, Package Tray Trim, LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64334 | Pad, Package Tray Trim Silencer |
| 64334A | Pad, Package Tray Trim |
| 64334B | Pad, Package Tray Trim, NO.2 |
| 64385B | Clip |
| 64706C | Clip |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64720A | Cover Assy, Luggage Compartment Trim, LH |
| 64726A | Clip, Luggage Trim, Rear |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64730G | Board, Deck Trim Side, RH |
| 64740D | Board, Deck Trim Side, LH |
| 64771 | Cover, Spare Wheel |
| 64777G | Cushion, Spare Wheel |
| 64779A | Stopper, Spare Wheel Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
