Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

3 part groups · 4 illustrations

Illustrations

745002 2019-08 → —

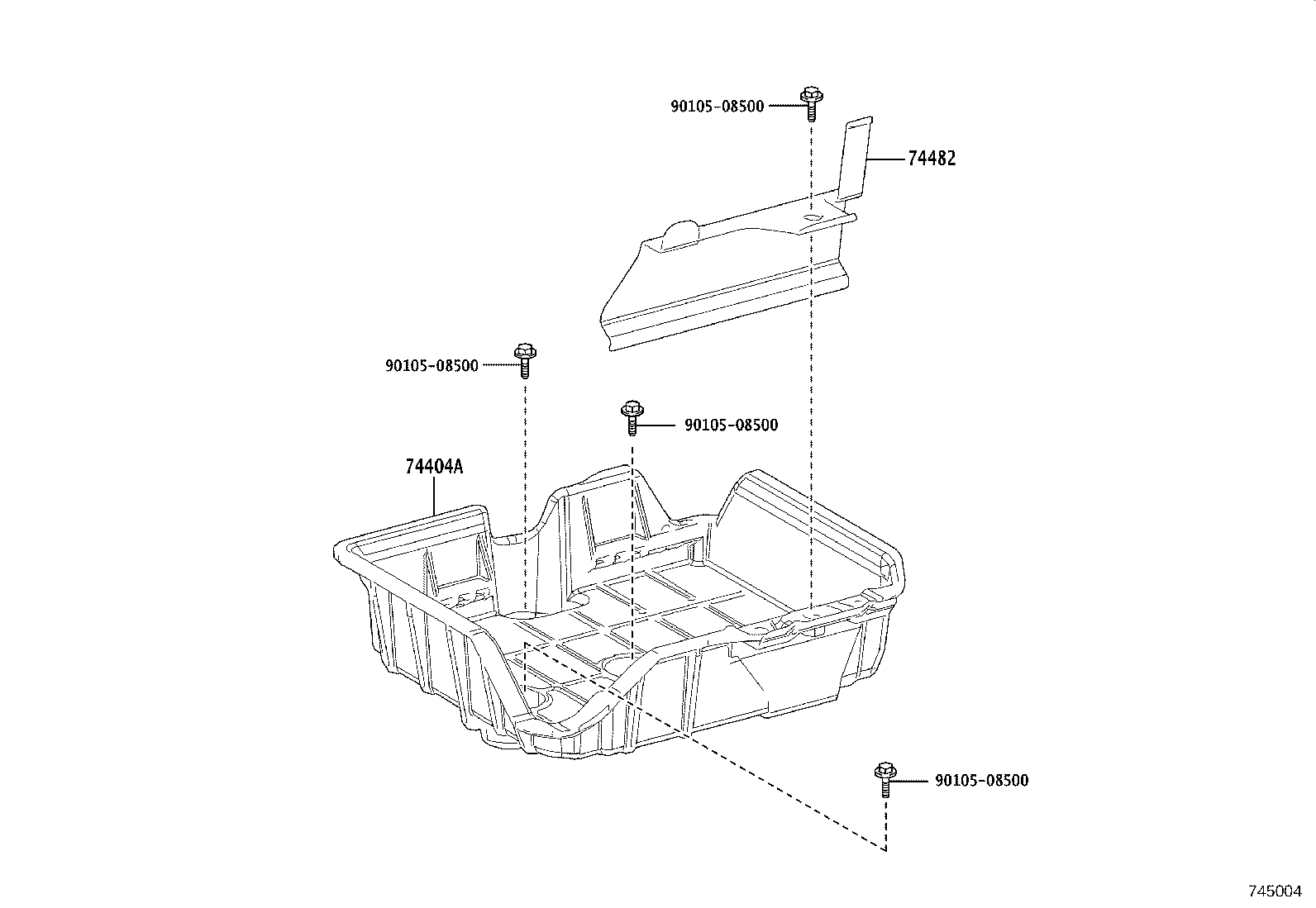

745004 2019-08 → —

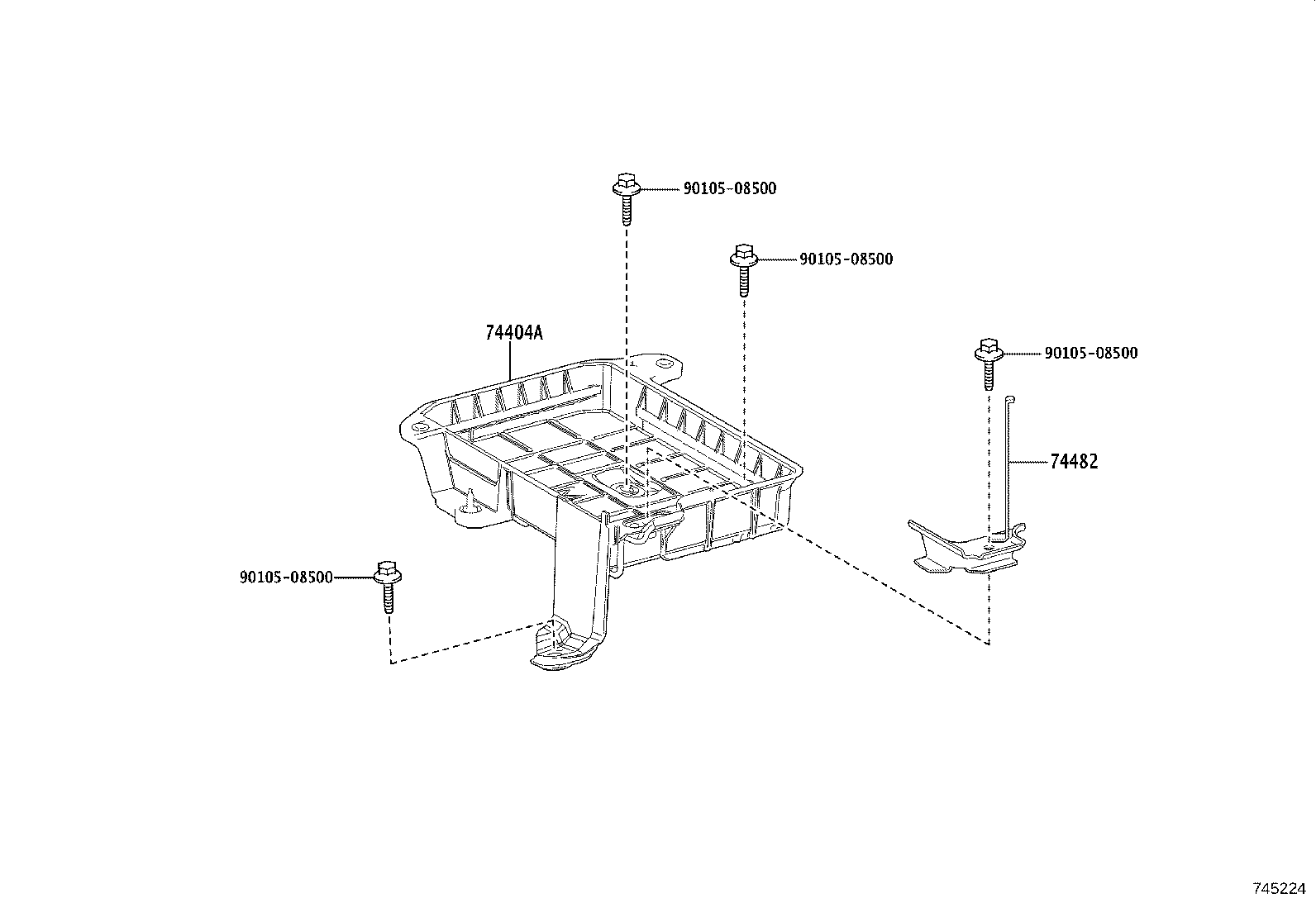

745224 2020-05 → —

746525 2022-10 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74417	Bracket, Battery Carrier
74482	Clamp, Battery, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
