Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 3 illustrations

Illustrations

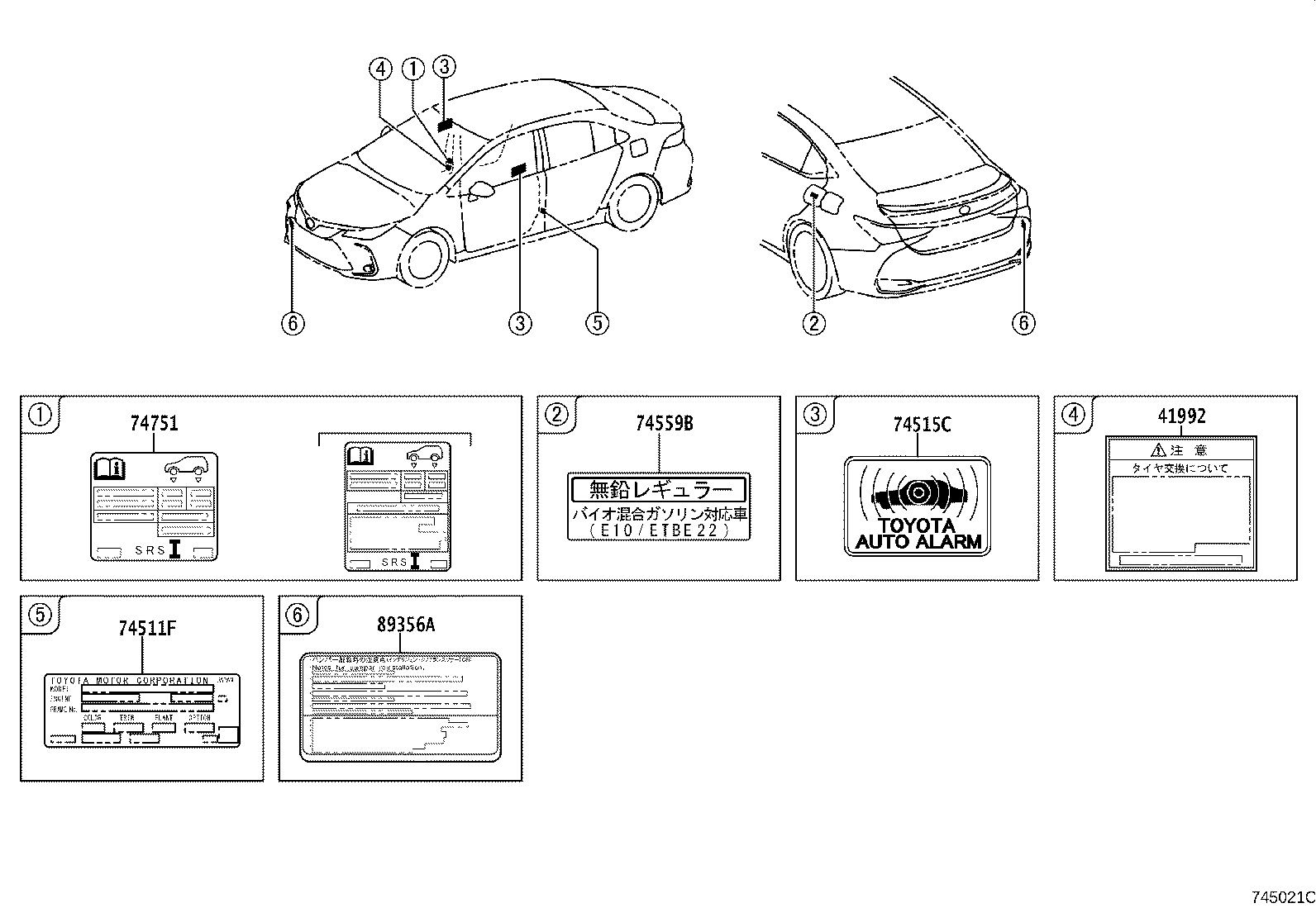

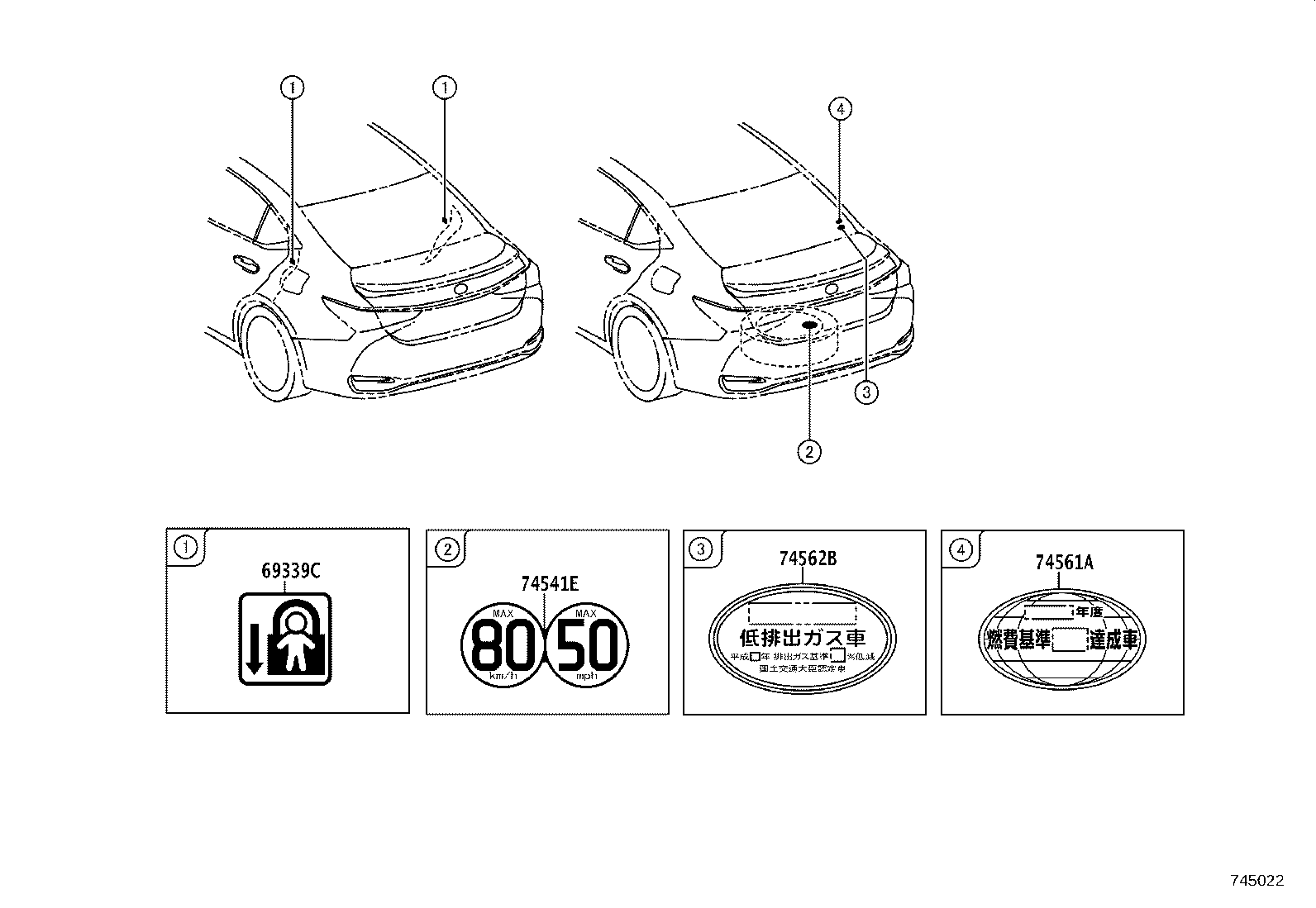

Figure 745499A 745499A 2019-08 → — Figure 745021C 745021C 2019-08 → — Figure 745022 745022 2019-08 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
288A2 Label, Battery Location
288A2A Label, Battery Location, NO.2
41992 Label, Differential Notice
47997C Label, Accumulator Caution, NO.1
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515C Label, Theft Warning Information
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
