Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

7 part groups · 2 illustrations

Illustrations

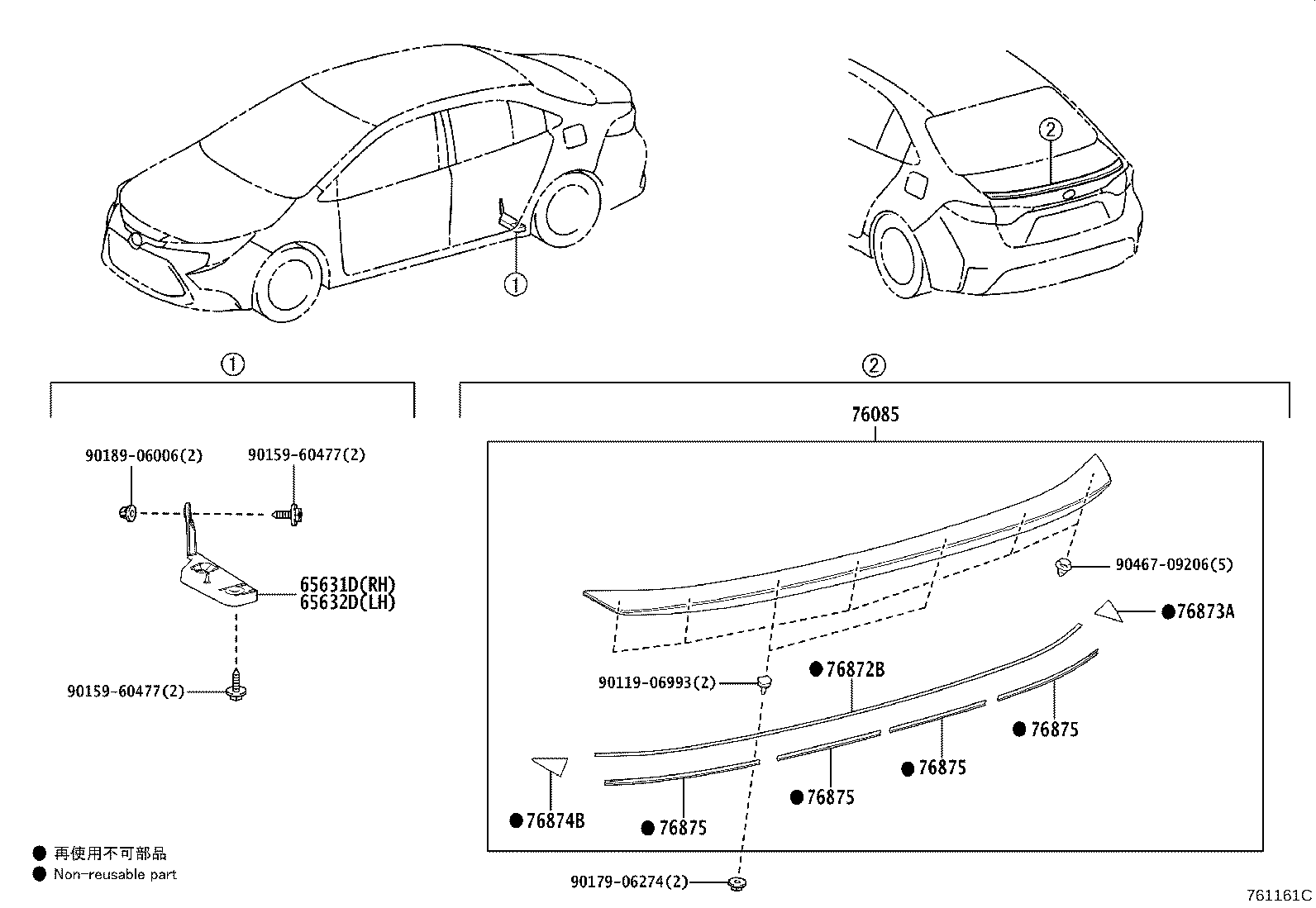

Figure 761197 761197 2019-08 → 2019-12 Figure 761161C 761161C 2019-12 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76085 Spoiler Sub-assy, Rear
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
