Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04

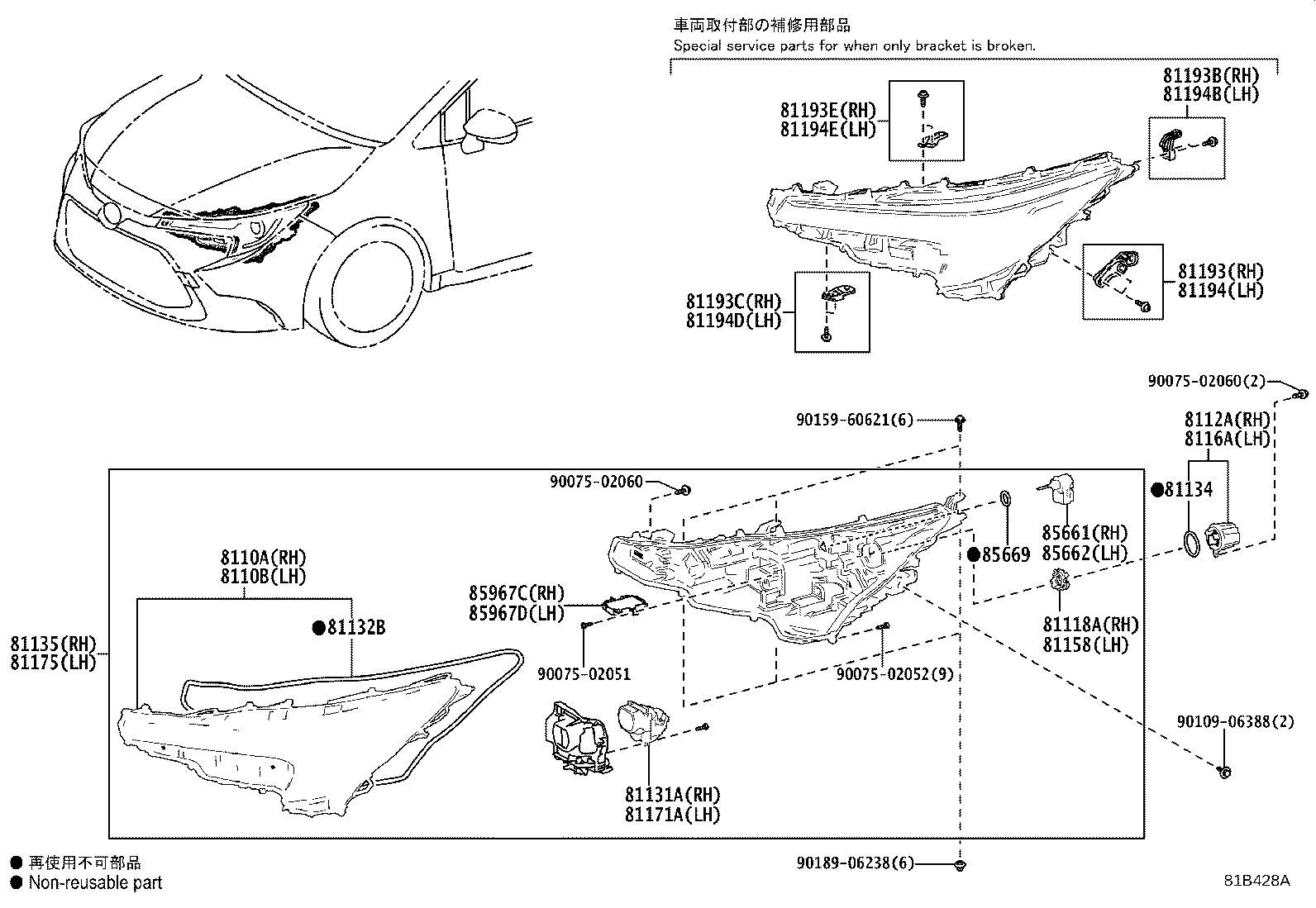

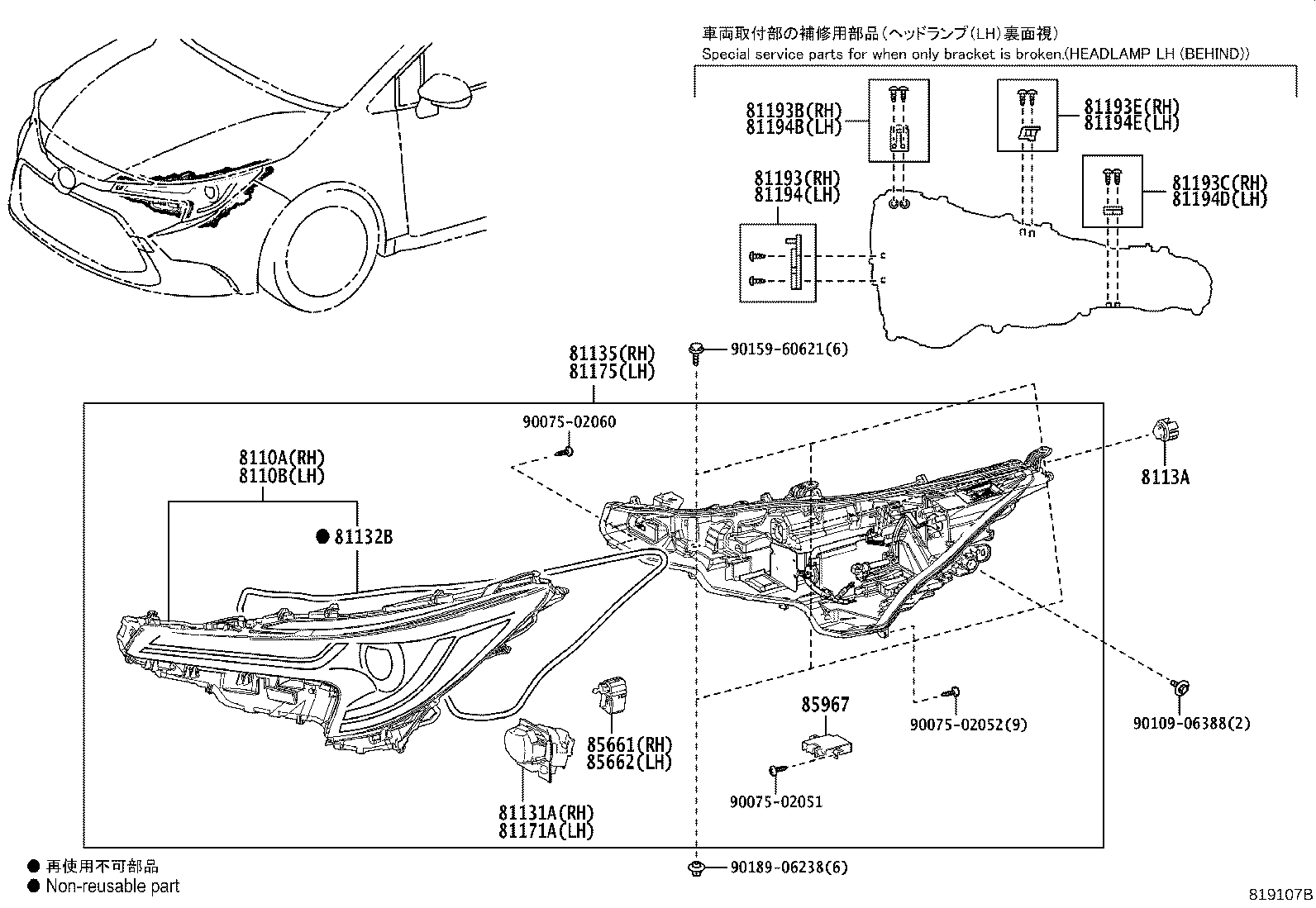

Headlamp
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81118A | Bracket, Headlamp, RH |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 81131A | Unit, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81158 | Bracket, Headlamp, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 81171A | Unit, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81193E | Retainer, Headlamp Protector, Upper RH NO.3 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194D | Retainer, LH Headlamp Protector, Upper LH |
| 81194E | Retainer, Headlamp Protector, Upper LH NO.3 |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
| 85967 | Computer, Light Control |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
