Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04

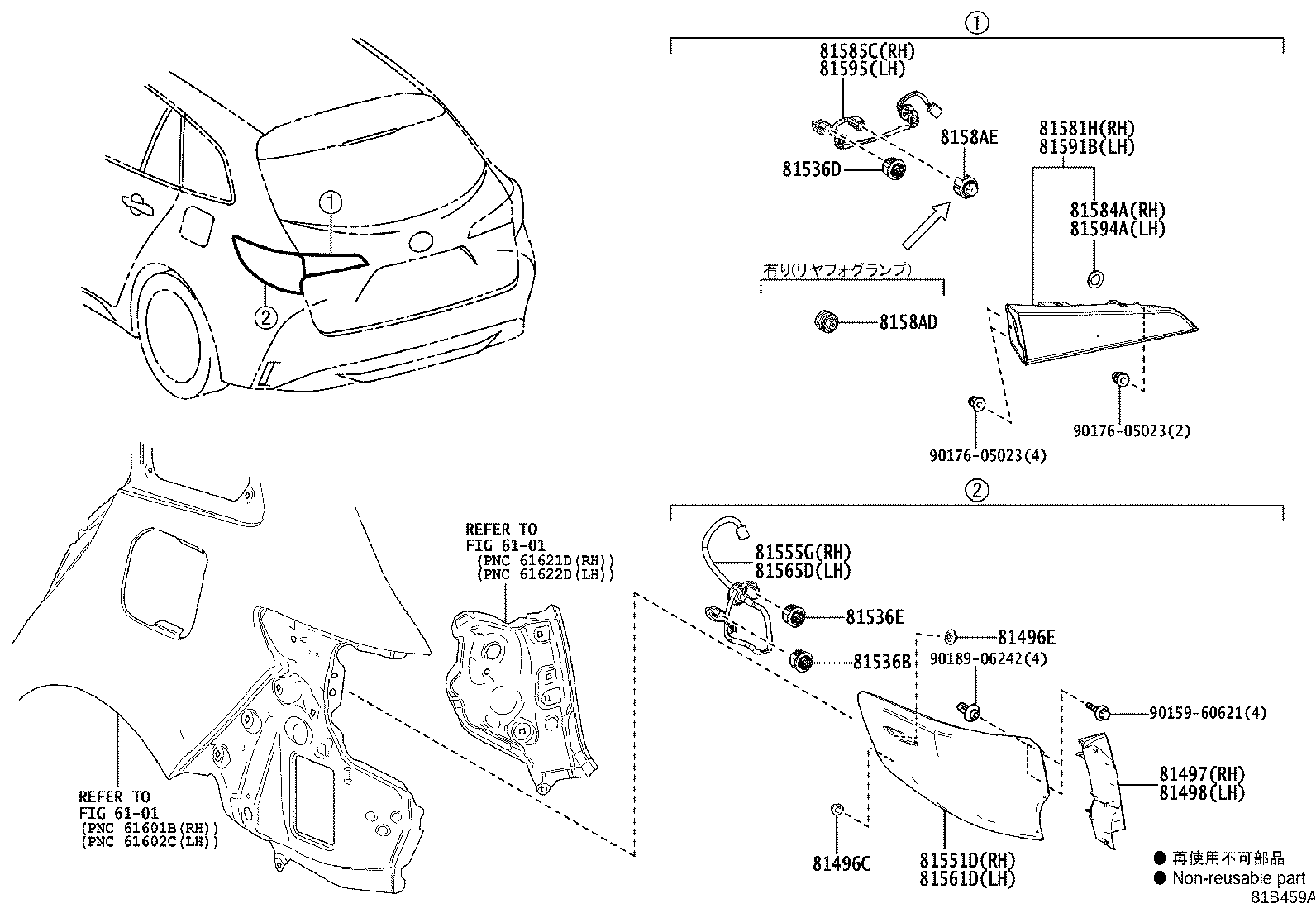

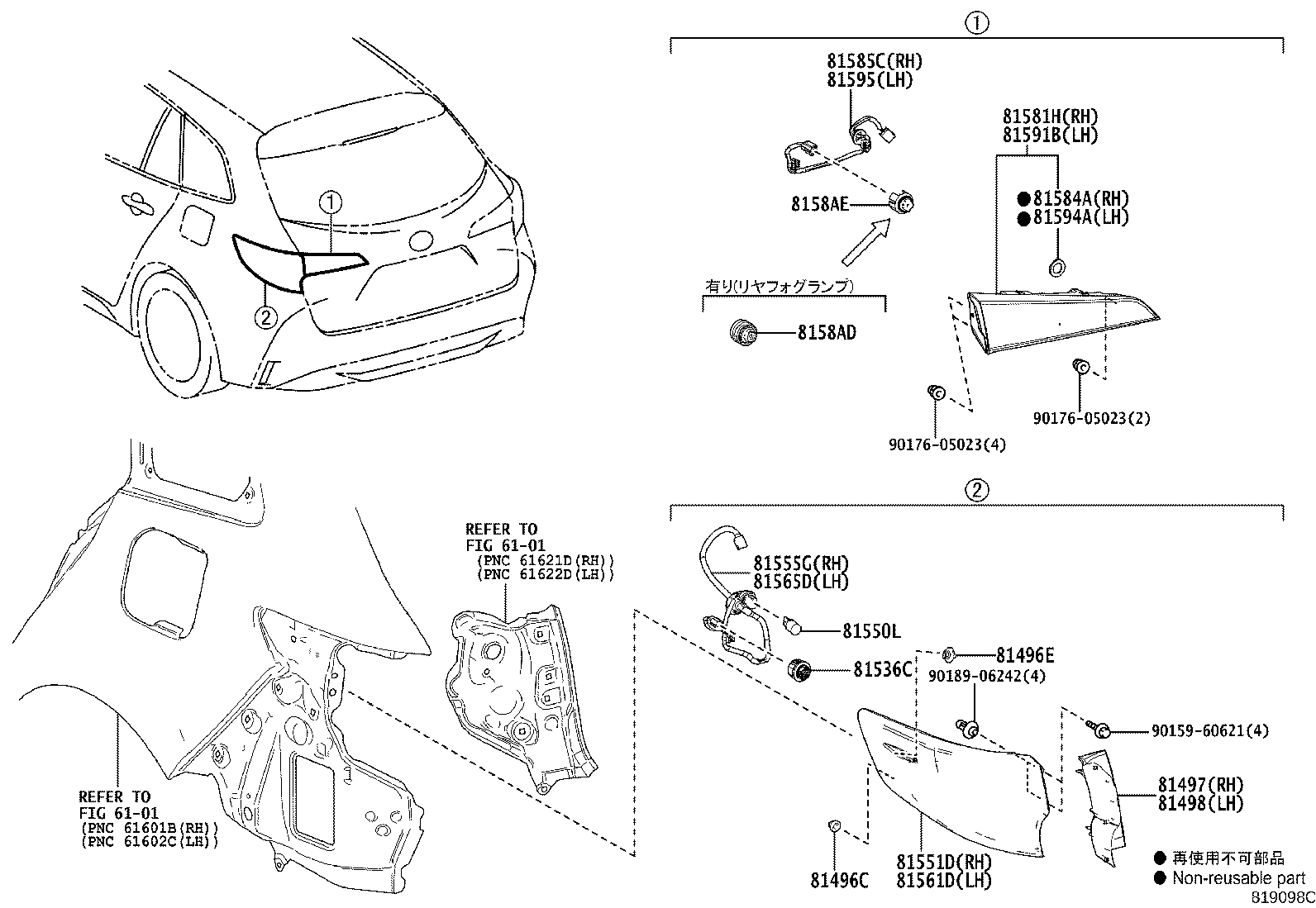

Rear Combination Lamp
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81277K | Shade, License Plate Lamp, RH |
| 81278H | Shade, License Plate Lamp, LH |
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81496E | Guide, Rear Combination Lamp, NO.3 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536B | Led, Rear Turn Signal Lamp |
| 81536C | Led, Tail & Stop Lamp |
| 81536D | Led, Taillamp |
| 81536E | Led, Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81555G | Cord, Rear Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565D | Cord, Rear Combination Lamp, LH |
| 81581H | Lens & Body, Rear Lamp |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 8158AD | Led, Rear Fog Lamp |
| 8158AE | Led, Back-up Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
