Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04
Hev Inverter
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04899 | Converter Kit, HV |
| 04899L | Computer Kit, Motor Generator Control |
| G9118A | Label, HV Motor Control Inverter Caution |
| G9172A | Clamp, Inverter Cooling Pipe |

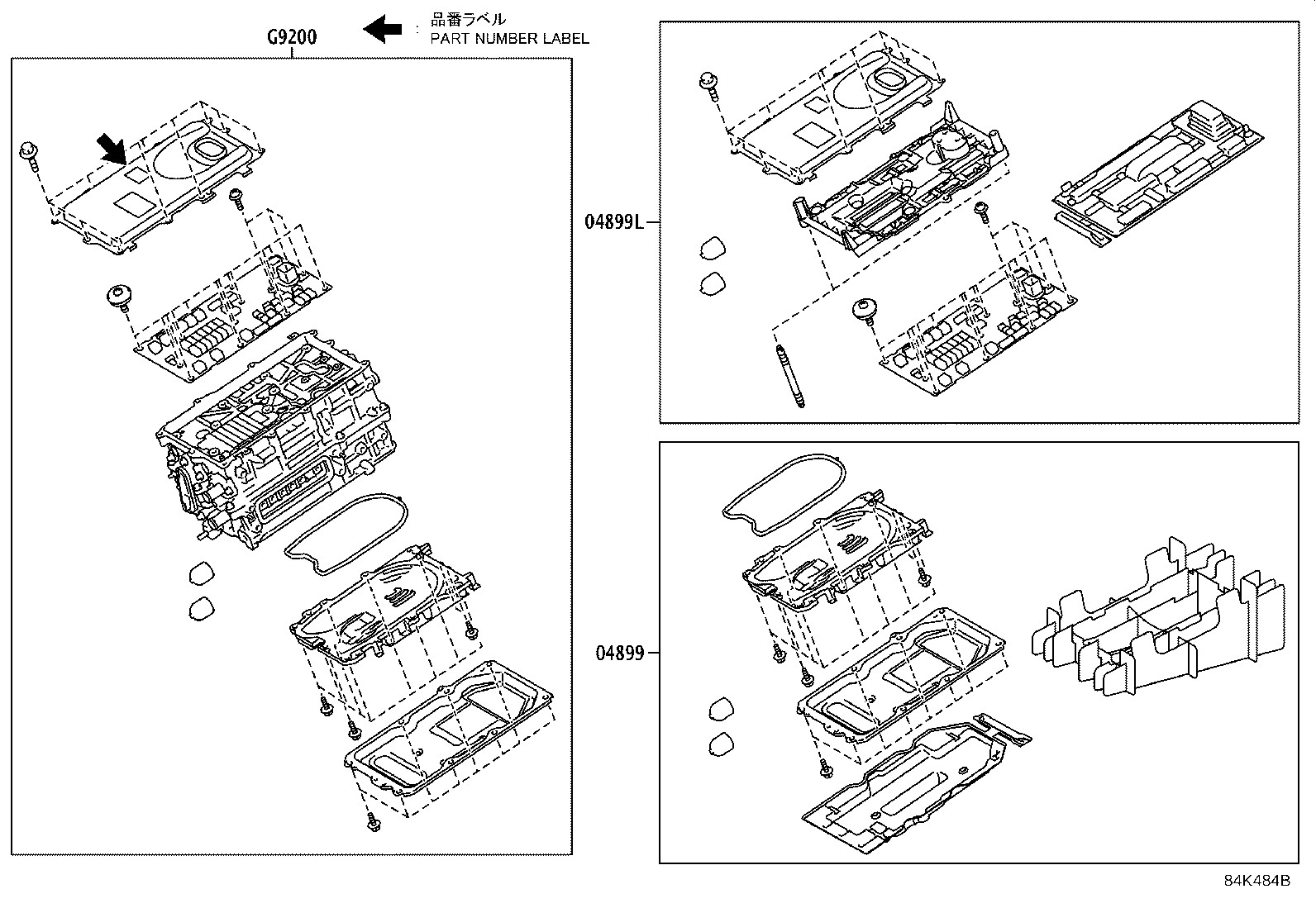

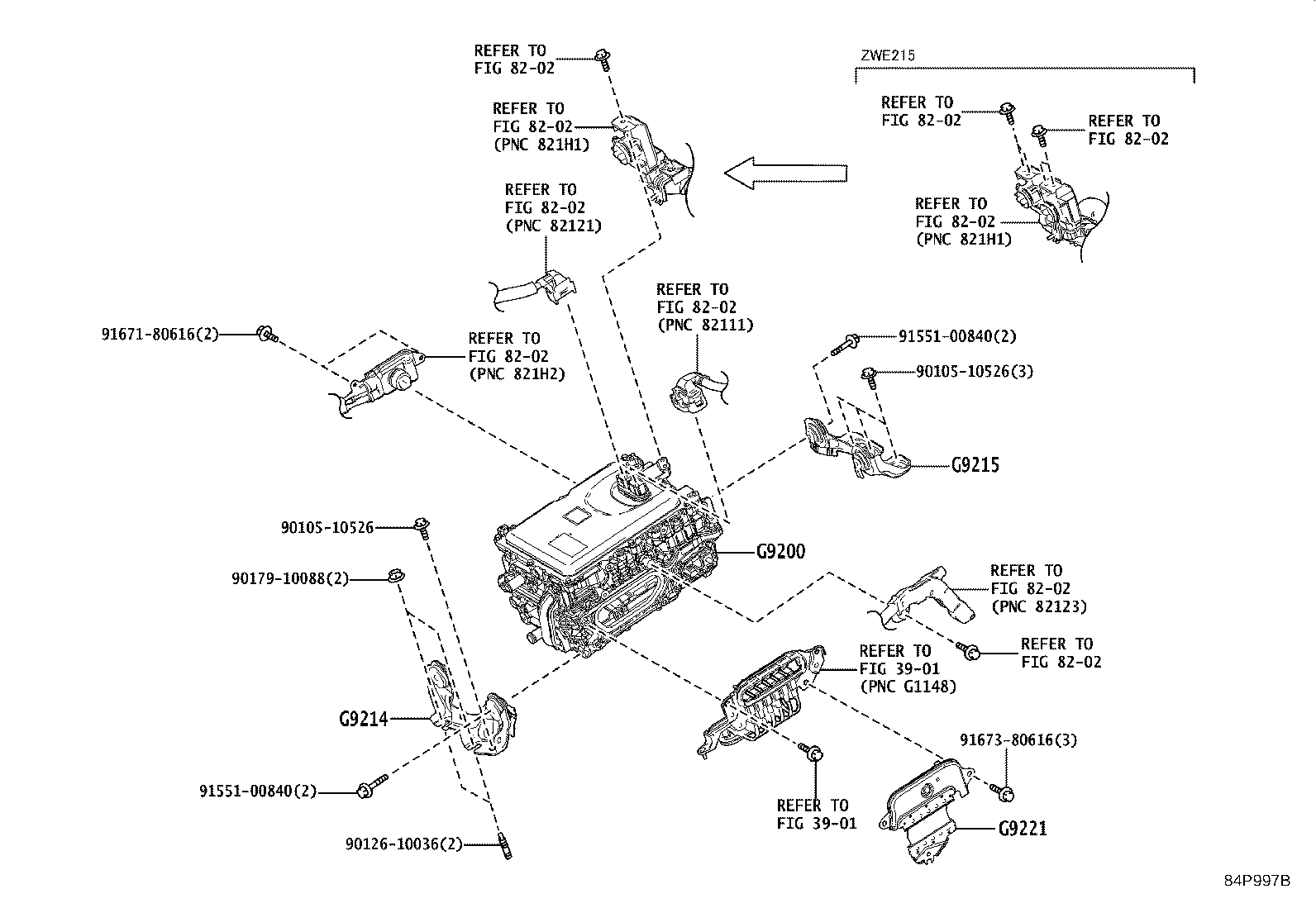

| G9200 | Inverter Assy, W/Converter |

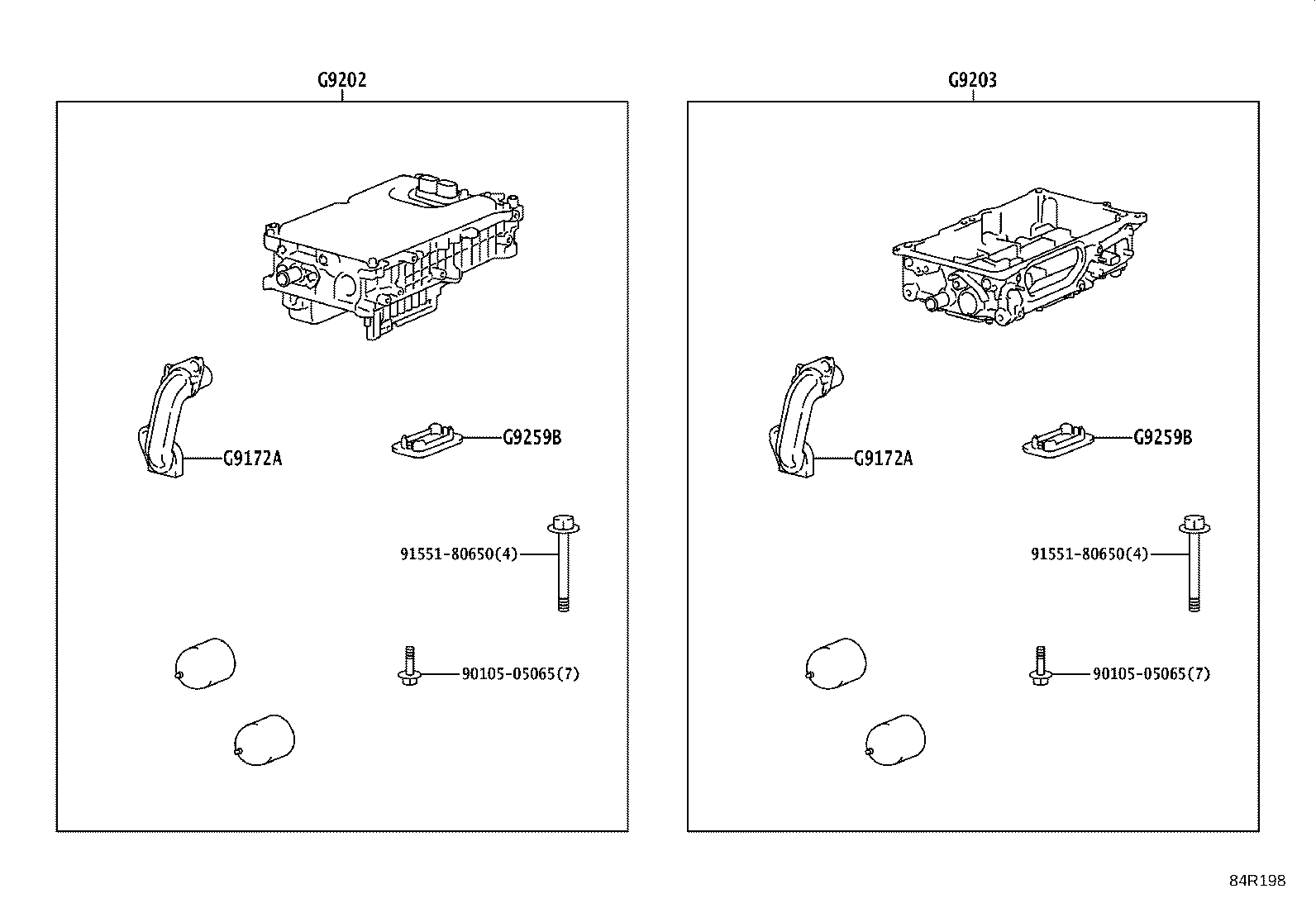

| G9202 | Case Sub-assy, Inverter |
| G9203 | Case Sub-assy, Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G9216 | Bracket, Inverter, NO.3 |
| G921E | Protector, Inverter |
| G9221 | Cover, Inverter |
| G9223 | Cover, Inverter Terminal |
| G9259B | Plug, Inverter Drain |

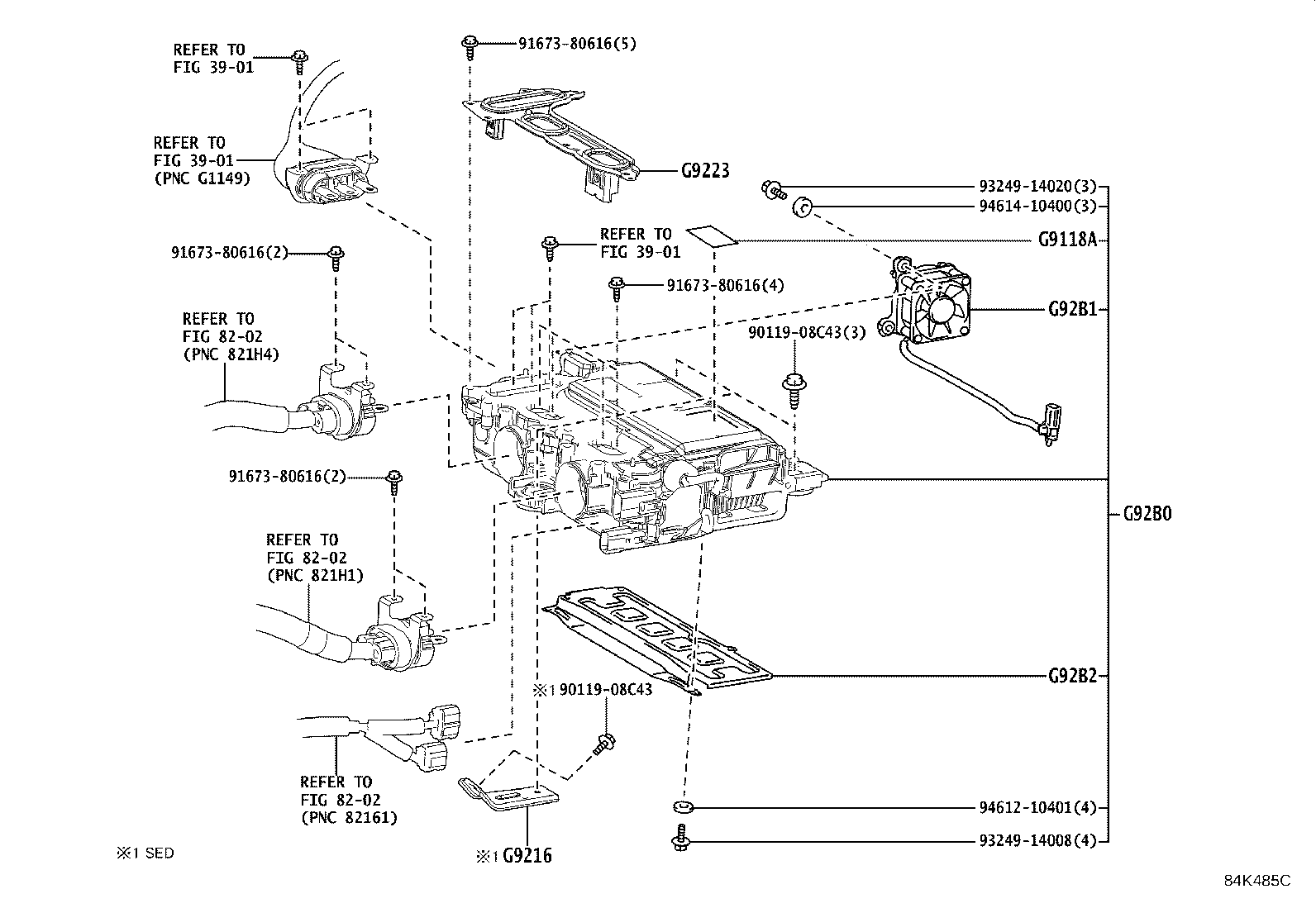

| G92B0 | Inverter Assy, Hybrid Motor Control, Rear |
| G92B1 | Fan, HV Inverter Cooling |
| G92B2 | Cover, HV Inverter Cooling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
