Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04

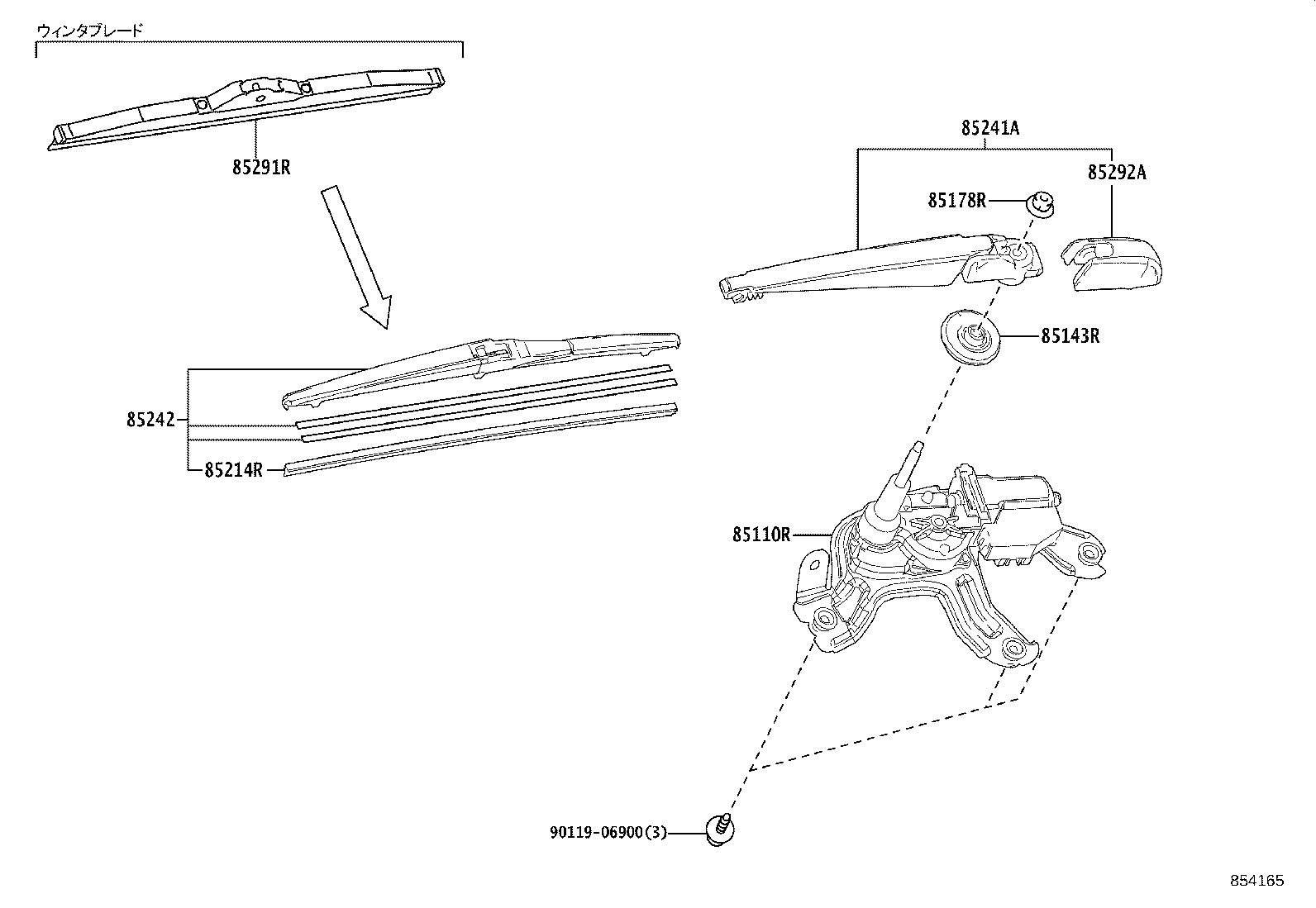

Rear Wiper
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85131 | Cover, Rear Wiper Motor |
| 85132A | Cover, Rear Wiper Shaft |
| 85143R | Grommet, Rear Wiper Motor |
| 85168V | Clip, Wiper Link Cover |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85214R | Rubber, Rear Wiper |
| 85241A | Arm, Rear Wiper |
| 85242 | Blade, RR Wiper |
| 85291R | Blade,Rear Wiper, Winter |
| 85292A | Cap, Rear Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
