Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

Figure 868244A

868244A 2019-08 → —

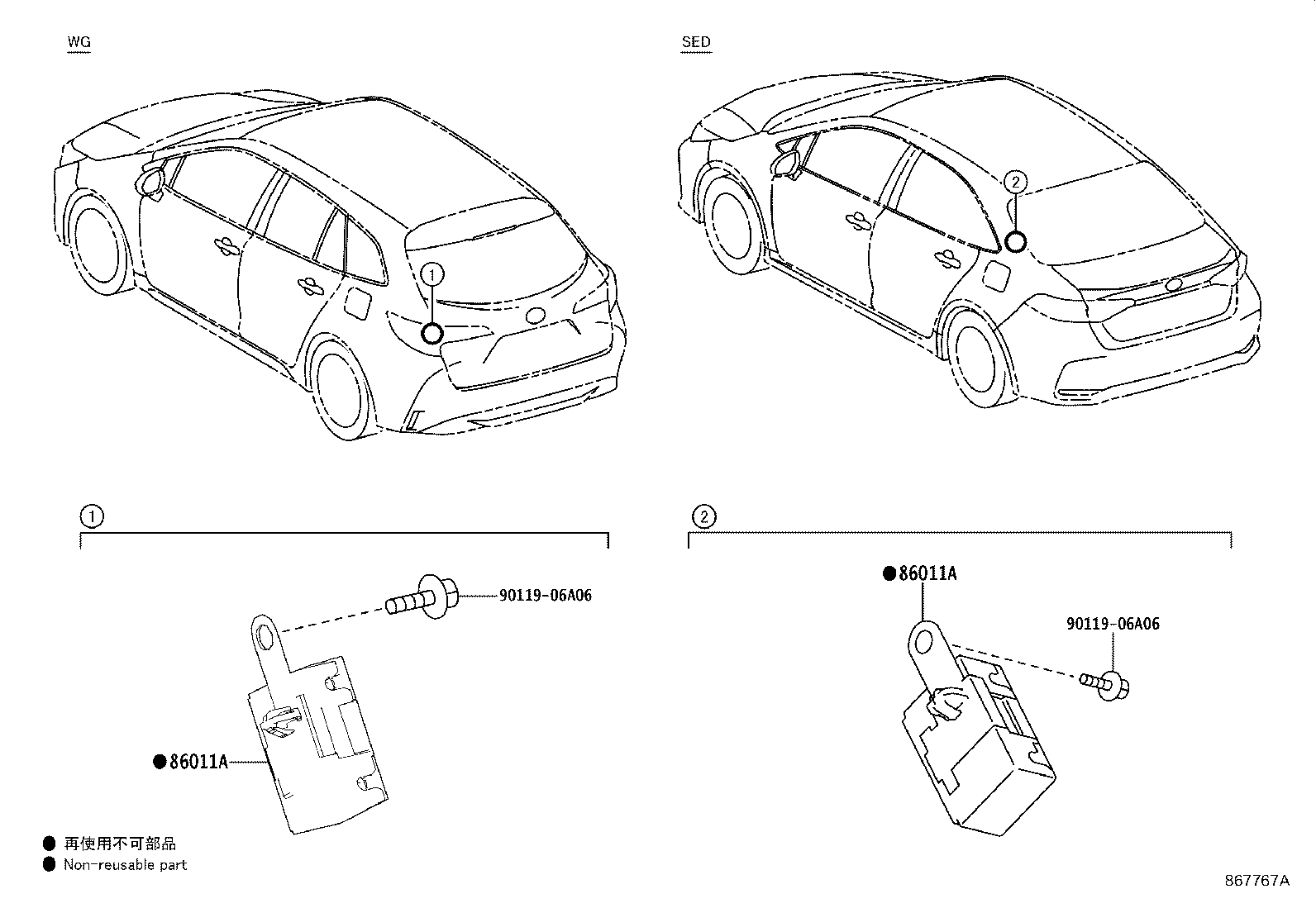

Figure 867767A

867767A 2019-08 → —

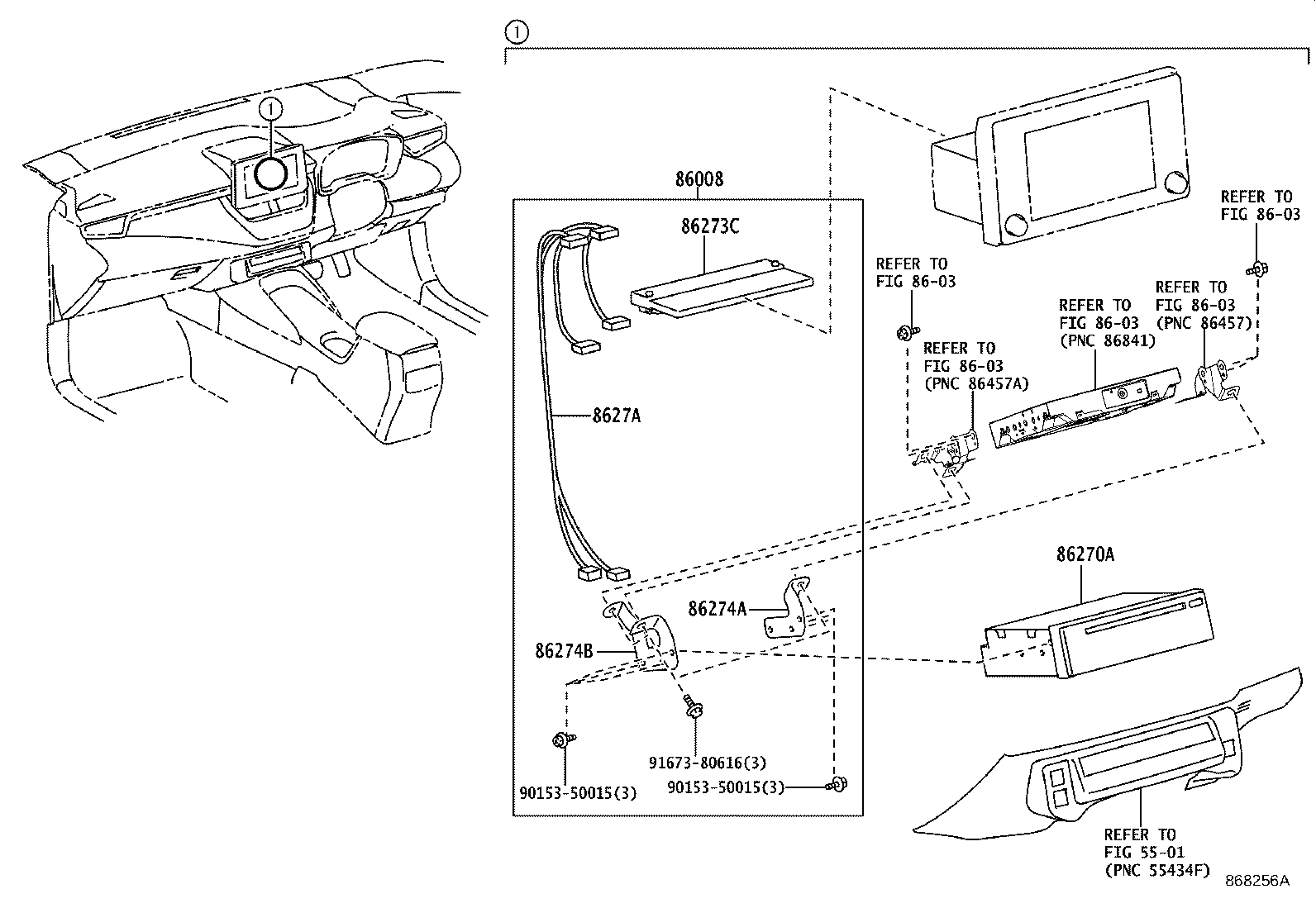

Figure 868256A

868256A 2020-04 → —

Part groups

PNC	Description
86008	Deck Set, Disc Player
86011A	Condenser, Radio Setting
86145	Connector, Antenna Male
86190C	Adapter Assy, Stereo Jack, NO.1
86270A	Disc Player Assy
86273C	Adapter, Disc Player
86274A	Bracket, Disc Player
86274B	Bracket, Disc Player
8627A	Wire, Disc Player

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
