Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan
Supported model
Data version 2024-04

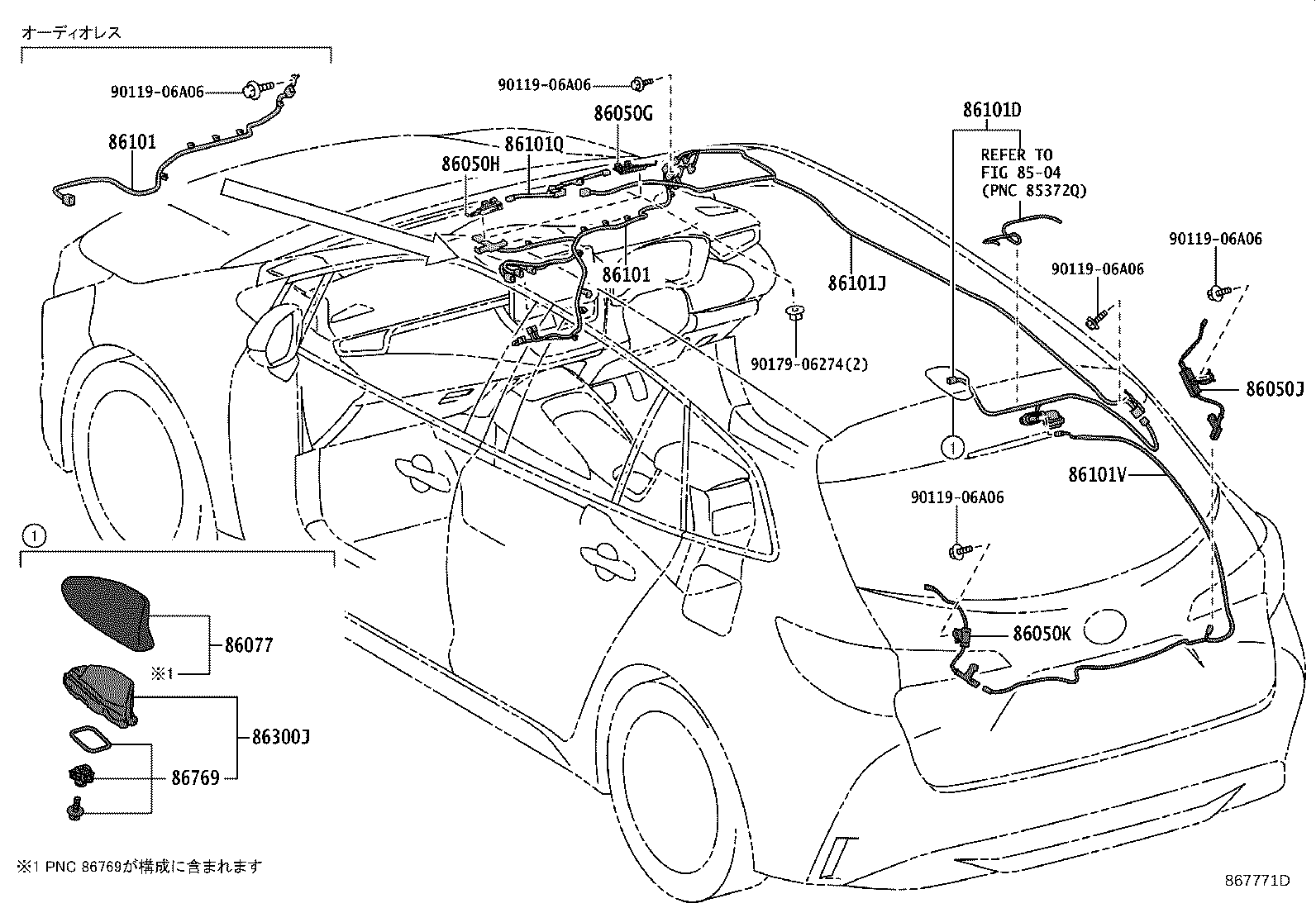

Antenna
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86050G | Antenna Assy, Television, NO.1 RH |
| 86050H | Antenna Assy, Television, NO.1 LH |
| 86050J | Antenna Assy, Television, NO.2 RH |
| 86050K | Antenna Assy, Television, NO.2 LH |
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101R | Cord Sub-assy, Antenna, NO.5 |
| 86101V | Cord Sub-assy, Antenna, NO.6 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300J | Antenna Assy, Roof |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
