Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZRE212,ZWE21# · catalogue 151180 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 6 illustrations

Illustrations

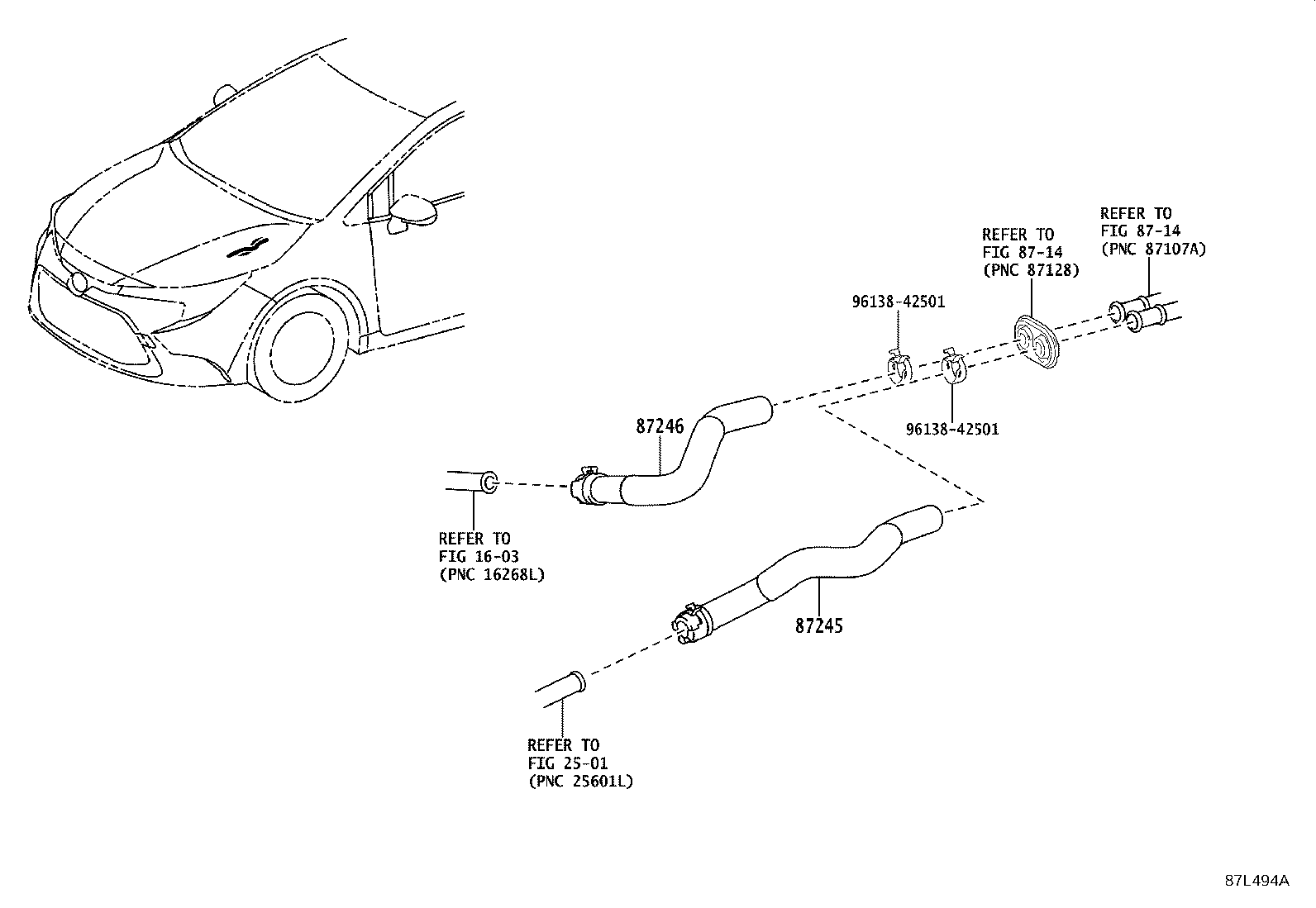

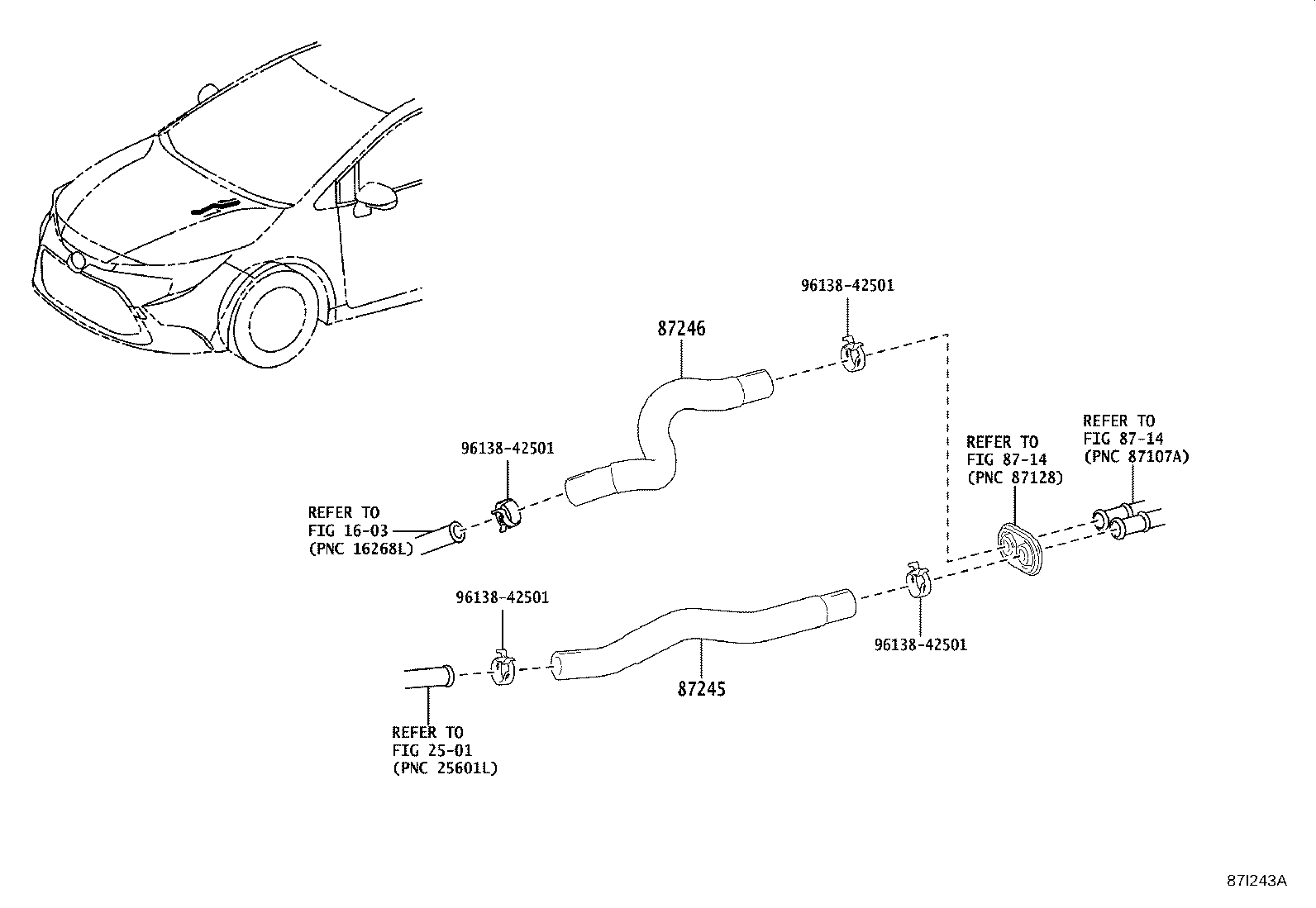

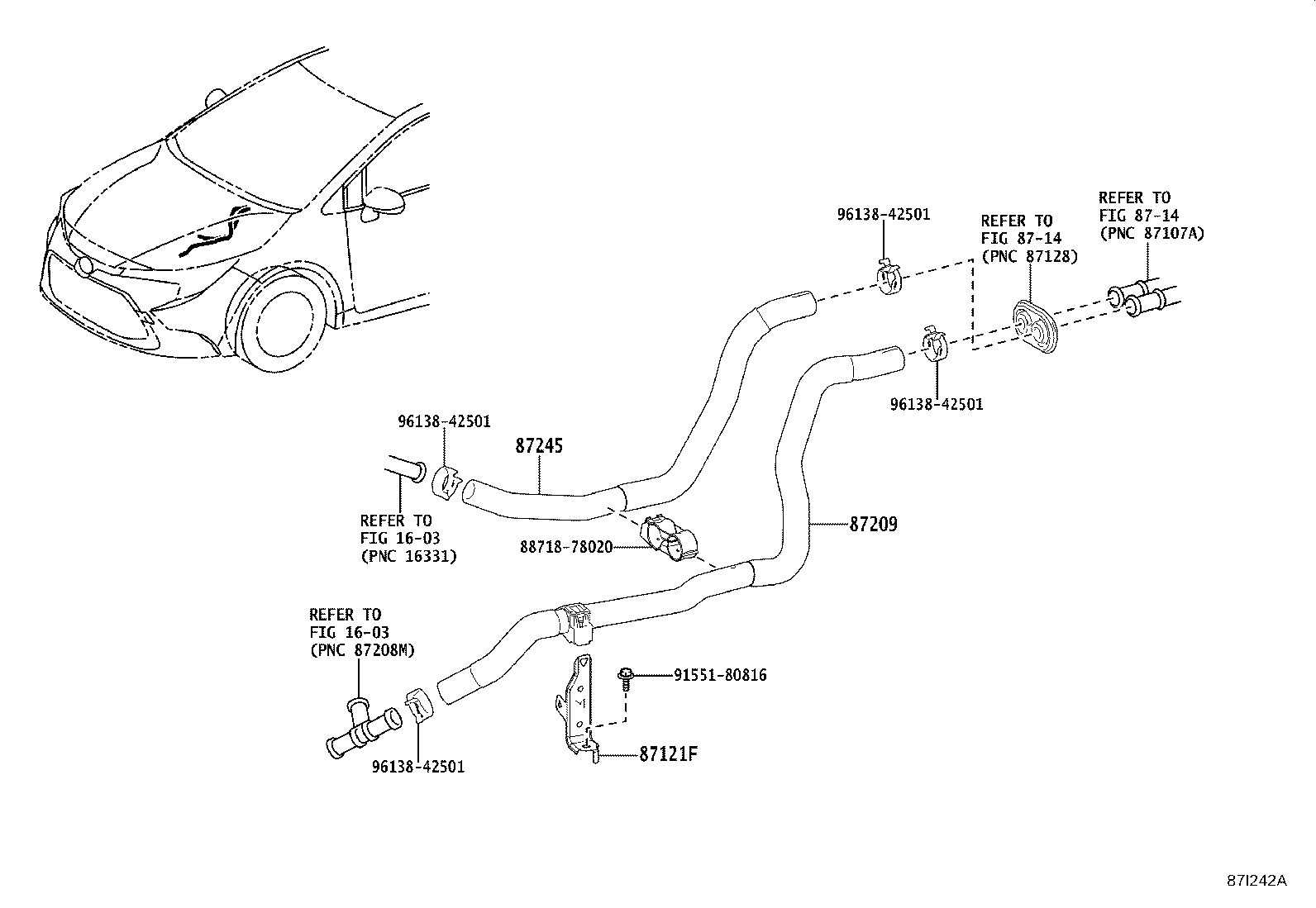

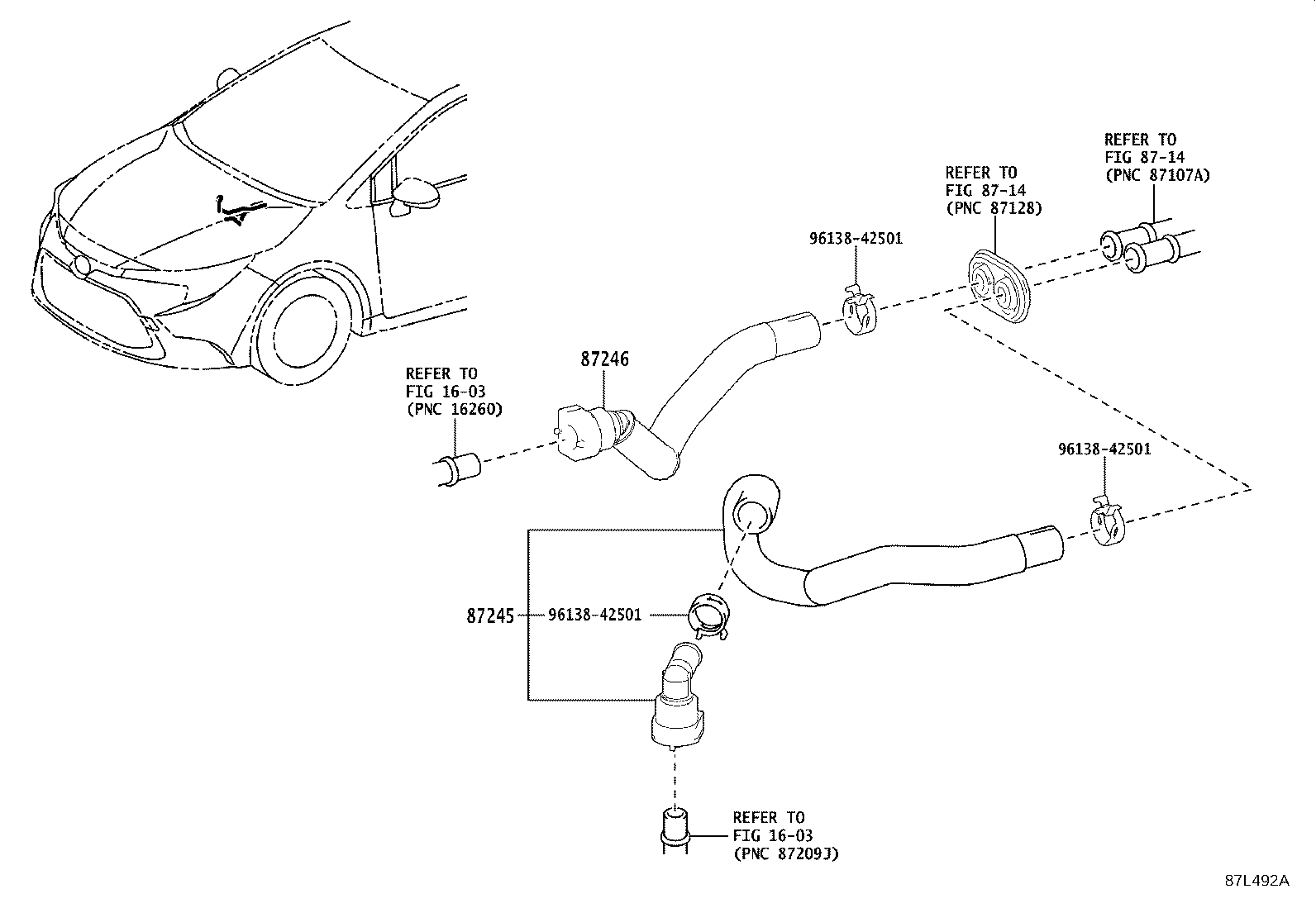

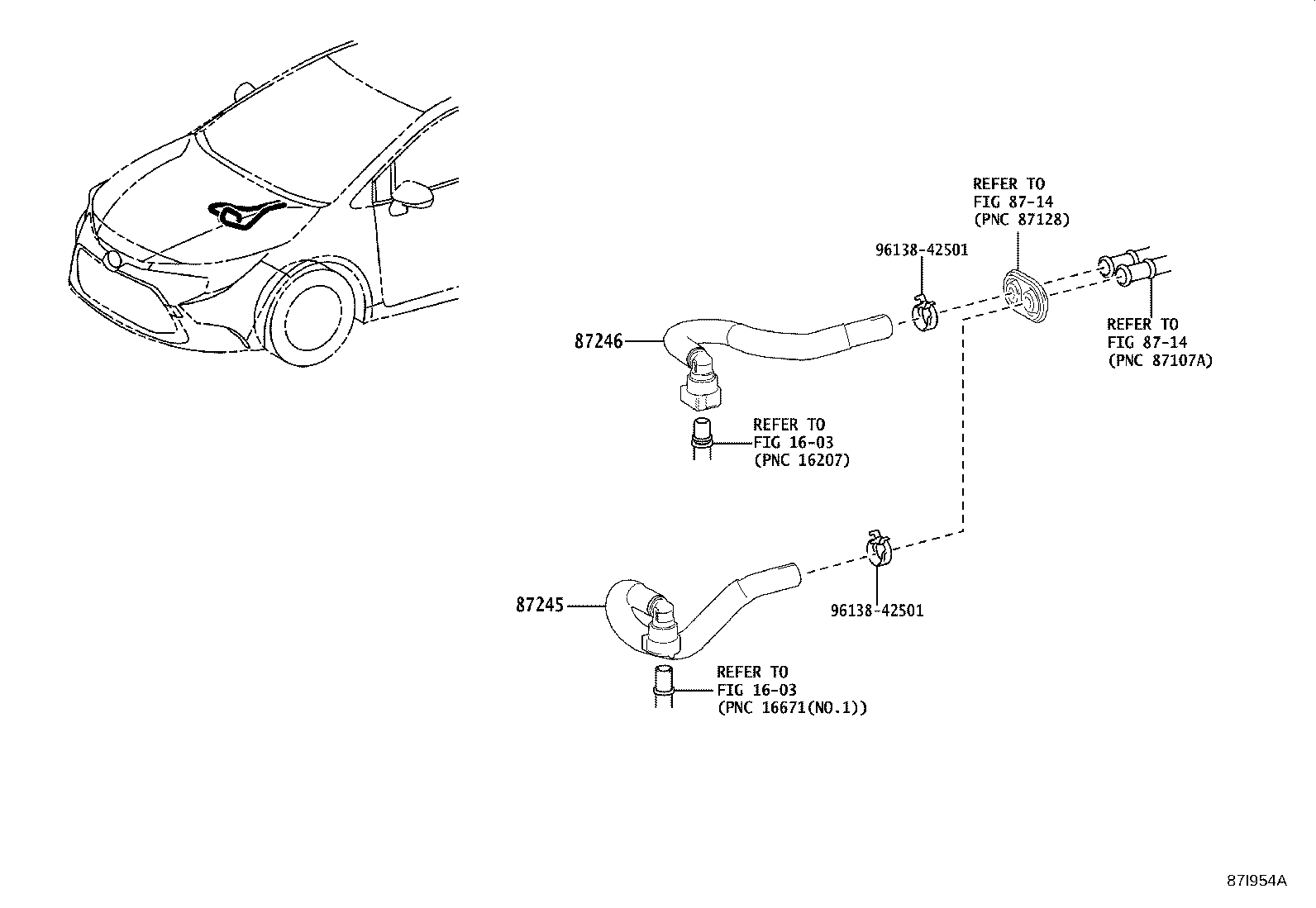

Figure 87I241A 87I241A 2019-08 → — Figure 87I242A 87I242A 2019-08 → — Figure 87I243A 87I243A 2019-08 → — Figure 87I954A 87I954A 2020-06 → — Figure 87L492A 87L492A 2022-10 → — Figure 87L494A 87L494A 2022-10 → —

Part groups

PNCDescription
87121F Bracket, Heater
87124 Clamp, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
