Toyota Sprinter
1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 152110 · Japan
Discontinued model
Data version 1987-11

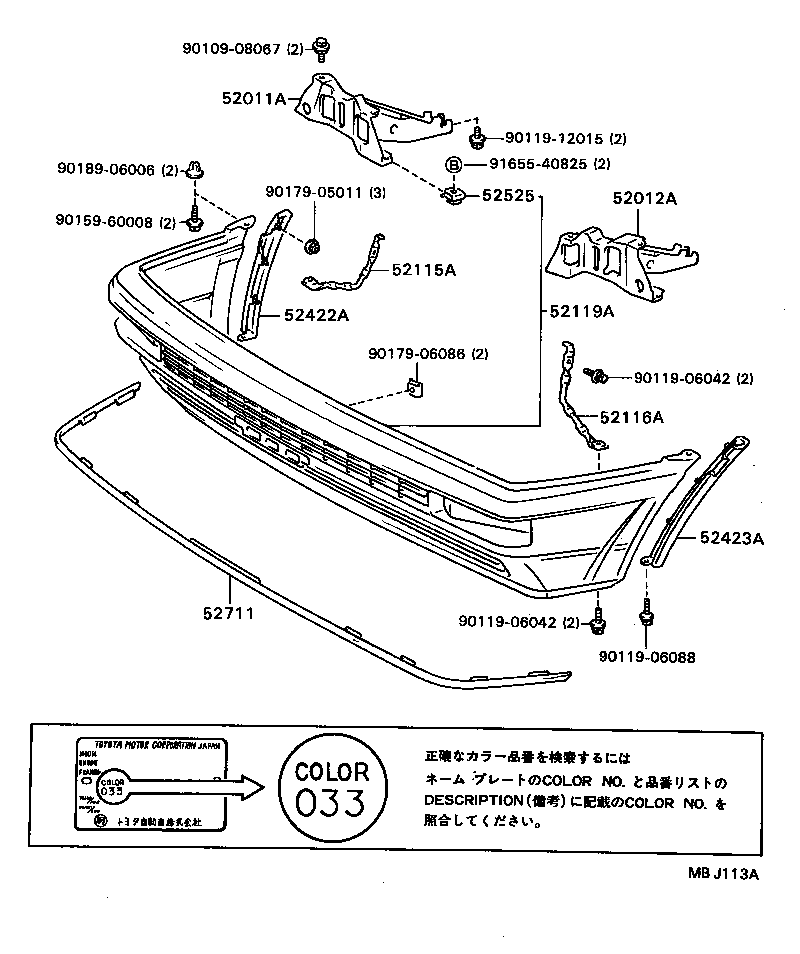

Front Bumper & Bumper Stay
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52422A | Pad, Front Bumper, RH |
| 52423A | Pad, Front Bumper, LH |
| 52525 | Retainer, Front Bumper, Lower Center |
| 52711 | Moulding, Front Bumper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
