Toyota Sprinter

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 152110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

11 part groups · 2 illustrations

Illustrations

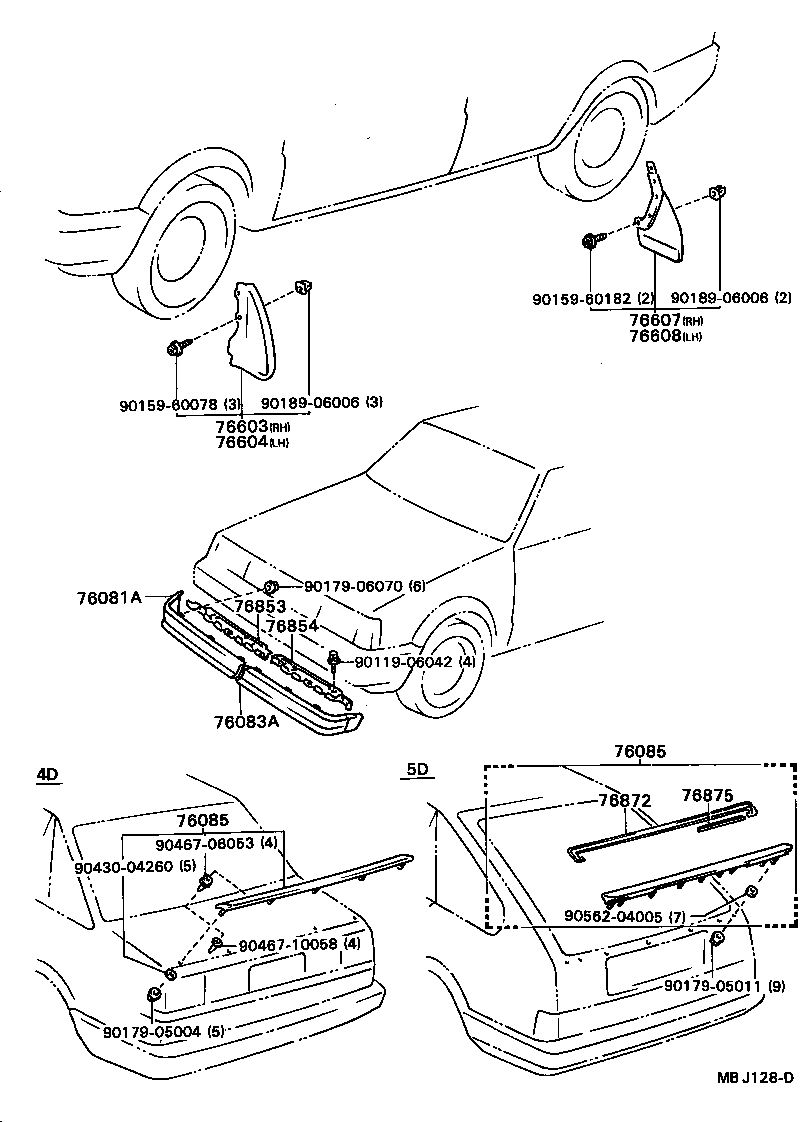

Figure MBH956B MBH956B 1983-05 → 1985-05 Figure MBJ128D MBJ128D 1985-05 → —

Part groups

PNCDescription
76081A Spoiler Sub-assy, Front RH
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76853 Retainer, Front Spoiler, Upper RH
76854 Retainer, Front Spoiler, Upper LH
76872 Protector, Rear Spoiler, NO.1
76875 Protector, Rear Spoiler, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
