Toyota Sprinter

1987-05 → 1991-08 · chassis AE9#,CE9#,EE9# · catalogue 152120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 3 illustrations

Illustrations

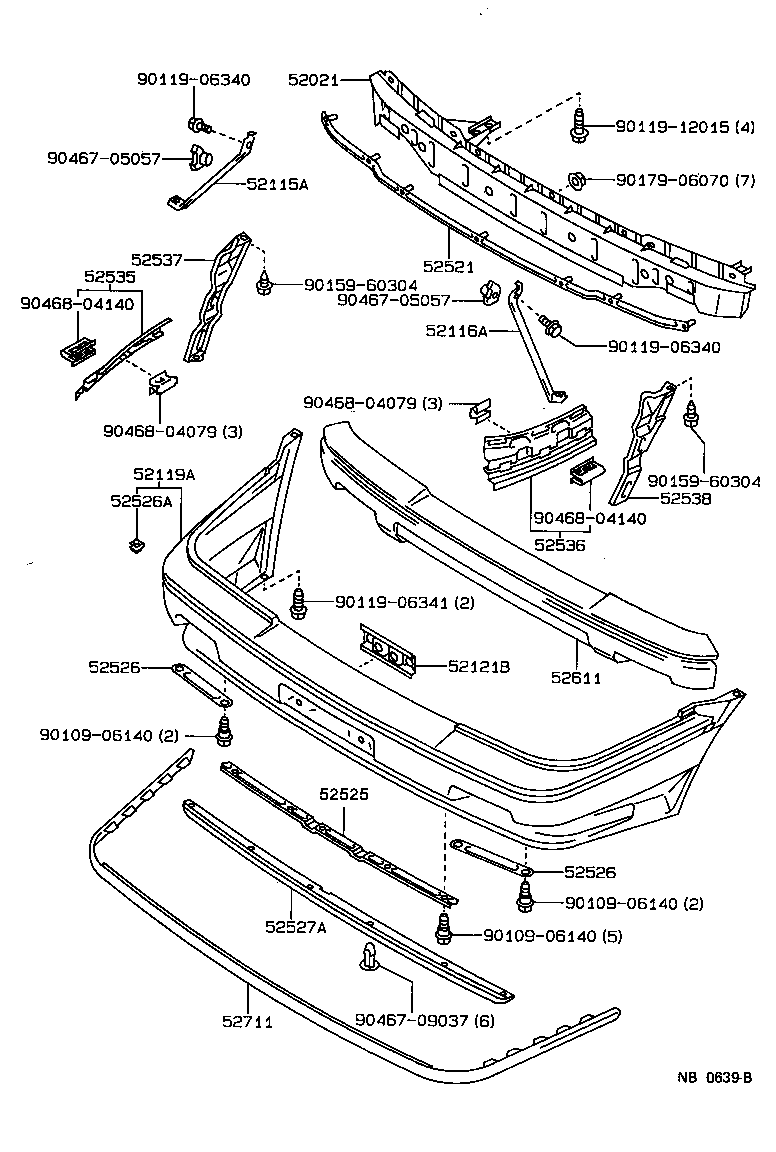

Figure MBS574C MBS574C 1987-05 → — Figure MBS574C MBS574C 1988-02 → — Figure NB0639B NB0639B 1988-02 → —

Part groups

PNCDescription
51467 Retainer, Engine Under Cover
51473 Cover, Engine Under, NO.5 Front
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52526A Retainer, Front Bumper, Lower NO.1
52527A Retainer, Front Bumper, Lower Center NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52713 Plug, Front Bumper Moulding
52714 Plug, Front Bumper Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
