Toyota Sprinter

1987-05 → 1991-08 · chassis AE9#,CE9#,EE9# · catalogue 152120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

12 part groups · 3 illustrations

Illustrations

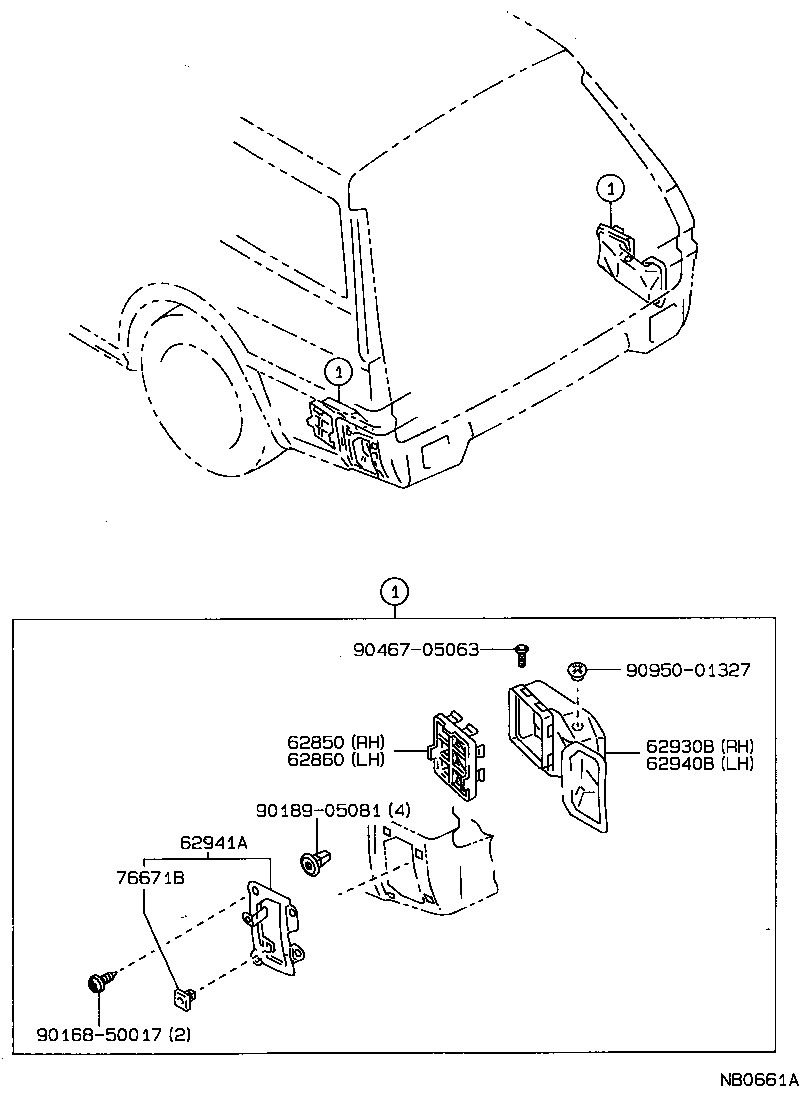

Figure NB0452B NB0452B 1987-05 → — Figure NB0661A NB0661A 1988-02 → — Figure NB0870A NB0870A 1988-08 → —

Part groups

PNCDescription
62850 Valve Assy, Room Pressure Relief, RH
62860 Valve Assy, Room Pressure Relief, LH
62905 Louver, Quarter Ventilation
62930B Duct Assy, Quarter Vent, RH
62931A Duct, Quarter Vent, RH
62932A Duct, Quarter Vent, LH
62940B Duct Assy, Quarter Vent, LH
62941A Retainer, Quarter Vent Duct
62955A Retainer, Quarter Vent Louver
62961A Grille, Room Vent, RH
62962A Grille, Room Vent, LH
76671B Clip, Quarter Vent Duct Retainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
