Toyota Sprinter

1987-05 → 1991-08 · chassis AE9#,CE9#,EE9# · catalogue 152120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

19 part groups · 3 illustrations

Illustrations

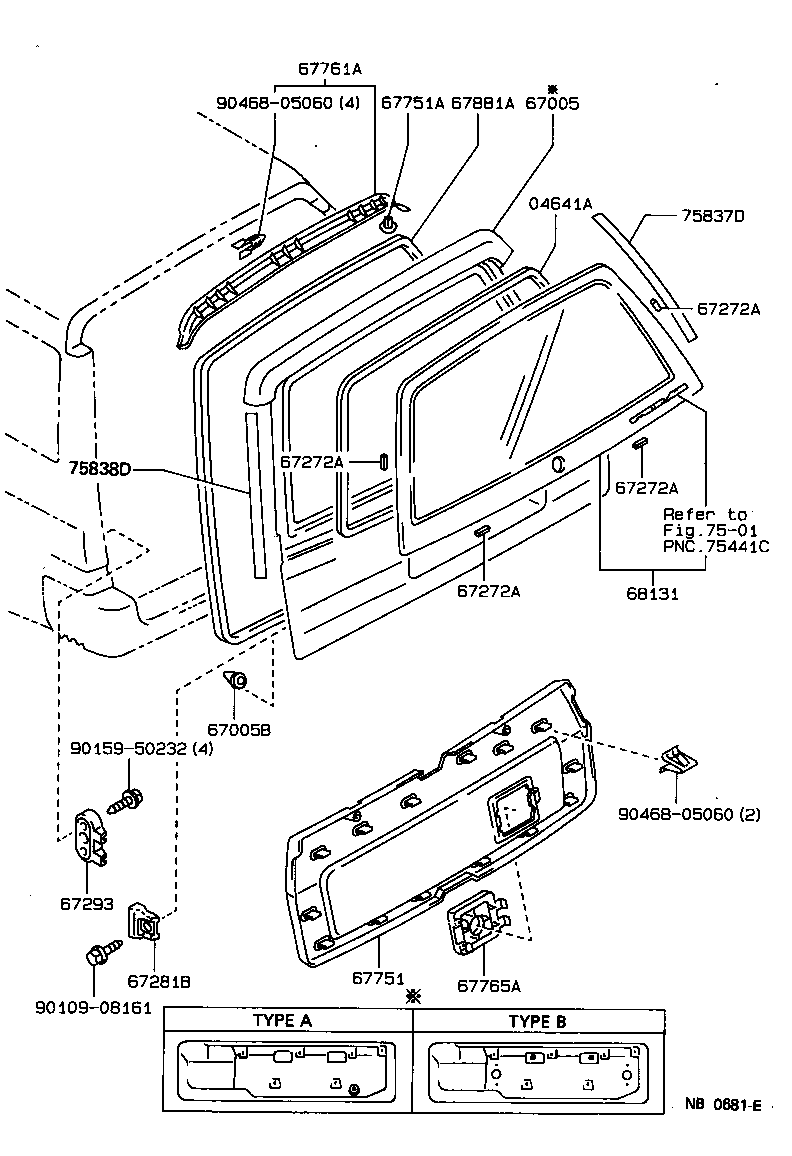

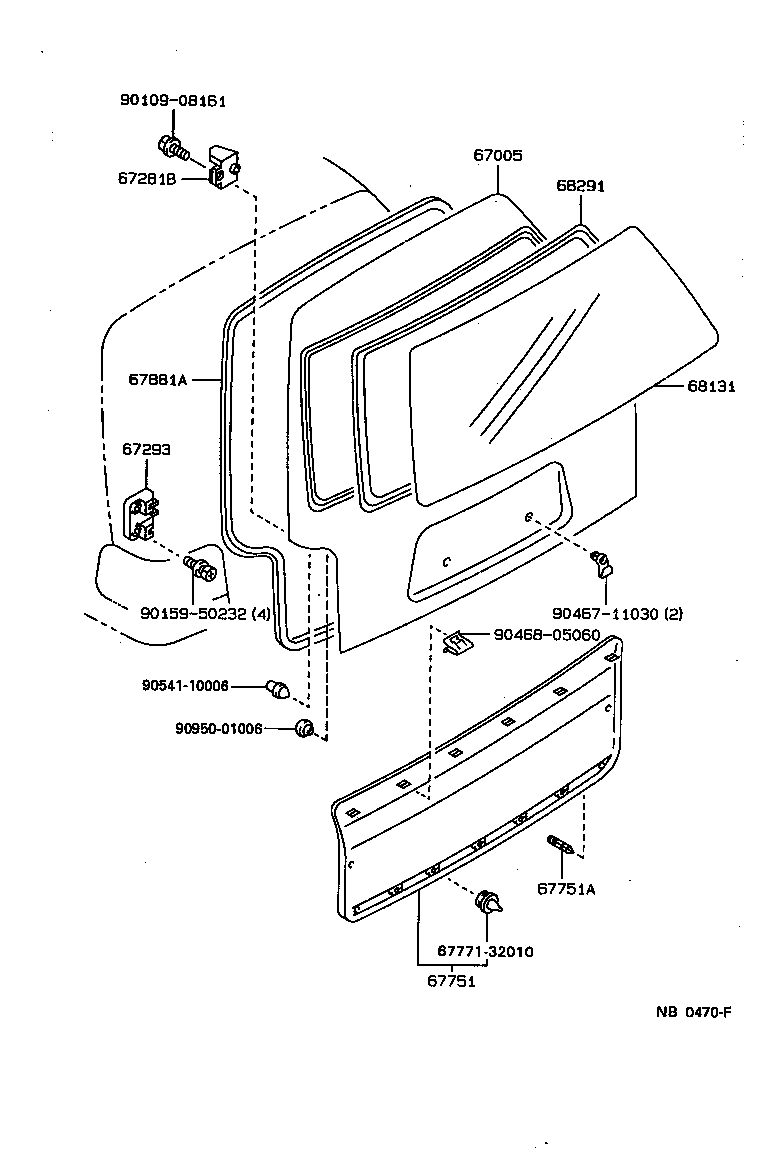

Figure NB0193B NB0193B 1987-05 → — Figure NB0681E NB0681E 1988-02 → — Figure NB0470F NB0470F 1988-08 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64780C Panel Assy, Back Door Trim, RH
64783A Trim, Back Window Panel, Upper
64790C Panel Assy, Back Door Trim, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67272A Cushion, Back Door Stopper, NO.2
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67750 Board Assy, Back Door Trim
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67761A Cover, Back Door Trim
67765A Cover, Back Door Service Hole, NO.1
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
75837D Cover, Back Door Finish, RH
75838D Cover, Back Door Finish, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
