Toyota Sprinter

1987-05 → 1991-08 · chassis AE9#,CE9#,EE9# · catalogue 152120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

20 part groups · 6 illustrations

Illustrations

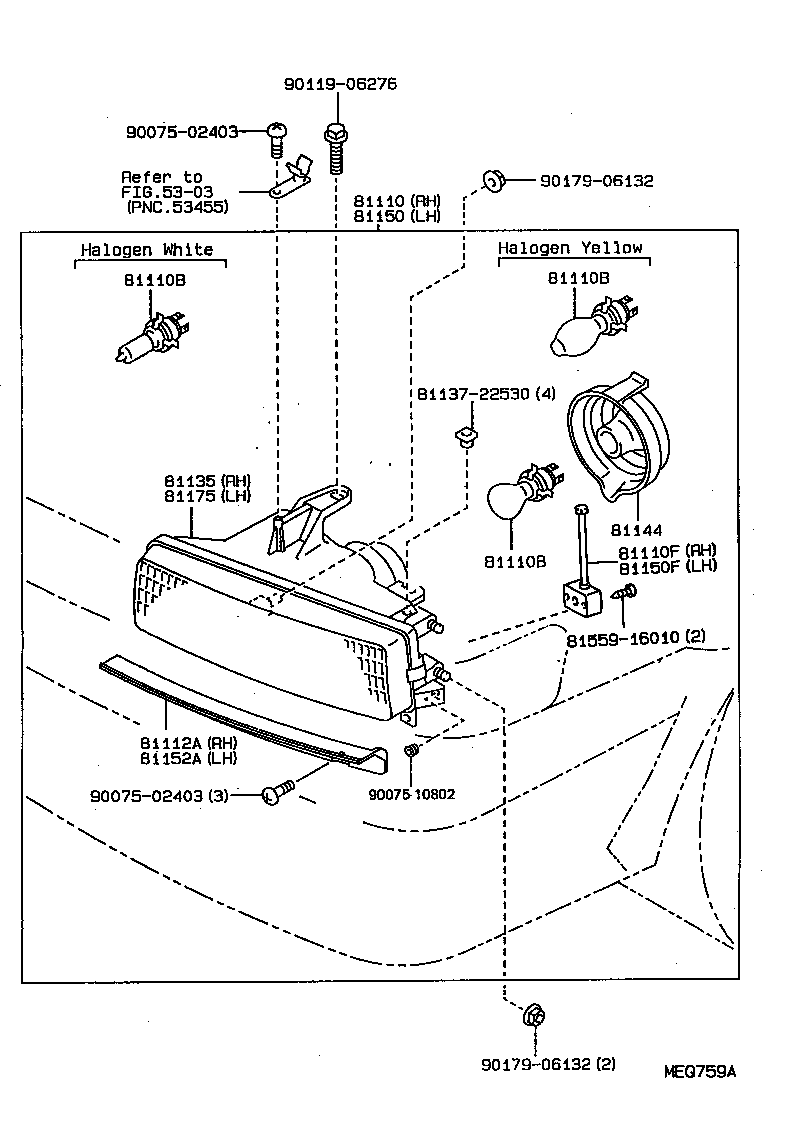

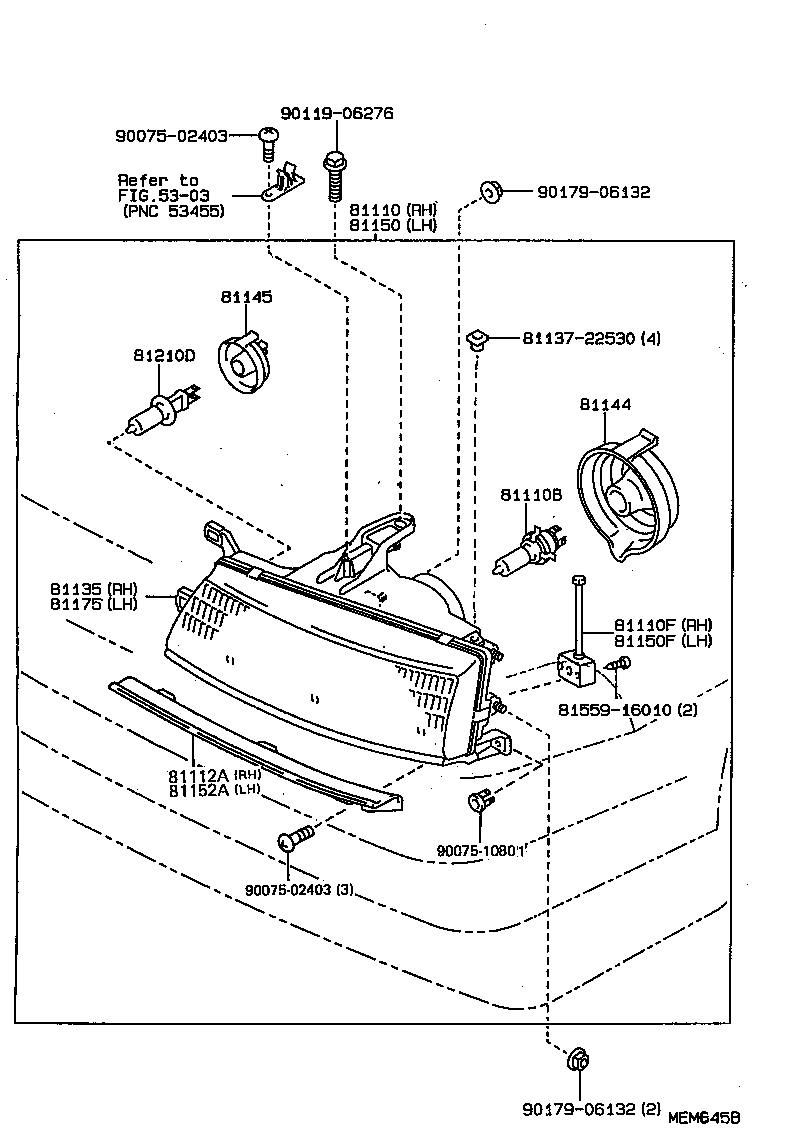

Figure MEM644B MEM644B 1987-05 → 1989-05 Figure MEM644B MEM644B 1989-05 → — Figure MEM645B MEM645B 1989-04 → — Figure MEM645B MEM645B 1989-09 → — Figure MEQ759A MEQ759A 1987-08 → 1990-08 Figure NE0361B NE0361B 1988-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110F Gear Unit Assy, RH NO.1
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112A Rim, Headlamp, RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81150F Gear Unit Assy, LH NO.1
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152A Rim, Headlamp, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
