Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

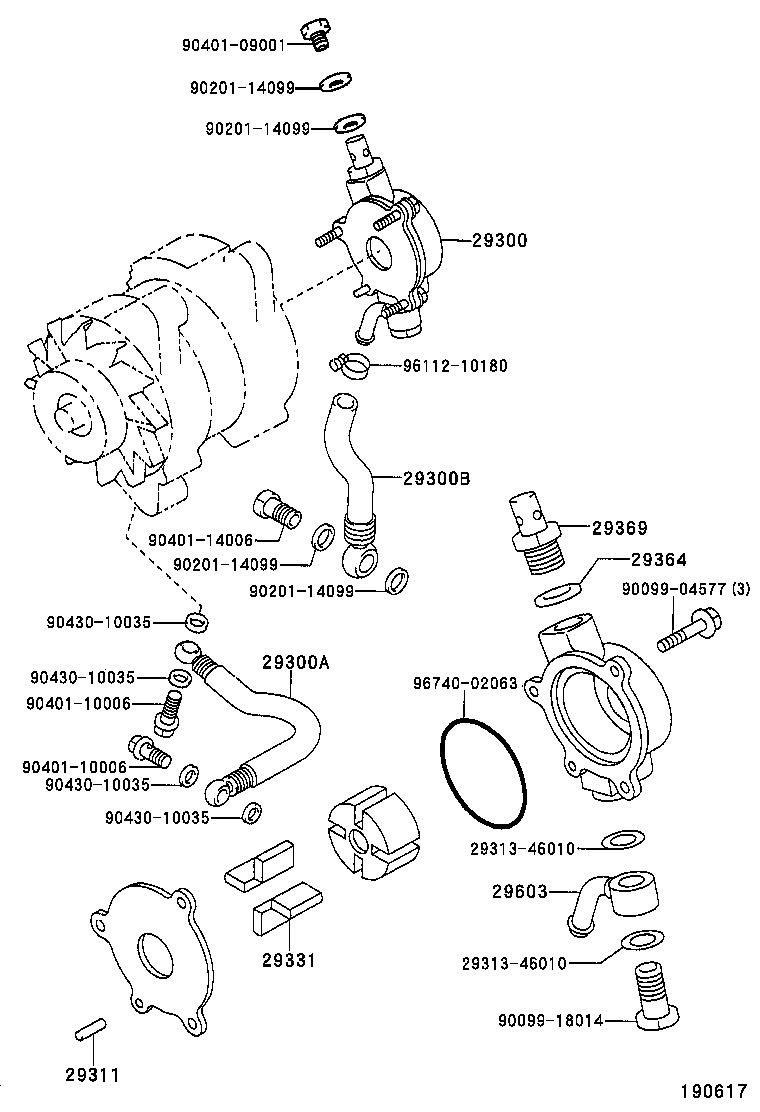

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-64041 |
Pump Assy, Vacuum
1993-05 → 1994-01
ended
|
2C CE106,108,109 | ¥43,200 | |
| 29300-64041 |
Pump Assy, Vacuum
1991-06 → 1993-05
ended
|
2C CE10# | ¥43,200 | |
| 29300-64100 |
Pump Assy, Vacuum
1993-05 → 1994-01
ended
|
2C CE100,104 | ¥53,600 | |
| 29300-64100 |
Pump Assy, Vacuum
1994-01 → —
|
2C,3CE CE10# | ¥53,600 | |
| 29300A — Hose, Vacuum Pump Oil Inlet | ||||
| 90923-02106 |
Hose, Vacuum Pump Oil Inlet
1991-06 → 1993-05
ended
|
2C CE10# | ¥3,400 | |
| 90923-02106 |
Hose, Vacuum Pump Oil Inlet
1993-05 → 1994-01
ended
|
2C CE106,108,109 | ¥3,400 | |
| 29300B — Hose, Vacuum Pump Oil Outlet | ||||
| 90923-02104 |
Hose, Vacuum Pump Oil Outlet
1991-06 → 1993-05
ended
|
2C CE10# | ¥2,260 | |
| 90923-02104 |
Hose, Vacuum Pump Oil Outlet
1993-05 → 1994-01
ended
|
2C CE106,108,109 | ¥2,260 | |
| 29311 — Pin, Vacuum Pump Dowel, NO.1 | ||||
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1993-05 → 1994-01
ended
|
2C CE106,108,109 | ¥140 | |
| 29311-76010 |
Pin, Vacuum Pump Dowel, NO.1
1991-06 → 1993-05
ended
|
2C CE10# | ¥140 | |
| 29331 — Blade, Vacuum Pump, A | ||||
| 29331-56070 |
Blade, Vacuum Pump, A
1991-06 → 1993-05
ended
|
2C CE10# | — | |
| 29331-56070 |
Blade, Vacuum Pump, A
1993-05 → 1994-01
ended
|
2C CE106,108,109 | — | |
| 29364 — Washer, Vacuum Pump | ||||
| 29364-66010 |
Washer, Vacuum Pump
1991-06 → 1993-05
ended
|
2C CE10# | ¥180 | |
| 29364-66010 |
Washer, Vacuum Pump
1993-05 → 1994-01
ended
|
2C CE106,108,109 | ¥180 | |
| 29369 — Valve Sub-assy, Check | ||||
| 29369-56070 |
Valve Sub-assy, Check
1991-06 → 1993-05
ended
|
2C CE10# | — | |
| 29369-56070 |
Valve Sub-assy, Check
1993-05 → 1994-01
ended
|
2C CE106,108,109 | — | |
| 29603 — Pipe, Vacuum Pump Oil Outlet | ||||
| 29365-64040 |
Pipe, Vacuum Pump Oil Outlet
1991-06 → 1993-05
ended
|
2C CE10# | — | |
| 29365-64040 |
Pipe, Vacuum Pump Oil Outlet
1993-05 → 1994-01
ended
|
2C CE106,108,109 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
