Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

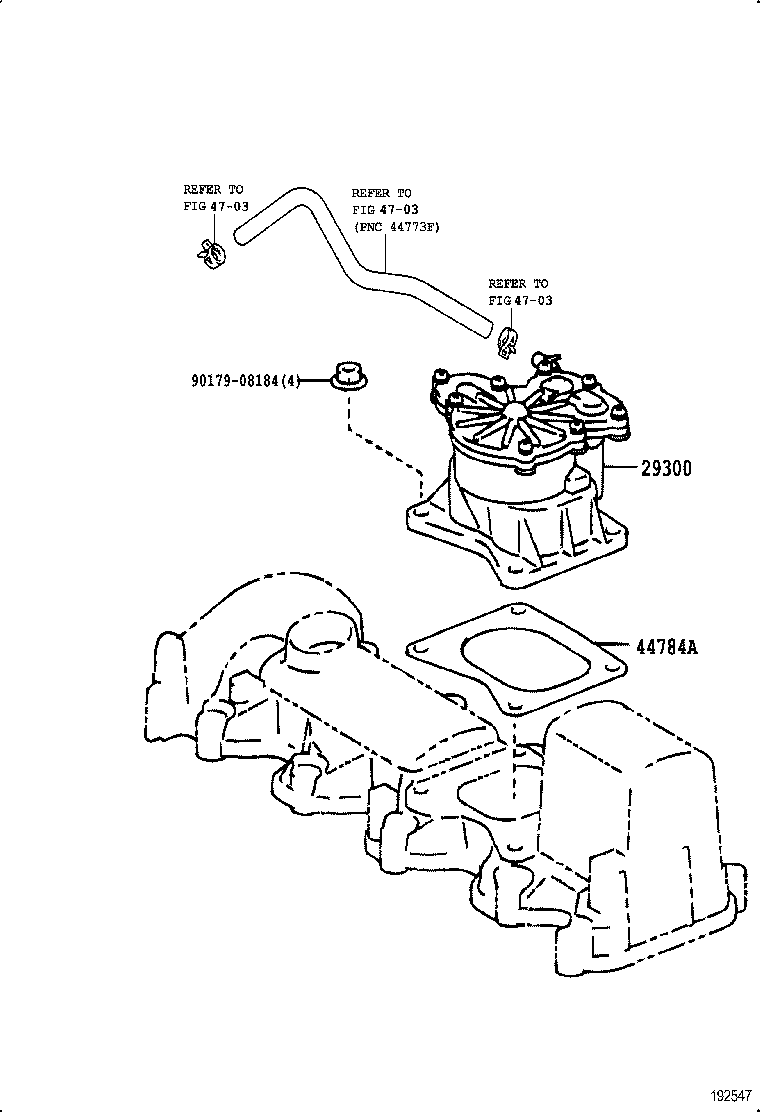

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-64041 |
Pump Assy, Vacuum
1991-06 → 1993-05
ended
|
2C CE10# | ¥43,200 | |
| 29300-64041 |
Pump Assy, Vacuum
1993-05 → 1994-01
ended
|
2C CE106,108,109 | ¥43,200 | |
| 29300-64100 |
Pump Assy, Vacuum
1993-05 → 1994-01
ended
|
2C CE100,104 | ¥53,600 | |
| 29300-64100 |
Pump Assy, Vacuum
1994-01 → —
|
2C,3CE CE10# | ¥53,600 | |
| 44784A — Gasket, Vacuum Pump | ||||
| 44784-12010 |
Gasket, Vacuum Pump
1993-05 → 1994-01
ended
|
CE100,104 | ¥320 | |
| 44784-12010 |
Gasket, Vacuum Pump
1994-01 → —
|
CE10# | ¥320 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
