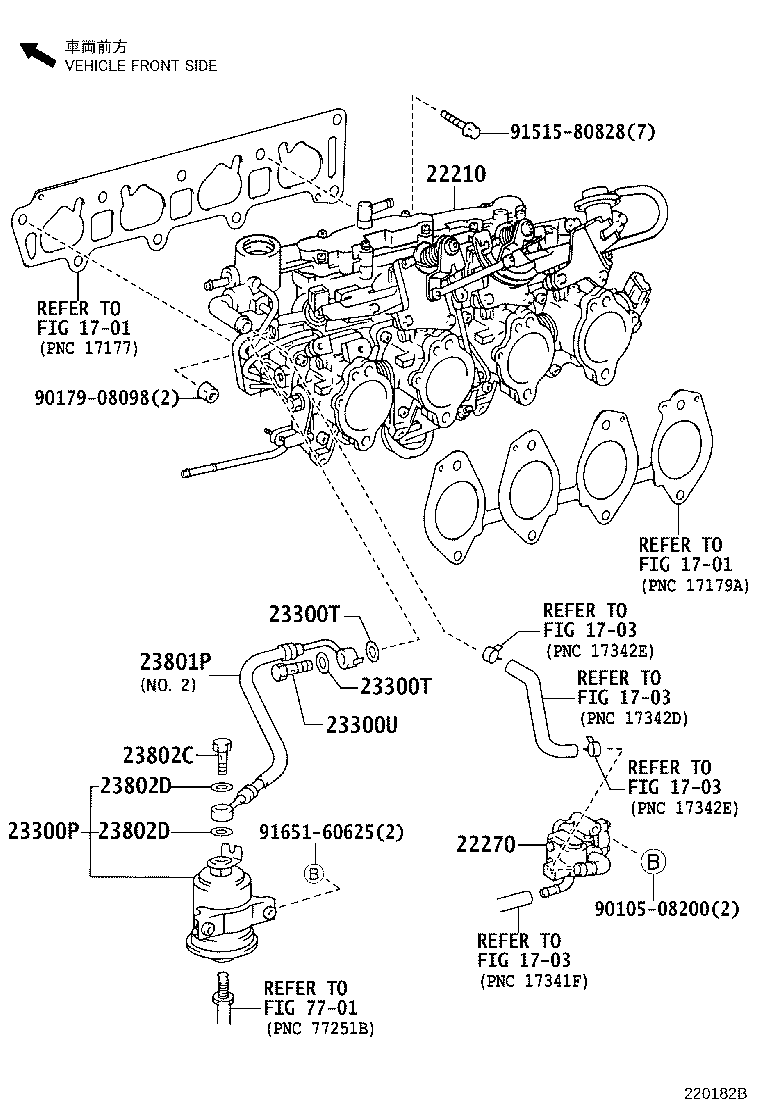

38 parts on this figure

Part number	Description	Fitment	Price
22210 — Body Assy, Throttle
22210-11270	Body Assy, Throttle 1991-06 → 1997-04 ended	4EFE EE101,102 4F	¥70,700
22210-11280	Body Assy, Throttle 1991-06 → 1997-04 ended	4EFE EE101,102 3FC	¥70,700
22210-11360	Body Assy, Throttle 1994-01 → 1997-04 ended	5EFE EE103,104 MTM	¥70,700
22210-11370	Body Assy, Throttle 1994-01 → 1997-04 ended	5EFE EE103,104 3FC	¥70,700
22210-11590	Body Assy, Throttle 1997-04 → 2000-08 ended	4EFE,5EFE EE10# MTM	¥90,400
22210-11600	Body Assy, Throttle 1997-04 → 2000-08 ended	4EFE,5EFE EE10# 3FC	¥90,400
22210-11640	Body Assy, Throttle 2000-08 → 2002-06 ended	4EFE,5EFE EE10# 5F	¥90,400
22210-11650	Body Assy, Throttle 2000-08 → 2002-06 ended	4EFE,5EFE EE10# 3FC	¥90,400
22210-15070	Body Assy, Throttle 1991-06 → 1997-04 ended	4AFE,5AFE AE10#	¥90,800
22210-16570	Body Assy, Throttle 1991-06 → 1991-07 ended	4AGE AE101 4FC	¥178,000
22210-16571	Body Assy, Throttle 1993-01 → 1994-12 ended	4AGE AE101	¥176,000
22210-16571	Body Assy, Throttle 1991-07 → 1993-01 ended	4AGE AE101 4FC	¥176,000
22210-16572	Body Assy, Throttle 1994-12 → 1995-05 ended	4AGE AE101	¥176,000
22210-16620	Body Assy, Throttle 1991-06 → 1991-07 ended	4AGE AE101 5F	¥184,000
22210-16621	Body Assy, Throttle 1991-07 → 1993-01 ended	4AGE AE101 5F	¥181,000
22210-1A010	Body Assy, Throttle 1997-04 → —	4AFE AE109	¥90,400
22270 — Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
22270-11020	Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) 1997-04 → 2002-06 ended	4EFE,5EFE EE10#	¥44,600
22270-15010	Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) 1991-06 → 1997-04 ended	4AFE,5AFE AE10#	¥44,900
22270-16030	Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) 1991-06 → 1995-05 ended	4AGE AE101	¥44,600
22270-16090	Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) 1997-04 → —	4AFE AE109	¥44,600
23300P — Filter, Fuel(FOR EFI)
23300-19295	Filter, Fuel(FOR EFI) 1991-06 → —	4A#,5AFE AE10#	¥7,100
23300-19295	Filter, Fuel(FOR EFI) 1991-06 → —	4EFE,5EFE EE101,102,103,104	¥7,100
23300T — Gasket(FOR FUEL FILTER)
90430-12026	Gasket(FOR FUEL FILTER) 1991-06 → —	4EFE,5EFE EE101,102,103,104	¥90
90430-12026	Gasket(FOR FUEL FILTER) 1991-06 → —	4A#,5AFE AE10#	¥90
23300U — Bolt, Union(FOR FUEL FILTER)
90401-12097	Bolt, Union(FOR FUEL FILTER) 1991-06 → —	4EFE,5EFE EE101,102,103,104	¥310
90401-12097	Bolt, Union(FOR FUEL FILTER) 1991-06 → —	4A#,5AFE AE10#	¥310
23801P — Pipe Sub-assy, Fuel, NO.1
23801-11050	Pipe Sub-assy, Fuel, NO.1 1991-06 → 1993-08 ended	4EFE EE101	¥2,660
23801-11080	Pipe Sub-assy, Fuel, NO.1 1993-08 → 1997-04 ended	4EFE,5EFE EE101,102,103,104	¥2,660
23801-11120	Pipe Sub-assy, Fuel, NO.1 1997-04 → —	4EFE,5EFE EE10#	¥3,230
23801-16060	Pipe Sub-assy, Fuel, NO.1 1991-06 → 1991-07 ended	4AGE AE101	¥8,700
23801-16061	Pipe Sub-assy, Fuel, NO.1 1991-07 → 1995-05 ended	4AGE AE101	¥8,600
90923-01380 note	Pipe Sub-assy, Fuel, NO.1 1991-06 → 1995-05 ended	4AGE AE101	¥7,400
23802C — Bolt, Union(FOR FUEL PIPE NO.2)
90401-08004	Bolt, Union(FOR FUEL PIPE NO.2) 1993-05 → —	4EFE,5EFE EE101,102,103,104	¥270
90401-08010	Bolt, Union(FOR FUEL PIPE NO.2) 1991-06 → 1993-05 ended	4EFE EE101	¥260
90401-12097	Bolt, Union(FOR FUEL PIPE NO.2) 1991-06 → —	4A#,5AFE AE10#	¥310
23802D — Gasket(FOR FUEL PIPE NO.2)
90430-08012	Gasket(FOR FUEL PIPE NO.2) 1991-06 → 1993-05 ended	4EFE EE101	¥120
90430-08014	Gasket(FOR FUEL PIPE NO.2) 1993-05 → —	4EFE,5EFE EE101,102,103,104	¥110
90430-12026	Gasket(FOR FUEL PIPE NO.2) 1991-06 → 1995-05 ended	4AGE AE101	¥90

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
