Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

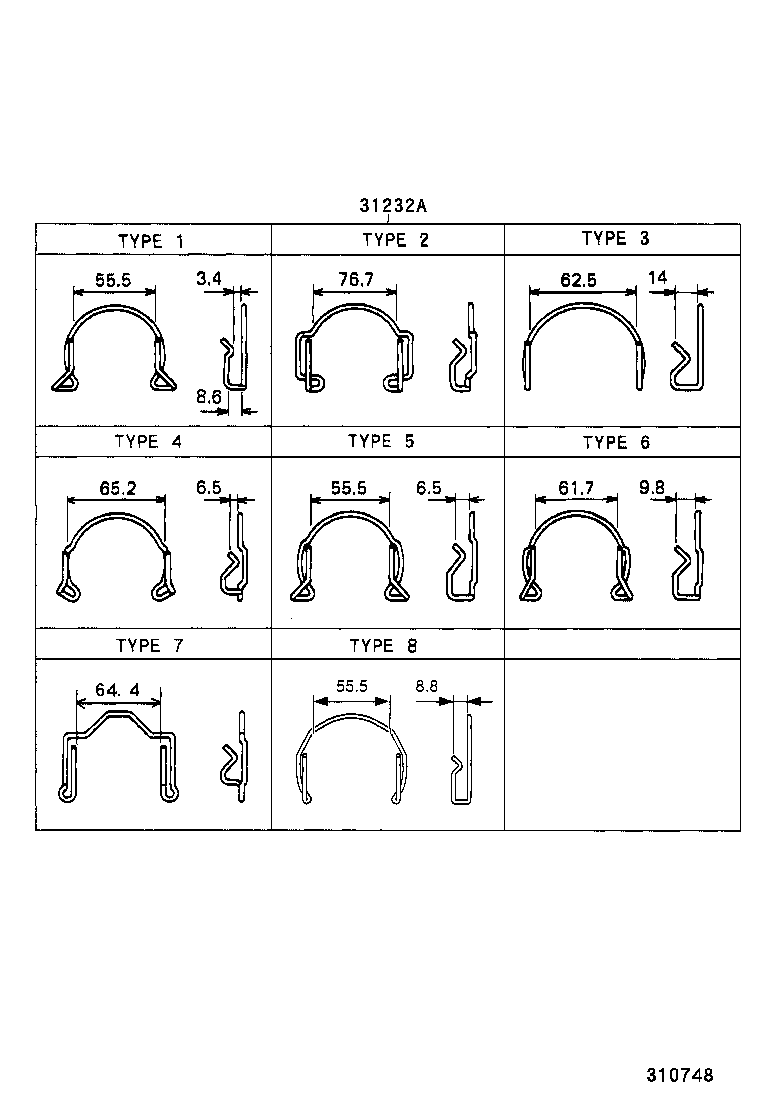

| 31232A — Clip, Release Bearing Hub | ||||
| 31232-12040 note |
Clip, Release Bearing Hub
1991-06 → 1994-08
ended
|
AE100,EE10# MTM | ¥160 | |
| 31232-12040 note |
Clip, Release Bearing Hub
1994-08 → —
|
EE10# MTM | ¥160 | |
| 31232-12050 note |
Clip, Release Bearing Hub
1991-06 → 1995-05
ended
|
AE100,101 5F | — | |
| 31232-12060 note |
Clip, Release Bearing Hub
1991-06 → 1995-05
ended
|
AE100,101 5F | ¥170 | |
| 31232-12070 note |
Clip, Release Bearing Hub
1991-06 → 1995-05
ended
|
AE100,101 5F | ¥200 | |
| 31232-16031 note |
Clip, Release Bearing Hub
1991-06 → 1994-08
ended
|
AE100,EE10# MTM | ¥200 | |
| 31232-16031 note |
Clip, Release Bearing Hub
1994-08 → —
|
EE10# MTM | ¥200 | |
| 31232-20020 note |
Clip, Release Bearing Hub
1991-06 → —
|
AE104,109,CE10# 5F | ¥190 | |
| 31232-32050 note |
Clip, Release Bearing Hub
1991-06 → —
|
CE100,102,106,107,108 5F | ¥180 | |
| 31232-52010 note |
Clip, Release Bearing Hub
1999-07 → —
|
EE10# MTM | ¥180 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
