Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

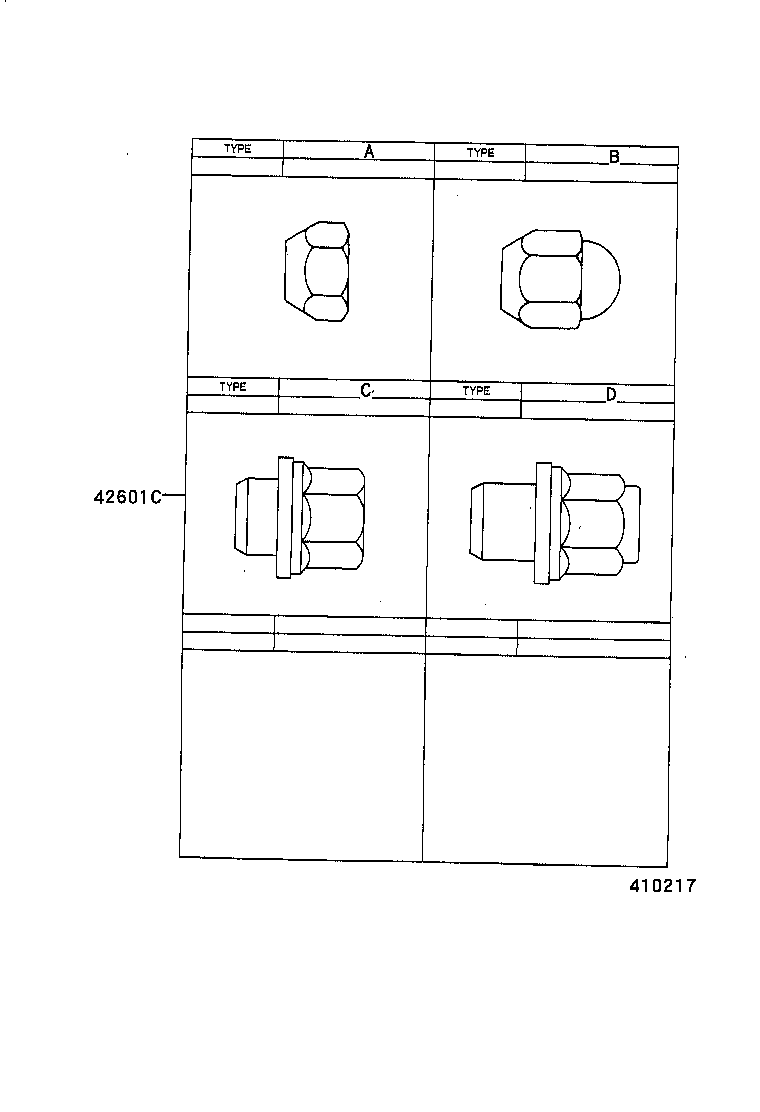

| 42601C — Nut, Hub (FOR AXLE) | ||||
| 90942-01007 note |
Nut, Hub (FOR AXLE)
1991-06 → 1993-05
ended
|
CE106,109,EE107 XL;AE10#,CE100,104,108,EE101,108 | ¥230 | |
| 90942-01007 note |
Nut, Hub (FOR AXLE)
1993-05 → 2000-08
ended
|
CE105,106,107,109,EE103,107 L,LX,SEG,SEL,XE XL;AE100,101,104,CE100,102,104,108,EE101,104,108 DX, | ¥230 | |
| 90942-01007 note |
Nut, Hub (FOR AXLE)
2000-08 → —
|
CE105,107,EE103 XL;AE109,CE102,EE102,104 DX,L | ¥230 | |
| 90942-01021 note |
Nut, Hub (FOR AXLE)
1991-06 → 1993-05
ended
|
AE100 4FC SEL | ¥330 | |
| 90942-01021 note |
Nut, Hub (FOR AXLE)
1993-05 → 1993-08
ended
|
AE101 GT;AE100 4FC SEL | ¥330 | |
| 90942-01021 note |
Nut, Hub (FOR AXLE)
1993-08 → 1994-01
ended
|
AE101 GT | ¥330 | |
| 90942-01021 note |
Nut, Hub (FOR AXLE)
1994-01 → —
|
AE101,109,CE102,105,106,107,108,109,EE102,103,104 CTD,DX,DXJ,GT,L | ¥330 | |
| 90942-01033 note |
Nut, Hub (FOR AXLE)
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 SEG,SEL,XE | ¥430 | |
| 90942-01059 note |
Nut, Hub (FOR AXLE)
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 CTD,DX,L | ¥680 | |
| 90942-01062 note |
Nut, Hub (FOR AXLE)
1991-06 → 1995-05
ended
|
AE101 GT | ¥530 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
