Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

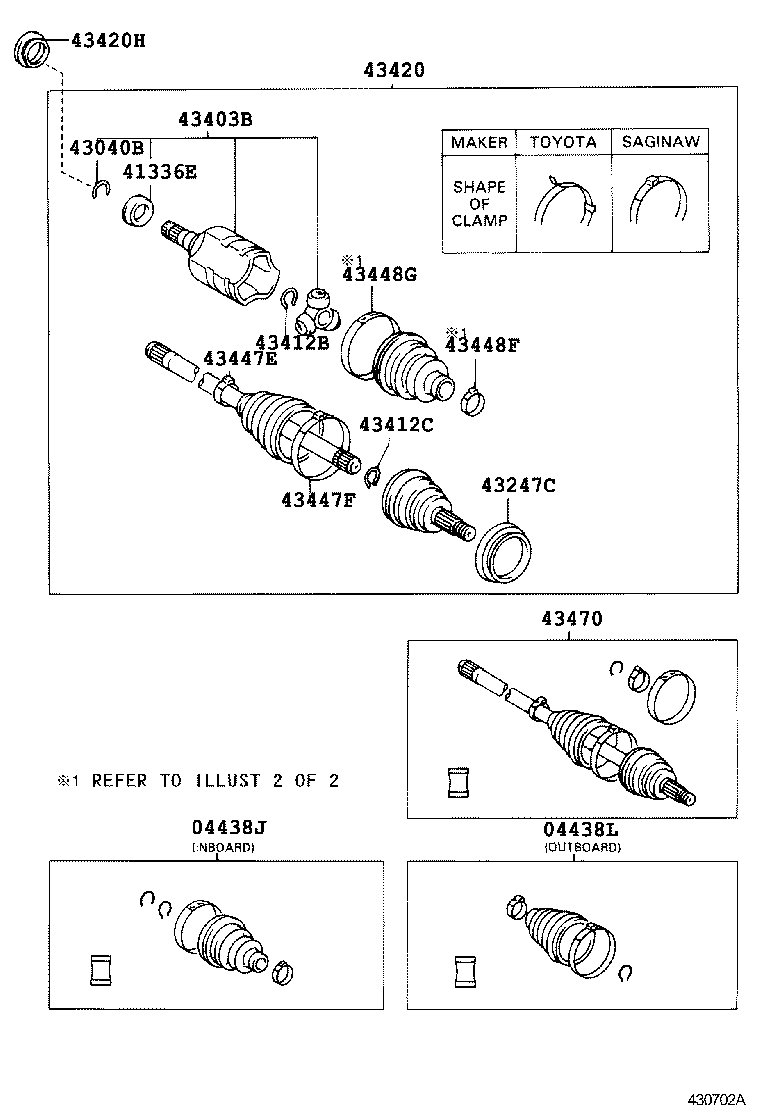

Exploded illustration 430702A 43403B — JOINT SET, FRONT AXLE INBOARD, LH (14 parts) 43040B — RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) (7 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (7 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (15 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (8 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (19 parts) 43412C — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER LH) (1 parts) 43247C — DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 (3 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (46 parts) 04438L — BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH (1 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (7 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (13 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (47 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (25 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (14 parts)
430702A · 15 callouts Full size ↗
227 parts on this figure
Part number Description Fitment Price
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-02050 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1993-05 → 1995-05 ended
AE101 SEG ¥6,700
04438-10050 Boot Kit, Front Drive Shaft Inboard Joint, LH
1991-06 → 1994-05 ended
EE10# ¥6,700
04438-10050 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1994-05 → 1995-11 ended
EE102,103,104 ¥6,700
04438-10050 Boot Kit, Front Drive Shaft Inboard Joint, LH
1994-05 → 1995-05 ended
EE101 ¥6,700
04438-12162 Boot Kit, Front Drive Shaft Inboard Joint, LH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥6,700
04438-12162 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1994-05 → 1995-11 ended
EE102,103,104 ¥6,700
04438-12162 Boot Kit, Front Drive Shaft Inboard Joint, LH
1993-05 → 1995-05 ended
AE100 ¥6,700
04438-12162 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1993-05 → 1995-05 ended
AE101 SEG ¥6,700
04438-12260 Boot Kit, Front Drive Shaft Inboard Joint, LH
1991-06 → 1995-11 ended
CE100,106,108 ¥6,700
04438-12410 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1995-11 → 1997-12 ended
EE10# ¥6,700
04438-12410 Boot Kit, Front Drive Shaft Inboard Joint, LH
1997-04 → 1997-12 ended
CE109 ¥6,700
04438-12410 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2000-08 → 2002-06 ended
EE10# ¥6,700
04438-12410 Boot Kit, Front Drive Shaft Inboard Joint, LH
1997-12 → 2000-08 ended
CE105,109,EE10# ¥6,700
04438-12410 Boot Kit, Front Drive Shaft Inboard Joint, LH
2000-08 → 2002-06 ended
CE105 ¥6,700
04438-12420 Boot Kit, Front Drive Shaft Inboard Joint, LH
1995-11 → 1998-04 ended
CE106,108 ¥6,700
04438-12470 Boot Kit, Front Drive Shaft Inboard Joint, LH
2001-04 → 2002-06 ended
CE102,107 ¥6,700
04438-16070 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1995-11 → 1999-07 ended
EE10# ¥6,700
04438-16071 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1999-07 → 2002-06 ended
EE10# ¥6,700
04438-20121 Boot Kit, Front Drive Shaft Inboard Joint, LH
1998-04 → 2001-04 ended
CE102,107 ¥6,700
04438-32161 Boot Kit, Front Drive Shaft Inboard Joint, LH
1991-06 → 1995-11 ended
AE101,104,CE104,109 DX,GT,LX,SEL,XE,XL ¥6,700
04438-32230 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1997-05 → 1998-04 ended
AE109 ¥6,700
04438-32230 Boot Kit, Front Drive Shaft Inboard Joint, LH
1995-11 → 1997-04 ended
AE109,CE109 ¥6,700
04438-32231 Boot Kit, Front Drive Shaft Inboard Joint, LH
1998-04 → 2001-04 ended
AE109 ¥6,700
04438-32231 note Boot Kit, Front Drive Shaft Inboard Joint, LH
1998-04 → 2001-04 ended
CE105 ¥6,700
04438-52051 note Boot Kit, Front Drive Shaft Inboard Joint, LH
2001-04 → 2002-06 ended
AE109,CE105 ¥6,700
04438L — Boot Kit, Front Drive Shaft Outboard Joint, LH
04438-02070 Boot Kit, Front Drive Shaft Outboard Joint, LH
1993-05 → 1995-05 ended
AE101 SEG ¥10,800
41336E — Cover, Front Drive Shaft Dust, LH
41336-01010 note Cover, Front Drive Shaft Dust, LH
1993-05 → 1995-05 ended
AE101 SEG —
41336-12010 Cover, Front Drive Shaft Dust, LH
1991-06 → 1993-05 ended
AE100,101,EE10# ¥130
41336-12010 note Cover, Front Drive Shaft Dust, LH
1993-05 → 1995-05 ended
AE101 SEG ¥130
41336-12010 Cover, Front Drive Shaft Dust, LH
1993-05 → 2002-06 ended
AE100,101,EE10# CTD,DX,DXJ,GT,L,LX,SEL,XE,XL ¥130
41336-12040 Cover, Front Drive Shaft Dust, LH
1991-09 → 2002-06 ended
AE104,109,CE104,105,109 ¥270
41336-12060 Cover, Front Drive Shaft Dust, LH
2000-11 → 2002-06 ended
CE102,107 ¥200
41336-32020 Cover, Front Drive Shaft Dust, LH
1991-06 → 2000-11 ended
CE100,102,106,107,108 ¥310
43040B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
90080-52015 note Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
1993-05 → 1995-05 ended
AE101 SEG —
90521-26004 note Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
1993-05 → 1995-05 ended
AE101 SEG ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
1993-05 → 1997-04 ended
AE10#,CE104,109,EE10# CTD,DX,DXJ,GT,L,LX,SEL,XE,XL ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
1997-04 → 1997-05 ended
EE10# ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
1997-05 → 2002-06 ended
AE109,CE105,109,EE10# ¥100
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
1991-06 → 1993-05 ended
AE10#,CE104,109,EE10# ¥100
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH)
1991-06 → 2002-06 ended
CE100,102,106,107,108 ¥110
43247C — Deflector, Front Wheel Bearing Dust, LH NO.2
43247-12010 note Deflector, Front Wheel Bearing Dust, LH NO.2
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥780
43247-12010 note Deflector, Front Wheel Bearing Dust, LH NO.2
1998-04 → —
AE109,CE10#,EE10# ¥780
43247-33010 Deflector, Front Wheel Bearing Dust, LH NO.2
1991-06 → —
AE10#,CE10#,EE10# ¥2,400
43403B — Joint Set, Front Axle Inboard, LH
43040-20010 Joint Set, Front Axle Inboard, LH
1991-06 → 1998-06 ended
CE100,102,106,107,108 ¥25,000
43040-32040 Joint Set, Front Axle Inboard, LH
1998-06 → 2002-06 ended
CE102,107 ¥17,300
43047-02030 note Joint Set, Front Axle Inboard, LH
1993-05 → 1995-05 ended
AE101 SEG ¥33,700
43403-10010 Joint Set, Front Axle Inboard, LH
1994-05 → 1995-05 ended
EE101 ¥23,500
43403-10010 note Joint Set, Front Axle Inboard, LH
1994-05 → 1999-08 ended
EE102,103,104 ¥23,500
43403-10010 Joint Set, Front Axle Inboard, LH
1991-06 → 1994-05 ended
EE10# ¥23,500
43403-10011 note Joint Set, Front Axle Inboard, LH
1999-08 → 2000-08 ended
EE10# ¥19,500
43403-10011 note Joint Set, Front Axle Inboard, LH
2000-08 → 2002-06 ended
EE102,103 5F (DX,DXJ) ¥19,500
43403-10011 Joint Set, Front Axle Inboard, LH
2000-08 → 2002-06 ended
EE103,104 L,XL;EE102,103 3FC (DX,DXJ) ¥19,500
43403-12040 Joint Set, Front Axle Inboard, LH
1993-05 → 1995-05 ended
AE100,101 DX,GT,LX,SEL,XE ¥27,100
43403-12040 note Joint Set, Front Axle Inboard, LH
1993-05 → 1995-05 ended
AE101 SEG ¥27,100
43403-12040 note Joint Set, Front Axle Inboard, LH
1994-05 → 2002-06 ended
EE102,103,104 ¥27,100
43403-12040 Joint Set, Front Axle Inboard, LH
1991-06 → 1993-05 ended
AE100,101 ¥27,100
43403-12060 Joint Set, Front Axle Inboard, LH
1991-09 → 2002-06 ended
AE104,109,CE104,105,109 ¥26,400
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
90080-52008 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1993-05 → 1995-05 ended
AE101 SEG ¥170
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1991-06 → 1994-05 ended
EE10# ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1994-05 → 1995-05 ended
EE101 ¥110
90520-22001 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1994-05 → 2002-06 ended
EE102,103,104 ¥110
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1993-05 → 1995-05 ended
AE101 SEG ¥100
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1994-05 → 2002-06 ended
EE102,103,104 ¥100
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1991-06 → 1993-05 ended
AE10#,CE10# ¥100
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
1993-05 → 2002-06 ended
AE10#,CE10# CTD,DX,DXJ,GT,L,LX,SEL,XE,XL ¥100
43412C — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER LH)
90080-52004 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER LH)
1993-05 → 1995-05 ended
AE101 SEG ¥180
43420 — Shaft Assy, Front Drive, LH
43420-02030 note Shaft Assy, Front Drive, LH
1993-05 → 1995-05 ended
AE101 SEG —
43420-02040 note Shaft Assy, Front Drive, LH
1993-05 → 1995-05 ended
AE101 SEG —
43420-12250 note Shaft Assy, Front Drive, LH
1994-05 → 1997-09 ended
EE102,103,104 ¥71,500
43420-12250 Shaft Assy, Front Drive, LH
1991-06 → 1994-05 ended
EE10# ¥71,500
43420-12250 Shaft Assy, Front Drive, LH
1994-05 → 1995-05 ended
EE101 ¥71,500
43420-12251 note Shaft Assy, Front Drive, LH
1997-09 → 1999-01 ended
EE10# ¥71,500
43420-12260 note Shaft Assy, Front Drive, LH
1993-03 → 1995-05 ended
EE101 ¥71,500
43420-12260 note Shaft Assy, Front Drive, LH
1992-06 → 1993-03 ended
EE101 ¥71,500
43420-12260 note Shaft Assy, Front Drive, LH
1991-06 → 1992-06 ended
EE101 ¥71,500
43420-12261 note Shaft Assy, Front Drive, LH
1998-04 → 1999-01 ended
EE10# ¥71,500
43420-12310 Shaft Assy, Front Drive, LH
1991-06 → 1995-05 ended
AE101 GT ¥71,500
43420-12320 Shaft Assy, Front Drive, LH
1991-06 → 1997-09 ended
CE100,106,108 ¥71,500
43420-12321 Shaft Assy, Front Drive, LH
1997-09 → 1999-01 ended
CE102,106,107,108 ¥71,500
43420-12322 Shaft Assy, Front Drive, LH
1999-01 → 2001-04 ended
CE102,107 ¥71,500
43420-12323 Shaft Assy, Front Drive, LH
2001-04 → 2002-06 ended
CE102,107 ¥71,500
43420-12330 note Shaft Assy, Front Drive, LH
1991-06 → 1995-05 ended
AE101 GT ¥71,500
43420-12340 note Shaft Assy, Front Drive, LH
1991-06 → 1995-05 ended
CE100 ¥71,500
43420-12341 note Shaft Assy, Front Drive, LH
1998-04 → 1999-01 ended
CE102,107 ¥71,500
43420-12342 note Shaft Assy, Front Drive, LH
1999-01 → 2001-04 ended
CE102,107 ¥71,500
43420-12343 note Shaft Assy, Front Drive, LH
2001-04 → 2002-06 ended
CE102,107 ¥71,500
43420-12360 note Shaft Assy, Front Drive, LH
1991-09 → 1995-05 ended
AE104 ¥71,200
43420-12370 Shaft Assy, Front Drive, LH
1991-09 → 1997-09 ended
CE104,109 ¥69,300
43420-12371 Shaft Assy, Front Drive, LH
1997-09 → 1999-01 ended
CE105,109 ¥69,500
43420-12372 Shaft Assy, Front Drive, LH
1999-01 → 2001-04 ended
CE105 ¥69,500
43420-12373 Shaft Assy, Front Drive, LH
2001-04 → 2002-06 ended
CE105 ¥69,500
43420-12380 note Shaft Assy, Front Drive, LH
1991-09 → 1995-05 ended
CE104 ¥69,300
43420-12381 note Shaft Assy, Front Drive, LH
1998-04 → 1999-01 ended
CE105 ¥69,500
43420-12382 note Shaft Assy, Front Drive, LH
1999-01 → 2001-04 ended
CE105 ¥69,500
43420-12383 note Shaft Assy, Front Drive, LH
2001-04 → 2002-06 ended
CE105 ¥69,500
43420-20111 note Shaft Assy, Front Drive, LH
1994-05 → 1997-09 ended
EE102,103,104 ¥69,300
43420-20111 Shaft Assy, Front Drive, LH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥69,300
43420-20111 Shaft Assy, Front Drive, LH
1993-05 → 1995-05 ended
AE100 ¥69,300
43420-20111 note Shaft Assy, Front Drive, LH
1993-05 → 1995-05 ended
AE101 SEG ¥69,300
43420-20112 Shaft Assy, Front Drive, LH
2002-02 → 2002-06 ended
EE10# ¥71,300
43420-20112 Shaft Assy, Front Drive, LH
2000-08 → 2002-02 ended
EE102,103 5F (DX,DXJ) ¥71,300
43420-20112 note Shaft Assy, Front Drive, LH
1997-09 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥71,300
43420-20281 note Shaft Assy, Front Drive, LH
1993-05 → 1995-05 ended
AE100 ¥71,500
43420-20281 note Shaft Assy, Front Drive, LH
1993-05 → 1995-05 ended
AE101 SEG ¥71,500
43420-20281 note Shaft Assy, Front Drive, LH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥71,500
43420-20282 note Shaft Assy, Front Drive, LH
1998-04 → 2002-06 ended
EE10# ¥71,300
43420-32121 Shaft Assy, Front Drive, LH
1991-09 → 1997-09 ended
AE104,109 ¥71,500
43420-32122 Shaft Assy, Front Drive, LH
1997-09 → 1999-01 ended
AE109 ¥71,500
43420-32123 Shaft Assy, Front Drive, LH
1999-01 → 2001-04 ended
AE109 ¥71,500
43420-32124 Shaft Assy, Front Drive, LH
2001-04 → 2002-06 ended
AE109 ¥71,500
43420-32162 note Shaft Assy, Front Drive, LH
1998-04 → 1999-01 ended
AE109 ¥71,500
43420-32163 note Shaft Assy, Front Drive, LH
1999-01 → 2001-04 ended
AE109 ¥71,500
43420-32164 note Shaft Assy, Front Drive, LH
2001-04 → 2002-06 ended
AE109 ¥71,500
43420H — Oil Seal, Front Drive Shaft, LH
90311-34008 Oil Seal, Front Drive Shaft, LH
1991-06 → 1991-08 ended
AE10#,EE101 MTM ¥310
90311-34012 Oil Seal, Front Drive Shaft, LH
1991-06 → 1998-03 ended
AE100,EE10# 3FC ¥350
90311-34013 Oil Seal, Front Drive Shaft, LH
1991-06 → 1995-05 ended
AE100,101 4FC ¥660
90311-34017 Oil Seal, Front Drive Shaft, LH
1991-08 → 2000-12 ended
AE100,101,EE10# MTM ¥270
90311-34022 Oil Seal, Front Drive Shaft, LH
1998-03 → —
EE10# 3FC ¥240
90311-34028 Oil Seal, Front Drive Shaft, LH
2000-12 → —
EE10# 5F ¥310
90311-35019 Oil Seal, Front Drive Shaft, LH
1994-10 → 1995-07 ended
CE100,106,108 5F ¥400
90311-35020 Oil Seal, Front Drive Shaft, LH
1991-06 → 1999-08 ended
CE100,102,106,107,108 4FC ¥190
90311-35026 Oil Seal, Front Drive Shaft, LH
1991-06 → 1994-10 ended
CE100,106,108 5F ¥290
90311-35033 Oil Seal, Front Drive Shaft, LH
1995-07 → 2000-07 ended
CE102,106,107,108 5F ¥400
90311-35047 Oil Seal, Front Drive Shaft, LH
1999-08 → 2002-06 ended
CE102,107 4FC ¥270
90311-35048 Oil Seal, Front Drive Shaft, LH
2000-07 → —
CE102,107 5F ¥290
90311-44003 Oil Seal, Front Drive Shaft, LH
1991-09 → —
AE104,109,CE104,105,109 5F ¥770
90311-44004 Oil Seal, Front Drive Shaft, LH
1991-09 → 2002-06 ended
AE104,109 4FC ¥660
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12150 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2001-04 → 2002-06 ended
AE109,CE10# ¥370
42345-14010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1998-04 → 1999-01 ended
CE102,107 ¥700
42345-14010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-07 → 1997-04 ended
AE104,CE10# ¥700
42345-14010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-06 → 1993-07 ended
AE101,104,CE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥700
42345-16010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-07 → 1995-05 ended
AE101 SEG ¥140
42345-16010 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥140
42345-16030 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-09 → 1993-07 ended
CE106,108 ¥660
42345-16030 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-07 → 1997-04 ended
AE101,CE106,108 CTD,DX,GT,L,XL ¥660
42345-20100 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2001-04 → 2002-06 ended
CE102,107 ¥530
42345-20100 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1999-01 → 2001-04 ended
AE109,CE10# ¥530
90080-46147 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-05 → 1995-05 ended
AE101 SEG ¥240
90949-01078 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-06 → 1993-05 ended
AE100,101,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL ¥80
90949-01078 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-05 → 1993-07 ended
AE101 SEG ¥80
90949-01078 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-05 → 2002-06 ended
AE100,EE10# ¥80
90949-01947 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1998-04 → 1999-01 ended
CE102,107 ¥360
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12140 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2001-04 → 2002-06 ended
AE109,CE10# ¥580
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-04 → 1999-01 ended
AE109,CE10# ¥300
42345-16020 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1992-06 → 1993-07 ended
EE101 ¥280
42345-16020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-06 → 1992-06 ended
EE10# ¥280
42345-16020 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-07 → 1995-05 ended
AE101 SEG ¥280
42345-16020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-07 → 2002-06 ended
EE103 XL;AE100,EE101,104,106,107,108;EE102,103 (3FC,4F) (DX,DXJ) ¥280
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-09 → 1993-07 ended
CE106,108 ¥550
42345-20120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2001-04 → 2002-06 ended
CE102,107 ¥620
42345-20120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1999-01 → 2001-04 ended
AE109,CE10# ¥620
90080-46149 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-05 → 1995-05 ended
AE101 SEG ¥450
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-06 → 1993-07 ended
AE101,104,CE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-09 → 1997-04 ended
CE109 ¥380
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-09 → 1997-09 ended
CE104,109 ¥380
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1991-06 → 1992-06 ended
AE100,101 DX,LX,SEG,SEL,XE ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
EE10# ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-05 → 1993-07 ended
AE100,EE10# ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1993-05 → 1993-07 ended
AE101 SEG ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1992-06 → 1993-05 ended
AE100,101,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL ¥300
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
1998-04 → 1999-01 ended
CE102,107 ¥230
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1993-07 ended
AE10#,CE10#,EE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥140
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 2002-06 ended
EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);AE10#,CE10#,EE101,104,106,107,108 ¥140
90080-46148 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1995-05 ended
AE101 SEG ¥240
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# ¥80
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1993-07 ended
AE101 SEG ¥80
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2002-02 → 2002-06 ended
EE10# ¥80
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥300
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1994-05 → 2002-06 ended
AE101,EE103,104 L,SEG,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥550
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 1994-05 ended
AE101 SEG ¥550
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1992-06 → 1993-07 ended
EE101 ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 2002-06 ended
EE103 XL;EE104,107,108;EE101,102,103,106 (3FC,4F) (CTD,DX,DXJ,LX,XE) ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1991-06 → 1992-06 ended
EE10# ¥500
90080-46150 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1995-05 ended
AE101 SEG ¥370
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 1997-04 ended
CE109 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1991-06 → 1993-07 ended
AE10#,CE10# ¥380
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2000-04 → 2000-08 ended
EE10# ¥350
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1992-06 → 1993-07 ended
EE10# ¥350
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
EE10# ¥350
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1998-04 → 1999-01 ended
CE102,107 ¥230
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43460-19307 note Shaft Assy, Front Drive Outboard Joint, LH
1991-09 → 1995-05 ended
AE104 ¥41,800
43470-09100 note Shaft Assy, Front Drive Outboard Joint, LH
1993-05 → 1995-05 ended
AE101 SEG ¥38,900
43470-09110 note Shaft Assy, Front Drive Outboard Joint, LH
1993-05 → 1995-05 ended
AE101 SEG ¥38,900
43470-19308 note Shaft Assy, Front Drive Outboard Joint, LH
1998-04 → 1999-01 ended
AE109 ¥41,300
43470-19309 note Shaft Assy, Front Drive Outboard Joint, LH
1999-01 → 2001-04 ended
AE109 ¥41,300
43470-19310 note Shaft Assy, Front Drive Outboard Joint, LH
2001-04 → 2002-06 ended
AE109 ¥41,300
43470-19665 note Shaft Assy, Front Drive Outboard Joint, LH
1994-05 → 1997-09 ended
EE102,103,104 ¥38,900
43470-19665 Shaft Assy, Front Drive Outboard Joint, LH
1991-06 → 1994-05 ended
EE10# ¥38,900
43470-19665 Shaft Assy, Front Drive Outboard Joint, LH
1994-05 → 1995-05 ended
EE101 ¥38,900
43470-19666 note Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 2002-06 ended
EE10# ¥38,900
43470-19705 note Shaft Assy, Front Drive Outboard Joint, LH
1991-06 → 1995-05 ended
EE101 ¥38,900
43470-19706 note Shaft Assy, Front Drive Outboard Joint, LH
2000-08 → 2002-06 ended
EE10# ¥38,900
43470-19715 note Shaft Assy, Front Drive Outboard Joint, LH
1991-06 → 1995-05 ended
AE101,CE100 DX,GT,LX,SEL,XE ¥39,100
43470-19725 Shaft Assy, Front Drive Outboard Joint, LH
1991-09 → 1997-09 ended
CE104,109 ¥37,500
43470-19726 Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 1998-04 ended
CE109 ¥37,600
43470-19727 Shaft Assy, Front Drive Outboard Joint, LH
1998-04 → 1999-01 ended
CE105 ¥37,600
43470-19728 Shaft Assy, Front Drive Outboard Joint, LH
1999-01 → 2001-04 ended
CE105 ¥37,600
43470-19729 Shaft Assy, Front Drive Outboard Joint, LH
2001-04 → 2002-06 ended
CE105 ¥37,600
43470-19735 note Shaft Assy, Front Drive Outboard Joint, LH
1991-09 → 1995-05 ended
CE104 ¥37,500
43470-19737 note Shaft Assy, Front Drive Outboard Joint, LH
1998-04 → 1999-01 ended
CE105 ¥37,600
43470-19738 note Shaft Assy, Front Drive Outboard Joint, LH
1999-01 → 2001-04 ended
CE105 ¥37,600
43470-19739 note Shaft Assy, Front Drive Outboard Joint, LH
2001-04 → 2002-06 ended
CE105 ¥37,600
43470-29107 Shaft Assy, Front Drive Outboard Joint, LH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥41,900
43470-29107 Shaft Assy, Front Drive Outboard Joint, LH
1993-05 → 1995-05 ended
AE100 ¥41,900
43470-29107 note Shaft Assy, Front Drive Outboard Joint, LH
1994-05 → 1997-09 ended
EE102,103,104 ¥41,900
43470-29107 note Shaft Assy, Front Drive Outboard Joint, LH
1993-05 → 1995-05 ended
AE101 SEG ¥41,900
43470-29108 Shaft Assy, Front Drive Outboard Joint, LH
2000-08 → 2002-06 ended
EE102,103 5F (DX,DXJ) ¥41,900
43470-29108 note Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥41,900
43470-29237 note Shaft Assy, Front Drive Outboard Joint, LH
1993-05 → 1995-05 ended
AE101 SEG ¥38,900
43470-29237 note Shaft Assy, Front Drive Outboard Joint, LH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥38,900
43470-29237 note Shaft Assy, Front Drive Outboard Joint, LH
1993-05 → 1995-05 ended
AE100 ¥38,900
43470-29238 Shaft Assy, Front Drive Outboard Joint, LH
2002-02 → 2002-06 ended
EE103,104 L,XL;EE102,103 3FC (DX,DXJ) ¥38,900
43470-29238 note Shaft Assy, Front Drive Outboard Joint, LH
2000-08 → 2002-06 ended
EE102,103 5F (DX,DXJ) ¥38,900
43470-29345 Shaft Assy, Front Drive Outboard Joint, LH
1991-06 → 1997-09 ended
AE101,CE100,106,108 CTD,DX,GT,L,LX,SEL,XE,XL ¥41,500
43470-29346 Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 1998-04 ended
CE106,108 ¥41,600
43470-29347 note Shaft Assy, Front Drive Outboard Joint, LH
1998-04 → 1999-01 ended
CE102,107 ¥41,600
43470-29348 Shaft Assy, Front Drive Outboard Joint, LH
1999-01 → 2001-04 ended
CE102,107 ¥41,600
43470-29349 Shaft Assy, Front Drive Outboard Joint, LH
2001-04 → 2002-06 ended
CE102,107 ¥41,500
43470-29357 Shaft Assy, Front Drive Outboard Joint, LH
1998-04 → 1999-01 ended
CE102,107 ¥41,600
43470-29358 note Shaft Assy, Front Drive Outboard Joint, LH
1999-01 → 2001-04 ended
CE102,107 ¥41,600
43470-29359 note Shaft Assy, Front Drive Outboard Joint, LH
2001-04 → 2002-06 ended
CE102,107 ¥41,600
43470-39087 Shaft Assy, Front Drive Outboard Joint, LH
1991-09 → 1997-09 ended
AE104,109 ¥42,200
43470-39088 Shaft Assy, Front Drive Outboard Joint, LH
1997-09 → 1998-04 ended
AE109 ¥42,300
43470-39089 Shaft Assy, Front Drive Outboard Joint, LH
1998-04 → 1999-01 ended
AE109 ¥42,300
43470-39090 Shaft Assy, Front Drive Outboard Joint, LH
1999-01 → 2001-04 ended
AE109 ¥42,300
43470-39145 Shaft Assy, Front Drive Outboard Joint, LH
2001-04 → 2002-06 ended
AE109 ¥42,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
