Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

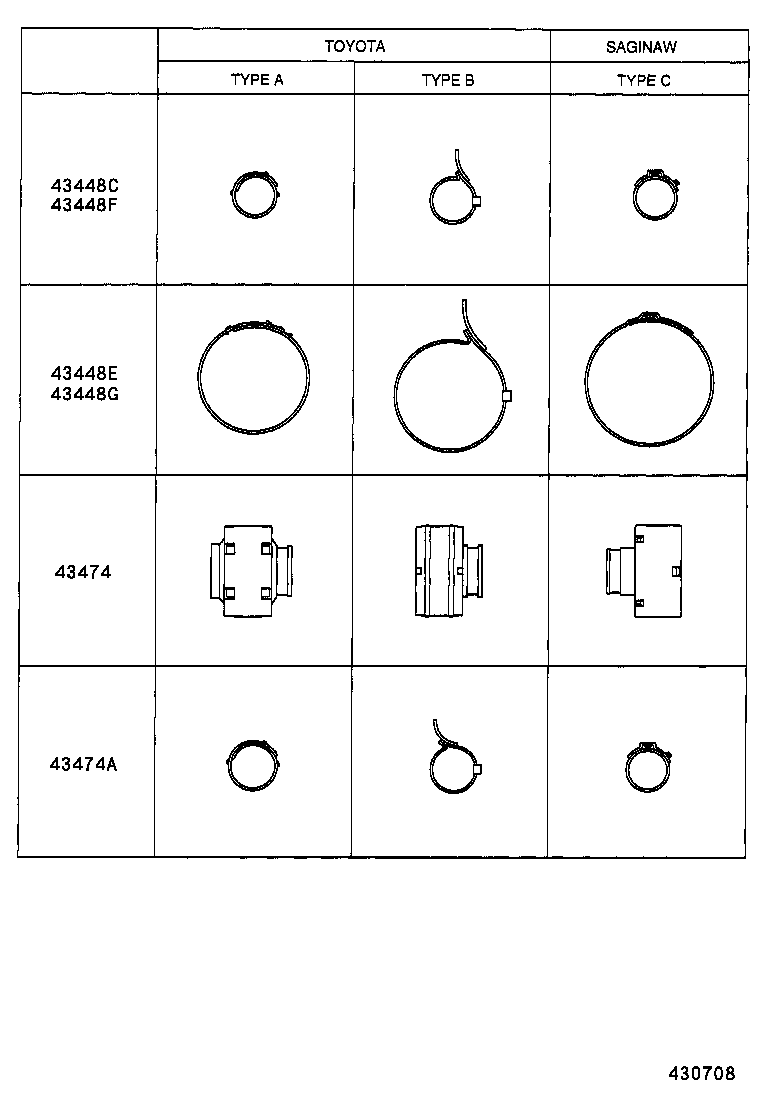

Exploded illustration 430708 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (5 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (7 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (13 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (13 parts) 43474 — DAMPER, DRIVE SHAFT (7 parts) 43474A — CLAMP (FOR DRIVE SHAFT DAMPER SETTING) (9 parts)
430708 · 6 callouts Full size ↗
54 parts on this figure
Part number Description Fitment Price
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 1995-05 ended
AE101 SEG ¥140
90080-46148 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-05 → 1995-05 ended
AE101 SEG ¥240
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 2002-06 ended
AE100,104,109,CE10#,EE10# ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-02 → 2002-06 ended
EE10# ¥80
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-06 → 1993-07 ended
AE10#,CE10#,EE10# ¥80
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-04 → 2002-06 ended
AE109,CE102,105,106,107,108,EE10# ¥300
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-05 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥550
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 1995-05 ended
AE101 SEG ¥550
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1992-06 → 1993-07 ended
EE101 ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 2002-06 ended
EE103 XL;EE104,107,108;EE101,102,103,106 (3FC,4F) (CTD,DX,DXJ,LX,XE) ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-06 → 1992-06 ended
EE10# ¥500
90080-46150 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-05 → 1995-05 ended
AE101 SEG ¥370
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-09 → 1997-04 ended
CE109 ¥380
90949-01076 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-05 → 1997-04 ended
EE102,103,104 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-04 → 1998-04 ended
CE109 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-06 → 1993-07 ended
AE10#,CE10# ¥380
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-04 → 2002-06 ended
EE10# ¥350
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1992-06 → 1993-07 ended
EE10# ¥350
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1993-07 ended
AE10#,CE10#,EE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥140
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 2002-06 ended
EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);AE10#,CE10#,EE101,104,106,107,108 ¥140
90080-46148 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1995-05 ended
AE101 SEG ¥240
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1993-07 ended
AE101 SEG ¥80
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# ¥80
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2002-02 → 2002-06 ended
EE10# ¥80
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥300
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1994-05 → 2002-06 ended
AE101,EE103,104 L,SEG,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥550
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 1994-05 ended
AE101 SEG ¥550
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1992-06 → 1993-07 ended
EE101 ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 2002-06 ended
EE103 XL;EE104,107,108;EE101,102,103,106 (3FC,4F) (CTD,DX,DXJ,LX,XE) ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1991-06 → 1992-06 ended
EE10# ¥500
90080-46150 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-05 → 1995-05 ended
AE101 SEG ¥370
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1993-07 → 1997-04 ended
CE109 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1991-06 → 1993-07 ended
AE10#,CE10# ¥380
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2000-04 → 2000-08 ended
EE10# ¥350
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1992-06 → 1993-07 ended
EE10# ¥350
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1997-04 → 2002-06 ended
EE10# ¥350
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
1998-04 → 1999-01 ended
CE102,107 ¥230
43474 — Damper, Drive Shaft
43474-12020 Damper, Drive Shaft
1991-06 → 1991-07 ended
AE10#,CE100,EE101 DX,LX,SEG,SEL,XE ¥4,940
43474-12020 Damper, Drive Shaft
1991-07 → 2002-06 ended
CE100,102,106,107,108 ¥4,940
43474-12030 Damper, Drive Shaft
1991-09 → 2002-06 ended
AE104,109,CE105 ¥3,820
43474-12040 note Damper, Drive Shaft
1997-04 → 2002-06 ended
EE10# ¥4,230
43474-20050 note Damper, Drive Shaft
1998-04 → 2000-04 ended
EE10# ¥2,000
43474-20050 note Damper, Drive Shaft
1991-07 → 1997-04 ended
AE100,101,EE10# CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ¥2,000
43474-20050 note Damper, Drive Shaft
2000-08 → 2002-06 ended
EE10# ¥2,000
43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING)
42345-12170 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2002-02 → 2002-06 ended
AE109,CE105 ¥230
42345-14010 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1991-06 → 1993-07 ended
AE100,101,CE10# CTD,DX,L,LX,SEG,SEL,XE,XL ¥700
42345-14010 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1997-04 → 1999-06 ended
EE10# ¥700
42345-14010 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1999-06 → 2002-06 ended
CE102,107,EE10# ¥700
42345-14010 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2002-02 → 2002-06 ended
EE10# ¥700
42345-16030 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1991-06 → 1993-07 ended
EE10# ¥660
42345-16030 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1993-07 → 2002-06 ended
EE103 104,106,107,108 XL;EE102,103 CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL +2 ¥660
90949-01696 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1991-09 → 1995-05 ended
AE104 ¥240
90949-01696 note Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1996-05 → 2002-06 ended
AE109,CE105 ¥240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
