Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

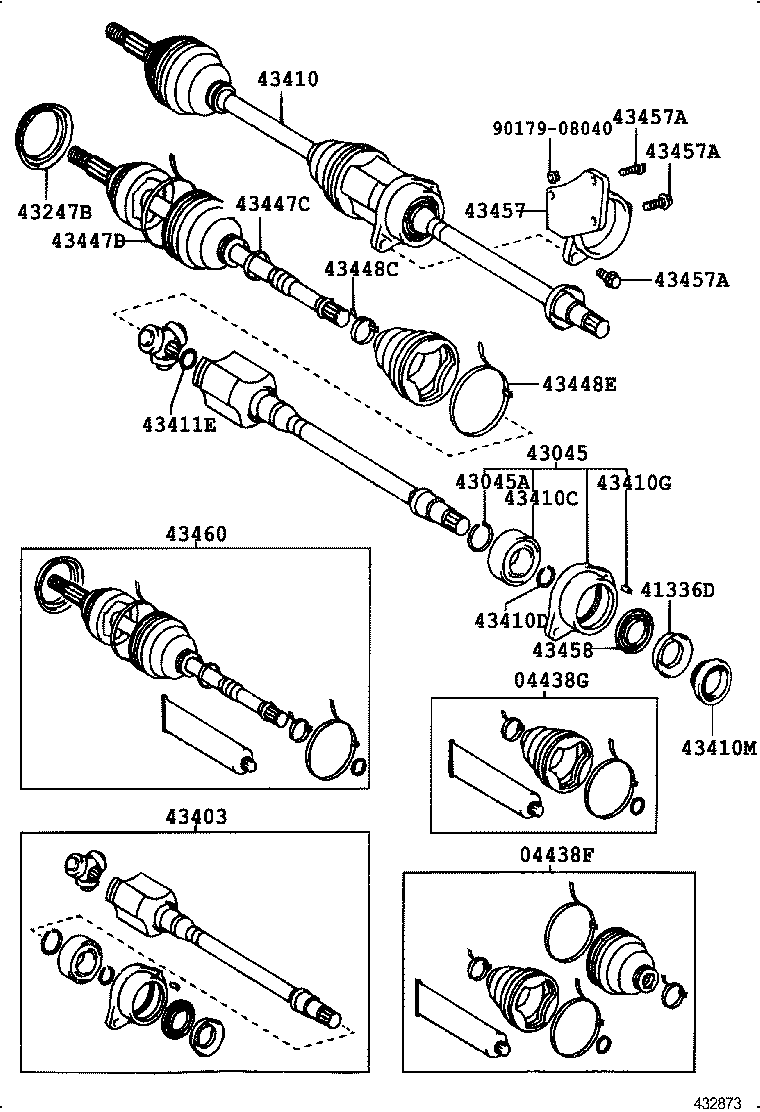

Exploded illustration 432873 43410 — SHAFT ASSY, FRONT DRIVE, RH (48 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (6 parts) 9017908040 — not listed in this catalogue 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (6 parts) 43247B — DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 (3 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (16 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (2 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (20 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (5 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (6 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (13 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (8 parts) 43045 — CASE SUB ASSY, DRIVE SHAFT BEARING (1 parts) 43045A — RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) (1 parts) 43410G — PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) (1 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (1 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (47 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (8 parts) 43410D — RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) (1 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (23 parts) 43403 — JOINT SET, FRONT AXLE INBOARD, RH (13 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (22 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (12 parts)
432873 · 23 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
252 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438-10060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1991-06 → 1994-05 ended
EE10# ¥10,800
04438-10060 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-05 → 1995-11 ended
EE102,103,104 ¥10,800
04438-10060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-05 → 1995-05 ended
EE101 ¥10,800
04438-12172 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1993-05 → 1993-06 ended
AE101 SEG ¥10,800
04438-12172 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥10,800
04438-12172 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-05 → 2002-06 ended
EE102,103,104 ¥10,800
04438-12172 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1993-06 → 1995-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥10,800
04438-12172 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1993-05 → 1993-06 ended
AE100 ¥10,800
04438-12270 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1991-06 → 1994-08 ended
CE100,106,108 ¥10,800
04438-12290 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1991-06 → 1994-08 ended
AE101 GT ¥10,800
04438-12290 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-08 → 1998-04 ended
AE101,CE100,106,108 CTD,DX,GT,L,LX,SEL,XE,XL ¥10,800
04438-12300 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-06 → 1998-04 ended
AE104,109,CE104,109 ¥10,800
04438-12301 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-04 → 1999-01 ended
AE109,CE105 ¥10,800
04438-12302 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1999-01 → 2001-04 ended
AE109,CE105 ¥10,800
04438-12481 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2001-04 → 2002-06 ended
CE102,107 ¥10,800
04438-12650 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2001-04 → 2002-06 ended
AE109,CE105 ¥10,800
04438-16040 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1995-11 → 1997-12 ended
EE10# ¥10,800
04438-16080 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1997-12 → 1999-07 ended
EE10# ¥10,800
04438-16081 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
1999-07 → 2002-06 ended
EE10# ¥10,800
04438-20131 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-04 → 1999-01 ended
CE102,107 ¥10,800
04438-20132 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1999-01 → 2001-04 ended
CE102,107 ¥10,800
04438-32172 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1991-09 → 1994-06 ended
AE104,CE104,109 ¥10,800
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04438-02050 note Boot Kit, Front Drive Shaft Inboard Joint, RH
1993-05 → 1995-05 ended
AE101 SEG ¥6,700
04438-10050 Boot Kit, Front Drive Shaft Inboard Joint, RH
1991-06 → 1994-05 ended
EE10# ¥6,700
04438-10050 note Boot Kit, Front Drive Shaft Inboard Joint, RH
1994-05 → 1995-11 ended
EE102,103,104 ¥6,700
04438-10050 Boot Kit, Front Drive Shaft Inboard Joint, RH
1994-05 → 1995-05 ended
EE101 ¥6,700
04438-12162 note Boot Kit, Front Drive Shaft Inboard Joint, RH
1993-05 → 1995-05 ended
AE101 SEG ¥6,700
04438-12162 Boot Kit, Front Drive Shaft Inboard Joint, RH
1993-05 → 1995-05 ended
AE100 ¥6,700
04438-12162 Boot Kit, Front Drive Shaft Inboard Joint, RH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥6,700
04438-12162 note Boot Kit, Front Drive Shaft Inboard Joint, RH
1994-05 → 1995-11 ended
EE102,103,104 ¥6,700
04438-12260 Boot Kit, Front Drive Shaft Inboard Joint, RH
1991-06 → 1993-11 ended
CE100,106,108 ¥6,700
04438-12260 Boot Kit, Front Drive Shaft Inboard Joint, RH
1993-11 → 1995-11 ended
AE101,CE100,106,108 CTD,DX,GT,L,LX,SEL,XE,XL ¥6,700
04438-12280 Boot Kit, Front Drive Shaft Inboard Joint, RH
1991-06 → 1993-11 ended
AE101 GT ¥6,700
04438-12410 note Boot Kit, Front Drive Shaft Inboard Joint, RH
1995-11 → 2002-06 ended
EE10# ¥6,700
04438-12420 Boot Kit, Front Drive Shaft Inboard Joint, RH
1995-11 → 1998-04 ended
CE106,108 ¥6,700
04438-12470 Boot Kit, Front Drive Shaft Inboard Joint, RH
2001-04 → 2002-06 ended
CE102,107 ¥6,700
04438-16071 Boot Kit, Front Drive Shaft Inboard Joint, RH
1997-04 → 2000-08 ended
EE10# ¥6,700
04438-16071 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2002-02 → 2002-06 ended
EE10# ¥6,700
04438-16071 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2000-08 → 2002-02 ended
EE102,103 5F (DX,DXJ) ¥6,700
04438-16140 Boot Kit, Front Drive Shaft Inboard Joint, RH
1995-11 → 1997-04 ended
EE10# ¥6,700
04438-20121 Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-04 → 2001-04 ended
CE102,107 ¥6,700
04438-32161 Boot Kit, Front Drive Shaft Inboard Joint, RH
1991-09 → 1995-11 ended
AE104,CE104,109 ¥6,700
04438-32230 Boot Kit, Front Drive Shaft Inboard Joint, RH
1995-11 → 1998-04 ended
AE109,CE109 ¥6,700
04438-32231 Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-04 → 2001-04 ended
AE109,CE105 ¥6,700
04438-52051 Boot Kit, Front Drive Shaft Inboard Joint, RH
2001-04 → 2002-06 ended
AE109,CE105 ¥6,700
41336D — Cover, Front Drive Shaft Dust, RH
41336-01010 note Cover, Front Drive Shaft Dust, RH
1993-05 → 1995-05 ended
AE101 SEG —
41336-12010 Cover, Front Drive Shaft Dust, RH
1991-06 → 1993-05 ended
AE100,101,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL ¥130
41336-12010 note Cover, Front Drive Shaft Dust, RH
1993-05 → 1995-05 ended
AE101 SEG ¥130
41336-12010 Cover, Front Drive Shaft Dust, RH
1993-05 → 2002-06 ended
AE100,EE10# ¥130
41336-12060 Cover, Front Drive Shaft Dust, RH
2000-11 → 2002-06 ended
CE102,107 ¥200
41336-20011 Cover, Front Drive Shaft Dust, RH
1991-06 → 1993-05 ended
AE101 GT ¥510
41336-20040 Cover, Front Drive Shaft Dust, RH
1991-09 → 2002-06 ended
AE104,109,CE104,105,109 ¥950
41336-32010 Cover, Front Drive Shaft Dust, RH
1991-06 → 2000-11 ended
CE100,102,106,107,108 ¥200
43045 — Case Sub Assy, Drive Shaft Bearing
43045-20010 Case Sub Assy, Drive Shaft Bearing
1991-06 → 1995-05 ended
AE101 GT ¥4,830
43045A — Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
96153-00680 Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
1991-06 → 1995-05 ended
AE101 GT ¥280
43247B — Deflector, Front Wheel Bearing Dust, RH NO.2
43247-12010 note Deflector, Front Wheel Bearing Dust, RH NO.2
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥780
43247-12010 note Deflector, Front Wheel Bearing Dust, RH NO.2
1998-04 → —
AE109,CE10#,EE10# ¥780
43247-33010 Deflector, Front Wheel Bearing Dust, RH NO.2
1991-06 → —
AE10#,CE10#,EE10# ¥2,400
43403 — Joint Set, Front Axle Inboard, RH
43030-12030 Joint Set, Front Axle Inboard, RH
1991-06 → 1993-05 ended
AE101 GT ¥36,100
43030-20020 Joint Set, Front Axle Inboard, RH
1991-06 → 2002-06 ended
CE100,102,106,107,108 ¥26,300
43047-02030 note Joint Set, Front Axle Inboard, RH
1993-05 → 1995-05 ended
AE101 SEG ¥33,700
43403-10010 note Joint Set, Front Axle Inboard, RH
1994-05 → 1999-08 ended
EE102,103,104 ¥23,500
43403-10010 Joint Set, Front Axle Inboard, RH
1994-05 → 1995-05 ended
EE101 ¥23,500
43403-10010 Joint Set, Front Axle Inboard, RH
1991-06 → 1994-05 ended
EE10# ¥23,500
43403-10011 note Joint Set, Front Axle Inboard, RH
1999-08 → 2002-06 ended
EE10# ¥19,500
43403-10011 Joint Set, Front Axle Inboard, RH
2000-08 → 2002-06 ended
EE103,104 L,XL;EE102,103 3FC (DX,DXJ) ¥19,500
43403-12040 note Joint Set, Front Axle Inboard, RH
1993-05 → 1995-05 ended
AE101 SEG ¥27,100
43403-12040 Joint Set, Front Axle Inboard, RH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥27,100
43403-12040 note Joint Set, Front Axle Inboard, RH
1994-05 → 2002-06 ended
EE102,103,104 ¥27,100
43403-12040 Joint Set, Front Axle Inboard, RH
1993-05 → 1995-05 ended
AE100 ¥27,100
43403-12050 Joint Set, Front Axle Inboard, RH
1991-09 → 2002-06 ended
AE104,109,CE104,105,109 ¥26,400
43410 — Shaft Assy, Front Drive, RH
43410-02030 note Shaft Assy, Front Drive, RH
1993-05 → 1995-05 ended
AE101 SEG —
43410-02040 note Shaft Assy, Front Drive, RH
1993-05 → 1995-05 ended
AE101 SEG —
43410-12260 note Shaft Assy, Front Drive, RH
1994-05 → 1997-09 ended
EE102,103,104 ¥82,900
43410-12260 Shaft Assy, Front Drive, RH
1991-06 → 1994-05 ended
EE10# ¥82,900
43410-12260 Shaft Assy, Front Drive, RH
1994-05 → 1995-05 ended
EE101 ¥82,900
43410-12270 note Shaft Assy, Front Drive, RH
1991-06 → 1995-05 ended
EE101 ¥82,900
43410-12271 note Shaft Assy, Front Drive, RH
1998-04 → 1999-01 ended
EE10# ¥83,000
43410-12280 Shaft Assy, Front Drive, RH
1991-06 → 1991-07 ended
AE10# DX,LX,SEG,SEL,XE ¥82,600
43410-12300 note Shaft Assy, Front Drive, RH
1991-06 → 1991-07 ended
AE10# DX,LX,SEG,SEL,XE ¥83,300
43410-12350 note Shaft Assy, Front Drive, RH
1991-06 → 1995-05 ended
CE100 ¥82,900
43410-12351 note Shaft Assy, Front Drive, RH
1998-04 → 1999-01 ended
CE102,107 ¥82,700
43410-12352 note Shaft Assy, Front Drive, RH
1999-01 → 2001-04 ended
CE102,107 ¥82,700
43410-12353 note Shaft Assy, Front Drive, RH
2001-04 → 2002-06 ended
CE102,107 ¥82,700
43410-12360 Shaft Assy, Front Drive, RH
1991-06 → 1995-05 ended
AE101 GT ¥79,200
43410-12370 note Shaft Assy, Front Drive, RH
1991-06 → 1995-05 ended
AE101 GT ¥79,500
43410-12400 Shaft Assy, Front Drive, RH
1991-09 → 1997-09 ended
AE104,109 ¥75,000
43410-12401 Shaft Assy, Front Drive, RH
1997-09 → 1999-01 ended
AE109 ¥75,100
43410-12402 Shaft Assy, Front Drive, RH
1999-01 → 2001-04 ended
AE109 ¥75,100
43410-12403 Shaft Assy, Front Drive, RH
2001-04 → 2002-06 ended
AE109 ¥75,100
43410-12410 note Shaft Assy, Front Drive, RH
1991-09 → 1995-05 ended
AE104 ¥75,000
43410-12411 note Shaft Assy, Front Drive, RH
1998-04 → 1999-01 ended
AE109 ¥75,100
43410-12412 note Shaft Assy, Front Drive, RH
1999-01 → 2001-04 ended
AE109 ¥74,900
43410-12413 note Shaft Assy, Front Drive, RH
2001-04 → 2002-06 ended
AE109 ¥74,900
43410-12420 Shaft Assy, Front Drive, RH
1991-09 → 1997-09 ended
CE104,109 ¥71,500
43410-12421 Shaft Assy, Front Drive, RH
1997-09 → 1998-04 ended
CE109 ¥71,400
43410-12430 note Shaft Assy, Front Drive, RH
1991-09 → 1995-05 ended
CE104 ¥71,500
43410-20341 Shaft Assy, Front Drive, RH
1991-06 → 1997-09 ended
CE100,106,108 ¥82,900
43410-20342 Shaft Assy, Front Drive, RH
1997-09 → 1999-01 ended
CE102,106,107,108 ¥82,700
43410-20343 Shaft Assy, Front Drive, RH
1999-01 → 2001-04 ended
CE102,107 ¥82,700
43410-20344 Shaft Assy, Front Drive, RH
2001-04 → 2002-06 ended
CE102,107 ¥82,700
43410-20440 note Shaft Assy, Front Drive, RH
1994-05 → 1997-09 ended
EE102,103,104 ¥82,900
43410-20440 Shaft Assy, Front Drive, RH
1991-07 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥82,900
43410-20440 Shaft Assy, Front Drive, RH
1993-05 → 1995-05 ended
AE100 ¥82,900
43410-20440 note Shaft Assy, Front Drive, RH
1993-05 → 1995-05 ended
AE101 SEG ¥82,900
43410-20441 Shaft Assy, Front Drive, RH
1997-09 → 2002-06 ended
EE102,103 MTM (DX,DXJ) ¥82,600
43410-20441 note Shaft Assy, Front Drive, RH
1997-09 → 2002-06 ended
EE103,104 L,XL;EE102,103 3FC (DX,DXJ) ¥82,600
43410-20450 note Shaft Assy, Front Drive, RH
1993-05 → 1995-05 ended
AE100 ¥82,900
43410-20450 note Shaft Assy, Front Drive, RH
1993-05 → 1995-05 ended
AE101 SEG ¥82,900
43410-20450 note Shaft Assy, Front Drive, RH
1991-07 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥82,900
43410-20451 Shaft Assy, Front Drive, RH
2002-02 → 2002-06 ended
EE103,104 L,XL;EE102,103 3FC (DX,DXJ) ¥82,600
43410-20451 note Shaft Assy, Front Drive, RH
1998-04 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥82,600
43410-20451 note Shaft Assy, Front Drive, RH
2000-08 → 2002-06 ended
EE102,103 5F (DX,DXJ) ¥82,600
43410-20551 Shaft Assy, Front Drive, RH
1998-04 → 1999-01 ended
CE105 ¥72,900
43410-20552 Shaft Assy, Front Drive, RH
1999-01 → 2001-04 ended
CE105 ¥72,900
43410-20553 Shaft Assy, Front Drive, RH
2001-04 → 2002-06 ended
CE105 ¥72,900
43410-20591 note Shaft Assy, Front Drive, RH
1998-04 → 1999-01 ended
CE105 ¥72,800
43410-20592 note Shaft Assy, Front Drive, RH
1999-01 → 2001-04 ended
CE105 ¥72,900
43410-20593 note Shaft Assy, Front Drive, RH
2001-04 → 2002-06 ended
CE105 ¥72,900
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90363-36001 Bearing (FOR FRONT DRIVE SHAFT)
1991-06 → 1995-05 ended
AE101 GT ¥2,470
43410D — Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
90520-33008 Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
1991-06 → 1995-05 ended
AE101 GT ¥110
43410G — Pin, Straight (FOR FRONT DRIVE SHAFT)
90250-06003 Pin, Straight (FOR FRONT DRIVE SHAFT)
1991-06 → 1995-05 ended
AE101 GT ¥90
43410M — Oil Seal, Front Drive Shaft, RH
90311-34007 Oil Seal, Front Drive Shaft, RH
1991-06 → 1991-08 ended
AE10#,EE101 MTM ¥270
90311-34012 Oil Seal, Front Drive Shaft, RH
1991-06 → 1998-03 ended
AE100,EE10# 3FC ¥350
90311-34012 Oil Seal, Front Drive Shaft, RH
1991-06 → 1995-05 ended
AE100,101 4FC ¥350
90311-34016 Oil Seal, Front Drive Shaft, RH
1991-08 → 2000-08 ended
AE100,101,EE10# MTM ¥270
90311-34023 Oil Seal, Front Drive Shaft, RH
2000-08 → —
EE10# 5F ¥270
90311-34023 Oil Seal, Front Drive Shaft, RH
1998-03 → —
EE10# 3FC ¥270
90311-35019 Oil Seal, Front Drive Shaft, RH
1994-10 → 1995-07 ended
CE100,106,108 5F ¥400
90311-35019 Oil Seal, Front Drive Shaft, RH
1991-06 → 1999-08 ended
CE100,102,106,107,108 4FC ¥400
90311-35026 Oil Seal, Front Drive Shaft, RH
1991-06 → 1994-10 ended
CE100,106,108 5F ¥290
90311-35033 Oil Seal, Front Drive Shaft, RH
1995-07 → 2000-07 ended
CE102,106,107,108 5F ¥400
90311-35045 Oil Seal, Front Drive Shaft, RH
1999-08 → 2002-06 ended
CE102,107 4FC ¥290
90311-35049 Oil Seal, Front Drive Shaft, RH
2000-07 → —
CE102,107 5F ¥290
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
90080-52008 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1993-05 → 1995-05 ended
AE101 SEG ¥170
90520-22001 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1994-05 → 2002-06 ended
EE102,103,104 ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1994-05 → 1995-05 ended
EE101 ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1991-06 → 1994-05 ended
EE10# ¥110
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1993-05 → 1995-05 ended
AE101 SEG ¥100
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1993-05 → 2002-06 ended
AE100,104,109,CE10# ¥100
90520-22005 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1994-05 → 2002-06 ended
EE102,103,104 ¥100
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1991-06 → 1993-05 ended
AE10#,CE10# ¥100
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12150 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → 2002-06 ended
AE109,CE10# ¥370
42345-14010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1991-06 → 1997-04 ended
AE101,104,109,CE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥700
42345-14010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1998-04 → 1999-01 ended
CE105,EE10# ¥700
42345-14010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → 2002-06 ended
EE10# ¥700
42345-16010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-07 → 1995-05 ended
AE101 SEG ¥140
42345-16010 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-04 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥140
42345-16030 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥660
42345-16030 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-04 → 1998-04 ended
AE109,CE10# ¥660
42345-16030 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1998-04 → 1999-01 ended
AE109,CE102,107,EE10# ¥660
42345-20100 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → 2002-06 ended
CE102,107 ¥530
42345-20100 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → 2001-04 ended
AE109,CE10# ¥530
90080-46147 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-05 → 1995-05 ended
AE101 SEG ¥240
90949-01078 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-05 → 2002-06 ended
AE100,EE10# ¥80
90949-01078 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-05 → 1993-07 ended
AE101 SEG ¥80
90949-01078 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1991-06 → 1993-05 ended
AE100,101,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL ¥80
90949-01947 note Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1998-04 → 2002-06 ended
CE105 ¥360
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12140 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → 2002-06 ended
AE109,CE10# ¥580
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2002-02 → 2002-06 ended
CE105 ¥300
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-04 → 1999-01 ended
AE109,CE102,105,106,107,108 ¥300
42345-16020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1991-06 → 1992-06 ended
EE10# ¥280
42345-16020 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1992-06 → 1993-07 ended
EE101 ¥280
42345-16020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-07 → 2002-06 ended
EE103 XL;AE100,EE101,104,106,107,108;EE102,103 (3FC,4F) (DX,DXJ) ¥280
42345-16020 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-07 → 1995-05 ended
AE101 SEG ¥280
42345-20120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2001-04 → 2002-06 ended
CE102,107 ¥620
42345-20120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1999-01 → 2001-04 ended
AE109,CE10# ¥620
90080-46149 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-05 → 1995-05 ended
AE101 SEG ¥450
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-04 → 1998-04 ended
CE109 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1991-09 → 1997-04 ended
CE109 ¥380
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1991-09 → 1997-09 ended
CE104,109 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1991-06 → 1993-07 ended
AE101,104,CE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥380
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1991-06 → 1992-06 ended
AE100,101 DX,LX,SEG,SEL,XE ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1992-06 → 1993-05 ended
AE100,101,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1997-04 → 2002-06 ended
EE10# ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-05 → 1993-07 ended
AE101 SEG ¥300
90949-01080 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-05 → 1993-07 ended
AE100,EE10# ¥300
90949-01946 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1998-04 → 2002-03 ended
CE105 ¥230
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 1995-05 ended
AE101 SEG ¥140
90080-46148 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-05 → 1995-05 ended
AE101 SEG ¥240
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-06 → 1993-07 ended
AE10#,CE10#,EE10# ¥80
90949-01078 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 2002-06 ended
AE100,104,109,CE10#,EE10# ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2002-02 → 2002-06 ended
EE10# ¥80
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-04 → 2002-06 ended
AE109,CE102,105,106,107,108,EE10# ¥300
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-05 → 2002-06 ended
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) ¥550
42345-16040 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 1995-05 ended
AE101 SEG ¥550
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1992-06 → 1993-07 ended
EE101 ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 2002-06 ended
EE103 XL;EE104,107,108;EE101,102,103,106 (3FC,4F) (CTD,DX,DXJ,LX,XE) ¥500
42345-16080 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-06 → 1992-06 ended
EE10# ¥500
90080-46150 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-05 → 1995-05 ended
AE101 SEG ¥370
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-09 → 1997-04 ended
CE109 ¥380
90949-01076 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-05 → 1997-04 ended
EE102,103,104 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-04 → 1998-04 ended
CE109 ¥380
90949-01076 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1991-06 → 1993-07 ended
AE10#,CE10# ¥380
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1997-04 → 2002-06 ended
EE10# ¥350
90949-01146 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1992-06 → 1993-07 ended
EE10# ¥350
43457 — Bracket, Drive Shaft Bearing
43457-12020 Bracket, Drive Shaft Bearing
1991-06 → 1993-05 ended
AE101 4FC GT ¥6,000
43457-12030 Bracket, Drive Shaft Bearing
1991-06 → 1995-05 ended
AE101 5F GT ¥3,710
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-08144 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1991-06 → 1993-05 ended
AE101 GT ¥160
90105-08144 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1993-05 → 1995-05 ended
AE101 5F GT ¥160
90105-10198 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1991-06 → 1993-05 ended
AE101 GT ¥180
90105-10198 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1993-05 → 1995-05 ended
AE101 5F GT ¥180
90105-10202 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1991-06 → 1994-01 ended
AE101 GT ¥250
90105-10285 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1994-01 → 1995-05 ended
AE101 5F GT ¥250
43458 — Cover, Front Drive Shaft Dust
43458-20011 Cover, Front Drive Shaft Dust
1991-06 → 1993-05 ended
AE101 GT ¥930
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-09050 note Shaft Assy, Front Drive Outboard Joint, RH
1993-05 → 1995-05 ended
AE101 SEG ¥42,200
43460-09060 note Shaft Assy, Front Drive Outboard Joint, RH
1993-05 → 1995-05 ended
AE101 SEG ¥60,300
43460-19307 note Shaft Assy, Front Drive Outboard Joint, RH
1991-09 → 1995-05 ended
AE104 ¥41,800
43460-19635 Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1994-05 ended
EE10# ¥50,600
43460-19635 note Shaft Assy, Front Drive Outboard Joint, RH
1994-05 → 1997-09 ended
EE102,103,104 ¥50,600
43460-19635 Shaft Assy, Front Drive Outboard Joint, RH
1994-05 → 1995-05 ended
EE101 ¥50,600
43460-19636 Shaft Assy, Front Drive Outboard Joint, RH
2002-02 → 2002-06 ended
EE10# ¥50,600
43460-19636 note Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 2002-06 ended
EE10# ¥50,600
43460-19645 note Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1995-05 ended
EE101 ¥50,600
43460-19646 note Shaft Assy, Front Drive Outboard Joint, RH
2000-08 → 2002-06 ended
EE10# ¥50,600
43460-19655 note Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1995-05 ended
CE100 ¥48,400
43460-19657 note Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01 ended
CE102,107 ¥48,300
43460-19658 note Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → 2001-04 ended
CE102,107 ¥48,300
43460-19659 note Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-06 ended
CE102,107 ¥48,300
43460-29098 note Shaft Assy, Front Drive Outboard Joint, RH
1993-05 → 1995-05 ended
AE101 SEG ¥47,500
43460-29098 Shaft Assy, Front Drive Outboard Joint, RH
1993-05 → 1995-05 ended
AE100 ¥47,500
43460-29098 note Shaft Assy, Front Drive Outboard Joint, RH
1994-05 → 1997-09 ended
EE102,103,104 ¥47,500
43460-29098 Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥47,500
43460-29099 note Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 2002-06 ended
EE10# ¥51,200
43460-29147 Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1997-09 ended
CE100,106,108 ¥49,100
43460-29148 Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-04 ended
CE106,108 ¥51,200
43460-29149 Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01 ended
CE102,107 ¥51,200
43460-29150 Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → 2001-04 ended
CE102,107 ¥51,200
43460-29151 Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-06 ended
CE102,107 ¥51,200
43460-29167 note Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1993-05 ended
AE100,101 DX,LX,SEG,SEL,XE ¥49,100
43460-29167 note Shaft Assy, Front Drive Outboard Joint, RH
1993-05 → 1995-05 ended
AE100 ¥49,100
43460-29167 note Shaft Assy, Front Drive Outboard Joint, RH
1993-05 → 1995-05 ended
AE101 SEG ¥49,100
43460-29168 note Shaft Assy, Front Drive Outboard Joint, RH
2000-08 → 2002-06 ended
EE10# ¥51,200
43470-19308 note Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01 ended
AE109 ¥41,300
43470-19309 note Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → 2001-04 ended
AE109 ¥41,300
43470-19310 note Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-06 ended
AE109 ¥41,300
43470-19625 Shaft Assy, Front Drive Outboard Joint, RH
1991-09 → 1997-09 ended
CE104,109 ¥39,700
43470-19626 Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-04 ended
CE109 ¥39,900
43470-19635 note Shaft Assy, Front Drive Outboard Joint, RH
1991-09 → 1995-05 ended
CE104 ¥39,700
43470-19645 Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1995-05 ended
AE101 GT ¥38,900
43470-19655 note Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1995-05 ended
AE101 GT ¥38,900
43470-29347 Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01 ended
CE105 ¥41,600
43470-29348 Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → 2001-04 ended
CE105 ¥41,600
43470-29349 Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-06 ended
CE105 ¥41,500
43470-29357 note Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01 ended
CE105 ¥41,600
43470-29358 note Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → 2001-04 ended
CE105 ¥41,600
43470-29359 note Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-06 ended
CE105 ¥41,600
43470-39087 Shaft Assy, Front Drive Outboard Joint, RH
1991-09 → 1997-09 ended
AE104,109 ¥42,200
43470-39088 Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-04 ended
AE109 ¥42,300
43470-39089 Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1999-01 ended
AE109 ¥42,300
43470-39090 Shaft Assy, Front Drive Outboard Joint, RH
1999-01 → 2001-04 ended
AE109 ¥42,300
43470-39145 Shaft Assy, Front Drive Outboard Joint, RH
2001-04 → 2002-06 ended
AE109 ¥42,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
