Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

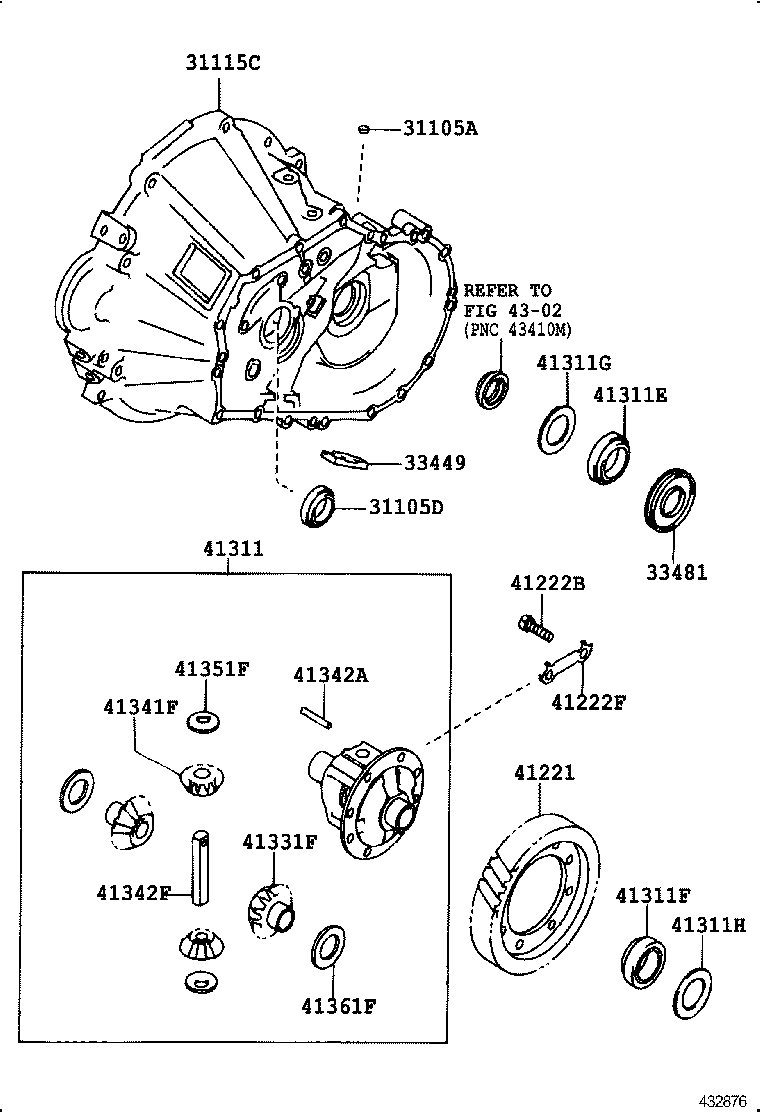

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31105A — Plug, Tight(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
Plug, Tight(FOR FRONT TRANSAXLE CASE)
1991-06 → —
|
AE100,101,EE10# MTM | ¥110 | |
| 31105D — Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25011 |
Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1991-06 → 1995-05
ended
|
AE101 5F GT | ¥240 | |
| 90311-25011 |
Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
2002-01 → —
|
EE10# 5F | ¥240 | |
| 90311-25016 |
Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1991-06 → 2002-01
ended
|
AE100,101,EE10# MTM (CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL) | ¥200 | |
| 90311-30006 |
Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
1991-06 → —
|
AE104,109,CE10# 5F | ¥220 | |
| 31115C — Case, Front Transaxle(MTM) | ||||
| 31115-12040 |
Case, Front Transaxle(MTM)
1991-06 → 1994-05
ended
|
AE100,101 5F | ¥33,400 | |
| 31115-12060 |
Case, Front Transaxle(MTM)
1991-06 → 1994-05
ended
|
EE10# MTM | ¥26,600 | |
| 31115-12070 |
Case, Front Transaxle(MTM)
1991-09 → 1999-11
ended
|
AE104,109 5F | ¥36,100 | |
| 31115-12071 |
Case, Front Transaxle(MTM)
1999-11 → 2001-07
ended
|
AE109 5F | ¥36,100 | |
| 31115-12072 |
Case, Front Transaxle(MTM)
2001-07 → 2002-06
ended
|
AE109 5F | ¥36,100 | |
| 31115-16040 |
Case, Front Transaxle(MTM)
1994-05 → 1995-05
ended
|
AE100,101 5F | ¥32,100 | |
| 31115-16050 |
Case, Front Transaxle(MTM)
1994-05 → 1997-04
ended
|
EE10# MTM | ¥28,600 | |
| 31115-16051 |
Case, Front Transaxle(MTM)
1997-04 → 2002-06
ended
|
EE10# MTM | ¥28,800 | |
| 31115-33010 |
Case, Front Transaxle(MTM)
1991-09 → 1993-09
ended
|
CE104,109 | ¥39,900 | |
| 31115-33011 |
Case, Front Transaxle(MTM)
1993-09 → 1996-06
ended
|
CE104,109 | ¥39,900 | |
| 31115-33012 |
Case, Front Transaxle(MTM)
1996-06 → 1999-11
ended
|
CE105,109 | ¥40,000 | |
| 31115-33013 |
Case, Front Transaxle(MTM)
1999-11 → 2001-07
ended
|
CE105 | ¥40,000 | |
| 31115-33014 |
Case, Front Transaxle(MTM)
2001-07 → 2002-06
ended
|
CE105 | ¥40,000 | |
| 33449 — Magnet, Transmission | ||||
| 33449-12020 |
Magnet, Transmission
1991-06 → —
|
AE100,101,EE10# MTM | ¥630 | |
| 33449-20010 |
Magnet, Transmission
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥450 | |
| 33449-32020 |
Magnet, Transmission
1991-06 → —
|
CE100,102,106,107,108 5F | ¥650 | |
| 33481 — Gear, Speedometer Drive (MTM) | ||||
| 33481-12040 note |
Gear, Speedometer Drive (MTM)
1991-06 → —
|
AE100,101,EE10# MTM | ¥390 | |
| 33481-12080 |
Gear, Speedometer Drive (MTM)
1991-09 → 1995-03
ended
|
CE104,109 | ¥4,010 | |
| 33481-12090 |
Gear, Speedometer Drive (MTM)
1991-09 → —
|
AE104,109 5F | ¥3,780 | |
| 33481-32060 note |
Gear, Speedometer Drive (MTM)
1991-06 → —
|
CE100,102,106,107,108 5F | ¥2,800 | |
| 33481-42040 note |
Gear, Speedometer Drive (MTM)
1995-03 → 2002-01
ended
|
CE104,105,109 | ¥4,000 | |
| 33481-42041 note |
Gear, Speedometer Drive (MTM)
2002-01 → —
|
CE105 | ¥4,000 | |
| 41221 — Gear, Front Differential Ring | ||||
| 41221-12160 |
Gear, Front Differential Ring
1997-10 → 2002-06
ended
|
EE103,104 3FC | ¥13,900 | |
| 41221-12190 |
Gear, Front Differential Ring
1991-06 → 1995-05
ended
|
AE100 4FC | ¥12,600 | |
| 41221-12260 |
Gear, Front Differential Ring
1991-09 → 1999-12
ended
|
AE104,109,CE104,109 5F | ¥13,500 | |
| 41221-12261 |
Gear, Front Differential Ring
1999-12 → 2002-06
ended
|
AE109 5F | ¥13,500 | |
| 41221-12280 |
Gear, Front Differential Ring
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥13,500 | |
| 41221-12290 |
Gear, Front Differential Ring
1998-04 → 1999-12
ended
|
CE105 | ¥12,800 | |
| 41221-12291 |
Gear, Front Differential Ring
1999-12 → 2002-06
ended
|
CE105 | ¥13,500 | |
| 41221-12310 |
Gear, Front Differential Ring
1991-06 → 1997-10
ended
|
AE100 5F;EE103 3FC;EE101,104 3FC,4F | ¥11,700 | |
| 41221-12330 |
Gear, Front Differential Ring
1991-06 → 2002-06
ended
|
EE103,104 MTM;AE101,EE102,106,107,108 (3FC,4F,5F) (CTD,DX,DXJ,L,SEG,XL) | ¥11,900 | |
| 41221-12340 |
Gear, Front Differential Ring
1991-06 → 1995-05
ended
|
AE101 5F GT | ¥12,600 | |
| 41221-12360 |
Gear, Front Differential Ring
1991-06 → 1995-05
ended
|
AE100 3FC | ¥11,900 | |
| 41221-20200 |
Gear, Front Differential Ring
1991-06 → 2002-06
ended
|
CE100,102,108 4FC | ¥12,400 | |
| 41221-20210 |
Gear, Front Differential Ring
1991-09 → 2002-06
ended
|
CE106,107 4FC | ¥12,400 | |
| 41221-20230 |
Gear, Front Differential Ring
1991-06 → 1995-05
ended
|
AE101 4FC | ¥11,600 | |
| 41221-20300 |
Gear, Front Differential Ring
1998-04 → 2002-06
ended
|
CE102 5F | ¥12,800 | |
| 41221-32080 |
Gear, Front Differential Ring
1991-06 → 2002-06
ended
|
CE100,107,108 5F | ¥12,800 | |
| 41221-32100 |
Gear, Front Differential Ring
1991-09 → 1998-04
ended
|
CE106 5F | ¥12,800 | |
| 41222B — Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1991-06 → 1995-06
ended
|
CE100,106,108 5F | ¥140 | |
| 90101-11353 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1991-06 → 1995-01
ended
|
AE100,101,EE10#;CE100,106,108 4FC | ¥120 | |
| 90101-11353 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-01 → 2002-06
ended
|
AE100,101,CE100,102,106,107,108,EE10# ATM | ¥120 | |
| 90105-11040 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-01 → 1995-06
ended
|
AE100,101,EE10# MTM | ¥130 | |
| 90105-11040 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1995-06 → —
|
CE102,106,107,108,EE10# MTM | ¥130 | |
| 90105-12150 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥260 | |
| 90105-12150 |
Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥260 | |
| 41222F — Plate, Fornt Differential Ring Gear Set Bolt Lock | ||||
| 41222-12040 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1991-06 → 1995-01
ended
|
AE100,101,EE10# MTM | ¥190 | |
| 41222-12050 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1991-06 → —
|
AE100,101,EE10# ATM | ¥260 | |
| 41222-20030 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥230 | |
| 41222-32010 |
Plate, Fornt Differential Ring Gear Set Bolt Lock
1991-06 → 1995-06
ended
|
CE100,106,108 5F | ¥170 | |
| 41311 — Case, Front Differential | ||||
| 41301-12040 |
Case, Front Differential
1991-06 → 1994-12
ended
|
AE100,101,EE10# MTM | ¥34,400 | |
| 41301-12041 |
Case, Front Differential
1994-12 → —
|
AE100,101,EE10# MTM | ¥21,600 | |
| 41301-12051 |
Case, Front Differential
1991-06 → —
|
EE10# 3FC | ¥34,500 | |
| 41301-12101 |
Case, Front Differential
1991-06 → 1995-05
ended
|
AE100 3FC | ¥34,400 | |
| 41301-12120 |
Case, Front Differential
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥34,500 | |
| 41301-17021 |
Case, Front Differential
1991-06 → 1993-08
ended
|
AE100,101 4FC | ¥40,500 | |
| 41301-17021 |
Case, Front Differential
1993-08 → 1995-05
ended
|
AE100 4FC | ¥40,500 | |
| 41301-20110 |
Case, Front Differential
1991-06 → 1991-11
ended
|
CE100,106,108 4FC | ¥42,200 | |
| 41301-20112 |
Case, Front Differential
1991-11 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥42,600 | |
| 41301-20150 |
Case, Front Differential
1993-08 → 1995-05
ended
|
AE101 4FC | ¥38,100 | |
| 41301-32060 |
Case, Front Differential
1991-06 → 1999-02
ended
|
CE100,102,106,107,108 5F | ¥42,300 | |
| 41301-32061 |
Case, Front Differential
1999-02 → —
|
CE102,107 5F | ¥42,400 | |
| 41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90080-36101 note |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1998-05 → —
|
EE10# MTM | ¥2,860 | |
| 90366-38004 note |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1998-05 → —
|
EE10# MTM | ¥2,250 | |
| 90366-38004 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → 1998-05
ended
|
AE100,101,EE10# MTM | ¥2,250 | |
| 90366-38014 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1997-03 → —
|
EE10# 3FC | ¥2,100 | |
| 90366-40016 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
CE100,102,106,107,108 5F | ¥2,690 | |
| 90366-57001 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥2,910 | |
| 90366-67001 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥3,040 | |
| 90368-38002 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-05 → 1997-03
ended
|
AE100,EE10# ATM | ¥1,670 | |
| 90368-38002 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → 1993-05
ended
|
AE100,101,EE10# ATM | ¥1,670 | |
| 90368-38010 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-05 → 1995-05
ended
|
AE101 4FC | ¥1,670 | |
| 90368-40002 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥2,180 | |
| 41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90366-38014 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1997-03 → —
|
EE10# 3FC | ¥2,100 | |
| 90366-40023 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-08
ended
|
CE100,106,108 5F | ¥2,690 | |
| 90366-40064 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1995-08 → —
|
CE102,106,107,108 5F | ¥2,690 | |
| 90366-42001 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1993-08 → 1995-05
ended
|
AE101 4FC | ¥2,300 | |
| 90366-44001 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥2,690 | |
| 90366-50014 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥2,420 | |
| 90366-55028 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥2,800 | |
| 90368-38002 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1997-03
ended
|
AE100,EE10# 3FC | ¥1,670 | |
| 90368-38010 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1993-08 → —
|
AE101 5F;AE100,EE10# 4F,4FC,5F | ¥1,670 | |
| 90368-38010 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1993-08
ended
|
AE100,101,EE10# 4F,4FC,5F | ¥1,670 | |
| 41311G — Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90201-41002 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41003 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41004 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41005 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41006 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41007 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41008 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41009 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41010 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-05 → —
|
AE100,EE10# ATM | ¥400 | |
| 90201-41010 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → 1993-05
ended
|
AE100,101,EE10# ATM | ¥400 | |
| 90201-41011 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41012 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1998-05 → —
|
EE10# 3FC | ¥400 | |
| 90201-41012 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1998-05 → 1999-08
ended
|
EE10# MTM | ¥400 | |
| 90201-41012 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1994-08 → 1998-05
ended
|
AE100,101,EE10# 3FC,4F,5F | ¥400 | |
| 90201-41012 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → 1994-08
ended
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41013 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41014 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41015 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41016 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41017 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41018 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41019 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41020 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41021 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41022 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41023 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41024 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1993-05 → 1995-05
ended
|
AE101 4FC | ¥310 | |
| 90201-41045 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1991-06 → 1994-08
ended
|
AE100,101,EE10# MTM | ¥400 | |
| 90560-41002 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1998-05 → —
|
EE10# MTM | ¥310 | |
| 90560-41003 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
1999-08 → —
|
EE10# MTM | ¥240 | |
| 41311H — Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-41012 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → —
|
AE100,EE10# 3FC | ¥400 | |
| 90201-41024 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥310 | |
| 90201-41025 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41026 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41027 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41028 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41029 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41030 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41031 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41032 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥390 | |
| 90201-41033 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41034 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41035 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41036 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥610 | |
| 90201-41039 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41040 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41041 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41042 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41043 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥510 | |
| 90201-41044 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1995-05
ended
|
AE100,101 4FC | ¥310 | |
| 90201-41046 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥400 | |
| 90201-41047 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥400 | |
| 90201-41048 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥400 | |
| 90201-41049 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥400 | |
| 90201-41050 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41051 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41052 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41053 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41054 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41055 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41056 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41057 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41058 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41059 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41060 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥520 | |
| 90201-41061 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥610 | |
| 90201-41062 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥610 | |
| 90201-41063 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥610 | |
| 90201-41064 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 1999-08
ended
|
AE100,101,EE10# MTM | ¥610 | |
| 90201-45004 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45005 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45006 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45007 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45008 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45009 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45010 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45011 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45012 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45013 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45014 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥390 | |
| 90201-45015 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90201-45016 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90201-45017 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90201-45018 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90201-45019 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90201-45020 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90201-45021 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90201-45022 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 4FC | ¥510 | |
| 90564-41014 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥240 | |
| 90564-41015 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥240 | |
| 90564-41016 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥240 | |
| 90564-41017 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥240 | |
| 90564-41018 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41019 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41020 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41021 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41022 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41023 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41024 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41025 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41026 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41027 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41028 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥320 | |
| 90564-41029 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥370 | |
| 90564-41030 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥370 | |
| 90564-41031 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥370 | |
| 90564-41032 note |
Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR)
1999-08 → —
|
EE10# MTM | ¥370 | |
| 41331F — Gear, Front Differential Side | ||||
| 41331-12011 |
Gear, Front Differential Side
1991-06 → —
|
AE100,101,EE10# | ¥2,270 | |
| 41331-12030 |
Gear, Front Differential Side
1991-09 → 2002-06
ended
|
AE104,109,CE104,105,109 | ¥4,250 | |
| 41331-32010 |
Gear, Front Differential Side
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 | ¥5,100 | |
| 41341F — Pinion, Front Differential | ||||
| 41341-12030 |
Pinion, Front Differential
1991-06 → —
|
AE100,101,EE10# | ¥1,630 | |
| 41341-20011 |
Pinion, Front Differential
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥2,490 | |
| 41341-20011 |
Pinion, Front Differential
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥2,490 | |
| 41341-30011 |
Pinion, Front Differential
1991-06 → 1997-04
ended
|
CE100,106,108 | ¥2,160 | |
| 41341-30011 |
Pinion, Front Differential
1997-04 → 2002-06
ended
|
CE102,106,107,108 | ¥2,160 | |
| 41342A — Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90249-06093 |
Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥180 | |
| 90250-06058 |
Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
1991-06 → 2002-06
ended
|
AE100,101,CE100,102,106,107,108,EE10# | ¥160 | |
| 41342F — Shaft, Front Differential Pinion, NO.1 | ||||
| 41342-12020 |
Shaft, Front Differential Pinion, NO.1
1991-06 → 1991-09
ended
|
AE10#,EE101 | ¥1,830 | |
| 41342-12040 |
Shaft, Front Differential Pinion, NO.1
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥1,240 | |
| 41342-12060 |
Shaft, Front Differential Pinion, NO.1
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥2,110 | |
| 41342-12140 |
Shaft, Front Differential Pinion, NO.1
1993-08 → —
|
AE101 5F;AE100,EE10# | ¥1,340 | |
| 41342-12140 |
Shaft, Front Differential Pinion, NO.1
1991-09 → 1993-08
ended
|
AE100,101,EE10# | ¥1,340 | |
| 41342-20050 |
Shaft, Front Differential Pinion, NO.1
1991-06 → 1991-07
ended
|
CE100 5F | ¥1,850 | |
| 41342-20060 |
Shaft, Front Differential Pinion, NO.1
1993-08 → 1995-05
ended
|
AE101 4FC | ¥1,240 | |
| 41342-32020 |
Shaft, Front Differential Pinion, NO.1
1991-07 → 2002-06
ended
|
CE100,102,106,107,108 | ¥1,690 | |
| 41342-32020 |
Shaft, Front Differential Pinion, NO.1
1991-06 → 1991-07
ended
|
CE100 4FC | ¥1,690 | |
| 41351F — Washer, Front Differential Pinion Thrust | ||||
| 41351-12010 |
Washer, Front Differential Pinion Thrust
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥220 | |
| 41351-12010 |
Washer, Front Differential Pinion Thrust
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥220 | |
| 41351-12020 |
Washer, Front Differential Pinion Thrust
1991-06 → —
|
AE100,101,EE10# | ¥110 | |
| 41351-32010 |
Washer, Front Differential Pinion Thrust
1991-06 → 2002-06
ended
|
CE100,102,106,107,108 | ¥120 | |
| 41361F — Washer, Front Differential Side Gear Thrust, NO.1 | ||||
| 41361-12330 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109,CE104,105,109 | ¥320 | |
| 41361-12340 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥320 | |
| 41361-12340 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥320 | |
| 41361-12350 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥320 | |
| 41361-12350 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥320 | |
| 41361-12360 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥320 | |
| 41361-12360 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥320 | |
| 41361-12370 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥320 | |
| 41361-12370 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥320 | |
| 41361-12380 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥320 | |
| 41361-12380 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥320 | |
| 41361-12390 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109 4FC | ¥320 | |
| 41361-12390 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → —
|
AE104,109,CE104,105,109 5F | ¥320 | |
| 41361-12400 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109,CE104,105,109 | ¥320 | |
| 41361-12410 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109,CE104,105,109 | ¥320 | |
| 41361-12420 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-09 → 2002-06
ended
|
AE104,109,CE104,105,109 | ¥320 | |
| 41361-17010 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
AE100,101,CE100,106,108 ATM | ¥220 | |
| 41361-17010 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → 2002-06
ended
|
CE102,106,107,108,EE10# ATM | ¥220 | |
| 41361-17020 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
AE100,101,CE100,106,108 ATM | ¥220 | |
| 41361-17020 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → 2002-06
ended
|
CE102,106,107,108,EE10# ATM | ¥220 | |
| 41361-17030 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
AE100,101,CE100,106,108 ATM | ¥220 | |
| 41361-17030 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → 2002-06
ended
|
CE102,106,107,108,EE10# ATM | ¥220 | |
| 41361-17040 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → 2002-06
ended
|
CE102,106,107,108,EE10# ATM | ¥220 | |
| 41361-17040 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
AE100,101,CE100,106,108 ATM | ¥220 | |
| 41361-17050 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → 2002-06
ended
|
CE102,106,107,108,EE10# ATM | ¥220 | |
| 41361-17050 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
AE100,101,CE100,106,108 ATM | ¥220 | |
| 41361-17060 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
AE100,101,CE100,106,108 ATM | ¥220 | |
| 41361-17060 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → 2002-06
ended
|
CE102,106,107,108,EE10# ATM | ¥220 | |
| 41361-22020 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
EE10#;AE100,101,CE100,106,108 5F | ¥220 | |
| 41361-22020 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → —
|
CE102,106,107,108,EE10# MTM | ¥220 | |
| 41361-22030 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → —
|
CE102,106,107,108,EE10# MTM | ¥220 | |
| 41361-22030 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
EE10#;AE100,101,CE100,106,108 5F | ¥220 | |
| 41361-22040 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → —
|
CE102,106,107,108,EE10# MTM | ¥220 | |
| 41361-22040 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
EE10#;AE100,101,CE100,106,108 5F | ¥220 | |
| 41361-22140 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
EE10#;AE100,101,CE100,106,108 5F | ¥210 | |
| 41361-22140 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → —
|
CE102,106,107,108,EE10# MTM | ¥210 | |
| 41361-22150 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
EE10#;AE100,101,CE100,106,108 5F | ¥210 | |
| 41361-22150 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → —
|
CE102,106,107,108,EE10# MTM | ¥210 | |
| 41361-22160 note |
Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1997-08
ended
|
EE10#;AE100,101,CE100,106,108 5F | ¥210 | |
| 41361-22160 note |
Washer, Front Differential Side Gear Thrust, NO.1
1997-08 → —
|
CE102,106,107,108,EE10# MTM | ¥210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
