Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

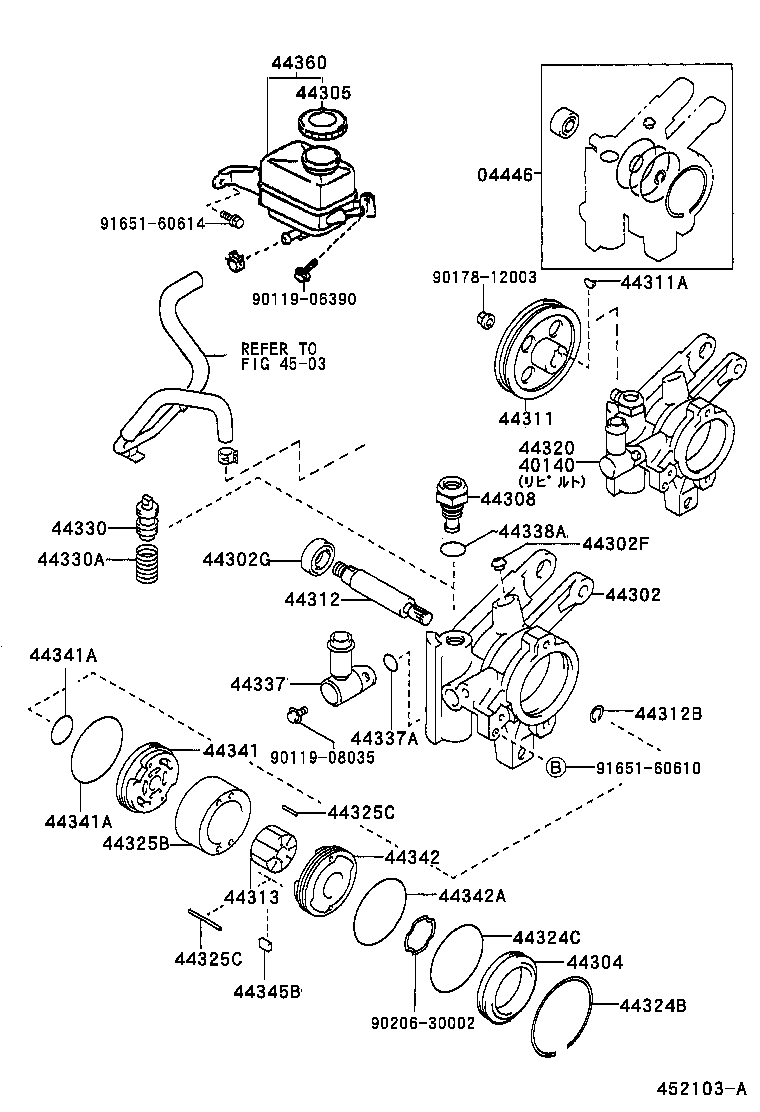

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-12051 |
Gasket Kit, Power Steering Pump
1991-06 → 1992-05
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥3,510 | |
| 04446-12060 |
Gasket Kit, Power Steering Pump
1991-06 → 1995-05
ended
|
AE101 GT | ¥1,510 | |
| 04446-20030 |
Gasket Kit, Power Steering Pump
1991-06 → 1995-02
ended
|
CE10#,EE10# | ¥3,070 | |
| 04446-20120 |
Gasket Kit, Power Steering Pump
1995-02 → —
|
EE10# | ¥2,470 | |
| 04446-27011 |
Gasket Kit, Power Steering Pump
1995-02 → —
|
CE10# | ¥2,340 | |
| 04446-32011 |
Gasket Kit, Power Steering Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥1,360 | |
| 40140 — Pump Assy,Vane Rebuilt | ||||
| 40140-12212 |
Pump Assy,Vane Rebuilt
2000-08 → —
|
EE102,103 5F (DX,DXJ) | ¥57,300 | |
| 40140-12212 note |
Pump Assy,Vane Rebuilt
1997-08 → —
|
EE103,104 L,XL;EE102,103 (3FC,4F) (DX,DXJ) | ¥57,300 | |
| 40140-12241 note |
Pump Assy,Vane Rebuilt
1991-06 → 1997-08
ended
|
EE10# | ¥57,300 | |
| 40140-12271 note |
Pump Assy,Vane Rebuilt
1991-06 → —
|
CE10# | ¥57,300 | |
| 40140-12310 note |
Pump Assy,Vane Rebuilt
1991-06 → 1992-05
ended
|
AE100 | ¥72,300 | |
| 40140-12312 note |
Pump Assy,Vane Rebuilt
1992-05 → 1995-05
ended
|
AE100 | ¥65,800 | |
| 40140-12320 note |
Pump Assy,Vane Rebuilt
1991-09 → 1992-05
ended
|
AE104 | ¥72,300 | |
| 40140-12331 note |
Pump Assy,Vane Rebuilt
1992-05 → 1995-05
ended
|
AE101 SEG | ¥72,300 | |
| 44302 — Housing Sub-assy, Vane Pump, Front | ||||
| 44302-12041 |
Housing Sub-assy, Vane Pump, Front
1991-06 → —
|
CE10# | ¥24,400 | |
| 44302-12100 |
Housing Sub-assy, Vane Pump, Front
1991-06 → 1992-05
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥24,400 | |
| 44302-12110 |
Housing Sub-assy, Vane Pump, Front
1991-06 → —
|
EE10# | ¥24,400 | |
| 44302-12150 |
Housing Sub-assy, Vane Pump, Front
1991-06 → 1995-05
ended
|
AE101 GT | ¥10,900 | |
| 44302-12160 |
Housing Sub-assy, Vane Pump, Front
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥19,800 | |
| 44302F — Seat, Union(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
Seat, Union(FOR VANE PUMP HOUSING)
1991-06 → —
|
EE10# | ¥230 | |
| 44302G — Seal, Oil, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-15010 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1991-06 → 1995-05
ended
|
AE101 GT | ¥190 | |
| 90311-18007 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥240 | |
| 90311-18007 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1992-05 → —
|
CE10#,EE10# | ¥240 | |
| 90311-18015 |
Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥210 | |
| 44304 — Housing Sub-assy, Vane Pump, Rear | ||||
| 44304-12020 |
Housing Sub-assy, Vane Pump, Rear
1991-06 → 1995-05
ended
|
AE101 GT | ¥6,100 | |
| 44324-12031 |
Housing Sub-assy, Vane Pump, Rear
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥6,100 | |
| 44324-12031 |
Housing Sub-assy, Vane Pump, Rear
1992-05 → —
|
CE10#,EE10# | ¥6,100 | |
| 44324-26031 |
Housing Sub-assy, Vane Pump, Rear
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥4,180 | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-12030 |
Cap Sub-assy, Vane Pump Oil Reservoir
1991-06 → —
|
AE101,CE10#,EE10# CTD,DX,DXJ,GT,L,LX,SEL,XE,XL | ¥1,840 | |
| 44305-22040 |
Cap Sub-assy, Vane Pump Oil Reservoir
1991-06 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥1,940 | |
| 44308 — Union Sub-assy, Pressure Port | ||||
| 44308-12022 |
Union Sub-assy, Pressure Port
1991-06 → 1995-09
ended
|
CE10# | ¥7,200 | |
| 44308-12042 |
Union Sub-assy, Pressure Port
1995-09 → —
|
CE10#,EE10# | ¥7,100 | |
| 44308-12050 |
Union Sub-assy, Pressure Port
1991-06 → 1995-09
ended
|
EE10# | ¥7,200 | |
| 44308-12080 |
Union Sub-assy, Pressure Port
1993-05 → 1995-05
ended
|
AE101 GT | ¥7,200 | |
| 44308-12090 |
Union Sub-assy, Pressure Port
1991-06 → 1993-05
ended
|
AE101 GT | ¥7,200 | |
| 44308-12100 |
Union Sub-assy, Pressure Port
1991-06 → 1992-05
ended
|
AE100,104 | ¥7,200 | |
| 44308-12110 |
Union Sub-assy, Pressure Port
1992-05 → —
|
AE100,104,109 | ¥7,200 | |
| 44308-12120 |
Union Sub-assy, Pressure Port
1992-05 → 1995-05
ended
|
AE101 SEG | ¥7,200 | |
| 44338-12110 |
Union Sub-assy, Pressure Port
1991-06 → 1992-05
ended
|
AE101 SEG | ¥1,340 | |
| 44311 — Pulley, Vane Pump | ||||
| 44311-12030 |
Pulley, Vane Pump
1991-06 → 1992-08
ended
|
CE10# | ¥7,400 | |
| 44311-12030 |
Pulley, Vane Pump
1994-08 → —
|
CE10# | ¥7,400 | |
| 44311-12040 |
Pulley, Vane Pump
1991-06 → 1992-05
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥7,400 | |
| 44311-12090 |
Pulley, Vane Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥7,100 | |
| 44311-12110 |
Pulley, Vane Pump
1991-06 → —
|
EE10# | ¥5,900 | |
| 44311-12130 |
Pulley, Vane Pump
1992-08 → 1994-08
ended
|
CE10# | ¥7,400 | |
| 44311A — Key, Vane Pump Pulley | ||||
| 90280-05008 |
Key, Vane Pump Pulley
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥220 | |
| 90280-05008 |
Key, Vane Pump Pulley
1992-05 → —
|
CE10#,EE10# | ¥220 | |
| 44312 — Shaft, Vane Pump | ||||
| 44303-12010 |
Shaft, Vane Pump
1991-06 → 1995-05
ended
|
AE101 GT | ¥21,000 | |
| 44312-12030 |
Shaft, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥2,950 | |
| 44312-12030 |
Shaft, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥2,950 | |
| 44312-32020 |
Shaft, Vane Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥1,300 | |
| 44312B — Ring, Snap, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1991-06 → —
|
AE10#,CE10#,EE10# CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL | ¥140 | |
| 90520-10007 |
Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1991-06 → 1995-05
ended
|
AE101 GT | ¥80 | |
| 44313 — Rotor, Vane Pump | ||||
| 44313-06010 note |
Rotor, Vane Pump
1994-08 → 1994-10
ended
|
AE104 | — | |
| 44313-06020 note |
Rotor, Vane Pump
1994-08 → 1994-10
ended
|
AE104 | — | |
| 44313-06030 note |
Rotor, Vane Pump
1994-08 → 1994-10
ended
|
AE104 | — | |
| 44313-06040 note |
Rotor, Vane Pump
1994-08 → 1994-10
ended
|
AE104 | — | |
| 44313-06050 note |
Rotor, Vane Pump
1994-08 → 1994-10
ended
|
AE104 | — | |
| 44313-22040 note |
Rotor, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥7,700 | |
| 44313-22040 note |
Rotor, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥7,700 | |
| 44313-22050 note |
Rotor, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥7,700 | |
| 44313-22050 note |
Rotor, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥7,700 | |
| 44313-22060 note |
Rotor, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥7,700 | |
| 44313-22060 note |
Rotor, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥7,700 | |
| 44313-22070 note |
Rotor, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥7,700 | |
| 44313-22070 note |
Rotor, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥7,700 | |
| 44313-22080 note |
Rotor, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥7,700 | |
| 44313-22080 note |
Rotor, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥7,700 | |
| 44313-26060 note |
Rotor, Vane Pump
1992-09 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥7,700 | |
| 44313-26070 note |
Rotor, Vane Pump
1992-09 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥7,700 | |
| 44313-26080 note |
Rotor, Vane Pump
1992-09 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥7,700 | |
| 44313-26090 note |
Rotor, Vane Pump
1992-09 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥7,700 | |
| 44313-26100 note |
Rotor, Vane Pump
1992-09 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥7,700 | |
| 44320 — Pump Assy, Vane | ||||
| 44046-12010 |
Pump Assy, Vane
1993-05 → 1995-05
ended
|
AE101 GT | ¥94,200 | |
| 44310-12310 |
Pump Assy, Vane
1991-06 → 1993-05
ended
|
AE101 GT | ¥94,300 | |
| 44320-12212 |
Pump Assy, Vane
1997-08 → —
|
EE10# | ¥81,900 | |
| 44320-12241 |
Pump Assy, Vane
1991-06 → 1997-08
ended
|
EE10# | ¥81,700 | |
| 44320-12270 |
Pump Assy, Vane
1991-06 → 1992-06
ended
|
CE10# | ¥81,300 | |
| 44320-12271 |
Pump Assy, Vane
1992-06 → —
|
CE10# | ¥81,700 | |
| 44320-12310 |
Pump Assy, Vane
1991-06 → 1992-05
ended
|
AE100 | ¥93,200 | |
| 44320-12311 |
Pump Assy, Vane
1992-05 → 1995-05
ended
|
AE100 | ¥93,500 | |
| 44320-12320 |
Pump Assy, Vane
1991-09 → 1992-05
ended
|
AE104 | ¥93,200 | |
| 44320-12330 |
Pump Assy, Vane
1991-06 → 1992-05
ended
|
AE101 SEG | ¥93,200 | |
| 44320-12331 |
Pump Assy, Vane
1992-05 → 1995-05
ended
|
AE101 SEG | ¥93,200 | |
| 44320-12390 |
Pump Assy, Vane
1992-05 → —
|
AE104,109 | ¥93,500 | |
| 44324B — Ring, Hole Snap(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
Ring, Hole Snap(FOR PUMP HOUSING REAR)
1992-05 → —
|
CE10#,EE10# | ¥220 | |
| 90521-62002 |
Ring, Hole Snap(FOR PUMP HOUSING REAR)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥220 | |
| 44324C — Ring, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
Ring, O(FOR PUMP HOUSING REAR)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥300 | |
| 90301-52001 |
Ring, O(FOR PUMP HOUSING REAR)
1992-05 → 1995-02
ended
|
CE10#,EE10# | ¥300 | |
| 90301-53006 |
Ring, O(FOR PUMP HOUSING REAR)
1995-02 → —
|
CE10#,EE10# | ¥180 | |
| 44325B — Ring, Vane Pump Cam | ||||
| 44325-12110 note |
Ring, Vane Pump Cam
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥8,800 | |
| 44325-12110 note |
Ring, Vane Pump Cam
1992-05 → —
|
CE10#,EE10# | ¥8,800 | |
| 44325-12120 note |
Ring, Vane Pump Cam
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥8,800 | |
| 44325-12120 note |
Ring, Vane Pump Cam
1992-05 → —
|
CE10#,EE10# | ¥8,800 | |
| 44325-12130 note |
Ring, Vane Pump Cam
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥8,800 | |
| 44325-12130 note |
Ring, Vane Pump Cam
1992-05 → —
|
CE10#,EE10# | ¥8,800 | |
| 44325-12140 note |
Ring, Vane Pump Cam
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥8,800 | |
| 44325-12140 note |
Ring, Vane Pump Cam
1992-05 → —
|
CE10#,EE10# | ¥8,800 | |
| 44325-12150 note |
Ring, Vane Pump Cam
1992-05 → —
|
CE10#,EE10# | ¥8,800 | |
| 44325-12150 note |
Ring, Vane Pump Cam
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥8,800 | |
| 44325-12270 note |
Ring, Vane Pump Cam
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥4,350 | |
| 44325-12280 note |
Ring, Vane Pump Cam
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥4,350 | |
| 44325-12290 note |
Ring, Vane Pump Cam
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥4,350 | |
| 44325-12300 note |
Ring, Vane Pump Cam
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥4,350 | |
| 44325-12310 note |
Ring, Vane Pump Cam
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥4,350 | |
| 44325C — Pin, Straight(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥150 | |
| 90250-04047 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1992-05 → —
|
CE10#,EE10# | ¥150 | |
| 90250-04049 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥190 | |
| 90250-04049 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1992-05 → —
|
CE10#,EE10# | ¥190 | |
| 90250-04071 note |
Pin, Straight(FOR VANE PUMP CAM RING)
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥110 | |
| 44330 — Valve Assy, Flow Control | ||||
| 44330-12071 note |
Valve Assy, Flow Control
1991-06 → 1992-05
ended
|
AE100 | ¥8,600 | |
| 44330-12081 note |
Valve Assy, Flow Control
1991-06 → 1992-05
ended
|
AE100 | ¥8,600 | |
| 44330-12091 note |
Valve Assy, Flow Control
1991-06 → 1992-05
ended
|
AE100 | ¥8,600 | |
| 44330-12101 note |
Valve Assy, Flow Control
1991-06 → 1992-05
ended
|
AE100 | ¥8,600 | |
| 44330-12111 note |
Valve Assy, Flow Control
1991-06 → 1992-05
ended
|
AE100 | ¥8,600 | |
| 44330-12121 note |
Valve Assy, Flow Control
1991-06 → 1992-05
ended
|
AE100 | ¥8,600 | |
| 44330-12131 note |
Valve Assy, Flow Control
1991-06 → 1995-05
ended
|
CE10# | ¥8,600 | |
| 44330-12141 note |
Valve Assy, Flow Control
1991-06 → 1995-05
ended
|
CE10# | ¥8,600 | |
| 44330-12151 note |
Valve Assy, Flow Control
1991-06 → 1995-05
ended
|
CE10# | ¥8,600 | |
| 44330-12161 note |
Valve Assy, Flow Control
1991-06 → 1995-05
ended
|
CE10# | ¥8,600 | |
| 44330-12171 note |
Valve Assy, Flow Control
1991-06 → 1995-05
ended
|
CE10# | ¥8,600 | |
| 44330-12181 note |
Valve Assy, Flow Control
1991-06 → 1995-05
ended
|
CE10# | ¥8,600 | |
| 44330-12311 note |
Valve Assy, Flow Control
1991-06 → —
|
EE10# | ¥8,700 | |
| 44330-12321 note |
Valve Assy, Flow Control
1991-06 → —
|
EE10# | ¥8,700 | |
| 44330-12331 note |
Valve Assy, Flow Control
1991-06 → —
|
EE10# | ¥8,700 | |
| 44330-12341 note |
Valve Assy, Flow Control
1991-06 → —
|
EE10# | ¥8,700 | |
| 44330-12351 note |
Valve Assy, Flow Control
1991-06 → —
|
EE10# | ¥8,700 | |
| 44330-12361 note |
Valve Assy, Flow Control
1991-06 → —
|
EE10# | ¥8,700 | |
| 44330-12490 note |
Valve Assy, Flow Control
1993-05 → 1995-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-12500 note |
Valve Assy, Flow Control
1991-06 → 1993-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-12510 note |
Valve Assy, Flow Control
1992-05 → 1995-05
ended
|
AE100 | ¥8,600 | |
| 44330-12520 note |
Valve Assy, Flow Control
1992-05 → 1995-05
ended
|
AE100 | ¥8,600 | |
| 44330-12530 note |
Valve Assy, Flow Control
1992-05 → 1995-05
ended
|
AE100 | ¥8,600 | |
| 44330-12540 note |
Valve Assy, Flow Control
1992-05 → 1995-05
ended
|
AE100 | ¥8,600 | |
| 44330-12550 note |
Valve Assy, Flow Control
1992-05 → 1995-05
ended
|
AE100 | ¥8,600 | |
| 44330-12560 note |
Valve Assy, Flow Control
1992-05 → 1995-05
ended
|
AE100 | ¥8,600 | |
| 44330-12570 note |
Valve Assy, Flow Control
1992-05 → —
|
AE101,104,109 DX,LX,SEG,SEL,XE | ¥8,600 | |
| 44330-12580 note |
Valve Assy, Flow Control
1992-05 → —
|
AE101,104,109 DX,LX,SEG,SEL,XE | ¥8,600 | |
| 44330-12590 note |
Valve Assy, Flow Control
1992-05 → —
|
AE101,104,109 DX,LX,SEG,SEL,XE | ¥8,600 | |
| 44330-12600 note |
Valve Assy, Flow Control
1992-05 → —
|
AE101,104,109 DX,LX,SEG,SEL,XE | ¥8,600 | |
| 44330-12610 note |
Valve Assy, Flow Control
1992-05 → —
|
AE101,104,109 DX,LX,SEG,SEL,XE | ¥8,600 | |
| 44330-12620 note |
Valve Assy, Flow Control
1992-05 → —
|
AE101,104,109 DX,LX,SEG,SEL,XE | ¥8,600 | |
| 44330-20010 note |
Valve Assy, Flow Control
1991-09 → 1992-05
ended
|
AE104 | ¥8,600 | |
| 44330-20010 note |
Valve Assy, Flow Control
1991-06 → 1991-08
ended
|
AE101 SEG | ¥8,600 | |
| 44330-20010 note |
Valve Assy, Flow Control
1993-05 → 1995-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-20020 note |
Valve Assy, Flow Control
1993-05 → 1995-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-20020 note |
Valve Assy, Flow Control
1991-09 → 1992-05
ended
|
AE104 | ¥8,600 | |
| 44330-20020 note |
Valve Assy, Flow Control
1991-06 → 1991-08
ended
|
AE101 SEG | ¥8,600 | |
| 44330-20030 note |
Valve Assy, Flow Control
1993-05 → 1995-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-20030 note |
Valve Assy, Flow Control
1991-09 → 1992-05
ended
|
AE104 | ¥8,600 | |
| 44330-20030 note |
Valve Assy, Flow Control
1991-06 → 1991-08
ended
|
AE101 SEG | ¥8,600 | |
| 44330-20040 note |
Valve Assy, Flow Control
1993-05 → 1995-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-20040 note |
Valve Assy, Flow Control
1991-09 → 1992-05
ended
|
AE104 | ¥8,600 | |
| 44330-20040 note |
Valve Assy, Flow Control
1991-06 → 1991-08
ended
|
AE101 SEG | ¥8,600 | |
| 44330-20050 note |
Valve Assy, Flow Control
1993-05 → 1995-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-20050 note |
Valve Assy, Flow Control
1991-06 → 1991-08
ended
|
AE101 SEG | ¥8,600 | |
| 44330-20050 note |
Valve Assy, Flow Control
1991-09 → 1992-05
ended
|
AE104 | ¥8,600 | |
| 44330-20060 note |
Valve Assy, Flow Control
1993-05 → 1995-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-20060 note |
Valve Assy, Flow Control
1991-06 → 1991-08
ended
|
AE101 SEG | ¥8,600 | |
| 44330-20060 note |
Valve Assy, Flow Control
1991-09 → 1992-05
ended
|
AE104 | ¥8,600 | |
| 44330-20070 note |
Valve Assy, Flow Control
1995-05 → —
|
CE10# | ¥8,600 | |
| 44330-20080 note |
Valve Assy, Flow Control
1995-05 → —
|
CE10# | ¥8,600 | |
| 44330-20090 note |
Valve Assy, Flow Control
1995-05 → —
|
CE10# | ¥8,600 | |
| 44330-20100 note |
Valve Assy, Flow Control
1995-05 → —
|
CE10# | ¥8,600 | |
| 44330-20110 note |
Valve Assy, Flow Control
1995-05 → —
|
CE10# | ¥8,600 | |
| 44330-20120 note |
Valve Assy, Flow Control
1995-05 → —
|
CE10# | ¥8,600 | |
| 44330-32070 note |
Valve Assy, Flow Control
1991-06 → 1993-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-32070 note |
Valve Assy, Flow Control
1991-08 → 1992-05
ended
|
AE101 SEG | ¥8,600 | |
| 44330-32080 note |
Valve Assy, Flow Control
1991-08 → 1992-05
ended
|
AE101 SEG | ¥8,600 | |
| 44330-32080 note |
Valve Assy, Flow Control
1991-06 → 1993-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-32090 note |
Valve Assy, Flow Control
1991-08 → 1992-05
ended
|
AE101 SEG | ¥8,600 | |
| 44330-32090 note |
Valve Assy, Flow Control
1991-06 → 1993-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-32100 note |
Valve Assy, Flow Control
1991-08 → 1992-05
ended
|
AE101 SEG | ¥8,600 | |
| 44330-32100 note |
Valve Assy, Flow Control
1991-06 → 1993-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-32110 note |
Valve Assy, Flow Control
1991-06 → 1993-05
ended
|
AE101 GT | ¥8,600 | |
| 44330-32110 note |
Valve Assy, Flow Control
1991-08 → 1992-05
ended
|
AE101 SEG | ¥8,600 | |
| 44330-32120 note |
Valve Assy, Flow Control
1991-08 → 1992-05
ended
|
AE101 SEG | ¥8,600 | |
| 44330-32120 note |
Valve Assy, Flow Control
1991-06 → 1993-05
ended
|
AE101 GT | ¥8,600 | |
| 44330A — Spring, Compression(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥160 | |
| 90501-12103 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1992-05 → —
|
CE10#,EE10# | ¥160 | |
| 90501-12141 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1993-05 → 1995-05
ended
|
AE101 GT | ¥200 | |
| 90501-13034 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥160 | |
| 44337 — Union, Power Steering Suction Port | ||||
| 44337-12060 |
Union, Power Steering Suction Port
1991-06 → —
|
EE10# | ¥1,920 | |
| 44337-12080 |
Union, Power Steering Suction Port
1991-06 → 1995-05
ended
|
AE101 GT | ¥2,900 | |
| 44337-12090 |
Union, Power Steering Suction Port
1991-06 → 1992-06
ended
|
CE10# | ¥2,890 | |
| 44337-12091 |
Union, Power Steering Suction Port
1992-06 → —
|
CE10# | ¥2,900 | |
| 44337A — Ring, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1992-05 → 1996-10
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥270 | |
| 90301-11016 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1996-10 → —
|
AE109,CE10#,EE10# | ¥140 | |
| 90301-12003 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥300 | |
| 90301-12003 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1992-05 → 1996-10
ended
|
CE10#,EE10# | ¥300 | |
| 90301-17008 |
Ring, O(FOR POWER STEERING SUCTION PORT)
1991-06 → 1995-05
ended
|
AE101 GT | ¥320 | |
| 44338A — Ring, O(FOR PRESSURE PORT UNION) | ||||
| 90301-13001 note |
Ring, O(FOR PRESSURE PORT UNION)
1991-06 → 1995-05
ended
|
AE101 GT | ¥240 | |
| 90301-17008 note |
Ring, O(FOR PRESSURE PORT UNION)
1991-06 → 1995-05
ended
|
AE101 GT | ¥320 | |
| 90301-19003 note |
Ring, O(FOR PRESSURE PORT UNION)
1991-06 → 1996-10
ended
|
AE10#,CE10#,EE10# CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL | ¥300 | |
| 90301-19013 note |
Ring, O(FOR PRESSURE PORT UNION)
1996-10 → —
|
AE109,CE10#,EE10# | ¥260 | |
| 44341 — Plate, Vane Pump Side, Front | ||||
| 44341-12040 |
Plate, Vane Pump Side, Front
1991-06 → 1995-05
ended
|
AE101 GT | ¥3,050 | |
| 44341-32010 |
Plate, Vane Pump Side, Front
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥2,910 | |
| 44341-32010 |
Plate, Vane Pump Side, Front
1992-05 → —
|
CE10#,EE10# | ¥2,910 | |
| 44341A — Ring, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-16004 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1991-06 → 1995-05
ended
|
AE101 GT | ¥270 | |
| 90301-25001 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥300 | |
| 90301-25001 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1992-05 → —
|
CE10#,EE10# | ¥300 | |
| 90301-47004 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1991-06 → 1995-05
ended
|
AE101 GT | ¥320 | |
| 90301-52001 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1992-05 → —
|
CE10#,EE10# | ¥300 | |
| 90301-52001 note |
Ring, O(FOR VANE PUMP FRONT SIDE PLATE)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥300 | |
| 44342 — Plate, Vane Pump Side, Rear | ||||
| 44342-26020 |
Plate, Vane Pump Side, Rear
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥1,530 | |
| 44342-32010 |
Plate, Vane Pump Side, Rear
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥4,150 | |
| 44342-32010 |
Plate, Vane Pump Side, Rear
1992-05 → —
|
CE10#,EE10# | ¥4,150 | |
| 44342A — Ring, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-18007 note |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥110 | |
| 90301-47001 note |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥170 | |
| 90301-52001 |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥300 | |
| 90301-52001 |
Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1992-05 → —
|
CE10#,EE10# | ¥300 | |
| 44345B — Plate, Vane Pump | ||||
| 44345-12010 note |
Plate, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥660 | |
| 44345-12010 note |
Plate, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥660 | |
| 44345-12020 note |
Plate, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥660 | |
| 44345-12020 note |
Plate, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥660 | |
| 44345-12030 note |
Plate, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥660 | |
| 44345-12030 note |
Plate, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥660 | |
| 44345-12040 note |
Plate, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥660 | |
| 44345-12040 note |
Plate, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥660 | |
| 44345-12050 note |
Plate, Vane Pump
1991-06 → 1992-05
ended
|
AE10#,CE10#,EE10# CTD,DX,L,LX,SEG,SEL,XE,XL | ¥660 | |
| 44345-12050 note |
Plate, Vane Pump
1992-05 → —
|
CE10#,EE10# | ¥660 | |
| 44345-26010 note |
Plate, Vane Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥700 | |
| 44345-26020 note |
Plate, Vane Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥700 | |
| 44345-26030 note |
Plate, Vane Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥700 | |
| 44345-26040 note |
Plate, Vane Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥700 | |
| 44345-26050 note |
Plate, Vane Pump
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥700 | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44306-12120 |
Reservoir Assy, Vane Pump Oil
1991-06 → 1992-05
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥10,500 | |
| 44306-12160 |
Reservoir Assy, Vane Pump Oil
1992-05 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥10,300 | |
| 44360-12050 |
Reservoir Assy, Vane Pump Oil
1991-06 → —
|
AE101,CE10#,EE10# CTD,DX,DXJ,GT,L,LX,SEL,XE,XL | ¥10,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
