Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

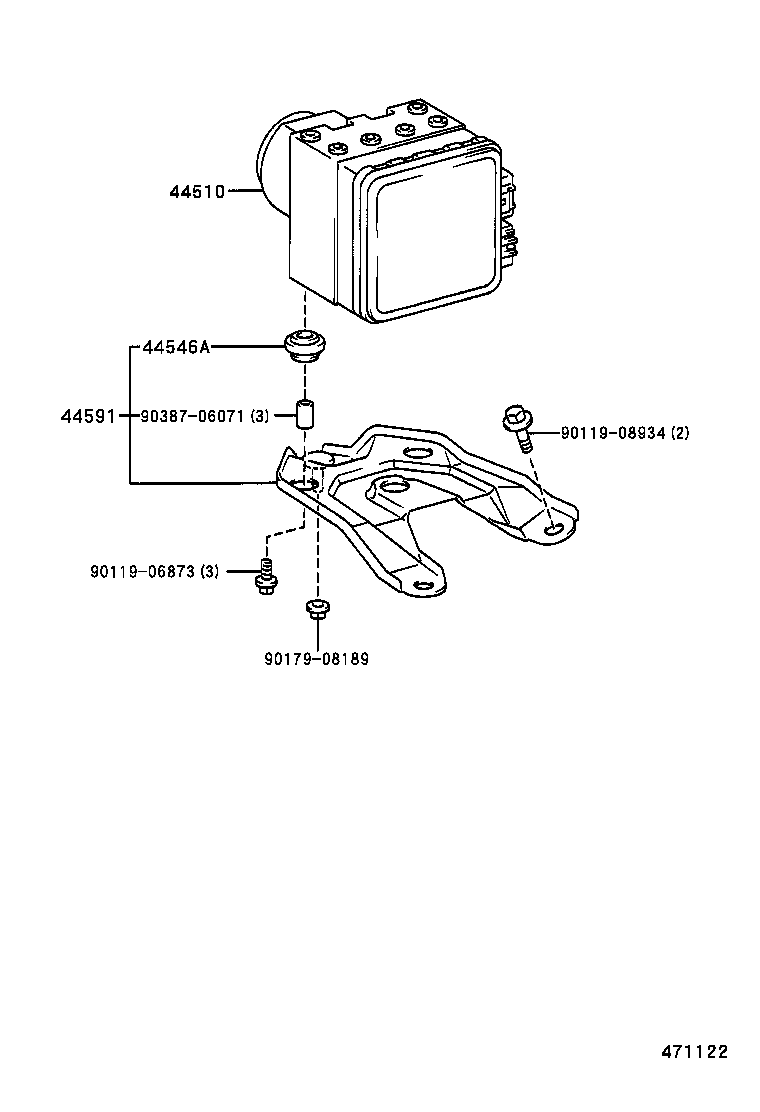

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
44510 — Actuator Assy, Brake
44050-12050	Actuator Assy, Brake 1998-04 → —	CE102,107,EE10#	¥101,000
44050-12060	Actuator Assy, Brake 1998-04 → —	AE109,CE105	¥101,000
44510-12020 note	Actuator Assy, Brake 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE	¥122,000
44510-12030 note	Actuator Assy, Brake 1992-09 → 1993-05 ended	AE101 GT	¥121,000
44510-12040 note	Actuator Assy, Brake 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE	¥121,000
44510-12050	Actuator Assy, Brake 1991-06 → 1993-05 ended	AE101 GT	¥121,000
44510-12090	Actuator Assy, Brake 1993-05 → 1995-05 ended	AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE	¥122,000
44510-12100	Actuator Assy, Brake 1993-05 → 1995-05 ended	AE101 GT	¥122,000
44546A — Cushion, Brake Actuator Bolt
44546-12010	Cushion, Brake Actuator Bolt 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥230
44546-12100	Cushion, Brake Actuator Bolt 1998-04 → —	AE109,CE10#,EE10#	¥230
44591 — Bracket, Brake Actuator, NO.1
44590-12030	Bracket, Brake Actuator, NO.1 1999-06 → —	AE109,CE10#,EE10#	¥1,930
44590-12040	Bracket, Brake Actuator, NO.1 1998-04 → 1999-06 ended	AE109,CE10#,EE10#	¥1,950
44591-12020	Bracket, Brake Actuator, NO.1 1991-06 → 1993-05 ended	AE10#,CE100,104,EE101	¥2,710
44591-12030	Bracket, Brake Actuator, NO.1 1993-05 → 1994-05 ended	AE10#,CE100,104,EE101	¥2,600
44591-12031	Bracket, Brake Actuator, NO.1 1994-05 → 1995-05 ended	AE10#,CE100,104,EE101	¥2,620

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
