Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

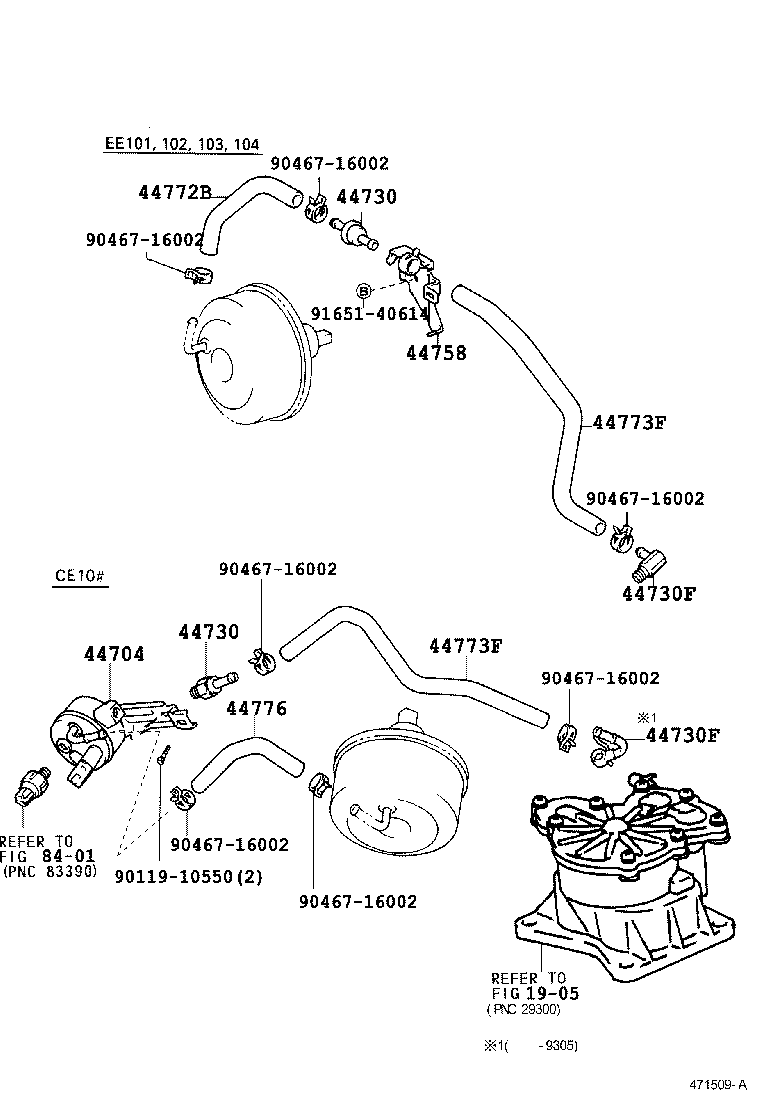

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44704 — Reservoir Sub-assy, Vacuum | ||||
| 44704-12060 |
Reservoir Sub-assy, Vacuum
1991-06 → 1993-05
ended
|
CE10# | ¥4,220 | |
| 44704-12070 |
Reservoir Sub-assy, Vacuum
1993-05 → —
|
CE10# | ¥6,600 | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44580-22030 |
Valve Assy, Vacuum Check(FOR BRAKE)
1991-09 → 1994-01
ended
|
EE106,107,108 | ¥7,700 | |
| 44730-10010 |
Valve Assy, Vacuum Check(FOR BRAKE)
1991-06 → 1995-08
ended
|
AE10#,EE101,102,103,104 DX,DXJ,L,LX,SEG,SEL,XE,XL | ¥1,820 | |
| 44730-12040 |
Valve Assy, Vacuum Check(FOR BRAKE)
1995-08 → —
|
EE10# | ¥1,360 | |
| 44730-12050 |
Valve Assy, Vacuum Check(FOR BRAKE)
1996-05 → —
|
AE109 | ¥1,360 | |
| 44730-20100 |
Valve Assy, Vacuum Check(FOR BRAKE)
1991-06 → 1995-05
ended
|
AE101 GT | ¥2,170 | |
| 44730-60050 |
Valve Assy, Vacuum Check(FOR BRAKE)
1991-06 → —
|
CE10# | ¥1,360 | |
| 44730F — Union, Vacuum Hose(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1991-09 → 1994-01
ended
|
EE106,107,108 | ¥580 | |
| 90404-51319 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1991-06 → —
|
AE10# DX,LX,SEG,SEL,XE | ¥220 | |
| 90405-09075 note |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1991-09 → 1993-05
ended
|
CE106,109 5F | ¥370 | |
| 90405-09075 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1991-06 → 1993-05
ended
|
CE106 4FC;CE100,104,108 | ¥370 | |
| 90405-09080 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1991-09 → 1993-05
ended
|
CE106,109 5F | ¥620 | |
| 90405-09162 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1991-06 → 1995-05
ended
|
AE101 GT | ¥370 | |
| 90407-51002 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1991-06 → 1997-04
ended
|
EE101,102,103,104 | ¥350 | |
| 44758 — Bracket, Vacuum Check Valve | ||||
| 44758-12290 |
Bracket, Vacuum Check Valve
1991-06 → 1995-08
ended
|
AE10#,EE101,102,103,104 DX,DXJ,L,LX,SEG,SEL,XE,XL | ¥440 | |
| 44758-12300 |
Bracket, Vacuum Check Valve
1995-08 → —
|
AE109,CE105,EE10# | ¥120 | |
| 44772B — Hose, Check Valve TO Brake Booster | ||||
| 44772-12420 |
Hose, Check Valve TO Brake Booster
1991-06 → 1995-08
ended
|
AE100,101,EE101,102,103,104 DX,DXJ,L,LX,SEG,SEL,XE,XL | ¥870 | |
| 44772-12430 note |
Hose, Check Valve TO Brake Booster
1991-06 → 1995-05
ended
|
AE100,101,EE101 DX,LX,SEG,SEL,XE | ¥1,630 | |
| 44772-12430 |
Hose, Check Valve TO Brake Booster
1991-09 → 1995-05
ended
|
AE104 | ¥1,630 | |
| 44772-12460 |
Hose, Check Valve TO Brake Booster
1991-09 → 1994-01
ended
|
EE106,107,108 | ¥950 | |
| 44772-12480 |
Hose, Check Valve TO Brake Booster
1991-06 → 1995-05
ended
|
AE101 GT | ¥1,030 | |
| 44772-12530 note |
Hose, Check Valve TO Brake Booster
1993-08 → 1995-05
ended
|
AE100 ATM (LX,SEL) | ¥1,530 | |
| 44772-12530 note |
Hose, Check Valve TO Brake Booster
1991-06 → 1993-08
ended
|
AE100 4FC SEL | ¥1,530 | |
| 44772-12530 note |
Hose, Check Valve TO Brake Booster
1991-09 → 1995-05
ended
|
AE104 4FC SEL | ¥1,530 | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-12470 |
Hose, Union TO Check Valve
1991-06 → 1995-05
ended
|
AE10# DX,LX,SEG,SEL,XE | ¥2,010 | |
| 44773-12500 note |
Hose, Union TO Check Valve
1991-06 → 1995-05
ended
|
AE101 GT | ¥1,260 | |
| 44773-12510 note |
Hose, Union TO Check Valve
1991-06 → 1995-05
ended
|
AE101 GT | ¥1,980 | |
| 44773-12520 |
Hose, Union TO Check Valve
1991-06 → 1995-08
ended
|
EE101,102,103,104 | ¥2,100 | |
| 44773-12530 |
Hose, Union TO Check Valve
1997-04 → —
|
EE10# | ¥1,030 | |
| 44773-12540 |
Hose, Union TO Check Valve
1991-09 → 1993-05
ended
|
CE10# | ¥3,100 | |
| 44773-12560 |
Hose, Union TO Check Valve
1991-06 → 1991-09
ended
|
CE100 | ¥3,100 | |
| 44773-12580 |
Hose, Union TO Check Valve
1993-05 → —
|
CE10# | ¥2,380 | |
| 44773-12600 |
Hose, Union TO Check Valve
1996-05 → —
|
AE109 | ¥1,000 | |
| 44773-12640 |
Hose, Union TO Check Valve
1995-08 → 1997-04
ended
|
EE10# | ¥1,890 | |
| 44776 — Hose, Brake Booster | ||||
| 44776-12070 |
Hose, Brake Booster
1991-06 → 1993-05
ended
|
CE100,106,108,109 | ¥1,540 | |
| 44776-12080 note |
Hose, Brake Booster
1991-06 → 1993-05
ended
|
CE100 | ¥1,620 | |
| 44776-12080 |
Hose, Brake Booster
1991-09 → 1993-05
ended
|
CE104 | ¥1,620 | |
| 44776-12090 |
Hose, Brake Booster
1993-05 → 1994-01
ended
|
CE106,108,109 | ¥1,890 | |
| 44776-12120 |
Hose, Brake Booster
1993-05 → 1994-01
ended
|
CE100,104 | ¥1,880 | |
| 44776-12120 |
Hose, Brake Booster
1994-01 → —
|
CE10# | ¥1,880 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
