Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

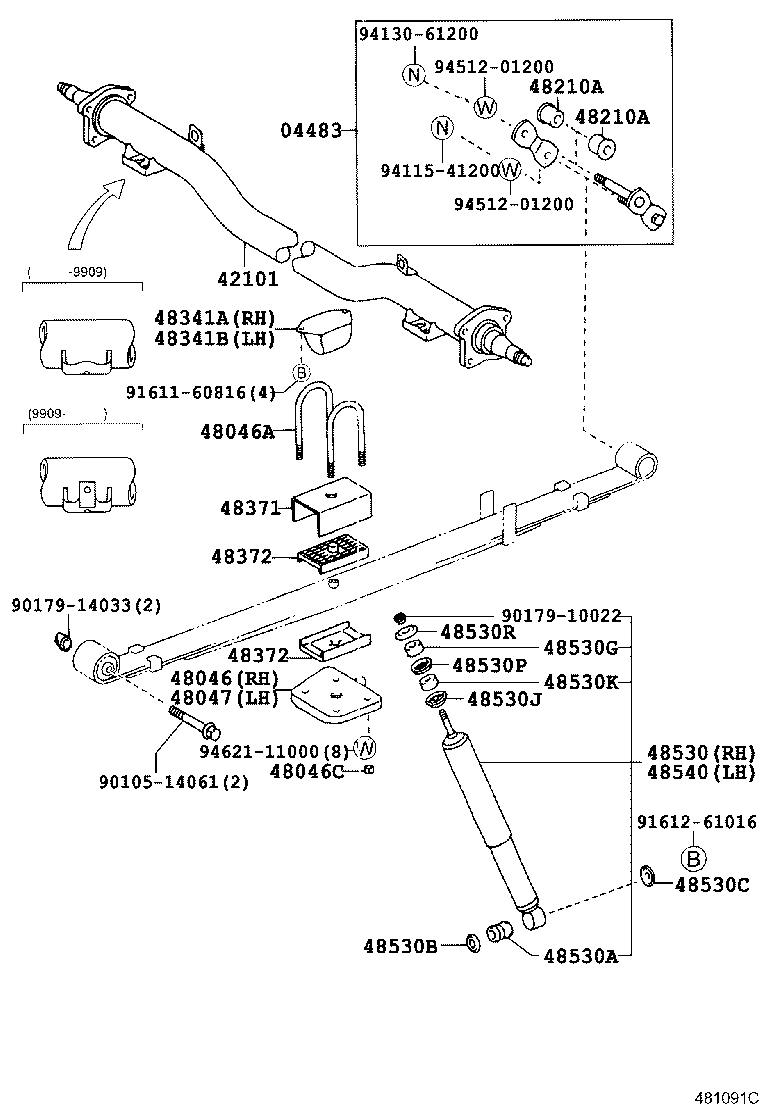

Exploded illustration 481091C 9411541200 — not listed in this catalogue 48210A — BUSH(FOR REAR SPRING SHACKLE UPPER) (2 parts) 9451201200 — not listed in this catalogue 9462111000 — not listed in this catalogue 48046C — NUT(FOR REAR SPRING U BOLT) (1 parts) 9010514061 — not listed in this catalogue 48530J — RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) (1 parts) 48530K — CUSHION, REAR SHOCK ABSORBER, NO.2 (1 parts) 48530P — RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) (1 parts) 48530G — CUSHION, REAR SHOCK ABSORBER, NO.1 (1 parts) 48530R — RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER) (1 parts) 9017910022 — not listed in this catalogue 48530 — ABSORBER ASSY, SHOCK, REAR RH (11 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (11 parts) 9161261016 — not listed in this catalogue 48530C — WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 (1 parts) 48530A — BUSH(FOR REAR SHOCK ABSORBER) (1 parts) 48530B — WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 (1 parts) 48372 — PAD, REAR SPRING (1 parts) 48371 — RETAINER, REAR SPRING PAD (2 parts) 48046A — BOLT, U(FOR REAR SPRING) (2 parts) 9161160816 — not listed in this catalogue 48372 — PAD, REAR SPRING (1 parts) 48046 — SEAT SUB-ASSY, SPRING U BOLT, RH (2 parts) 48047 — SEAT SUB-ASSY, SPRING U BOLT, LH (2 parts) 9017914033 — not listed in this catalogue 48341A — BUMPER, REAR SPRING, NO.1 RH (7 parts) 48341B — BUMPER, REAR SPRING, NO.1 LH (7 parts) 42101 — TUBE SUB-ASSY, REAR AXLE (3 parts) 04483 — SHACKLE KIT, REAR SPRING (4 parts) 9413061200 — not listed in this catalogue 9451201200 — not listed in this catalogue 48210A — BUSH(FOR REAR SPRING SHACKLE UPPER) (2 parts)
481091C · 23 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
04483 — Shackle Kit, Rear Spring
04483-13020 Shackle Kit, Rear Spring
1991-09 → 1992-11 ended
CE106,108,EE106,107,108 ¥3,070
04483-13021 Shackle Kit, Rear Spring
1992-11 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥3,090
04483-13030 Shackle Kit, Rear Spring
1991-09 → 1992-08 ended
CE109 ¥3,790
04483-13031 Shackle Kit, Rear Spring
1992-08 → —
AE109,CE105,109 ¥3,790
42101 — Tube Sub-assy, Rear Axle
42101-13070 note Tube Sub-assy, Rear Axle
1991-09 → —
EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);CE102,106,107,108,EE104,106,107,108 ¥51,400
42101-13080 note Tube Sub-assy, Rear Axle
1998-04 → 1998-07 ended
CE102,107,EE10# ¥51,400
42101-13081 note Tube Sub-assy, Rear Axle
1998-07 → —
EE103 XL;CE102,107,EE104;EE102,103 (3FC,4F) (DX,DXJ) ¥51,400
48046 — Seat Sub-assy, Spring U Bolt, RH
48046-13080 Seat Sub-assy, Spring U Bolt, RH
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥2,410
48046-13090 Seat Sub-assy, Spring U Bolt, RH
1991-09 → —
AE109,CE105,109 ¥2,380
48046A — Bolt, U(FOR REAR SPRING)
90117-10003 note Bolt, U(FOR REAR SPRING)
1991-09 → —
AE109,CE105,109 ¥910
90117-10010 note Bolt, U(FOR REAR SPRING)
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥910
48046C — Nut(FOR REAR SPRING U BOLT)
90170-10022 Nut(FOR REAR SPRING U BOLT)
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥140
48047 — Seat Sub-assy, Spring U Bolt, LH
48047-13080 Seat Sub-assy, Spring U Bolt, LH
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥2,410
48047-13090 Seat Sub-assy, Spring U Bolt, LH
1991-09 → —
AE109,CE105,109 ¥2,380
48210A — Bush(FOR REAR SPRING SHACKLE UPPER)
90385-15004 Bush(FOR REAR SPRING SHACKLE UPPER)
1991-09 → —
AE109,CE105,109 ¥390
90385-15005 Bush(FOR REAR SPRING SHACKLE UPPER)
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥390
48341A — Bumper, Rear Spring, NO.1 RH
48341-12120 Bumper, Rear Spring, NO.1 RH
1991-06 → 1995-05 ended
AE100,EE101 ¥760
48341-12130 Bumper, Rear Spring, NO.1 RH
1991-06 → 1995-05 ended
AE101,CE100 ¥760
48341-12170 Bumper, Rear Spring, NO.1 RH
1991-09 → 1995-05 ended
AE104,CE104 ¥740
48341-13090 Bumper, Rear Spring, NO.1 RH
1992-02 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥3,720
48341-13100 note Bumper, Rear Spring, NO.1 RH
1991-11 → 1994-01 ended
EE106 4F ¥3,720
48341-13110 Bumper, Rear Spring, NO.1 RH
1991-09 → —
AE109,CE105,109 ¥3,720
48341-13120 Bumper, Rear Spring, NO.1 RH
1991-09 → 1992-02 ended
CE106,108,EE106,107,108 ¥3,710
48341B — Bumper, Rear Spring, NO.1 LH
48341-12120 Bumper, Rear Spring, NO.1 LH
1991-06 → 1995-05 ended
AE100,EE101 ¥760
48341-12130 Bumper, Rear Spring, NO.1 LH
1991-06 → 1995-05 ended
AE101,CE100 ¥760
48341-12170 Bumper, Rear Spring, NO.1 LH
1991-09 → 1995-05 ended
AE104,CE104 ¥740
48341-13090 Bumper, Rear Spring, NO.1 LH
1992-02 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥3,720
48341-13100 note Bumper, Rear Spring, NO.1 LH
1991-11 → 1994-01 ended
EE106 4F ¥3,720
48341-13110 Bumper, Rear Spring, NO.1 LH
1991-09 → —
AE109,CE105,109 ¥3,720
48341-13120 Bumper, Rear Spring, NO.1 LH
1991-09 → 1992-02 ended
CE106,108,EE106,107,108 ¥3,710
48371 — Retainer, Rear Spring Pad
48371-13070 Retainer, Rear Spring Pad
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥750
48371-13090 Retainer, Rear Spring Pad
1991-09 → —
AE109,CE105,109 ¥2,550
48372 — Pad, Rear Spring
48372-12020 Pad, Rear Spring
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥980
48530 — Absorber Assy, Shock, Rear RH
48530-12550 Absorber Assy, Shock, Rear RH
1991-06 → 1995-05 ended
AE100,EE101 ¥24,600
48530-12580 Absorber Assy, Shock, Rear RH
1991-06 → 1992-05 ended
AE101,CE100 DX,LX,SEG,SEL,XE ¥25,500
48530-12710 Absorber Assy, Shock, Rear RH
1991-06 → 1992-05 ended
AE101 GT ¥25,500
48530-12760 Absorber Assy, Shock, Rear RH
1991-09 → 1995-05 ended
AE104,CE104 ¥23,300
48530-12780 Absorber Assy, Shock, Rear RH
1992-05 → 1995-05 ended
AE101 GT ¥25,500
48530-12840 note Absorber Assy, Shock, Rear RH
1991-06 → 1992-05 ended
AE101,CE100 DX,LX,SEG,SEL,XE ¥25,500
48530-12840 Absorber Assy, Shock, Rear RH
1992-05 → 1995-05 ended
AE101,CE100 DX,LX,SEG,SEL,XE ¥25,500
48531-80072 note Absorber Assy, Shock, Rear RH
1991-11 → 1994-01 ended
EE106 4F ¥8,000
48531-80118 note Absorber Assy, Shock, Rear RH
1997-04 → 2002-06 ended
CE102,106,107,108,EE10# ¥8,000
48531-80136 Absorber Assy, Shock, Rear RH
1991-09 → 2002-06 ended
AE109,CE105,109 ¥8,000
48531-80181 note Absorber Assy, Shock, Rear RH
1991-09 → 1997-04 ended
CE106,108,EE102,103,104,106,107,108 ¥5,000
48530A — Bush(FOR REAR SHOCK ABSORBER)
90385-16001 Bush(FOR REAR SHOCK ABSORBER)
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥670
48530B — Washer, Rear Shock Absorber Cushion, NO.1
90948-03004 Washer, Rear Shock Absorber Cushion, NO.1
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥200
48530C — Washer, Rear Shock Absorber Cushion, NO.2
90948-03012 Washer, Rear Shock Absorber Cushion, NO.2
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥100
48530G — Cushion, Rear Shock Absorber, NO.1
90540-10005 Cushion, Rear Shock Absorber, NO.1
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥230
48530J — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
90948-02002 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥170
48530K — Cushion, Rear Shock Absorber, NO.2
90948-01003 Cushion, Rear Shock Absorber, NO.2
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥220
48530P — Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
90948-02007 Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥170
48530R — Retainer, Cushion, NO.3(FOR REAR SHOCK ABSORBER)
90948-02045 Retainer, Cushion, NO.3(FOR REAR SHOCK ABSORBER)
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥320
48540 — Absorber Assy, Shock, Rear LH
48531-80072 note Absorber Assy, Shock, Rear LH
1991-11 → 1994-01 ended
EE106 4F ¥8,000
48531-80118 note Absorber Assy, Shock, Rear LH
1997-04 → 2002-06 ended
CE102,106,107,108,EE10# ¥8,000
48531-80136 Absorber Assy, Shock, Rear LH
1991-09 → 2002-06 ended
AE109,CE105,109 ¥8,000
48531-80181 note Absorber Assy, Shock, Rear LH
1991-09 → 1997-04 ended
CE106,108,EE102,103,104,106,107,108 ¥5,000
48540-12490 Absorber Assy, Shock, Rear LH
1991-06 → 1995-05 ended
AE100,EE101 ¥24,600
48540-12520 note Absorber Assy, Shock, Rear LH
1991-06 → 1992-05 ended
AE101,CE100 DX,LX,SEG,SEL,XE ¥25,500
48540-12650 Absorber Assy, Shock, Rear LH
1991-06 → 1992-05 ended
AE101 GT ¥25,500
48540-12700 Absorber Assy, Shock, Rear LH
1991-09 → 1995-05 ended
AE104,CE104 ¥23,300
48540-12710 Absorber Assy, Shock, Rear LH
1992-05 → 1995-05 ended
AE101 GT ¥25,500
48540-12770 note Absorber Assy, Shock, Rear LH
1991-06 → 1992-05 ended
AE101,CE100 DX,LX,SEG,SEL,XE ¥25,500
48540-12770 Absorber Assy, Shock, Rear LH
1992-05 → 1995-05 ended
AE101,CE100 DX,LX,SEG,SEL,XE ¥25,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
