Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

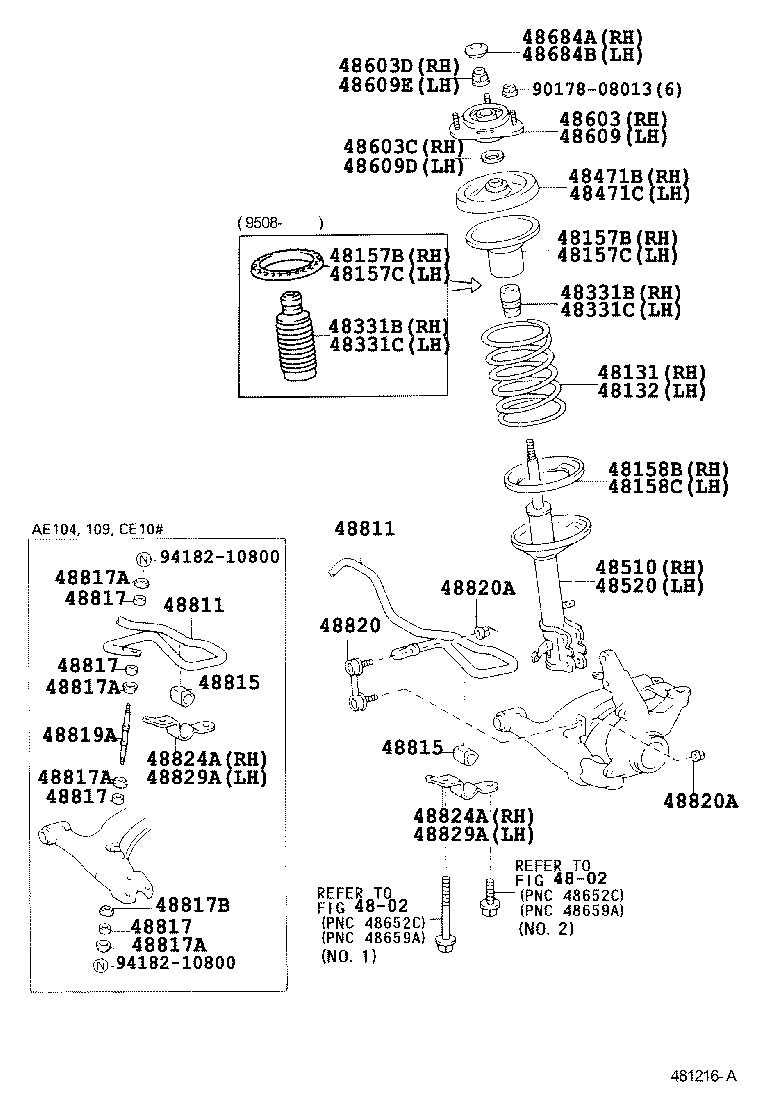

Exploded illustration 481216A 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (1 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (1 parts) 48609D — SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) (1 parts) 48603C — SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) (1 parts) 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (4 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (4 parts) 48132 — SPRING, FRONT COIL, LH (26 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (11 parts) 4802 — not listed in this catalogue 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (2 parts) 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (2 parts) 4802 — not listed in this catalogue 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (4 parts) 9418210800 — not listed in this catalogue 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48817B — RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) (1 parts) 48817 — CUSHION, FRONT STABILIZER (1 parts) 48817 — CUSHION, FRONT STABILIZER (1 parts) 48817 — CUSHION, FRONT STABILIZER (1 parts) 48817 — CUSHION, FRONT STABILIZER (1 parts) 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (4 parts) 48811 — BAR, STABILIZER, FRONT (5 parts) 9418210800 — not listed in this catalogue 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (2 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (2 parts) 48819A — BOLT, FRONT STABILIZER (1 parts) 48811 — BAR, STABILIZER, FRONT (5 parts) 48820 — LINK ASSY, FRONT STABILIZER (4 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (1 parts) 48684A — COVER, FRONT SUSPENSION SUPPORT DUST, RH (2 parts) 48471B — SEAT, FRONT COIL SPRING, UPPER RH (2 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (2 parts) 48331B — BUMPER, FRONT SPRING, RH (4 parts) 48131 — SPRING, FRONT COIL, RH (22 parts) 48331C — BUMPER, FRONT SPRING, LH (4 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (2 parts) 48471C — SEAT, FRONT COIL SPRING, UPPER LH (2 parts) 48684B — COVER, FRONT SUSPENSION SUPPORT DUST, LH (2 parts) 9017808013 — not listed in this catalogue 48820A — NUT(FOR FRONT STABILIZER LINK) (1 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (1 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (1 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (11 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (2 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (2 parts) 48331C — BUMPER, FRONT SPRING, LH (4 parts) 48331B — BUMPER, FRONT SPRING, RH (4 parts)
481216A · 45 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-1K380 Spring, Front Coil, RH
1991-06 → 1995-05 ended
EE101 4F ¥9,200
48131-1K490 Spring, Front Coil, RH
1991-09 → —
CE105,109;CE102,106,107,108 4FC ¥8,100
48131-1K540 Spring, Front Coil, RH
1991-06 → 1995-05 ended
EE101 3FC ¥9,800
48131-1K620 Spring, Front Coil, RH
1991-06 → 1995-05 ended
AE100 5F (DX,LX,XE) ¥9,800
48131-1K640 Spring, Front Coil, RH
1991-06 → 1995-05 ended
CE100 5F (DX,LX);AE100 ATM +1 ¥10,200
48131-1K720 Spring, Front Coil, RH
1991-06 → 1995-05 ended
AE100 5F SEL ¥10,500
48131-1K740 Spring, Front Coil, RH
1991-06 → 1995-05 ended
AE100 4FC SEL;CE100 4FC +3 ¥8,500
48131-1K760 Spring, Front Coil, RH
1991-06 → 1995-05 ended
CE100 4FC (SEL,XE) ¥8,700
48131-1K790 Spring, Front Coil, RH
1991-06 → 1995-05 ended
AE101 5F SEG ¥10,500
48131-1K810 Spring, Front Coil, RH
1991-06 → 1995-05 ended
AE101 4FC SEG ¥8,000
48131-1K890 note Spring, Front Coil, RH
1991-06 → —
AE101,EE102,103,104,106,107,108 ATM (CTD,DX,DXJ,GT,L,XL) ¥10,200
48131-1L020 note Spring, Front Coil, RH
1991-09 → 1995-05 ended
AE104 5F (LX,XE) ¥7,800
48131-1L050 Spring, Front Coil, RH
1991-09 → —
AE104,CE102,106,107,108 5F (CTD,DX,DXJ,L,SEL,XL) ¥7,800
48131-1L100 Spring, Front Coil, RH
1991-09 → 1995-05 ended
AE104 4FC XE ¥8,000
48131-1L120 Spring, Front Coil, RH
1991-09 → 1995-05 ended
AE104 4FC SEL ¥8,400
48131-1L180 Spring, Front Coil, RH
1991-09 → 1993-09 ended
CE104 LX,XE ¥7,800
48131-1L200 note Spring, Front Coil, RH
1991-06 → —
AE101,EE102,103,104,106,107,108 MTM (CTD,DX,DXJ,GT,L,XL) ¥9,800
48131-1L250 Spring, Front Coil, RH
1991-09 → 1993-09 ended
CE104 SEL ¥8,200
48131-1L250 Spring, Front Coil, RH
1993-09 → 1995-05 ended
CE104 LX ¥8,200
48131-1L510 Spring, Front Coil, RH
1993-09 → 1995-05 ended
CE104 SEL,XE ¥8,200
48131-1L690 Spring, Front Coil, RH
1996-05 → —
AE109 5F ¥10,100
48131-1L710 Spring, Front Coil, RH
1996-05 → —
AE109 4FC ¥10,200
48132 — Spring, Front Coil, LH
48131-1K380 Spring, Front Coil, LH
1991-06 → 1995-05 ended
EE101 3FC ¥9,200
48131-1K400 Spring, Front Coil, LH
1991-06 → 1995-05 ended
AE101 5F SEG ¥10,300
48131-1K490 Spring, Front Coil, LH
1997-04 → —
CE105,109;CE102,106,107,108 4FC ¥8,100
48131-1K530 Spring, Front Coil, LH
1991-06 → 1995-05 ended
EE101 4F ¥8,600
48131-1K600 Spring, Front Coil, LH
1991-06 → 1995-05 ended
AE100 5F (DX,LX,XE) ¥9,200
48131-1K620 Spring, Front Coil, LH
1991-06 → 1995-05 ended
CE100 5F (DX,LX);AE100 ATM +1 ¥9,800
48131-1K640 Spring, Front Coil, LH
1991-06 → 1995-05 ended
AE100 5F SEL ¥10,200
48131-1K720 Spring, Front Coil, LH
1991-06 → 1995-05 ended
AE100 4FC SEL;CE100 4FC +3 ¥10,500
48131-1K740 Spring, Front Coil, LH
1991-06 → 1995-05 ended
CE100 4FC (SEL,XE) ¥8,500
48131-1K790 Spring, Front Coil, LH
1991-06 → 1995-05 ended
AE101 4FC SEG ¥10,500
48131-1K870 Spring, Front Coil, LH
1991-06 → 1997-04 ended
AE101,EE102,103,104,106,107,108 MTM (CTD,DX,DXJ,GT,L,XL) ¥9,200
48131-1K890 note Spring, Front Coil, LH
1991-09 → 1995-05 ended
AE104 5F (LX,XE) ¥10,200
48131-1K890 note Spring, Front Coil, LH
1997-04 → —
EE10# 3FC ¥10,200
48131-1L020 Spring, Front Coil, LH
1991-09 → 1997-04 ended
AE104,CE106,108 5F (CTD,DX,L,SEL,XL) ¥7,800
48131-1L050 Spring, Front Coil, LH
1991-09 → 1997-04 ended
CE109;CE106,108 4FC ¥7,800
48131-1L050 Spring, Front Coil, LH
1997-04 → —
CE102,106,107,108 5F ¥7,800
48131-1L080 Spring, Front Coil, LH
1991-09 → 1995-05 ended
AE104 4FC XE ¥7,800
48131-1L100 Spring, Front Coil, LH
1991-09 → 1995-05 ended
AE104 4FC SEL ¥8,000
48131-1L160 Spring, Front Coil, LH
1991-09 → 1993-09 ended
CE104 LX,XE ¥7,800
48131-1L180 Spring, Front Coil, LH
1991-09 → 1993-09 ended
CE104 SEL ¥7,800
48131-1L180 Spring, Front Coil, LH
1993-09 → 1995-05 ended
CE104 LX ¥7,800
48131-1L200 note Spring, Front Coil, LH
1991-06 → 1997-04 ended
AE101,EE102,103,104,106,107,108 ATM (CTD,DX,DXJ,GT,L,XL) ¥9,800
48131-1L200 note Spring, Front Coil, LH
1997-04 → —
EE10# MTM ¥9,800
48131-1L250 Spring, Front Coil, LH
1993-09 → 1995-05 ended
CE104 SEL,XE ¥8,200
48131-1L690 Spring, Front Coil, LH
1996-05 → —
AE109 5F ¥10,100
48131-1L710 Spring, Front Coil, LH
1996-05 → —
AE109 4FC ¥10,200
48157B — Insulator, Front Coil Spring, Upper RH
48157-12060 Insulator, Front Coil Spring, Upper RH
1991-06 → 1995-08 ended
AE10#,CE10#,EE10# ¥740
48157-12070 Insulator, Front Coil Spring, Upper RH
1995-08 → —
AE109,CE10#,EE10# ¥1,000
48157C — Insulator, Front Coil Spring, Upper LH
48157-12060 Insulator, Front Coil Spring, Upper LH
1991-06 → 1995-08 ended
AE10#,CE10#,EE10# ¥740
48157-12070 Insulator, Front Coil Spring, Upper LH
1995-08 → —
AE109,CE10#,EE10# ¥1,000
48158B — Insulator, Front Coil Spring, Lower RH
48158-12030 Insulator, Front Coil Spring, Lower RH
1991-06 → —
AE10#,CE10#,EE10# ¥680
48158C — Insulator, Front Coil Spring, Lower LH
48158-12030 Insulator, Front Coil Spring, Lower LH
1991-06 → —
AE10#,CE10#,EE10# ¥680
48331B — Bumper, Front Spring, RH
48331-12120 Bumper, Front Spring, RH
1991-06 → 1995-08 ended
AE100,EE10# ¥610
48331-12130 Bumper, Front Spring, RH
1991-06 → 1995-08 ended
AE101,104,CE10# ¥2,080
48331-12140 Bumper, Front Spring, RH
1995-08 → —
EE10# ¥1,600
48331-12150 Bumper, Front Spring, RH
1995-08 → —
AE109,CE10# ¥1,610
48331C — Bumper, Front Spring, LH
48331-12120 Bumper, Front Spring, LH
1991-06 → 1995-08 ended
AE100,EE10# ¥610
48331-12130 Bumper, Front Spring, LH
1991-06 → 1995-08 ended
AE101,104,CE10# ¥2,080
48331-12140 Bumper, Front Spring, LH
1995-08 → —
EE10# ¥1,600
48331-12150 Bumper, Front Spring, LH
1995-08 → —
AE109,CE10# ¥1,610
48471B — Seat, Front Coil Spring, Upper RH
48044-01020 note Seat, Front Coil Spring, Upper RH
1995-08 → —
AE109,CE10#,EE10# —
48044-12090 note Seat, Front Coil Spring, Upper RH
1991-06 → —
AE10#,CE10#,EE10# ¥2,170
48471C — Seat, Front Coil Spring, Upper LH
48044-01020 note Seat, Front Coil Spring, Upper LH
1995-08 → —
AE109,CE10#,EE10# —
48044-12090 note Seat, Front Coil Spring, Upper LH
1991-06 → —
AE10#,CE10#,EE10# ¥2,170
48510 — Absorber Assy, Shock, Front RH
48510-12750 note Absorber Assy, Shock, Front RH
1991-06 → —
AE100,EE10# ¥21,500
48510-12770 Absorber Assy, Shock, Front RH
1991-06 → 1992-05 ended
AE101,CE100,106,108 CTD,DX,L,LX,SEG,SEL,XE,XL ¥24,300
48510-12780 Absorber Assy, Shock, Front RH
1991-06 → 1992-05 ended
AE101 GT ¥24,300
48510-12810 Absorber Assy, Shock, Front RH
1991-09 → 1997-04 ended
AE104,109,CE104,109 ¥25,500
48510-12880 Absorber Assy, Shock, Front RH
1992-05 → 1995-05 ended
AE101 GT ¥24,300
48510-19785 Absorber Assy, Shock, Front RH
1997-04 → 1998-05 ended
AE109,CE105,109 ¥24,400
48510-1A010 Absorber Assy, Shock, Front RH
1992-05 → 1998-05 ended
AE101,CE100,102,106,107,108 CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ¥24,600
48510-87688 Absorber Assy, Shock, Front RH
1998-05 → 1998-12 ended
CE102,107 ¥24,600
48510-87692 Absorber Assy, Shock, Front RH
1998-05 → 1998-12 ended
AE109,CE105 ¥24,600
48510-87697 Absorber Assy, Shock, Front RH
1998-12 → —
CE102,107 ¥24,600
48510-87703 Absorber Assy, Shock, Front RH
1998-12 → —
AE109,CE105 ¥24,600
48520 — Absorber Assy, Shock, Front LH
48520-12630 Absorber Assy, Shock, Front LH
1991-06 → —
AE100,EE10# ¥21,500
48520-12650 Absorber Assy, Shock, Front LH
1991-06 → 1992-05 ended
AE101,CE100,106,108 CTD,DX,L,LX,SEG,SEL,XE,XL ¥24,300
48520-12660 Absorber Assy, Shock, Front LH
1991-06 → 1992-05 ended
AE101 GT ¥24,300
48520-12690 Absorber Assy, Shock, Front LH
1991-09 → 1997-04 ended
AE104,109,CE104,109 ¥25,500
48520-12750 Absorber Assy, Shock, Front LH
1992-05 → 1995-05 ended
AE101 GT ¥24,300
48520-12770 Absorber Assy, Shock, Front LH
1992-05 → 1998-05 ended
AE101,CE100,102,106,107,108 CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ¥24,600
48520-19465 Absorber Assy, Shock, Front LH
1997-04 → 1998-05 ended
AE109,CE105,109 ¥24,400
48520-49235 Absorber Assy, Shock, Front LH
1998-05 → 1998-12 ended
CE102,107 ¥24,600
48520-49236 Absorber Assy, Shock, Front LH
1998-12 → —
CE102,107 ¥24,600
48520-49275 Absorber Assy, Shock, Front LH
1998-05 → 1998-12 ended
AE109,CE105 ¥24,600
48520-49276 Absorber Assy, Shock, Front LH
1998-12 → —
AE109,CE105 ¥24,600
48603 — Support Sub-assy, Front Suspension, RH
48609-12270 Support Sub-assy, Front Suspension, RH
1991-06 → 1995-08 ended
AE10#,CE10#,EE10# CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ¥5,900
48609-12290 Support Sub-assy, Front Suspension, RH
1991-06 → 1995-05 ended
AE101 GT ¥5,900
48609-12330 note Support Sub-assy, Front Suspension, RH
1995-08 → —
AE109,CE10#,EE10# ¥5,700
48609-12370 note Support Sub-assy, Front Suspension, RH
1997-04 → —
AE109,CE10#,EE10# ¥5,900
48603C — Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
90303-22049 Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
1991-06 → —
AE10#,CE10#,EE10# ¥260
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
94182-11400 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
1991-06 → —
AE10#,CE10#,EE10# ¥310
48609 — Support Sub-assy, Front Suspension, LH
48609-12270 Support Sub-assy, Front Suspension, LH
1991-06 → 1995-08 ended
AE10#,CE10#,EE10# CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL ¥5,900
48609-12290 Support Sub-assy, Front Suspension, LH
1991-06 → 1995-05 ended
AE101 GT ¥5,900
48609-12330 note Support Sub-assy, Front Suspension, LH
1995-08 → —
AE109,CE10#,EE10# ¥5,700
48609-12370 note Support Sub-assy, Front Suspension, LH
1997-04 → —
AE109,CE10#,EE10# ¥5,900
48609D — Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
90303-22049 Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
1991-06 → —
AE10#,CE10#,EE10# ¥260
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
94182-11400 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
1991-06 → —
AE10#,CE10#,EE10# ¥310
48684A — Cover, Front Suspension Support Dust, RH
48684-12070 Cover, Front Suspension Support Dust, RH
1996-02 → —
AE109,CE10#,EE10# ¥900
48684-32010 Cover, Front Suspension Support Dust, RH
1991-06 → 1996-02 ended
AE10#,CE10#,EE10# ¥590
48684B — Cover, Front Suspension Support Dust, LH
48684-12070 Cover, Front Suspension Support Dust, LH
1996-02 → —
AE109,CE10#,EE10# ¥900
48684-32010 Cover, Front Suspension Support Dust, LH
1991-06 → 1996-02 ended
AE10#,CE10#,EE10# ¥590
48811 — Bar, Stabilizer, Front
48811-12770 Bar, Stabilizer, Front
1992-05 → 1995-05 ended
AE101 ¥15,500
48811-12821 Bar, Stabilizer, Front
1991-06 → 1992-05 ended
AE101 GT ¥15,600
48811-12860 Bar, Stabilizer, Front
1991-09 → —
AE104,109,CE104,105,109 ¥16,500
48811-12890 Bar, Stabilizer, Front
1991-06 → —
CE100,102,106,107,108 ¥10,400
48811-1A011 Bar, Stabilizer, Front
1991-06 → 1992-05 ended
AE101 SEG ¥15,300
48815 — Bush, Front Stabilizer Bar, NO.1
48815-12220 Bush, Front Stabilizer Bar, NO.1
1992-05 → —
AE104,109,CE104,105,109 ¥470
48815-12220 Bush, Front Stabilizer Bar, NO.1
1991-06 → 1992-05 ended
AE101,104,CE104,109 DX,LX,SEG,SEL,XE,XL ¥470
48815-12230 Bush, Front Stabilizer Bar, NO.1
1991-06 → 1992-05 ended
AE101,CE100,106,108 CTD,DX,GT,L,LX,SEL,XE,XL ¥440
48815-12230 Bush, Front Stabilizer Bar, NO.1
1992-05 → —
AE101,CE100,102,106,107,108 ¥440
48817 — Cushion, Front Stabilizer
48817-30020 Cushion, Front Stabilizer
1991-06 → —
AE104,109,CE10# ¥260
48817A — Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
90948-02032 Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
1991-06 → —
AE104,109,CE10# ¥200
48817B — Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
90948-02015 Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
1991-06 → —
AE104,109,CE10# ¥90
48819A — Bolt, Front Stabilizer
48819-20030 Bolt, Front Stabilizer
1991-06 → —
AE104,109,CE10# ¥370
48820 — Link Assy, Front Stabilizer
48820-20010 Link Assy, Front Stabilizer
1991-06 → 1991-07 ended
AE101 ¥5,300
48820-20021 Link Assy, Front Stabilizer
1992-05 → 1995-05 ended
AE101 GT ¥5,300
48820-33010 Link Assy, Front Stabilizer
1991-07 → 1992-05 ended
AE101 ¥5,300
48820-33010 Link Assy, Front Stabilizer
1992-05 → 1995-05 ended
AE101 SEG ¥5,300
48820A — Nut(FOR FRONT STABILIZER LINK)
90179-10183 Nut(FOR FRONT STABILIZER LINK)
1991-06 → 1995-05 ended
AE101 ¥100
48824A — Bracket, Front Stabilizer, NO.1 RH
48824-12130 Bracket, Front Stabilizer, NO.1 RH
1991-06 → 1995-05 ended
AE101,104,CE10# ¥940
48824-12130 Bracket, Front Stabilizer, NO.1 RH
1995-08 → —
AE109,CE10# ¥940
48829A — Bracket, Front Stabilizer, NO.1 LH
48829-12060 Bracket, Front Stabilizer, NO.1 LH
1991-06 → 1995-05 ended
AE101,104,CE10# ¥940
48829-12060 Bracket, Front Stabilizer, NO.1 LH
1995-08 → —
AE109,CE10# ¥940
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
