Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

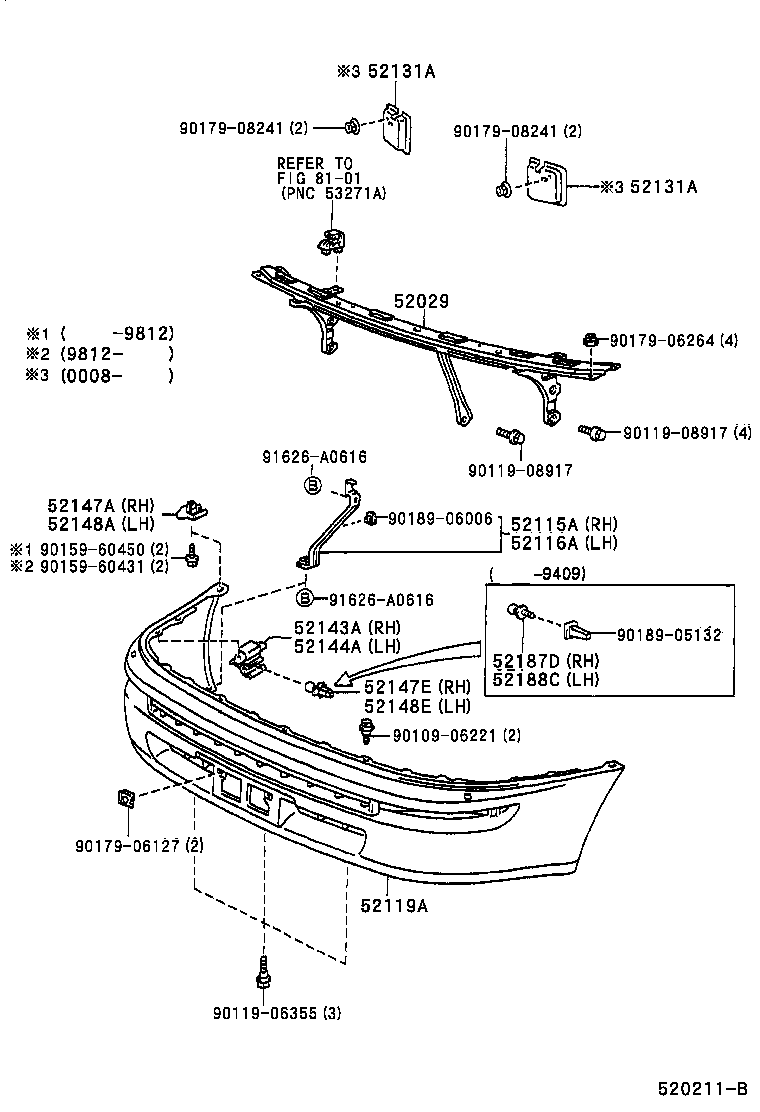

Exploded illustration 520211B 52131A — REINFORCEMENT, FRONT BUMPER (2 parts) 9017908241 — not listed in this catalogue 9017908241 — not listed in this catalogue 8101 — not listed in this catalogue 52131A — REINFORCEMENT, FRONT BUMPER (2 parts) 52029 — REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER (3 parts) 9017906264 — not listed in this catalogue 9011908917 — not listed in this catalogue 91626A0616 — not listed in this catalogue 9011908917 — not listed in this catalogue 52147A — BRACKET, FRONT BUMPER STAY, RH (2 parts) 9018906006 — not listed in this catalogue 52148A — BRACKET, FRONT BUMPER STAY, LH (2 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (2 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (2 parts) 9015960450 — not listed in this catalogue 9015960431 — not listed in this catalogue 91626A0616 — not listed in this catalogue 52143A — ARM, FRONT BUMPER, INNER RH (2 parts) 9018905132 — not listed in this catalogue 52144A — ARM, FRONT BUMPER, INNER LH (2 parts) 52187D — GUIDE, FRONT BUMPER LOCATION, RH (1 parts) 52188C — GUIDE, FRONT BUMPER LOCATION, LH (1 parts) 52147E — BRACKET, FRONT BUMPER MOUNTING, RH (1 parts) 52148E — BRACKET, FRONT BUMPER MOUNTING, LH (1 parts) 9010906221 — not listed in this catalogue 9017906127 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (47 parts) 9011906355 — not listed in this catalogue
520211B · 14 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
52029 — Reinforcement Sub-assy, Front Bumper, Upper
52029-12010 Reinforcement Sub-assy, Front Bumper, Upper
1991-09 → 1997-02 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥7,900
52029-12020 Reinforcement Sub-assy, Front Bumper, Upper
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥7,900
52029-13010 Reinforcement Sub-assy, Front Bumper, Upper
1997-02 → —
AE109,CE10#,EE10# ¥6,500
52115A — Support, Front Bumper Side, RH
52115-12340 Support, Front Bumper Side, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥870
52115-12350 Support, Front Bumper Side, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥870
52116A — Support, Front Bumper Side, LH
52116-12270 Support, Front Bumper Side, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥870
52116-12280 Support, Front Bumper Side, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥870
52119A — Cover, Front Bumper
52119-1E010 Cover, Front Bumper
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥34,100
52119-1E030-02 note Cover, Front Bumper
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥56,200
52119-1E030-03 note Cover, Front Bumper
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥56,200
52119-1E030-04 note Cover, Front Bumper
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥56,200
52119-1E030-05 note Cover, Front Bumper
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥56,200
52119-1E030-07 note Cover, Front Bumper
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥56,200
52119-1E030-08 note Cover, Front Bumper
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 ¥56,200
52119-1E030-12 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥56,200
52119-1E030-B0 note Cover, Front Bumper
1992-05 → 1993-05 ended
EE101;AE100 5F DX;AE10#,CE100,104 GT,LX,SEG,SEL,XE ¥56,200
52119-1E040-02 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥57,500
52119-1E040-02 note Cover, Front Bumper
1992-05 → 1993-05 ended
AE101 SEG ¥57,500
52119-1E040-03 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥57,500
52119-1E040-03 note Cover, Front Bumper
1992-05 → 1993-05 ended
AE101 SEG ¥57,500
52119-1E040-04 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥57,500
52119-1E040-04 note Cover, Front Bumper
1992-05 → 1993-05 ended
AE101 SEG ¥57,500
52119-1E040-05 note Cover, Front Bumper
1992-05 → 1993-05 ended
AE101 SEG ¥57,500
52119-1E040-05 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥57,500
52119-1E040-07 note Cover, Front Bumper
1992-05 → 1993-05 ended
AE101 SEG ¥57,500
52119-1E040-07 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥57,500
52119-1E040-08 note Cover, Front Bumper
1992-05 → 1993-05 ended
AE101 SEG ¥57,500
52119-1E040-08 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥57,500
52119-1E040-12 note Cover, Front Bumper
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥57,500
52119-1E040-B0 note Cover, Front Bumper
1992-05 → 1993-05 ended
AE101 SEG ¥57,500
52119-1E260 Cover, Front Bumper
1994-01 → —
AE109,CE102,105,106,107,108,109,EE102,103,104 ¥32,600
52119-1E260 note Cover, Front Bumper
1997-04 → 2000-08 ended
CE102,108,EE104 ¥32,600
52119-1E270-A0 note Cover, Front Bumper
1998-04 → —
CE102 ¥54,000
52119-1E270-A0 note Cover, Front Bumper
1994-01 → —
CE108,EE104 ¥54,000
52119-1E270-B0 note Cover, Front Bumper
1994-01 → 1995-08 ended
CE108,EE104 ¥54,000
52119-1E270-B2 note Cover, Front Bumper
1998-04 → —
CE102 ¥53,100
52119-1E270-B2 note Cover, Front Bumper
1995-08 → —
CE108,EE104 ¥53,100
52119-1E270-B3 note Cover, Front Bumper
1997-04 → 1998-04 ended
CE108,EE104 ¥53,400
52119-1E270-B3 note Cover, Front Bumper
1995-08 → 1996-05 ended
CE108,EE104 ¥53,400
52119-1E270-B4 note Cover, Front Bumper
1997-04 → 1998-04 ended
CE108,EE104 ¥54,000
52119-1E270-B4 note Cover, Front Bumper
1996-05 → 1997-04 ended
CE108,EE104 ¥54,000
52119-1E270-B4 note Cover, Front Bumper
1998-04 → —
EE104 ¥54,000
52119-1E270-B4 note Cover, Front Bumper
1998-04 → —
CE102 ¥54,000
52119-1E270-C0 note Cover, Front Bumper
1994-01 → 1995-08 ended
CE108,EE104 ¥54,000
52119-1E270-G1 note Cover, Front Bumper
1994-01 → 1997-04 ended
CE108,EE104 ¥54,000
52119-1E270-G4 note Cover, Front Bumper
1998-04 → —
CE102 ¥54,000
52119-1E270-G4 note Cover, Front Bumper
1997-04 → —
CE108,EE104 ¥54,000
52119-1E280-A0 note Cover, Front Bumper
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥53,900
52119-1E280-B0 note Cover, Front Bumper
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥53,900
52119-1E280-B1 note Cover, Front Bumper
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥53,900
52119-1E280-D0 note Cover, Front Bumper
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥53,900
52119-1E280-G0 note Cover, Front Bumper
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥53,900
52119-1E280-G1 note Cover, Front Bumper
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥53,900
52119-1E280-J0 note Cover, Front Bumper
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 ¥53,900
52131A — Reinforcement, Front Bumper
52131-13020 note Reinforcement, Front Bumper
2000-08 → —
AE109,CE10#,EE10# ¥5,200
52132-13010 note Reinforcement, Front Bumper
2000-08 → —
AE109,CE10#,EE10# ¥5,200
52143A — Arm, Front Bumper, Inner RH
52143-12300 Arm, Front Bumper, Inner RH
1991-09 → 1993-04 ended
CE106,108,109,EE106,107,108 ¥520
52143-12330 Arm, Front Bumper, Inner RH
1993-04 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥500
52144A — Arm, Front Bumper, Inner LH
52143-12300 Arm, Front Bumper, Inner LH
1991-09 → 1993-04 ended
CE106,108,109,EE106,107,108 ¥520
52143-12330 Arm, Front Bumper, Inner LH
1993-04 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥500
52147A — Bracket, Front Bumper Stay, RH
52147-12170 Bracket, Front Bumper Stay, RH
1991-06 → 1998-12 ended
AE10#,CE10#,EE10# ¥380
52147-16080 Bracket, Front Bumper Stay, RH
1998-12 → —
AE109,CE10#,EE10# ¥380
52147E — Bracket, Front Bumper Mounting, RH
52148-12130 Bracket, Front Bumper Mounting, RH
1994-09 → —
AE10#,CE10#,EE10# ¥120
52148A — Bracket, Front Bumper Stay, LH
52147-12170 Bracket, Front Bumper Stay, LH
1991-06 → 1998-12 ended
AE10#,CE10#,EE10# ¥380
52147-16080 Bracket, Front Bumper Stay, LH
1998-12 → —
AE109,CE10#,EE10# ¥380
52148E — Bracket, Front Bumper Mounting, LH
52148-12130 Bracket, Front Bumper Mounting, LH
1994-09 → —
AE10#,CE10#,EE10# ¥120
52187D — Guide, Front Bumper Location, RH
52187-12140 Guide, Front Bumper Location, RH
1991-06 → 1994-09 ended
AE10#,CE10#,EE10# ¥460
52188C — Guide, Front Bumper Location, LH
52187-12140 Guide, Front Bumper Location, LH
1991-06 → 1994-09 ended
AE10#,CE10#,EE10# ¥460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
