Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

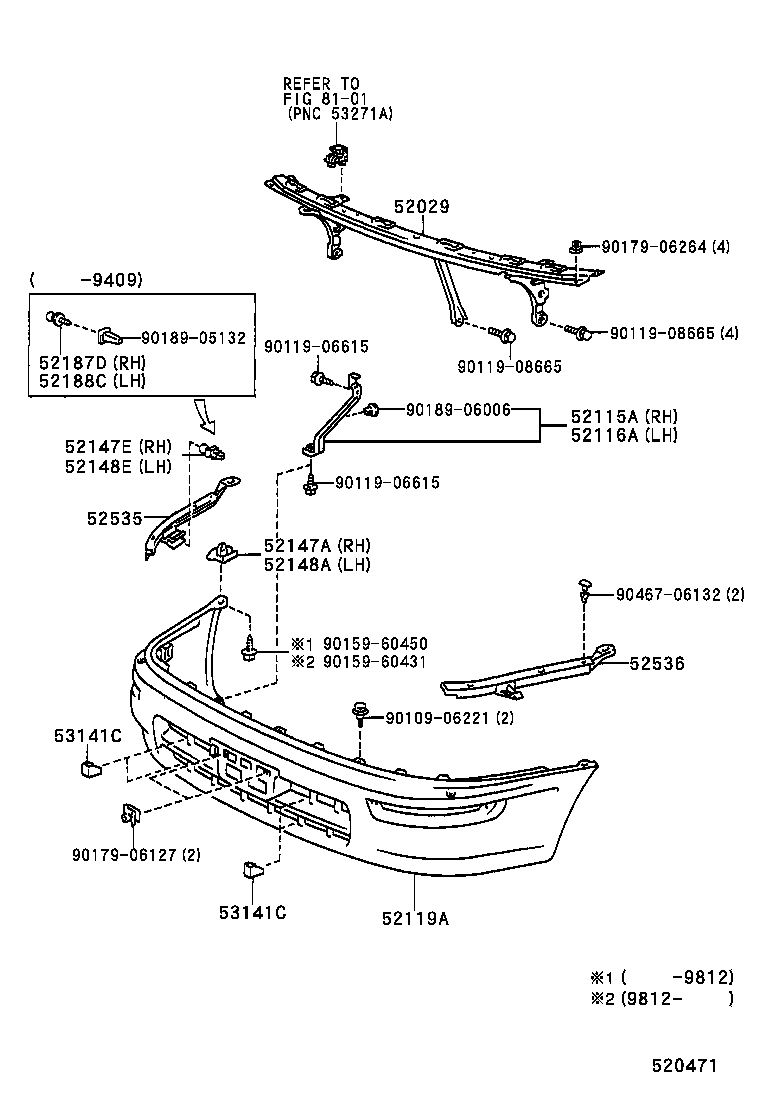

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52029 — Reinforcement Sub-assy, Front Bumper, Upper | ||||
| 52029-12010 |
Reinforcement Sub-assy, Front Bumper, Upper
1991-09 → 1997-02
ended
|
AE109,CE106,108,109,EE102,103,104,106,107,108 | ¥7,900 | |
| 52029-12020 |
Reinforcement Sub-assy, Front Bumper, Upper
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥7,900 | |
| 52029-13010 |
Reinforcement Sub-assy, Front Bumper, Upper
1997-02 → —
|
AE109,CE10#,EE10# | ¥6,500 | |
| 52115A — Support, Front Bumper Side, RH | ||||
| 52115-12340 |
Support, Front Bumper Side, RH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥870 | |
| 52115-12350 |
Support, Front Bumper Side, RH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥870 | |
| 52116A — Support, Front Bumper Side, LH | ||||
| 52116-12270 |
Support, Front Bumper Side, LH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥870 | |
| 52116-12280 |
Support, Front Bumper Side, LH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥870 | |
| 52119A — Cover, Front Bumper | ||||
| 52119-1E010 |
Cover, Front Bumper
1991-09 → 1994-01
ended
|
CE106,108,109,EE106,107,108 | ¥34,100 | |
| 52119-1E030-02 note |
Cover, Front Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥56,200 | |
| 52119-1E030-03 note |
Cover, Front Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥56,200 | |
| 52119-1E030-04 note |
Cover, Front Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥56,200 | |
| 52119-1E030-05 note |
Cover, Front Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥56,200 | |
| 52119-1E030-07 note |
Cover, Front Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥56,200 | |
| 52119-1E030-08 note |
Cover, Front Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 | ¥56,200 | |
| 52119-1E030-12 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥56,200 | |
| 52119-1E030-B0 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
EE101;AE100 5F DX;AE10#,CE100,104 GT,LX,SEG,SEL,XE | ¥56,200 | |
| 52119-1E040-02 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥57,500 | |
| 52119-1E040-02 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥57,500 | |
| 52119-1E040-03 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥57,500 | |
| 52119-1E040-03 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥57,500 | |
| 52119-1E040-04 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥57,500 | |
| 52119-1E040-04 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥57,500 | |
| 52119-1E040-05 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥57,500 | |
| 52119-1E040-05 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥57,500 | |
| 52119-1E040-07 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥57,500 | |
| 52119-1E040-07 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥57,500 | |
| 52119-1E040-08 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥57,500 | |
| 52119-1E040-08 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥57,500 | |
| 52119-1E040-12 note |
Cover, Front Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥57,500 | |
| 52119-1E040-B0 note |
Cover, Front Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥57,500 | |
| 52119-1E260 |
Cover, Front Bumper
1994-01 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104 | ¥32,600 | |
| 52119-1E260 note |
Cover, Front Bumper
1997-04 → 2000-08
ended
|
CE102,108,EE104 | ¥32,600 | |
| 52119-1E270-A0 note |
Cover, Front Bumper
1998-04 → —
|
CE102 | ¥54,000 | |
| 52119-1E270-A0 note |
Cover, Front Bumper
1994-01 → —
|
CE108,EE104 | ¥54,000 | |
| 52119-1E270-B0 note |
Cover, Front Bumper
1994-01 → 1995-08
ended
|
CE108,EE104 | ¥54,000 | |
| 52119-1E270-B2 note |
Cover, Front Bumper
1998-04 → —
|
CE102 | ¥53,100 | |
| 52119-1E270-B2 note |
Cover, Front Bumper
1995-08 → —
|
CE108,EE104 | ¥53,100 | |
| 52119-1E270-B3 note |
Cover, Front Bumper
1995-08 → 1996-05
ended
|
CE108,EE104 | ¥53,400 | |
| 52119-1E270-B3 note |
Cover, Front Bumper
1997-04 → 1998-04
ended
|
CE108,EE104 | ¥53,400 | |
| 52119-1E270-B4 note |
Cover, Front Bumper
1998-04 → —
|
EE104 | ¥54,000 | |
| 52119-1E270-B4 note |
Cover, Front Bumper
1998-04 → —
|
CE102 | ¥54,000 | |
| 52119-1E270-B4 note |
Cover, Front Bumper
1996-05 → 1997-04
ended
|
CE108,EE104 | ¥54,000 | |
| 52119-1E270-B4 note |
Cover, Front Bumper
1997-04 → 1998-04
ended
|
CE108,EE104 | ¥54,000 | |
| 52119-1E270-C0 note |
Cover, Front Bumper
1994-01 → 1995-08
ended
|
CE108,EE104 | ¥54,000 | |
| 52119-1E270-G1 note |
Cover, Front Bumper
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥54,000 | |
| 52119-1E270-G4 note |
Cover, Front Bumper
1998-04 → —
|
CE102 | ¥54,000 | |
| 52119-1E270-G4 note |
Cover, Front Bumper
1997-04 → —
|
CE108,EE104 | ¥54,000 | |
| 52119-1E280-A0 note |
Cover, Front Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥53,900 | |
| 52119-1E280-B0 note |
Cover, Front Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥53,900 | |
| 52119-1E280-B1 note |
Cover, Front Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥53,900 | |
| 52119-1E280-D0 note |
Cover, Front Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥53,900 | |
| 52119-1E280-G0 note |
Cover, Front Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥53,900 | |
| 52119-1E280-G1 note |
Cover, Front Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE | ¥53,900 | |
| 52119-1E280-J0 note |
Cover, Front Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥53,900 | |
| 52147A — Bracket, Front Bumper Stay, RH | ||||
| 52147-12170 |
Bracket, Front Bumper Stay, RH
1991-06 → 1998-12
ended
|
AE10#,CE10#,EE10# | ¥380 | |
| 52147-16080 |
Bracket, Front Bumper Stay, RH
1998-12 → —
|
AE109,CE10#,EE10# | ¥380 | |
| 52147E — Bracket, Front Bumper Mounting, RH | ||||
| 52148-12130 |
Bracket, Front Bumper Mounting, RH
1994-09 → —
|
AE10#,CE10#,EE10# | ¥120 | |
| 52148A — Bracket, Front Bumper Stay, LH | ||||
| 52147-12170 |
Bracket, Front Bumper Stay, LH
1991-06 → 1998-12
ended
|
AE10#,CE10#,EE10# | ¥380 | |
| 52147-16080 |
Bracket, Front Bumper Stay, LH
1998-12 → —
|
AE109,CE10#,EE10# | ¥380 | |
| 52148E — Bracket, Front Bumper Mounting, LH | ||||
| 52148-12130 |
Bracket, Front Bumper Mounting, LH
1994-09 → —
|
AE10#,CE10#,EE10# | ¥120 | |
| 52187D — Guide, Front Bumper Location, RH | ||||
| 52187-12140 |
Guide, Front Bumper Location, RH
1991-06 → 1994-09
ended
|
AE10#,CE10#,EE10# | ¥460 | |
| 52188C — Guide, Front Bumper Location, LH | ||||
| 52187-12140 |
Guide, Front Bumper Location, LH
1991-06 → 1994-09
ended
|
AE10#,CE10#,EE10# | ¥460 | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52503-12010 |
Retainer, Front Bumper Side, RH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥2,080 | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52504-12010 |
Retainer, Front Bumper Side, LH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥2,080 | |
| 53141C — Garnish, Radiator Grille | ||||
| 53141-12090 |
Garnish, Radiator Grille
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥190 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
