Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

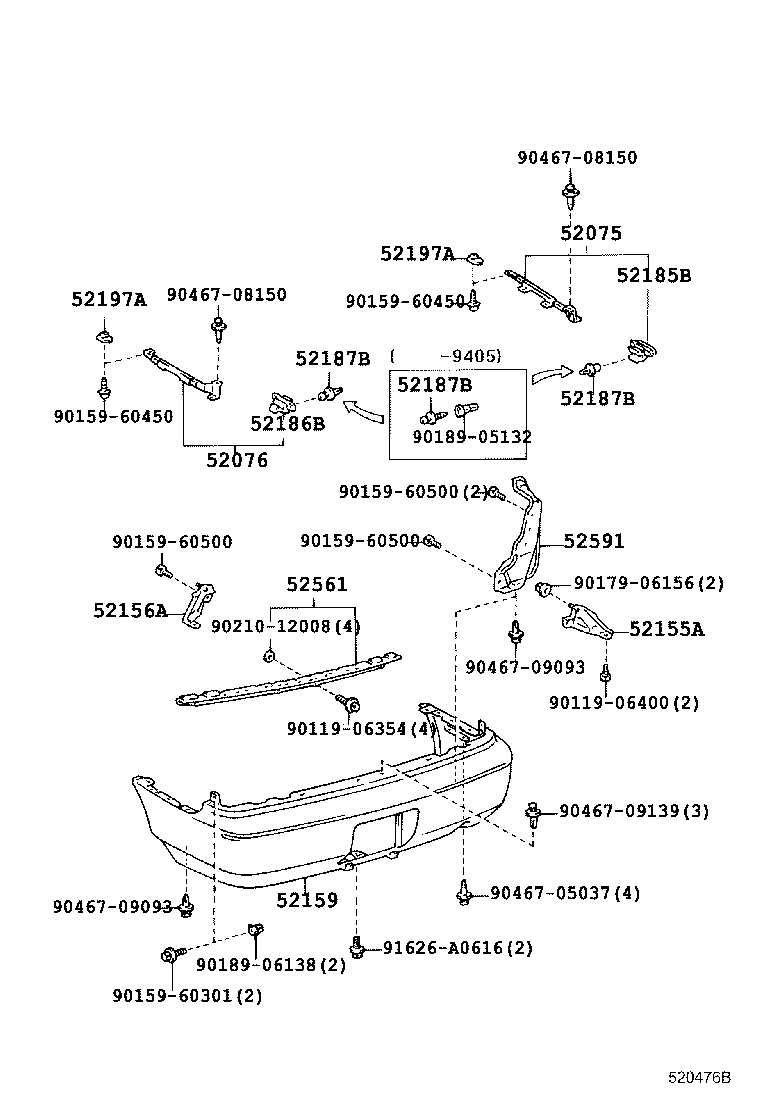

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52075 — Retainer Sub-assy, Rear Bumper Side, RH | ||||
| 52075-12040 |
Retainer Sub-assy, Rear Bumper Side, RH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥2,370 | |
| 52076 — Retainer Sub-assy, Rear Bumper Side, LH | ||||
| 52076-12040 |
Retainer Sub-assy, Rear Bumper Side, LH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥2,370 | |
| 52155A — Support, Rear Bumper Side, RH | ||||
| 52155-12220 |
Support, Rear Bumper Side, RH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥600 | |
| 52155-13050 |
Support, Rear Bumper Side, RH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥1,460 | |
| 52156A — Support, Rear Bumper Side, LH | ||||
| 52156-12210 |
Support, Rear Bumper Side, LH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥600 | |
| 52156-13050 |
Support, Rear Bumper Side, LH
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥1,460 | |
| 52159 — Cover, Rear Bumper | ||||
| 52159-13080 |
Cover, Rear Bumper
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥24,100 | |
| 52159-13090-04 note |
Cover, Rear Bumper
1998-04 → —
|
CE102 | ¥40,000 | |
| 52159-13090-04 note |
Cover, Rear Bumper
1994-01 → —
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-12 note |
Cover, Rear Bumper
1994-01 → 1995-08
ended
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-B0 note |
Cover, Rear Bumper
1994-01 → 1995-08
ended
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-B1 note |
Cover, Rear Bumper
1995-08 → —
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-B1 note |
Cover, Rear Bumper
1998-04 → —
|
CE102 | ¥40,000 | |
| 52159-13090-B2 note |
Cover, Rear Bumper
1995-08 → 1996-05
ended
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-B2 note |
Cover, Rear Bumper
1997-04 → 1998-04
ended
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-B3 note |
Cover, Rear Bumper
1996-05 → 1997-04
ended
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-B3 note |
Cover, Rear Bumper
1997-04 → 1998-04
ended
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-B3 note |
Cover, Rear Bumper
1998-04 → —
|
CE102 | ¥40,000 | |
| 52159-13090-B3 note |
Cover, Rear Bumper
1998-04 → —
|
EE104 | ¥40,000 | |
| 52159-13090-G1 note |
Cover, Rear Bumper
1994-01 → 1997-04
ended
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-G5 note |
Cover, Rear Bumper
1997-04 → —
|
CE108,EE104 | ¥40,000 | |
| 52159-13090-G5 note |
Cover, Rear Bumper
1998-04 → —
|
CE102 | ¥40,000 | |
| 52159-1A470-02 note |
Cover, Rear Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-03 note |
Cover, Rear Bumper
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-04 note |
Cover, Rear Bumper
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-05 note |
Cover, Rear Bumper
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-07 note |
Cover, Rear Bumper
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-08 note |
Cover, Rear Bumper
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-12 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-B0 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
EE101;AE100 5F DX;AE10#,CE100,104 LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-B0 note |
Cover, Rear Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-G0 note |
Cover, Rear Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A470-J0 note |
Cover, Rear Bumper
1993-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE | ¥55,700 | |
| 52159-1A480-02 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥58,800 | |
| 52159-1A480-02 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥58,800 | |
| 52159-1A480-03 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥58,800 | |
| 52159-1A480-03 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥58,800 | |
| 52159-1A480-04 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥58,800 | |
| 52159-1A480-04 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥58,800 | |
| 52159-1A480-05 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥58,800 | |
| 52159-1A480-05 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥58,800 | |
| 52159-1A480-07 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥58,800 | |
| 52159-1A480-07 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥58,800 | |
| 52159-1A480-08 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥58,800 | |
| 52159-1A480-08 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥58,800 | |
| 52159-1A480-12 note |
Cover, Rear Bumper
1991-06 → 1992-05
ended
|
AE10#,CE100,104 SEG,SEL | ¥58,800 | |
| 52159-1A480-B0 note |
Cover, Rear Bumper
1992-05 → 1993-05
ended
|
AE101 SEG | ¥58,800 | |
| 52159-1A490-02 note |
Cover, Rear Bumper
1991-06 → 1993-05
ended
|
AE101 GT | ¥55,700 | |
| 52159-1A490-03 note |
Cover, Rear Bumper
1991-06 → 1995-05
ended
|
AE101 GT | ¥55,700 | |
| 52159-1A490-04 note |
Cover, Rear Bumper
1991-06 → 1993-05
ended
|
AE101 GT | ¥55,700 | |
| 52159-1A490-07 note |
Cover, Rear Bumper
1991-06 → 1995-05
ended
|
AE101 GT | ¥55,700 | |
| 52159-1A490-08 note |
Cover, Rear Bumper
1991-06 → 1995-05
ended
|
AE101 GT | ¥55,700 | |
| 52159-1A490-B0 note |
Cover, Rear Bumper
1992-05 → 1995-05
ended
|
AE101 GT | ¥55,700 | |
| 52159-1A490-G0 note |
Cover, Rear Bumper
1993-05 → 1995-05
ended
|
AE101 GT | ¥55,700 | |
| 52159-1A490-J0 note |
Cover, Rear Bumper
1993-05 → 1995-05
ended
|
AE101 GT | ¥55,700 | |
| 52185B — Bracket, Rear Bumper Side Mounting, RH | ||||
| 52185-12140 |
Bracket, Rear Bumper Side Mounting, RH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥390 | |
| 52186B — Bracket, Rear Bumper Side Mounting, LH | ||||
| 52185-12140 |
Bracket, Rear Bumper Side Mounting, LH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥390 | |
| 52187B — Guide, Rear Bumper Location | ||||
| 52187-12140 |
Guide, Rear Bumper Location
1991-06 → 1994-05
ended
|
AE10#,CE100,104,EE101 | ¥460 | |
| 52187-12160 |
Guide, Rear Bumper Location
1994-05 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥200 | |
| 52197A — Bracket, Rear Bumper Seal, RH | ||||
| 52197-12070 |
Bracket, Rear Bumper Seal, RH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥300 | |
| 52561 — Retainer, Rear Bumper, Upper Center | ||||
| 52561-12150 |
Retainer, Rear Bumper, Upper Center
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥4,110 | |
| 52561-13030 |
Retainer, Rear Bumper, Upper Center
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥4,290 | |
| 52591 — Seal, Rear Bumper Side, RH | ||||
| 52591-12080 |
Seal, Rear Bumper Side, RH
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥1,410 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
