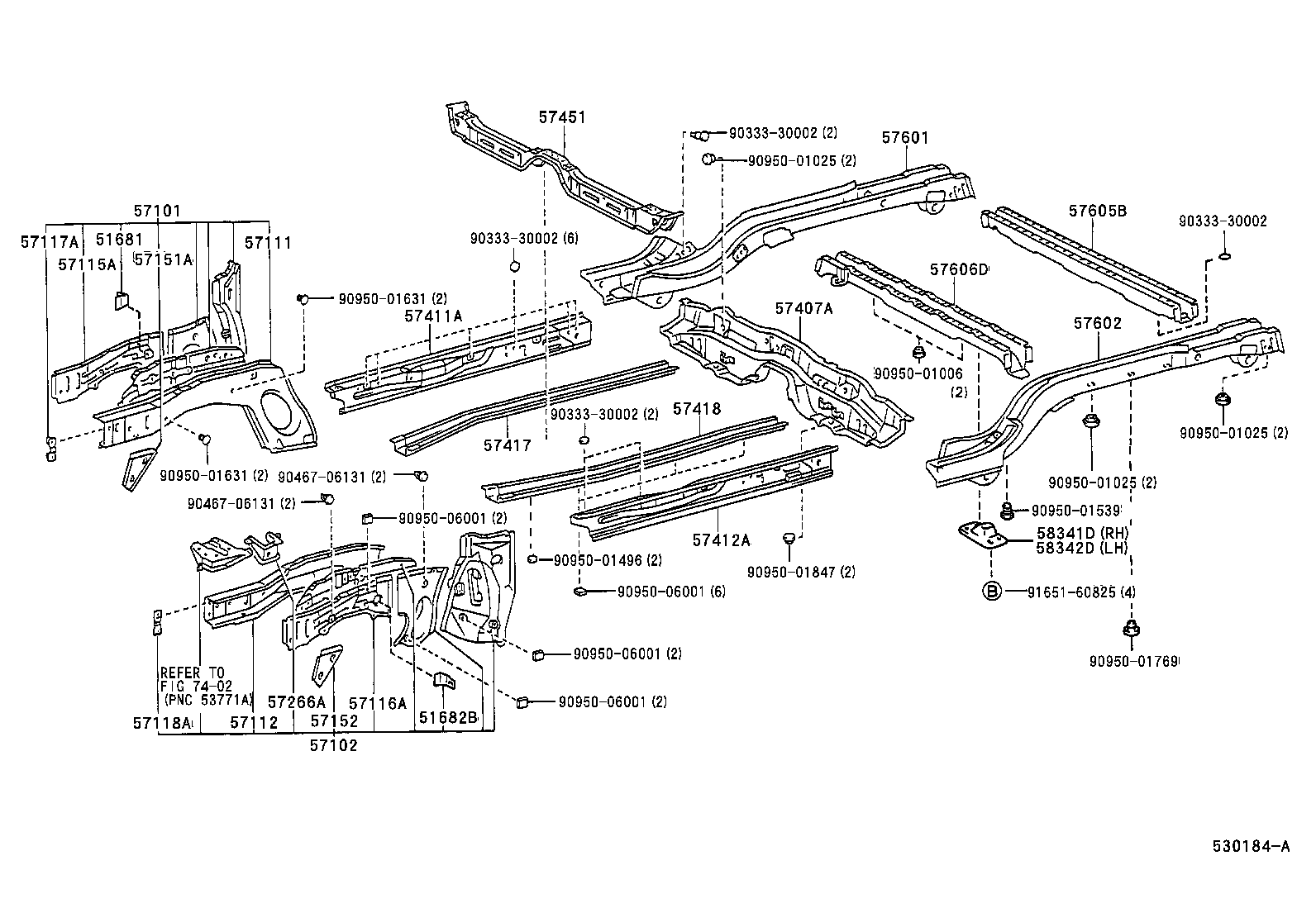

Exploded illustration 530184A 57451 — MEMBER, FRONT FLOOR CROSS (6 parts) 9033330002 — not listed in this catalogue 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (8 parts) 9095001025 — not listed in this catalogue 57101 — MEMBER SUB-ASSY, FRONT SIDE, RH (11 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (5 parts) 9033330002 — not listed in this catalogue 51681 — BRACKET, FLEXIBLE HOSE (1 parts) 9033330002 — not listed in this catalogue 57117A — REINFORCEMENT, FRONT BUMPER MOUNTING (1 parts) 57111 — MEMBER, FRONT SIDE, RH (2 parts) 57151A — REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH (1 parts) 57115A — PLATE, FRONT SIDE MEMBER, OUTER RH (1 parts) 57606D — MEMBER SUB-ASSY, REAR ABSORBER MOUNTING (3 parts) 9095001631 — not listed in this catalogue 57407A — MEMBER SUB-ASSY, CENTER FLOOR CROSS (6 parts) 57411A — MEMBER, FLOOR SIDE, INNER RH (2 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (10 parts) 9095001006 — not listed in this catalogue 57418 — REINFORCEMENT, FRONT FLOOR UNDER, LH (2 parts) 9033330002 — not listed in this catalogue 9095001025 — not listed in this catalogue 57417 — REINFORCEMENT, FRONT FLOOR UNDER, RH (2 parts) 9095001631 — not listed in this catalogue 9046706131 — not listed in this catalogue 9095001025 — not listed in this catalogue 9046706131 — not listed in this catalogue 9095001539 — not listed in this catalogue 9095006001 — not listed in this catalogue 58341D — BRACKET, REAR ABSORBER MOUNTING, NO.1 RH (1 parts) 57412A — MEMBER, FLOOR SIDE, INNER LH (2 parts) 58342D — BRACKET, REAR ABSORBER MOUNTING, NO.1 LH (1 parts) 9095001496 — not listed in this catalogue 9095001847 — not listed in this catalogue 9095006001 — not listed in this catalogue 9165160825 — not listed in this catalogue 9095006001 — not listed in this catalogue 9095001769 — not listed in this catalogue 7402 — not listed in this catalogue 57266A — BRACKET, ENGINE MOUNTING, LH (5 parts) 9095006001 — not listed in this catalogue 57116A — PLATE, FRONT SIDE MEMBER, OUTER LH (1 parts) 51682B — BRACKET, FLEXIBLE HOSE, LH (1 parts) 57152 — REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH (1 parts) 57112 — MEMBER, FRONT SIDE, LH (3 parts) 57118A — REINFORCEMENT, FRONT BUMPER MOUNTING, LH (1 parts) 57102 — MEMBER SUB-ASSY, FRONT SIDE, LH (10 parts)
530184A · 25 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
51681 — Bracket, Flexible Hose
51681-12050 Bracket, Flexible Hose
1991-06 → —
AE10#,CE10#,EE10# ¥740
51682B — Bracket, Flexible Hose, LH
51682-12060 Bracket, Flexible Hose, LH
1991-06 → —
AE10#,CE10#,EE10# ¥740
57101 — Member Sub-assy, Front Side, RH
57101-12440 Member Sub-assy, Front Side, RH
1991-06 → 1995-05 ended
CE10#,EE10# ¥37,900
57101-12441 Member Sub-assy, Front Side, RH
1995-05 → 1997-04 ended
CE10#,EE10# ¥37,900
57101-12450 Member Sub-assy, Front Side, RH
1991-06 → 1995-05 ended
AE10# ¥37,900
57101-12451 Member Sub-assy, Front Side, RH
1996-05 → 1997-04 ended
AE109 ¥37,900
57101-12780 Member Sub-assy, Front Side, RH
1997-04 → 1997-09 ended
AE109 ¥42,200
57101-12941 Member Sub-assy, Front Side, RH
1997-04 → 2000-08 ended
CE10#,EE10# ¥42,200
57101-12948 Member Sub-assy, Front Side, RH
1997-09 → 2000-08 ended
AE109 ¥42,200
57101-1A914 Member Sub-assy, Front Side, RH
2000-08 → —
AE109 ¥37,900
57101-1A915 Member Sub-assy, Front Side, RH
2000-08 → —
CE10#,EE10# ¥37,900
57101-1A916 note Member Sub-assy, Front Side, RH
2000-08 → —
AE109 ¥37,900
57101-1A917 note Member Sub-assy, Front Side, RH
2000-08 → —
CE10#,EE10# ¥37,900
57102 — Member Sub-assy, Front Side, LH
57102-12400 Member Sub-assy, Front Side, LH
1991-06 → 1995-05 ended
CE10# ¥42,700
57102-12401 Member Sub-assy, Front Side, LH
1995-05 → 1997-04 ended
CE10# ¥42,200
57102-12410 Member Sub-assy, Front Side, LH
1991-06 → 1995-05 ended
AE10#,EE10# ¥42,700
57102-12411 Member Sub-assy, Front Side, LH
1995-05 → 1997-04 ended
AE109,EE10# ¥42,200
57102-12954 Member Sub-assy, Front Side, LH
1997-04 → 2000-08 ended
AE109,EE10# ¥44,200
57102-12955 Member Sub-assy, Front Side, LH
1997-04 → 2000-08 ended
CE10# ¥44,200
57102-12963 note Member Sub-assy, Front Side, LH
2000-08 → —
CE10# ¥44,200
57102-1A914 Member Sub-assy, Front Side, LH
2000-08 → —
AE109,EE10# ¥40,100
57102-1A915 Member Sub-assy, Front Side, LH
2000-08 → —
CE10# ¥40,100
57102-1A916 note Member Sub-assy, Front Side, LH
2000-08 → —
AE109,EE10# ¥40,100
57111 — Member, Front Side, RH
57111-12200 Member, Front Side, RH
1991-06 → 1995-05 ended
AE10#,CE10#,EE10# ¥15,300
57111-12201 Member, Front Side, RH
1995-05 → —
AE109,CE10#,EE10# ¥14,900
57112 — Member, Front Side, LH
57112-12140 Member, Front Side, LH
1991-06 → 1995-05 ended
AE10#,CE10#,EE10# ¥15,300
57112-12141 Member, Front Side, LH
1995-05 → 1997-01 ended
AE109,CE10#,EE10# ¥14,700
57112-12142 Member, Front Side, LH
1997-01 → —
AE109,CE10#,EE10# ¥14,900
57115A — Plate, Front Side Member, Outer RH
57115-12060 Plate, Front Side Member, Outer RH
1991-06 → —
AE10#,CE10#,EE10# ¥4,670
57116A — Plate, Front Side Member, Outer LH
57116-12060 Plate, Front Side Member, Outer LH
1991-06 → —
AE10#,CE10#,EE10# ¥4,670
57117A — Reinforcement, Front Bumper Mounting
57117-12110 Reinforcement, Front Bumper Mounting
1991-06 → —
AE10#,CE10#,EE10# ¥480
57118A — Reinforcement, Front Bumper Mounting, LH
57117-12110 Reinforcement, Front Bumper Mounting, LH
1991-06 → —
AE10#,CE10#,EE10# ¥480
57151A — Reinforcement, Front Side Member, NO.1 RH
57151-12100 Reinforcement, Front Side Member, NO.1 RH
1991-06 → 1995-05 ended
AE10#,CE10#,EE10# ¥1,740
57152 — Reinforcement, Front Side Member, NO.1 LH
57152-12070 Reinforcement, Front Side Member, NO.1 LH
1991-06 → 1995-05 ended
AE10#,CE10#,EE10# ¥1,740
57266A — Bracket, Engine Mounting, LH
57208-12100 Bracket, Engine Mounting, LH
1991-06 → 1995-05 ended
AE10#,EE10# ¥2,410
57208-12110 Bracket, Engine Mounting, LH
1991-06 → 1997-01 ended
CE10# ¥2,410
57208-12111 Bracket, Engine Mounting, LH
1997-01 → 1997-05 ended
CE10# ¥2,410
57208-12120 Bracket, Engine Mounting, LH
1995-05 → 1997-01 ended
AE109,EE10# ¥2,550
57208-12121 Bracket, Engine Mounting, LH
1997-01 → 1997-05 ended
AE109,EE10# ¥2,570
57407A — Member Sub-assy, Center Floor Cross
57407-12040 Member Sub-assy, Center Floor Cross
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 ¥13,100
57407-12050 Member Sub-assy, Center Floor Cross
1991-09 → 1995-05 ended
AE104,CE104 ¥11,900
57407-13060 Member Sub-assy, Center Floor Cross
1991-09 → 2000-08 ended
CE102,106,107,108,EE102,103,104,106,107,108 ¥11,900
57407-13061 note Member Sub-assy, Center Floor Cross
1992-01 → 1994-01 ended
EE106 4F ¥12,000
57407-13062 Member Sub-assy, Center Floor Cross
2000-08 → —
CE102,107,EE10# ¥11,900
57407-13070 Member Sub-assy, Center Floor Cross
1991-09 → —
AE109,CE105,109 ¥10,600
57411A — Member, Floor Side, Inner RH
57401-12460 Member, Floor Side, Inner RH
1991-06 → 2000-08 ended
AE10#,CE10#,EE10# ¥13,400
57401-12461 Member, Floor Side, Inner RH
2000-08 → —
AE109,CE10#,EE10# ¥17,800
57412A — Member, Floor Side, Inner LH
57402-12460 Member, Floor Side, Inner LH
1991-06 → 2000-08 ended
AE10#,CE10#,EE10# ¥13,400
57402-12461 Member, Floor Side, Inner LH
2000-08 → —
AE109,CE10#,EE10# ¥17,800
57417 — Reinforcement, Front Floor Under, RH
57417-12100 Reinforcement, Front Floor Under, RH
1991-06 → 1997-04 ended
AE10#,CE10#,EE10# ¥8,000
57417-13010 Reinforcement, Front Floor Under, RH
1997-04 → —
AE109,CE10#,EE10# ¥7,800
57418 — Reinforcement, Front Floor Under, LH
57418-12060 Reinforcement, Front Floor Under, LH
1991-06 → 1997-04 ended
AE10#,CE10#,EE10# ¥7,900
57418-13010 Reinforcement, Front Floor Under, LH
1997-04 → —
AE109,CE10#,EE10# ¥7,800
57451 — Member, Front Floor Cross
57451-12130 Member, Front Floor Cross
1991-06 → 1995-05 ended
AE100,101,CE100,106,108,EE10# ¥7,900
57451-12131 Member, Front Floor Cross
1995-05 → 2000-08 ended
CE102,106,107,108,EE10# ¥8,900
57451-12140 Member, Front Floor Cross
1991-09 → 1995-05 ended
AE104,CE104,109 ¥8,800
57451-12141 Member, Front Floor Cross
1995-05 → 2000-08 ended
AE109,CE105,109 ¥9,100
57451-12153 Member, Front Floor Cross
2000-08 → —
CE102,107,EE10# ¥9,400
57451-12170 Member, Front Floor Cross
2000-08 → —
AE109,CE105 ¥7,900
57601 — Member Sub-assy, Rear Floor Side, RH
57601-12860 Member Sub-assy, Rear Floor Side, RH
1991-09 → 1995-05 ended
AE104,CE104 ¥35,400
57601-12926 Member Sub-assy, Rear Floor Side, RH
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 ¥39,800
57601-12931 Member Sub-assy, Rear Floor Side, RH
1993-05 → 1995-05 ended
AE100,101,CE100,EE101 ¥39,600
57601-13140 Member Sub-assy, Rear Floor Side, RH
1991-09 → 2000-08 ended
CE102,106,107,108,EE102,103,104,106,107,108 ¥37,500
57601-13141 Member Sub-assy, Rear Floor Side, RH
2000-08 → —
CE102,107,EE10# ¥37,500
57601-13160 Member Sub-assy, Rear Floor Side, RH
1991-09 → 2000-08 ended
AE109,CE105,109 ¥37,500
57601-13161 Member Sub-assy, Rear Floor Side, RH
2000-08 → —
AE109,CE105 ¥37,500
57601-13180 note Member Sub-assy, Rear Floor Side, RH
1991-09 → 1994-01 ended
EE106 4F ¥47,200
57602 — Member Sub-assy, Rear Floor Side, LH
57602-12740 Member Sub-assy, Rear Floor Side, LH
1991-09 → 1995-05 ended
AE104,CE104 ¥35,400
57602-12929 Member Sub-assy, Rear Floor Side, LH
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 ¥39,800
57602-12934 Member Sub-assy, Rear Floor Side, LH
1993-05 → 1995-05 ended
AE100,101,CE100,EE101 ¥39,600
57602-13120 Member Sub-assy, Rear Floor Side, LH
1991-09 → 2000-08 ended
CE102,106,107,108,EE102,103,104,106,107,108 ¥37,500
57602-13121 Member Sub-assy, Rear Floor Side, LH
2000-08 → —
CE102,107,EE10# ¥37,500
57602-13150 Member Sub-assy, Rear Floor Side, LH
1991-09 → 2000-08 ended
AE109,CE105,109 ¥39,800
57602-13151 Member Sub-assy, Rear Floor Side, LH
2000-08 → —
AE109,CE105 ¥39,800
57602-13170 note Member Sub-assy, Rear Floor Side, LH
1991-09 → 1994-01 ended
EE106 4F ¥47,200
57602-13360 note Member Sub-assy, Rear Floor Side, LH
1998-04 → 2000-08 ended
CE102,107,EE10# ¥37,400
57602-13361 note Member Sub-assy, Rear Floor Side, LH
2000-08 → —
CE102,107,EE10# ¥37,400
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-12130 Member Sub-assy, Rear Floor Cross, NO.1
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 DX,LX,SEG,SEL,XE ¥3,510
57605-12140 Member Sub-assy, Rear Floor Cross, NO.1
1991-09 → 1995-05 ended
AE104,CE104 ¥7,800
57605-12150 Member Sub-assy, Rear Floor Cross, NO.1
1991-06 → 1993-05 ended
AE101 GT ¥3,490
57605-12150 Member Sub-assy, Rear Floor Cross, NO.1
1993-05 → 1995-05 ended
AE100,101,CE100,EE101 ¥3,490
57605-13040 Member Sub-assy, Rear Floor Cross, NO.1
1991-09 → —
AE109,CE105,109 ¥13,300
57606D — Member Sub-assy, Rear Absorber Mounting
57606-13070 Member Sub-assy, Rear Absorber Mounting
1991-09 → —
CE102,106,107,108,EE102,103,104,106,107,108 ¥15,800
57606-13080 Member Sub-assy, Rear Absorber Mounting
1991-09 → —
AE109,CE105,109 ¥15,800
57606-13100 note Member Sub-assy, Rear Absorber Mounting
1998-04 → —
CE102,107,EE10# ¥15,800
58341D — Bracket, Rear Absorber Mounting, NO.1 RH
58341-13030 Bracket, Rear Absorber Mounting, NO.1 RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,470
58342D — Bracket, Rear Absorber Mounting, NO.1 LH
58342-13030 Bracket, Rear Absorber Mounting, NO.1 LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
