Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

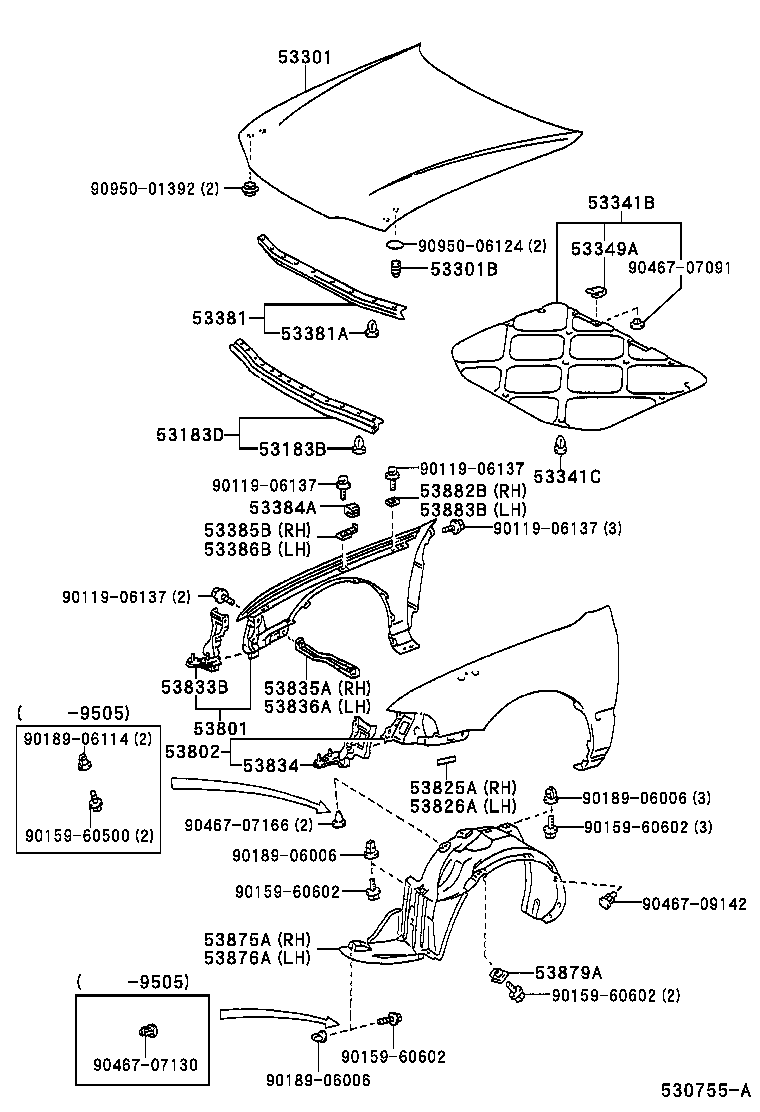

44 parts on this figure

Part number	Description	Fitment	Price
53183B — Clip(FOR HEADLAMP COVER SEAL)
90467-08011	Clip(FOR HEADLAMP COVER SEAL) 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥100
90467-08011	Clip(FOR HEADLAMP COVER SEAL) 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥100
53183D — Seal, Headlamp Cover TO Hood
53183-12090	Seal, Headlamp Cover TO Hood 1991-09 → 1992-05 ended	CE106,108,109,EE106,107,108	¥2,080
53183-12100	Seal, Headlamp Cover TO Hood 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥2,080
53183-12180	Seal, Headlamp Cover TO Hood 1992-05 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥2,090
53301 — Hood Sub-assy
53301-12700	Hood Sub-assy 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥38,800
53301-12710	Hood Sub-assy 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥38,700
53301B — Cushion, Hood Bumper
90541-15019	Cushion, Hood Bumper 1991-06 → —	AE10#,CE10#,EE10#	¥200
53341B — Insulator, Hood
53341-12050	Insulator, Hood 1991-06 → 1995-05 ended	CE100,104	¥9,100
53341-12060	Insulator, Hood 1991-09 → —	CE102,105,106,107,108,109	¥9,200
53341C — Clip(FOR HOOD INSULATOR)
90467-08124	Clip(FOR HOOD INSULATOR) 1999-08 → —	CE10#	¥260
90467-09050	Clip(FOR HOOD INSULATOR) 1991-06 → 1999-08 ended	CE10#	¥120
53349A — Retainer, Hood Insulator
53349-50010	Retainer, Hood Insulator 1991-06 → 1993-08 ended	CE10#	¥300
53381 — Seal, Hood TO Radiator Support
53381-12160	Seal, Hood TO Radiator Support 1991-06 → —	AE10#,CE10#,EE10#	¥1,470
53381A — Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011	Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) 1991-06 → —	AE10#,CE10#,EE10#	¥100
53384A — Bumper, Fender TO Hood
53384-12080	Bumper, Fender TO Hood 1991-06 → —	AE10#,CE10#,EE10#	¥460
53385B — Bracket, Fender TO Hood Bumper, RH
53385-12020	Bracket, Fender TO Hood Bumper, RH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥380
53386-20020	Bracket, Fender TO Hood Bumper, RH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥370
53386B — Bracket, Fender TO Hood Bumper, LH
53385-20020	Bracket, Fender TO Hood Bumper, LH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥370
53386-12020	Bracket, Fender TO Hood Bumper, LH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥380
53801 — Fender Sub-assy, Front RH
53801-1E700	Fender Sub-assy, Front RH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥32,700
53801-1E710 note	Fender Sub-assy, Front RH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥32,700
53801-1E740	Fender Sub-assy, Front RH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥32,600
53801-1E750 note	Fender Sub-assy, Front RH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥32,600
53802 — Fender Sub-assy, Front LH
53802-1E580	Fender Sub-assy, Front LH 1991-09 → —	EE102 ,DXJ,L,XL DX;EE102 5F +2	¥32,700
53802-1E580 note	Fender Sub-assy, Front LH 1991-09 → —	CE106,EE106 CTD;EE102 (3FC,4F) DXJ	¥32,700
53802-1E590 note	Fender Sub-assy, Front LH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥32,700
53802-1E620	Fender Sub-assy, Front LH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥32,600
53802-1E630 note	Fender Sub-assy, Front LH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥32,600
53825A — Protector, Front Fender, Upper RH
53825-12020	Protector, Front Fender, Upper RH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥100
53826A — Protector, Front Fender, Upper LH
53825-12020	Protector, Front Fender, Upper LH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥100
53833B — Panel, Front Fender Side, RH
53083-12050	Panel, Front Fender Side, RH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥820
53083-12060	Panel, Front Fender Side, RH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥820
53834 — Panel, Front Fender Side, Lower LH
53084-12050	Panel, Front Fender Side, Lower LH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥820
53084-12060	Panel, Front Fender Side, Lower LH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥820
53835A — Brace, Front Fender TO Apron, RH
53803-12020	Brace, Front Fender TO Apron, RH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥820
53803-12030	Brace, Front Fender TO Apron, RH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥810
53836A — Brace, Front Fender TO Apron, LH
53804-12020	Brace, Front Fender TO Apron, LH 1991-09 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥820
53804-12030	Brace, Front Fender TO Apron, LH 1991-06 → 1995-05 ended	AE10#,CE100,104,EE101	¥810
53875A — Liner, Front Fender, RH
53875-12210	Liner, Front Fender, RH 1991-06 → —	AE10#,CE10#,EE10#	¥6,300
53876A — Liner, Front Fender, LH
53876-12200	Liner, Front Fender, LH 1991-06 → —	AE10#,CE10#,EE10#	¥6,300
53879A — Retainer, Front Fender Liner
53879-14010	Retainer, Front Fender Liner 1991-06 → —	AE10#,CE10#,EE10#	¥230
53882B — Seal, Front Fender, RH
53882-16030	Seal, Front Fender, RH 1991-06 → —	AE10#,CE10#,EE10#	¥60
53883B — Seal, Front Fender, LH
53882-16030	Seal, Front Fender, LH 1991-06 → —	AE10#,CE10#,EE10#	¥60

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
