Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

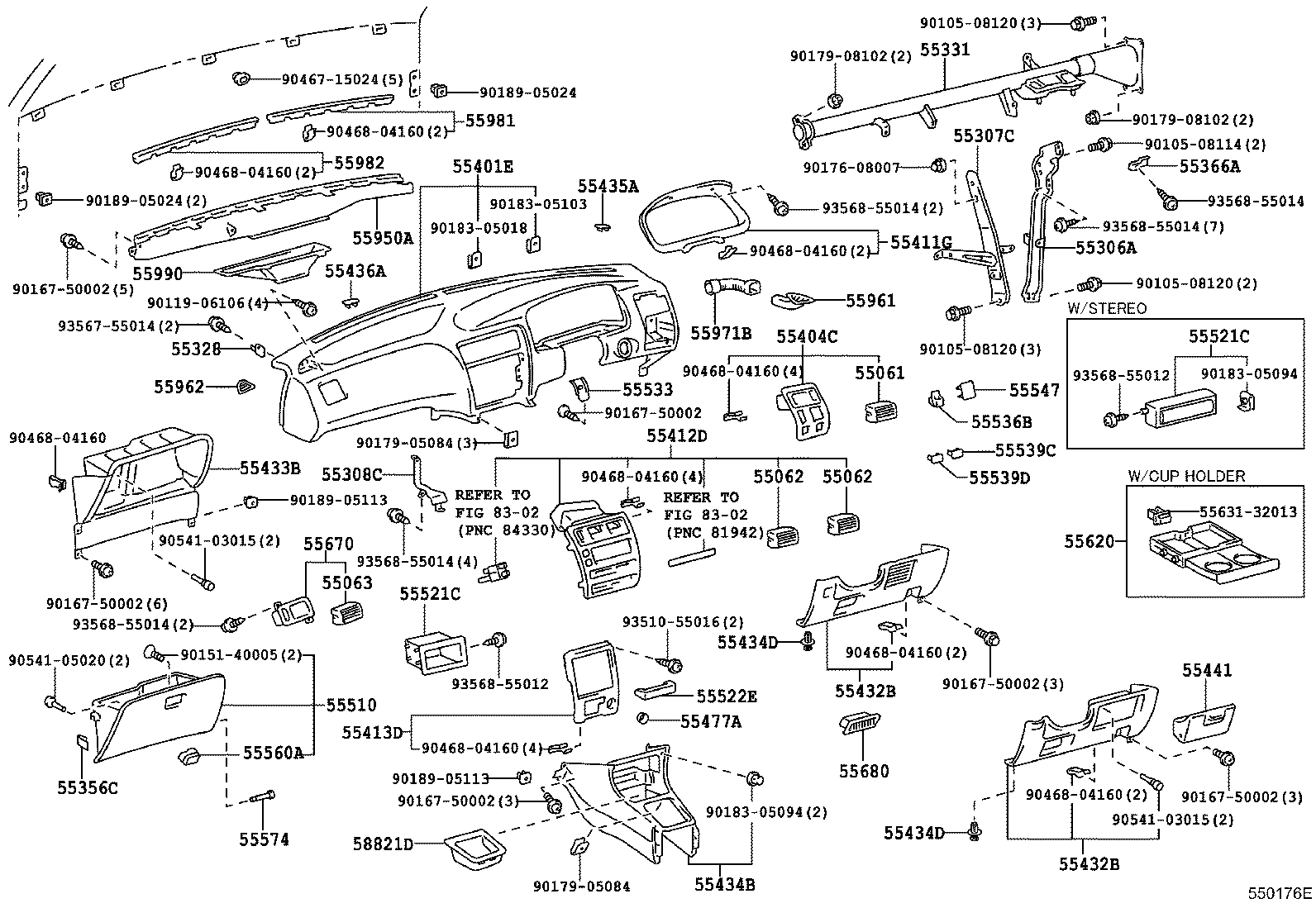

Exploded illustration 550176E 9016750002 — not listed in this catalogue 9011906106 — not listed in this catalogue 9356755014 — not listed in this catalogue 55328 — PIN, INSTRUMENT PANEL, NO.1 (1 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (3 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (3 parts) 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (1 parts) 58821D — PANEL, CONSOLE, UPPER FRONT (6 parts) 9054105020 — not listed in this catalogue 9018305094 — not listed in this catalogue 9015140005 — not listed in this catalogue 9054103015 — not listed in this catalogue 9356855014 — not listed in this catalogue 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (4 parts) 55063 — REGISTER SUB-ASSY, INSTRUMENT, NO.3 (3 parts) 55413D — PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER (1 parts) 55510 — DOOR ASSY, GLOVE COMPARTMENT (5 parts) 55574 — SHAFT, GLOVE COMPARTMENT DOOR HINGE (1 parts) 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (4 parts) 9018905113 — not listed in this catalogue 9018905113 — not listed in this catalogue 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (4 parts) 55521C — COVER, STEREO OPENING (4 parts) 9356855012 — not listed in this catalogue 55522E — COVER, CUP HOLDER OPENING (2 parts) 55477A — BEZEL, CIGARETTE LIGHTER HOLE (1 parts) 55990 — NOZZLE ASSY, CENTER DEFROSTER (1 parts) 55436A — PANEL, INSTRUMENT PANEL FINISH, END LH (8 parts) 55435A — PANEL, INSTRUMENT PANEL FINISH, END RH (7 parts) 55981 — GARNISH, DEFROSTER NOZZLE, NO.1 (1 parts) 55950A — NOZZLE ASSY, DEFROSTER (2 parts) 55533 — COVER, AUTO CLOCK HOLE (1 parts) 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (11 parts) 9016750002 — not listed in this catalogue 9017908102 — not listed in this catalogue 55331 — REINFORCEMENT, INSTRUMENT PANEL (4 parts) 9017608007 — not listed in this catalogue 55411G — PANEL, INSTRUMENT CLUSTER FINISH, NO.1 (1 parts) 55404C — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 (2 parts) 55061 — REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 9046804160 — not listed in this catalogue 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (3 parts) 55971B — DUCT, SIDE DEFROSTER NOZZLE, NO.1 (1 parts) 9356855014 — not listed in this catalogue 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 9010508120 — not listed in this catalogue 55536B — COVER, LIGHT CONTROL SWITCH HOLE (1 parts) 55547 — COVER, REMOTE CONTROL MIRROR HOLE (1 parts) 9046804160 — not listed in this catalogue 9010508114 — not listed in this catalogue 55366A — BRACKET, RADIO MOUNTING, NO.1 (1 parts) 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 9010508120 — not listed in this catalogue 55521C — COVER, STEREO OPENING (4 parts) 9018305094 — not listed in this catalogue 9356855012 — not listed in this catalogue 9010508120 — not listed in this catalogue 55539C — COVER, SPARE SWITCH HOLE (4 parts) 55539D — COVER, SPARE SWITCH HOLE (2 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (18 parts) 5563132013 — not listed in this catalogue 55620 — HOLDER ASSY, INSTRUMENT PANEL CUP (2 parts) 55441 — BOX, INSTRUMENT PANEL (7 parts) 55434D — CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER (4 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (18 parts) 9016750002 — not listed in this catalogue 9016750002 — not listed in this catalogue 9016750002 — not listed in this catalogue 9046804160 — not listed in this catalogue 9046804160 — not listed in this catalogue 9054103015 — not listed in this catalogue 9046804160 — not listed in this catalogue 9017905084 — not listed in this catalogue 55412D — PANEL, INSTRUMENT CLUSTER FINISH, CENTER (26 parts) 55062 — REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 (1 parts) 55062 — REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 (1 parts) 9046804160 — not listed in this catalogue 9018305018 — not listed in this catalogue 9018305103 — not listed in this catalogue 9356855014 — not listed in this catalogue 9351055016 — not listed in this catalogue 9016750002 — not listed in this catalogue 55680 — REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 (7 parts) 9046804160 — not listed in this catalogue 9017905084 — not listed in this catalogue 55434B — PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER (10 parts) 9017908102 — not listed in this catalogue 8302 — not listed in this catalogue 8302 — not listed in this catalogue 55982 — GARNISH, DEFROSTER NOZZLE, NO.2 (1 parts) 9046804160 — not listed in this catalogue 9046804160 — not listed in this catalogue 9046715024 — not listed in this catalogue 9018905024 — not listed in this catalogue 9018905024 — not listed in this catalogue 55434D — CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER (4 parts)
550176E · 48 callouts, 50 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
175 parts on this figure
Part number Description Fitment Price
55061 — Register Sub-assy, Instrument Panel, NO.1
55061-12150 Register Sub-assy, Instrument Panel, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥1,480
55062 — Register Sub-assy, Instrument Panel, N0.2
55062-12060 Register Sub-assy, Instrument Panel, N0.2
1991-06 → —
AE10#,CE10#,EE10# ¥1,440
55063 — Register Sub-assy, Instrument, NO.3
55063-12050-B0 note Register Sub-assy, Instrument, NO.3
1991-06 → —
AE10#,CE10#,EE10# ¥1,480
55063-12050-J0 note Register Sub-assy, Instrument, NO.3
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,480
55063-12050-K0 note Register Sub-assy, Instrument, NO.3
1992-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,480
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-12150 Brace Sub-assy, Instrument Panel, NO.1
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# ¥3,450
55306-12200 Brace Sub-assy, Instrument Panel, NO.1
1993-05 → —
AE10#,CE10#,EE10# ¥3,460
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-12200 Brace Sub-assy, Instrument Panel, NO.2
1991-06 → 1996-10 ended
AE10#,CE10#,EE10# ¥2,870
55307-12201 Brace Sub-assy, Instrument Panel, NO.2
1996-10 → —
AE109,CE10#,EE10# ¥2,870
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-12180 note Bracket Sub-assy, Instrument Panel, Center
1991-06 → —
EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);AE10#,CE10#,EE101,104,106,107,108 ¥980
55308-12180 Bracket Sub-assy, Instrument Panel, Center
2000-08 → —
EE102,103 5F (DX,DXJ) ¥980
55308-12230 note Bracket Sub-assy, Instrument Panel, Center
1997-04 → —
AE109,CE10#,EE10# ¥810
55308-12230 note Bracket Sub-assy, Instrument Panel, Center
1996-10 → 1997-04 ended
CE108,EE104 ¥810
55328 — Pin, Instrument Panel, NO.1
55328-12060 Pin, Instrument Panel, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥330
55331 — Reinforcement, Instrument Panel
55330-12240 Reinforcement, Instrument Panel
1991-06 → 1997-04 ended
AE10#,CE10#,EE10# ¥17,300
55330-12241 Reinforcement, Instrument Panel
1997-04 → —
AE109,CE10#,EE10# ¥17,300
55330-12330 note Reinforcement, Instrument Panel
1996-10 → 1997-04 ended
CE108,EE104 ¥17,300
55330-12331 note Reinforcement, Instrument Panel
1997-04 → —
AE109,CE10#,EE10# ¥17,300
55356C — Cushion, Instrument Panel, NO.2
55356-12060 Cushion, Instrument Panel, NO.2
1991-06 → 1993-01 ended
AE10#,CE10#,EE10# ¥260
55366A — Bracket, Radio Mounting, NO.1
55366-12040 Bracket, Radio Mounting, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥300
55401E — Pad Sub-assy, Instrument Panel Safety
55401-12300-K0 note Pad Sub-assy, Instrument Panel Safety
1991-06 → 1993-11 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥61,300
55401-12300-P0 note Pad Sub-assy, Instrument Panel Safety
1991-06 → 1993-11 ended
AE10#,CE10#,EE10# ¥61,300
55401-12300-W3 note Pad Sub-assy, Instrument Panel Safety
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥61,300
55401-12370-B0 note Pad Sub-assy, Instrument Panel Safety
1993-11 → 1995-03 ended
AE10#,CE10#,EE10# ¥61,300
55401-12370-K0 note Pad Sub-assy, Instrument Panel Safety
1993-11 → 1995-03 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥61,300
55401-12381 Pad Sub-assy, Instrument Panel Safety
1997-04 → 2000-06 ended
EE102,103 4F —
55401-12381-B0 note Pad Sub-assy, Instrument Panel Safety
2000-06 → —
AE109,CE10#,EE10# ¥61,300
55401-12460-B0 note Pad Sub-assy, Instrument Panel Safety
1995-03 → 2000-06 ended
AE10#,CE10#,EE10# ¥61,500
55401-12460-K0 note Pad Sub-assy, Instrument Panel Safety
1995-03 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥61,500
55401-12500-B0 note Pad Sub-assy, Instrument Panel Safety
1996-10 → 1997-04 ended
CE108,EE104 ¥61,300
55401-12500-B0 note Pad Sub-assy, Instrument Panel Safety
1997-04 → —
AE109,CE10#,EE10# ¥61,300
55404C — Panel Sub-assy, Instrument Cluster Finish, NO.2
55404-12570 Panel Sub-assy, Instrument Cluster Finish, NO.2
1991-06 → 1993-11 ended
AE10#,CE10#,EE10# ¥4,300
55404-12610 Panel Sub-assy, Instrument Cluster Finish, NO.2
1993-11 → —
AE10#,CE10#,EE10# ¥4,320
55411G — Panel, Instrument Cluster Finish, NO.1
55411-12870 Panel, Instrument Cluster Finish, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥4,210
55412D — Panel, Instrument Cluster Finish, Center
55405-12480 Panel, Instrument Cluster Finish, Center
1991-06 → 1992-05 ended
AE100,104,CE10#,EE10# DX,L,LX,XE,XL ¥16,100
55405-12480 note Panel, Instrument Cluster Finish, Center
1991-09 → 1993-05 ended
EE106 4F CTD ¥16,100
55405-12480 note Panel, Instrument Cluster Finish, Center
1991-09 → 1993-05 ended
CE106,EE106 (3FC,5F) CTD ¥16,100
55405-12480 Panel, Instrument Cluster Finish, Center
1992-05 → 1993-05 ended
EE101;AE100,104,CE10#,EE106,107,108 DX,L,LX,XL ¥16,100
55405-12480 note Panel, Instrument Cluster Finish, Center
1992-05 → 1993-05 ended
AE100,104,CE100,104 SEL,XE ¥16,100
55405-12500 note Panel, Instrument Cluster Finish, Center
1992-05 → 1995-05 ended
AE100,104,CE100,104 XE ¥16,100
55405-12500 Panel, Instrument Cluster Finish, Center
1991-06 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥16,100
55405-12540 note Panel, Instrument Cluster Finish, Center
1992-05 → 1993-05 ended
EE106 4F DX ¥16,100
55405-12540 Panel, Instrument Cluster Finish, Center
1991-09 → 1993-05 ended
CE106,EE106 CTD ¥16,100
55405-12660 Panel, Instrument Cluster Finish, Center
1992-05 → 1993-05 ended
AE100,104,CE100,104 XE ¥16,100
55405-12700 note Panel, Instrument Cluster Finish, Center
1993-05 → 1996-05 ended
CE106,EE102,106 (3FC,5F) (CTD,DXJ) ¥16,100
55405-12700 note Panel, Instrument Cluster Finish, Center
1993-05 → 1996-05 ended
EE102,106 4F (CTD,DXJ) ¥16,100
55405-12700 Panel, Instrument Cluster Finish, Center
1993-05 → 1996-05 ended
EE101;AE100,104,CE10#,EE102,103,104,106,107,108 DX,L,LX,XL ¥16,100
55405-12700 note Panel, Instrument Cluster Finish, Center
1993-05 → 1995-05 ended
AE100,104,CE100,104 SEL,XE ¥16,100
55405-12710 note Panel, Instrument Cluster Finish, Center
1994-01 → 1995-08 ended
EE102 4F DX ¥16,100
55405-12710 Panel, Instrument Cluster Finish, Center
1993-05 → 1996-05 ended
CE106,EE102,106 CTD,DXJ ¥16,100
55405-12710 note Panel, Instrument Cluster Finish, Center
1995-08 → 1996-05 ended
CE106,EE102 MTM DX ¥16,100
55405-12710 note Panel, Instrument Cluster Finish, Center
1993-05 → 1994-01 ended
EE106 4F DX ¥16,100
55405-12720 Panel, Instrument Cluster Finish, Center
1993-05 → 1995-05 ended
AE100,104,CE100,104 XE ¥16,100
55405-12770 note Panel, Instrument Cluster Finish, Center
1996-05 → 1998-04 ended
EE102 4F DXJ;AE109,CE10#,EE10# DX,L,XL ¥16,100
55405-12770 note Panel, Instrument Cluster Finish, Center
1996-05 → —
CE106 CTD;EE102 3FC DXJ ¥16,100
55405-12770 note Panel, Instrument Cluster Finish, Center
1998-04 → —
EE102 MTM;AE109,EE103;EE102 3FC DX ¥16,100
55405-12820 Panel, Instrument Cluster Finish, Center
1996-05 → 1997-08 ended
CE106,EE102 CTD,DXJ ¥16,100
55405-12820 note Panel, Instrument Cluster Finish, Center
1996-05 → 2000-08 ended
CE106,EE102 MTM DX ¥16,100
55405-12820 Panel, Instrument Cluster Finish, Center
1997-08 → —
CE106 CTD;EE102 (3FC,4F) DXJ;CE105,107,EE102 +3 ¥16,100
55405-1A140 Panel, Instrument Cluster Finish, Center
1998-04 → —
CE102,EE104 ¥16,100
55413D — Panel, Instrument Cluster Finish, Center Lower
55413-12420 Panel, Instrument Cluster Finish, Center Lower
1991-06 → —
AE10#,CE10#,EE10# ¥1,800
55432B — Panel, Instrument Panel Finish, Lower
55432-12310-B0 note Panel, Instrument Panel Finish, Lower
1991-09 → 1991-10 ended
AE100,104 DX,LX ¥8,200
55432-12310-B0 note Panel, Instrument Panel Finish, Lower
1991-10 → 1995-05 ended
AE100,104,CE100,104,EE101 DX,LX ¥8,200
55432-12310-B0 note Panel, Instrument Panel Finish, Lower
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥8,200
55432-12310-J0 note Panel, Instrument Panel Finish, Lower
1991-09 → 1991-10 ended
AE100,104 LX ¥8,200
55432-12310-J0 note Panel, Instrument Panel Finish, Lower
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥8,200
55432-12310-J0 note Panel, Instrument Panel Finish, Lower
1991-10 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥8,200
55432-12310-K0 note Panel, Instrument Panel Finish, Lower
1991-09 → 1991-10 ended
AE100,104 LX ¥8,200
55432-12310-K0 note Panel, Instrument Panel Finish, Lower
1991-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥8,200
55432-12310-K0 note Panel, Instrument Panel Finish, Lower
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥8,200
55432-12320-K0 note Panel, Instrument Panel Finish, Lower
1993-08 → 1995-05 ended
AE100 3FC LX ¥8,200
55432-12320-K0 note Panel, Instrument Panel Finish, Lower
1991-09 → 1995-05 ended
AE100,104 4FC SEL ¥8,200
55432-12320-K0 note Panel, Instrument Panel Finish, Lower
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX ¥8,200
55432-12320-P0 note Panel, Instrument Panel Finish, Lower
1991-09 → 1995-05 ended
AE100,104 4FC SEL ¥8,200
55432-12320-P0 note Panel, Instrument Panel Finish, Lower
1993-08 → 1995-05 ended
AE100 3FC LX ¥8,200
55432-12320-P0 note Panel, Instrument Panel Finish, Lower
1991-06 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥8,200
55432-12320-W3 note Panel, Instrument Panel Finish, Lower
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX ¥8,200
55432-12320-W3 note Panel, Instrument Panel Finish, Lower
1991-09 → 1993-05 ended
AE100,104 4FC SEL ¥8,200
55432-12370-B0 note Panel, Instrument Panel Finish, Lower
1992-01 → 1994-01 ended
EE106 4F ¥8,200
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-12090-B0 note Panel, Instrument Panel Finish, Lower NO.2
1991-06 → 2002-06 ended
AE10#,CE10#,EE10# ¥13,500
55433-12090-J0 note Panel, Instrument Panel Finish, Lower NO.2
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥13,500
55433-12090-K0 note Panel, Instrument Panel Finish, Lower NO.2
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥13,500
55434B — Panel, Instrument Panel Finish, Lower Center
55434-12100-K0 note Panel, Instrument Panel Finish, Lower Center
1991-06 → 1994-01 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥14,600
55434-12100-P0 note Panel, Instrument Panel Finish, Lower Center
1991-06 → 1994-01 ended
AE100,101,CE100,106,108,EE10# ¥14,600
55434-12100-W3 note Panel, Instrument Panel Finish, Lower Center
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥14,600
55434-12101-K0 note Panel, Instrument Panel Finish, Lower Center
1994-01 → 1995-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥14,700
55434-12101-P0 note Panel, Instrument Panel Finish, Lower Center
1994-01 → —
AE100,101,CE100,102,106,107,108,EE10# ¥14,700
55434-12110-K0 note Panel, Instrument Panel Finish, Lower Center
1991-09 → 1994-01 ended
AE104,CE104 ¥14,600
55434-12110-P0 note Panel, Instrument Panel Finish, Lower Center
1991-09 → 1994-01 ended
AE104,CE104,109 ¥14,600
55434-12110-W3 note Panel, Instrument Panel Finish, Lower Center
1991-09 → 1993-05 ended
AE104,CE104 ¥14,600
55434-12111-K0 note Panel, Instrument Panel Finish, Lower Center
1994-01 → 1995-05 ended
AE104,CE104 ¥14,700
55434-12111-P0 note Panel, Instrument Panel Finish, Lower Center
1994-01 → —
AE104,109,CE104,105,109 ¥14,700
55434D — Clip, Instrument Panel Finish, Lower Center
90467-07073-B4 note Clip, Instrument Panel Finish, Lower Center
1997-04 → —
AE109,CE10#,EE10# ¥120
90467-07073-C0 note Clip, Instrument Panel Finish, Lower Center
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥110
90467-07073-C0 note Clip, Instrument Panel Finish, Lower Center
1993-05 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥110
90467-07073-C0 note Clip, Instrument Panel Finish, Lower Center
1991-06 → 1997-04 ended
AE100,101,109,CE100,106,108,109,EE10# CTD,DX,DXJ,GT,L,XL ¥110
55435A — Panel, Instrument Panel Finish, End RH
55435-12010-C0 note Panel, Instrument Panel Finish, End RH
1993-10 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥670
55435-12010-C0 note Panel, Instrument Panel Finish, End RH
1993-10 → —
AE100,101,109,CE100,102,105,106,107,108,109,EE10# CTD,DX,DXJ,GT,L,XL ¥670
55435-12010-K0 note Panel, Instrument Panel Finish, End RH
1993-08 → 1993-10 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥680
55435-12010-K0 note Panel, Instrument Panel Finish, End RH
1991-06 → 1993-08 ended
AE100,104,CE100,104,EE101 LX,SEL,XE ¥680
55435-12010-P0 note Panel, Instrument Panel Finish, End RH
1991-06 → 1993-08 ended
AE10#,CE10#,EE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥680
55435-12010-P0 note Panel, Instrument Panel Finish, End RH
1993-08 → 1993-10 ended
AE10#,CE10#,EE10# ¥680
55435-12010-W3 note Panel, Instrument Panel Finish, End RH
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,SEL,XE ¥680
55436A — Panel, Instrument Panel Finish, End LH
55436-12020-C0 note Panel, Instrument Panel Finish, End LH
1993-10 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,SEL,XE ¥670
55436-12020-C0 note Panel, Instrument Panel Finish, End LH
1993-10 → —
AE100,109,CE100,102,105,106,107,108,109,EE10# CTD,DX,DXJ,L,XL ¥670
55436-12020-K0 note Panel, Instrument Panel Finish, End LH
1991-06 → 1992-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥680
55436-12020-K0 note Panel, Instrument Panel Finish, End LH
1992-05 → 1993-10 ended
AE100,104,CE100,104,EE101 LX,SEL,XE ¥680
55436-12020-P0 note Panel, Instrument Panel Finish, End LH
1991-06 → 1992-05 ended
AE100,104,CE10#,EE10# CTD,DX,L,LX,XE,XL ¥680
55436-12020-P0 note Panel, Instrument Panel Finish, End LH
1992-05 → 1993-10 ended
AE100,104,CE10#,EE10# ¥680
55436-12020-W3 note Panel, Instrument Panel Finish, End LH
1991-06 → 1992-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥680
55436-12020-W3 note Panel, Instrument Panel Finish, End LH
1992-05 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,SEL,XE ¥680
55441 — Box, Instrument Panel
55440-12030-B0 note Box, Instrument Panel
1991-06 → 1991-09 ended
AE10#,CE100,EE101 GT,SEG,SEL,XE ¥2,960
55440-12030-B0 note Box, Instrument Panel
1991-10 → 1995-05 ended
AE10#,CE100,104,EE101 ¥2,960
55440-12030-B0 note Box, Instrument Panel
1991-09 → 1991-10 ended
AE10#;CE100,104,EE101 SEL,XE ¥2,960
55440-12030-J0 note Box, Instrument Panel
1991-10 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥2,960
55440-12030-J0 note Box, Instrument Panel
1991-06 → 1991-10 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,960
55440-12030-K0 note Box, Instrument Panel
1991-10 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥2,960
55440-12030-K0 note Box, Instrument Panel
1991-06 → 1991-10 ended
AE10#,CE100,104,EE101 SEG,SEL,XE ¥2,960
55477A — Bezel, Cigarette Lighter Hole
55477-12100 Bezel, Cigarette Lighter Hole
1991-06 → —
AE10#,CE10#,EE10# ¥250
55510 — Door Assy, Glove Compartment
55550-12310-B0 note Door Assy, Glove Compartment
1991-06 → 1993-08 ended
AE10#,CE10#,EE10# ¥13,500
55550-12310-B1 note Door Assy, Glove Compartment
1993-08 → —
AE10#,CE10#,EE10# ¥13,500
55550-12310-J0 note Door Assy, Glove Compartment
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥13,500
55550-12310-K0 note Door Assy, Glove Compartment
1991-06 → 1993-08 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥13,500
55550-12310-K1 note Door Assy, Glove Compartment
1993-08 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥13,500
55521C — Cover, Stereo Opening
55521-12140 note Cover, Stereo Opening
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 GT,SEG,SEL,XE ¥620
55521-12140 note Cover, Stereo Opening
1993-05 → 1995-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥620
55521-16040 note Cover, Stereo Opening
1991-06 → —
EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);AE10#,CE10#,EE101,104,106,107,108 ¥3,240
55521-16040 Cover, Stereo Opening
2000-08 → —
EE102,103 5F (DX,DXJ) ¥3,240
55522E — Cover, Cup Holder Opening
55522-12110 Cover, Cup Holder Opening
1991-06 → 1994-05 ended
AE100,104,CE10#,EE10# CTD,DX,DXJ,L,LX,XE,XL ¥1,320
55522-12110 Cover, Cup Holder Opening
1994-05 → —
AE100,104,109,CE10#,EE10# CTD,DX,DXJ,L,LX,XL ¥1,320
55533 — Cover, Auto Clock Hole
55533-12130 Cover, Auto Clock Hole
1991-09 → —
CE106,107,EE102,106 CTD,DXJ ¥760
55536B — Cover, Light Control Switch Hole
55536-12010 Cover, Light Control Switch Hole
1991-06 → —
AE10#,CE10#,EE10# ¥660
55539C — Cover, Spare Switch Hole
55539-12110 Cover, Spare Switch Hole
1991-06 → 1993-05 ended
AE10#,CE10#,EE10# CTD,DX,GT,L,LX,SEL,XE,XL ¥600
55539-12110 Cover, Spare Switch Hole
1998-04 → —
EE103;AE109,CE107,EE102 DX,DXJ ¥600
55539-12110 Cover, Spare Switch Hole
1993-05 → 1994-05 ended
AE10#,CE10#,EE10# ¥600
55539-12110 Cover, Spare Switch Hole
1994-05 → 1998-04 ended
AE100,101,109,CE10#,EE10# ¥600
55539D — Cover, Spare Switch Hole
55539-12110 Cover, Spare Switch Hole
1991-06 → 1998-05 ended
AE104 5F;AE100,101,CE10#,EE10# ¥600
55539-12110 Cover, Spare Switch Hole
1998-05 → —
CE102,107;AE109,CE105,EE10# 3FC,4F,5F ¥600
55547 — Cover, Remote Control Mirror Hole
55547-12020 Cover, Remote Control Mirror Hole
1991-06 → —
AE10#,CE10#,EE10# ¥660
55560A — Lock Assy, Glove Compartment Door
55560-12080-02 note Lock Assy, Glove Compartment Door
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,410
55560-12080-03 note Lock Assy, Glove Compartment Door
1991-06 → 1992-08 ended
AE10#,CE10#,EE10# ¥1,410
55560-12080-04 note Lock Assy, Glove Compartment Door
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,410
55560-12080-P0 note Lock Assy, Glove Compartment Door
1992-08 → —
AE10#,CE10#,EE10# ¥1,410
55574 — Shaft, Glove Compartment Door Hinge
55574-10010 Shaft, Glove Compartment Door Hinge
1991-06 → —
AE10#,CE10#,EE10# ¥160
55620 — Holder Assy, Instrument Panel Cup
55620-12020 Holder Assy, Instrument Panel Cup
1991-06 → 1994-05 ended
AE10#,CE10#,EE103,104,107,108 GT,L,SEG,SEL,XL —
55620-12050 Holder Assy, Instrument Panel Cup
1994-05 → —
AE100,101,104,CE10#,EE101,103,104 GT,L,LX,SEG,SEL,XE,XL ¥3,500
55670 — Register Assy, Instrument Panel, NO.3
55670-12150-B0 note Register Assy, Instrument Panel, NO.3
1994-07 → —
AE10#,CE10#,EE10# ¥5,200
55670-12150-K0 note Register Assy, Instrument Panel, NO.3
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,200
55670-12150-P0 note Register Assy, Instrument Panel, NO.3
1991-06 → 1994-07 ended
AE10#,CE10#,EE10# ¥5,200
55670-12150-W3 note Register Assy, Instrument Panel, NO.3
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥5,200
55680 — Register Assy, Instrument Panel, Lower NO.1
55680-12050 Register Assy, Instrument Panel, Lower NO.1
1993-02 → 1993-05 ended
AE10#,CE100,104 GT,SEG,SEL,XE ¥2,060
55680-12050-K0 note Register Assy, Instrument Panel, Lower NO.1
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥2,080
55680-12050-K0 note Register Assy, Instrument Panel, Lower NO.1
1992-05 → 1993-02 ended
AE10#,CE100,104 SEG,SEL,XE ¥2,080
55680-12050-P0 note Register Assy, Instrument Panel, Lower NO.1
1992-05 → 1993-02 ended
AE10#,CE100,104 GT,SEG,SEL,XE ¥2,080
55680-12050-P0 note Register Assy, Instrument Panel, Lower NO.1
1991-06 → 1992-05 ended
AE10#,CE100,104 GT,SEG,SEL ¥2,080
55680-12050-W3 note Register Assy, Instrument Panel, Lower NO.1
1992-05 → 1993-02 ended
AE10#,CE100,104 SEG,SEL,XE ¥2,080
55680-12050-W3 note Register Assy, Instrument Panel, Lower NO.1
1991-06 → 1992-05 ended
AE10#,CE100,104 SEG,SEL ¥2,080
55950A — Nozzle Assy, Defroster
55950-12140 Nozzle Assy, Defroster
1991-06 → 1992-08 ended
AE10#,CE10#,EE10# ¥8,000
55950-12170 Nozzle Assy, Defroster
1992-08 → —
AE10#,CE10#,EE10# ¥7,900
55961 — Nozzle, Side Defroster, NO.1
55961-12180-K0 note Nozzle, Side Defroster, NO.1
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,160
55961-12180-P0 note Nozzle, Side Defroster, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥1,140
55961-12180-W3 note Nozzle, Side Defroster, NO.1
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥1,160
55962 — Nozzle, Side Defroster, NO.2
55962-12160-K0 note Nozzle, Side Defroster, NO.2
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥890
55962-12160-P0 note Nozzle, Side Defroster, NO.2
1991-06 → —
AE10#,CE10#,EE10# ¥880
55962-12160-W3 note Nozzle, Side Defroster, NO.2
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥890
55971B — Duct, Side Defroster Nozzle, NO.1
55971-12110 Duct, Side Defroster Nozzle, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥510
55981 — Garnish, Defroster Nozzle, NO.1
55981-12050 Garnish, Defroster Nozzle, NO.1
1991-06 → —
AE10#,CE10#,EE10# ¥2,060
55982 — Garnish, Defroster Nozzle, NO.2
55982-12050 Garnish, Defroster Nozzle, NO.2
1991-06 → —
AE10#,CE10#,EE10# ¥2,060
55990 — Nozzle Assy, Center Defroster
55990-12010 Nozzle Assy, Center Defroster
1991-06 → —
AE10#,CE10#,EE10# ¥2,350
58821D — Panel, Console, Upper Front
58821-12050-K0 note Panel, Console, Upper Front
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥1,740
58821-12050-P0 note Panel, Console, Upper Front
1991-06 → —
AE100,101,CE100,102,106,107,108,EE10# ¥1,730
58821-12050-W3 note Panel, Console, Upper Front
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥1,740
58821-12060-K0 note Panel, Console, Upper Front
1991-09 → 1995-05 ended
AE104,CE104 ¥2,160
58821-12060-P0 note Panel, Console, Upper Front
1991-09 → —
AE104,109,CE104,105,109 ¥2,160
58821-12060-W3 note Panel, Console, Upper Front
1991-09 → 1993-05 ended
AE104,CE104 ¥2,160
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
