Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

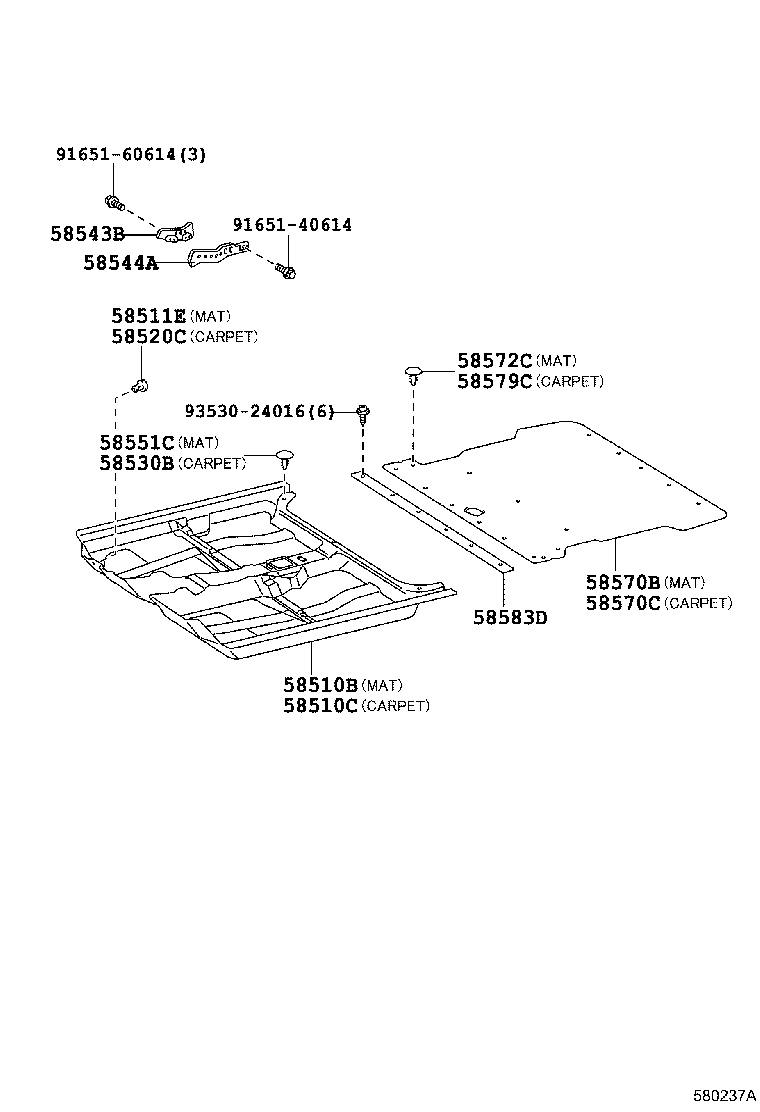

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

169 parts on this figure

Part number	Description	Fitment	Price
58510B — Mat, Front Floor, Front
58510-13520-B0 note	Mat, Front Floor, Front 1991-09 → 1991-11 ended	CE106,EE106 CTD	¥47,500
58510-13590-B0 note	Mat, Front Floor, Front 1991-09 → 1991-11 ended	CE106,EE106 CTD	¥47,500
58510-13760-B0 note	Mat, Front Floor, Front 1991-11 → 1993-12 ended	CE106,EE106 CTD	¥47,300
58510-13761-B0 note	Mat, Front Floor, Front 1993-12 → —	CE106,107,EE102,106 CTD,DXJ	¥47,300
58510-13770-B0 note	Mat, Front Floor, Front 1991-11 → 1993-12 ended	CE106,EE106 CTD	¥47,300
58510-13771-B0 note	Mat, Front Floor, Front 1993-12 → —	EE102 (3FC,4F) DXJ;CE106,107,EE106 CTD,DXJ	¥47,300
58510-13771-B0 note	Mat, Front Floor, Front 2000-08 → —	EE102 5F DXJ	¥47,300
58510-1F410-B0 note	Mat, Front Floor, Front 1997-04 → —	CE106,107,EE102 CTD,DXJ	¥47,100
58510-1F420-B0 note	Mat, Front Floor, Front 1997-04 → —	CE106,107,EE102 CTD,DXJ	¥47,100
58510C — Carpet Assy, Front Floor, Front
58510-13450-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE106,EE106,107 DX	¥40,000
58510-13480-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE106,EE106,107 DX	¥40,000
58510-13490-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE106,108,EE107,108 L,XL	¥40,000
58510-13500-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE106,108,EE107,108 L,XL	¥40,000
58510-13530-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE109 DX	¥40,000
58510-13540-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE109 DX	¥40,000
58510-13550-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE109 XL	¥40,000
58510-13560-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	CE109 XL	¥40,000
58510-13780-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1992-04 ended	CE106,EE106,107 DX	¥40,000
58510-13780-B1 note	Carpet Assy, Front Floor, Front 1992-04 → 1993-12 ended	CE106,EE106,107 DX	¥40,000
58510-13781-B1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE106,EE102,103,106,107 DX	¥40,000
58510-13782-B1 note	Carpet Assy, Front Floor, Front 1995-08 → —	CE106,107,EE102,103 DX	¥40,000
58510-13790-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1992-03 ended	CE106,EE106,107 DX	¥40,000
58510-13790-B0 note	Carpet Assy, Front Floor, Front 1992-03 → 1993-12 ended	EE106 3FC DX;CE106,EE107 (3FC,4F,4FC) +1	¥40,000
58510-13790-B0 note	Carpet Assy, Front Floor, Front 1992-03 → 1993-12 ended	CE106,EE106 MTM DX	¥40,000
58510-13791-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	EE102,106 3FC DX;CE106,EE103,107 (3FC,4F,4FC) +1	¥40,000
58510-13791-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE106,EE102,106 MTM DX	¥40,000
58510-13792-B1 note	Carpet Assy, Front Floor, Front 1995-08 → 2000-08 ended	CE106,EE102 MTM DX	¥40,000
58510-13792-B1 note	Carpet Assy, Front Floor, Front 1995-08 → —	CE106 4FC DX;CE107,EE103 DX;EE102 +2	¥40,000
58510-13800-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	CE106,108,EE107,108 L,XL	¥40,000
58510-13801-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE106,108,EE103,104,107,108 L,XL	¥40,000
58510-13802-B0 note	Carpet Assy, Front Floor, Front 1995-08 → 1997-04 ended	CE106,108,EE103,104 L,XL	¥39,900
58510-13810-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	CE106,108,EE107,108 L,XL	¥40,000
58510-13811-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE106,108,EE103,104,107,108 L,XL	¥40,000
58510-13812-B0 note	Carpet Assy, Front Floor, Front 1995-08 → 1997-04 ended	CE106,108,EE103,104 L,XL	¥39,900
58510-13860-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	CE109 DX	¥40,000
58510-13861-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE109 DX	¥40,000
58510-13862-B1 note	Carpet Assy, Front Floor, Front 1995-08 → —	AE109,CE105,109 DX	¥40,000
58510-13870-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	CE109 DX	¥40,000
58510-13871-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE109 DX	¥40,000
58510-13872-B0 note	Carpet Assy, Front Floor, Front 1998-04 → —	AE109,CE105 DX	¥40,000
58510-13872-B1 note	Carpet Assy, Front Floor, Front 1995-08 → 1998-04 ended	AE109,CE109 DX	¥40,000
58510-13880-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	CE109 XL	¥40,000
58510-13881-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE109 XL	¥40,000
58510-13882-B0 note	Carpet Assy, Front Floor, Front 1995-08 → 1997-04 ended	CE109 XL	¥39,900
58510-13890-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	CE109 XL	¥40,000
58510-13891-B0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-08 ended	CE109 XL	¥40,000
58510-13892-B0 note	Carpet Assy, Front Floor, Front 1995-08 → 1997-04 ended	CE109 XL	¥39,900
58510-1E090-K0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,CE100,EE101 LX,XE	¥57,800
58510-1E090-P0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,CE100,EE101 DX,LX,XE	¥57,800
58510-1E090-W3 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,CE100,EE101 LX,XE	¥57,800
58510-1E091-K0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE100,CE100,EE101 LX,XE	¥57,700
58510-1E091-P0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE100,CE100,EE101 DX,LX,XE	¥57,700
58510-1E091-W3 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-05 ended	AE100,CE100,EE101 LX,XE	¥57,700
58510-1E092-K0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,CE100,EE101 LX,XE	¥57,000
58510-1E092-P0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,CE100,EE101 DX,LX,XE	¥57,000
58510-1E100-K0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,CE100,EE101 LX,XE	¥59,700
58510-1E100-P0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,CE100,EE101 DX,LX,XE	¥59,700
58510-1E100-W3 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,CE100,EE101 LX,XE	¥59,700
58510-1E101-K0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE100,CE100,EE101 LX,XE	¥59,400
58510-1E101-P0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE100,CE100,EE101 DX,LX,XE	¥59,400
58510-1E101-W3 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-05 ended	AE100,CE100,EE101 LX,XE	¥59,400
58510-1E102-K0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,CE100,EE101 LX,XE	¥58,700
58510-1E102-P0 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,CE100,EE101 DX,LX,XE	¥58,700
58510-1E130-B0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,101,CE100 GT,SEG,SEL	¥59,700
58510-1E130-J0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,101,CE100 SEG,SEL	¥59,700
58510-1E130-K1 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,101,CE100 SEG,SEL	¥59,700
58510-1E131-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1992-03 ended	AE100,101,CE100 GT,SEG,SEL	¥59,400
58510-1E131-B1 note	Carpet Assy, Front Floor, Front 1992-03 → 1993-12 ended	AE100,101,CE100 GT,SEG,SEL	¥59,400
58510-1E131-J0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-05 ended	AE100,101,CE100 SEG,SEL	¥59,400
58510-1E131-K1 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE100,101,CE100 SEG,SEL	¥59,400
58510-1E132-B1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,101,CE100 GT,SEG,SEL	¥58,700
58510-1E132-K1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,101,CE100 SEG,SEL	¥58,700
58510-1E140-B0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,101,CE100 GT,SEG,SEL	¥60,100
58510-1E140-J0 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,101,CE100 SEG,SEL	¥60,100
58510-1E140-K1 note	Carpet Assy, Front Floor, Front 1991-06 → 1991-11 ended	AE100,101,CE100 SEG,SEL	¥60,100
58510-1E141-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1992-03 ended	AE100,101,CE100 GT,SEG,SEL	¥60,100
58510-1E141-B1 note	Carpet Assy, Front Floor, Front 1992-03 → 1993-12 ended	AE100,101,CE100 GT,SEG,SEL	¥60,100
58510-1E141-J0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-05 ended	AE100,101,CE100 SEG,SEL	¥60,100
58510-1E141-K1 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE100,101,CE100 SEG,SEL	¥60,100
58510-1E142-B1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,101,CE100 GT,SEG,SEL	¥59,900
58510-1E142-K1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE100,101,CE100 SEG,SEL	¥59,900
58510-1E200-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	AE104,CE104	¥57,700
58510-1E200-J0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	AE104,CE104	¥57,700
58510-1E200-K1 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	AE104,CE104	¥57,700
58510-1E201-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1992-03 ended	AE104,CE104	¥57,200
58510-1E201-B1 note	Carpet Assy, Front Floor, Front 1992-03 → 1993-12 ended	AE104,CE104	¥57,200
58510-1E201-J0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-05 ended	AE104,CE104	¥57,200
58510-1E201-K1 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE104,CE104	¥57,200
58510-1E202-B1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE104,CE104	¥56,600
58510-1E202-K1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE104,CE104	¥56,600
58510-1E220-B0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	AE104,CE104	¥59,000
58510-1E220-J0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	AE104,CE104	¥59,000
58510-1E220-K0 note	Carpet Assy, Front Floor, Front 1991-09 → 1991-11 ended	AE104,CE104	¥59,000
58510-1E221-B0 note	Carpet Assy, Front Floor, Front 1991-11 → 1992-03 ended	AE104,CE104	¥58,900
58510-1E221-B1 note	Carpet Assy, Front Floor, Front 1992-03 → 1993-12 ended	AE104,CE104	¥58,900
58510-1E221-J0 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-05 ended	AE104,CE104	¥58,900
58510-1E221-K1 note	Carpet Assy, Front Floor, Front 1991-11 → 1993-12 ended	AE104,CE104	¥58,900
58510-1E222-B1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE104,CE104	¥56,600
58510-1E222-K1 note	Carpet Assy, Front Floor, Front 1993-12 → 1995-05 ended	AE104,CE104	¥56,600
58510-1F290-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE106,107,EE103 XL	¥40,000
58510-1F290-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	EE102 DX	¥40,000
58510-1F300-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE106,EE103 XL	¥40,000
58510-1F300-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	EE102 DX	¥40,000
58510-1F300-B0 note	Carpet Assy, Front Floor, Front 1998-04 → —	CE107 XL	¥40,000
58510-1F310-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	AE109	¥40,000
58510-1F310-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE105,109 XL	¥40,000
58510-1F320-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	AE109	¥40,000
58510-1F320-B0 note	Carpet Assy, Front Floor, Front 1997-04 → 1998-04 ended	CE109 XL	¥40,000
58510-1F320-B0 note	Carpet Assy, Front Floor, Front 1998-04 → —	CE105 XL	¥40,000
58510-1F430-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE106,107,EE102,103 DX	¥39,900
58510-1F440-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE106,107,EE102,103 DX	¥40,000
58510-1F450-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	AE109,CE105,109 DX	¥40,000
58510-1F460-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	AE109,CE105,109 DX	¥40,000
58510-1F470-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE106,EE103 XL	¥40,000
58510-1F470-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	EE102 DX	¥40,000
58510-1F470-B0 note	Carpet Assy, Front Floor, Front 1998-04 → —	CE102,107 L,XL	¥40,000
58510-1F470-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE108,EE104	¥40,000
58510-1F480-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE102,106,107,EE103 L,XL	¥40,000
58510-1F480-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE108,EE104	¥40,000
58510-1F480-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	EE102 DX	¥40,000
58510-1F490-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE105,109 XL	¥40,000
58510-1F490-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	AE109	¥40,000
58510-1F500-B0 note	Carpet Assy, Front Floor, Front 2000-08 → —	AE109	¥40,000
58510-1F500-B0 note	Carpet Assy, Front Floor, Front 1997-04 → —	CE105,109 XL	¥40,000
58511E — Clip(FOR FRONT FLOOR MAT)
90467-09068-11 note	Clip(FOR FRONT FLOOR MAT) 1991-09 → 1992-09 ended	CE106,EE106 CTD	¥260
90467-09068-22 note	Clip(FOR FRONT FLOOR MAT) 1992-09 → 1993-12 ended	CE106,EE106 CTD	¥260
90467-09068-22 note	Clip(FOR FRONT FLOOR MAT) 1993-12 → 1997-04 ended	CE106,EE102,106 CTD,DXJ	¥260
90467-09068-B0 note	Clip(FOR FRONT FLOOR MAT) 1997-04 → —	CE106,107,EE102 CTD,DXJ	¥160
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-09068-11 note	Clip(FOR FRONT FLOOR CARPET) 1991-06 → 1992-09 ended	AE10#,CE100,104,EE101 LX,SEG,SEL,XE	¥260
90467-09068-11 note	Clip(FOR FRONT FLOOR CARPET) 1991-06 → 1992-09 ended	AE100,101,CE100,106,108,109,EE10# DX,GT,L,XL	¥260
90467-09068-22 note	Clip(FOR FRONT FLOOR CARPET) 1992-09 → 1993-12 ended	AE100,101,CE100,106,108,109,EE10# DX,GT,L,XL	¥260
90467-09068-22 note	Clip(FOR FRONT FLOOR CARPET) 1993-12 → 1997-04 ended	AE100,101,109,CE100,106,108,109,EE10# DX,GT,L,XL	¥260
90467-09068-22 note	Clip(FOR FRONT FLOOR CARPET) 1993-12 → 1995-05 ended	AE10#,CE100,104,EE101 LX,SEG,SEL,XE	¥260
90467-09068-22 note	Clip(FOR FRONT FLOOR CARPET) 1993-05 → 1993-12 ended	AE10#,CE100,104,EE101 LX,SEG,SEL,XE	¥260
90467-09068-22 note	Clip(FOR FRONT FLOOR CARPET) 1992-09 → 1993-05 ended	AE10#,CE100,104,EE101 LX,SEG,SEL,XE	¥260
90467-09068-B0 note	Clip(FOR FRONT FLOOR CARPET) 1997-04 → —	AE109,CE10#,EE10# DX,L,XL	¥160
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-06016-11 note	Clip(FOR FRONT FLOOR CARPET) 1991-09 → 1991-10 ended	CE106,108,109,EE106,107,108 DX,L,XL	¥180
90467-06016-C0 note	Clip(FOR FRONT FLOOR CARPET) 1991-10 → 1997-04 ended	AE109,CE106,108,109,EE102,103,104,106,107,108 DX,L,XL	¥170
90467-06016-P0 note	Clip(FOR FRONT FLOOR CARPET) 1997-04 → —	AE109,CE10#,EE10# DX,L,XL	¥170
90467-07049-01 note	Clip(FOR FRONT FLOOR CARPET) 1991-06 → 1992-08 ended	AE10#,CE100,104,EE101 LX,SEG,SEL,XE	¥180
90467-07049-01 note	Clip(FOR FRONT FLOOR CARPET) 1991-06 → 1992-08 ended	AE100,101,CE100,EE101 DX,GT	¥180
90467-07049-C0 note	Clip(FOR FRONT FLOOR CARPET) 1993-05 → 1995-05 ended	AE10#,CE100,104,EE101 LX,SEG,SEL,XE	¥100
90467-07049-C0 note	Clip(FOR FRONT FLOOR CARPET) 1992-08 → 1993-05 ended	AE10#,CE100,104,EE101 LX,SEG,SEL,XE	¥100
90467-07049-C0 note	Clip(FOR FRONT FLOOR CARPET) 1992-08 → 1995-05 ended	AE100,101,CE100,EE101 DX,GT	¥100
58543B — Bracket, Floor Carpet, RH
58543-12010	Bracket, Floor Carpet, RH 1991-06 → 1991-11 ended	AE10#,CE100,104,EE10#	¥820
58543-12011	Bracket, Floor Carpet, RH 1991-11 → 1993-12 ended	AE10#,CE100,104,EE10#	¥820
58544A — Bracket, Floor Carpet, LH
58544-12010	Bracket, Floor Carpet, LH 1991-06 → 1991-11 ended	AE10#,CE100,104,EE10#	¥1,350
58544-12011	Bracket, Floor Carpet, LH 1991-11 → 1993-12 ended	AE10#,CE100,104,EE10#	¥1,340
58551C — Clip(FOR FLOOR MAT, REAR)
90467-06016-11 note	Clip(FOR FLOOR MAT, REAR) 1991-09 → 1991-10 ended	CE106,EE106 CTD	¥180
90467-06016-C0 note	Clip(FOR FLOOR MAT, REAR) 1991-10 → 1997-04 ended	CE106,EE102,106 CTD,DXJ	¥170
90467-06016-P0 note	Clip(FOR FLOOR MAT, REAR) 1997-04 → —	CE106,107,EE102 CTD,DXJ	¥170
58570B — Mat Assy, Rear Floor
58570-13190-B0 note	Mat Assy, Rear Floor 1991-09 → —	CE102,108,EE104,108	¥28,600
58570-13210-B0 note	Mat Assy, Rear Floor 1991-09 → 1994-01 ended	EE106 4F	¥28,600
58570-13220-B0 note	Mat Assy, Rear Floor 1996-05 → —	AE109	¥41,900
58581-13110-B1 note	Mat Assy, Rear Floor 1992-05 → 1994-01 ended	CE106,EE106 CTD	¥14,100
58581-13110-B1 note	Mat Assy, Rear Floor 1997-04 → —	CE105,106,107,109,EE102,103 DX,DXJ,XL	¥14,100
58581-13110-B1 note	Mat Assy, Rear Floor 1997-04 → 1998-04 ended	CE106 CTD	¥14,100
58581-13110-B1 note	Mat Assy, Rear Floor 1994-01 → 1997-04 ended	CE106,109,EE102,103	¥14,100
58581-13110-B1 note	Mat Assy, Rear Floor 1991-09 → 1994-01 ended	CE106,109,EE106,107 DX,XL	¥14,100
58581-13110-B1 note	Mat Assy, Rear Floor 1992-01 → 1993-12 ended	CE106,EE106 CTD	¥14,100
58570C — Carpet Assy, Rear Floor
58570-13180-B1 note	Carpet Assy, Rear Floor 1991-09 → —	CE102,105,106,107,108,109,EE103,104,107,108 L,XL	¥26,200
58572C — Clip, Rear Floor Mat Set
90467-07042-13 note	Clip, Rear Floor Mat Set 1991-09 → 1992-05 ended	EE106 4F;EE106 3FC DX;CE106,108,109,EE107,108 +1	¥120
90467-07042-13 note	Clip, Rear Floor Mat Set 1992-05 → 1994-11 ended	CE106,108,109,EE102,103,104,106,107,108	¥120
90467-07042-B1 note	Clip, Rear Floor Mat Set 1994-11 → —	AE109,CE102,105,106,107,108,109,EE102,103,104	¥90
58579C — Clip, Rear Floor Carpet Set
90467-07042-13 note	Clip, Rear Floor Carpet Set 1991-09 → 1994-11 ended	CE106,108,109,EE103,104,107,108 L,XL	¥120
90467-07042-B1 note	Clip, Rear Floor Carpet Set 1994-11 → —	CE102,105,106,107,108,109,EE103,104 L,XL	¥90
58583D — Plate, Rear Seatback Carpet Support
58583-13010	Plate, Rear Seatback Carpet Support 1991-09 → 1992-05 ended	EE106 4F;EE106 3FC DX;CE106,108,109,EE107,108 +1	¥1,920
58583-13010 note	Plate, Rear Seatback Carpet Support 1992-01 → 1992-05 ended	CE106,EE106 CTD	¥1,920
58583-13010	Plate, Rear Seatback Carpet Support 1992-05 → —	AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108	¥1,920

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
