Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

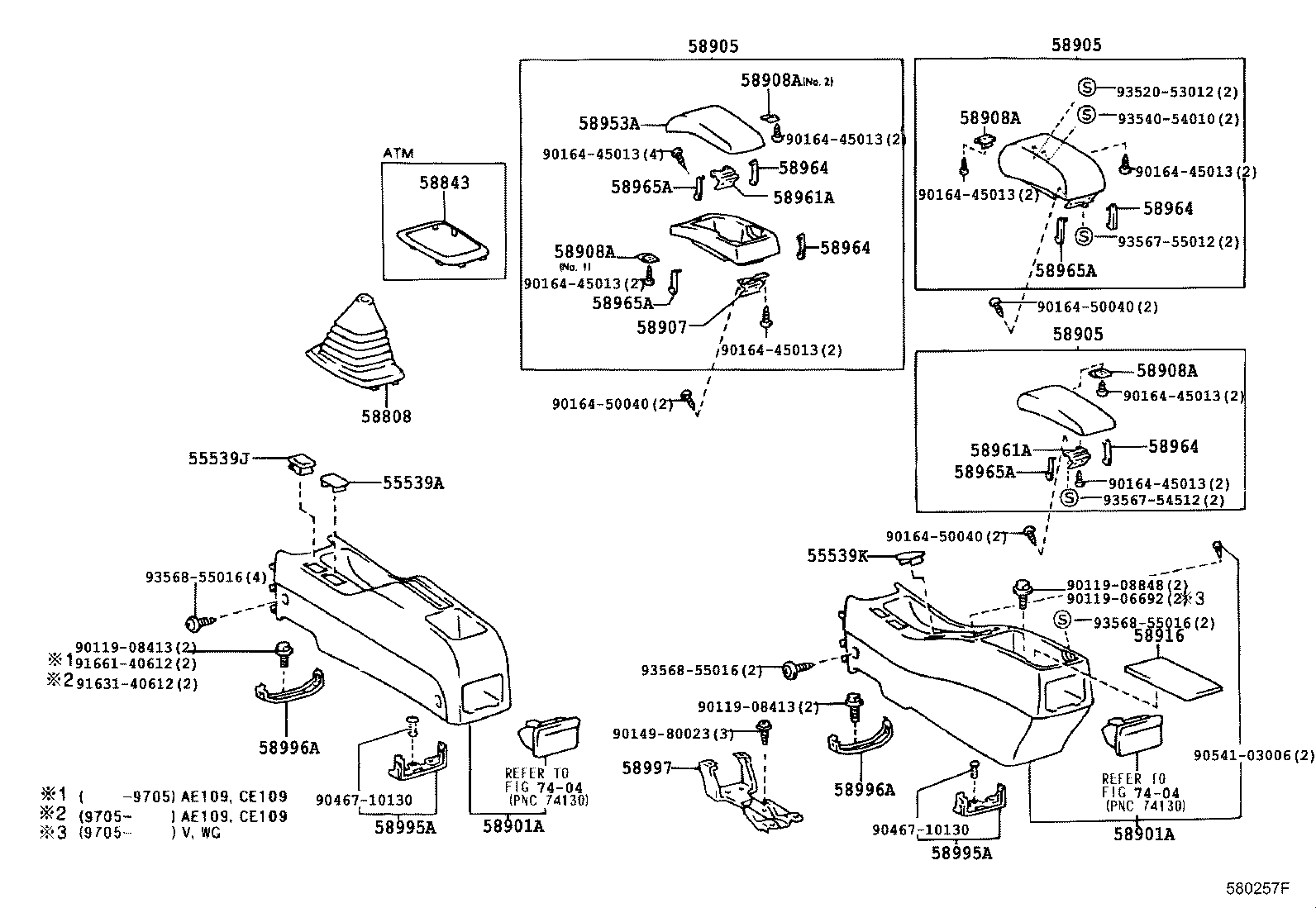

Exploded illustration 580257F 58808 — COVER SUB-ASSY, SHIFTING HOLE (8 parts) 58843 — BEZEL, SHIFTING HOLE (6 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (15 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (15 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (15 parts) 58953A — DOOR, CONSOLE COMPARTMENT, UPPER (3 parts) 58965A — STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 (4 parts) 58964 — STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 (4 parts) 58964 — STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 (4 parts) 58964 — STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 (4 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (7 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (7 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (7 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (7 parts) 58961A — HINGE, CONSOLE COMPARTMENT DOOR MALE (4 parts) 58907 — HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR (1 parts) 58965A — STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 (4 parts) 58965A — STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 (4 parts) 9016445013 — not listed in this catalogue 9016445013 — not listed in this catalogue 9016445013 — not listed in this catalogue 9016445013 — not listed in this catalogue 9016445013 — not listed in this catalogue 9016445013 — not listed in this catalogue 9016445013 — not listed in this catalogue 58964 — STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 (4 parts) 9163140612 — not listed in this catalogue 9016450040 — not listed in this catalogue 9016450040 — not listed in this catalogue 58965A — STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 (4 parts) 58961A — HINGE, CONSOLE COMPARTMENT DOOR MALE (4 parts) 9016445013 — not listed in this catalogue 9166140612 — not listed in this catalogue 9011908848 — not listed in this catalogue 9016450040 — not listed in this catalogue 55539K — COVER, SPARE SWITCH HOLE (4 parts) 55539A — COVER, SPARE SWITCH HOLE (10 parts) 55539J — COVER, SPARE SWITCH HOLE (4 parts) 9356855016 — not listed in this catalogue 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (2 parts) 9011908413 — not listed in this catalogue 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (1 parts) 58901A — BOX SUB-ASSY, CONSOLE, REAR (15 parts) 9046710130 — not listed in this catalogue 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (2 parts) 9011908413 — not listed in this catalogue 9356855016 — not listed in this catalogue 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (1 parts) 9046710130 — not listed in this catalogue 58916 — MAT, BOX BOTTOM (1 parts) 58901A — BOX SUB-ASSY, CONSOLE, REAR (15 parts) 9054103006 — not listed in this catalogue 9352053012 — not listed in this catalogue 9354054010 — not listed in this catalogue 9356755012 — not listed in this catalogue 9356754512 — not listed in this catalogue 9356855016 — not listed in this catalogue 7404 — not listed in this catalogue 58997 — BRACKET, CONSOLE BOX MOUNTING, NO.3 (2 parts) 9014980023 — not listed in this catalogue 7404 — not listed in this catalogue 9011906692 — not listed in this catalogue
580257F · 32 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
55539A — Cover, Spare Switch Hole
55539-12120-B0 note Cover, Spare Switch Hole
2000-08 → —
EE102 5F DXJ ¥440
55539-12120-B0 note Cover, Spare Switch Hole
1991-06 → —
EE102 .(CTD,DXJ,GT,SEG) (3FC,4F) DXJ;AE100,104,CE100,104,EE101;AE101,CE106,107,EE106 +1 ¥440
55539-12120-J0 note Cover, Spare Switch Hole
1991-06 → 1993-05 ended
AE101 5F SEG;AE100,104,CE100,104,EE101 LX,SEL,XE ¥440
55539-12120-K0 note Cover, Spare Switch Hole
1991-06 → 1995-05 ended
AE101 5F SEG;AE100,104,CE100,104,EE101 LX,SEL,XE ¥440
55539-20020-03 note Cover, Spare Switch Hole
1991-09 → 1992-08 ended
CE106,EE106 CTD ¥460
55539-20020-03 note Cover, Spare Switch Hole
1991-06 → 1992-08 ended
CE106,108,109,EE107,108 DX,L,XL;AE101,EE106 (3FC,4F,4FC) (DX,GT,SEG) ¥460
55539-20020-K0 note Cover, Spare Switch Hole
1991-06 → 1995-05 ended
AE101 4FC SEG ¥460
55539-20020-P0 note Cover, Spare Switch Hole
1992-08 → —
EE102 E103,104,107,108 DX;AE101,EE106 DX,DXJ,L,XL +2 ¥460
55539-20020-P0 note Cover, Spare Switch Hole
1992-08 → —
CE106,EE102,106 CTD,DXJ ¥460
55539-20020-W3 note Cover, Spare Switch Hole
1991-06 → 1993-05 ended
AE101 4FC SEG ¥460
55539J — Cover, Spare Switch Hole
55539-20020-03 note Cover, Spare Switch Hole
1991-06 → 1992-08 ended
AE100,104,CE100,104,EE101;AE101,CE106,EE106 (3FC,4F,5F) (CTD,GT,SEG) ¥460
55539-20020-K0 note Cover, Spare Switch Hole
1991-06 → 1995-05 ended
AE101 5F SEG;AE100,104,CE100,104,EE101 LX,SEL,XE ¥460
55539-20020-P0 note Cover, Spare Switch Hole
1992-08 → —
AE100,104,CE100,104,EE101;AE101,CE106,107,EE102,106 (3FC,4F,5F) (CTD,DXJ,GT,SEG) ¥460
55539-20020-W3 note Cover, Spare Switch Hole
1991-06 → 1993-05 ended
AE101 5F SEG;AE100,104,CE100,104,EE101 LX,SEL,XE ¥460
55539K — Cover, Spare Switch Hole
55539-12120-B0 note Cover, Spare Switch Hole
1997-04 → —
AE109,CE10#,EE10# ¥440
55539-12120-B0 note Cover, Spare Switch Hole
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥440
55539-12120-J0 note Cover, Spare Switch Hole
1991-06 → 1993-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥440
55539-12120-K0 note Cover, Spare Switch Hole
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 LX,SEG,SEL,XE ¥440
58808 — Cover Sub-assy, Shifting Hole
58808-12110-K0 note Cover Sub-assy, Shifting Hole
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 MTM (LX,SEG,SEL,XE) ¥2,780
58808-12110-P0 note Cover Sub-assy, Shifting Hole
1991-06 → 1992-05 ended
AE10#,CE10#,EE10# MTM ¥2,780
58808-12110-W3 note Cover Sub-assy, Shifting Hole
1991-06 → 1992-05 ended
AE10#,CE100,104,EE101 MTM (LX,SEG,SEL,XE) ¥2,780
58808-12111-K0 note Cover Sub-assy, Shifting Hole
1992-05 → 1993-12 ended
AE10#,CE100,104,EE101 MTM (LX,SEG,SEL,XE) ¥2,780
58808-12111-P0 note Cover Sub-assy, Shifting Hole
1992-05 → 1993-12 ended
AE10#,CE10#,EE10# MTM ¥2,780
58808-12111-W3 note Cover Sub-assy, Shifting Hole
1992-05 → 1993-05 ended
AE10#,CE100,104,EE101 MTM (LX,SEG,SEL,XE) ¥2,780
58808-12112-K0 note Cover Sub-assy, Shifting Hole
1993-12 → 1995-05 ended
AE10#,CE100,104,EE101 MTM (LX,SEG,SEL,XE) ¥2,790
58808-12112-P0 note Cover Sub-assy, Shifting Hole
1993-12 → —
AE10#,CE10#,EE10# MTM ¥2,790
58843 — Bezel, Shifting Hole
58843-12060-K0 note Bezel, Shifting Hole
1991-06 → 1993-12 ended
AE10#,CE100,EE101 ATM (LX,SEG,SEL,XE) ¥1,160
58843-12060-P0 note Bezel, Shifting Hole
1991-06 → 1993-12 ended
AE10#,CE100,106,108,EE10# ATM ¥1,160
58843-12060-W3 note Bezel, Shifting Hole
1991-06 → 1993-05 ended
AE10#,CE100,EE101 ATM (LX,SEG,SEL,XE) ¥1,160
58843-12080-B0 note Bezel, Shifting Hole
1993-12 → 1997-04 ended
AE10#,CE100,106,108,EE10# ATM ¥1,180
58843-12080-K0 note Bezel, Shifting Hole
1993-12 → 1995-05 ended
AE10#,CE100,EE101 ATM (LX,SEG,SEL,XE) ¥1,180
58843-12090-B0 note Bezel, Shifting Hole
1997-04 → —
AE109,CE102,106,107,108,EE10# ATM ¥1,160
58901A — Box Sub-assy, Console, Rear
58901-12220-B0 note Box Sub-assy, Console, Rear
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 GT,LX,SEG,SEL,XE ¥23,500
58901-12220-J0 note Box Sub-assy, Console, Rear
1991-06 → 1993-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥23,500
58901-12220-K0 note Box Sub-assy, Console, Rear
1991-06 → 1995-05 ended
AE100,101,CE100,EE101 LX,SEG,SEL,XE ¥23,500
58901-12230-P0 note Box Sub-assy, Console, Rear
1991-06 → 1997-04 ended
AE100,CE100,106,108,EE10# CTD,DX,DXJ,L,XL ¥14,600
58901-12230-P0 note Box Sub-assy, Console, Rear
1997-04 → —
CE106,107,EE102,103 ¥14,600
58901-12250-B0 note Box Sub-assy, Console, Rear
1991-09 → 1995-05 ended
AE104,CE104 ¥23,500
58901-12250-J0 note Box Sub-assy, Console, Rear
1991-09 → 1993-05 ended
AE104,CE104 ¥23,500
58901-12250-K0 note Box Sub-assy, Console, Rear
1991-09 → 1995-05 ended
AE104,CE104 ¥23,500
58901-12260-P0 note Box Sub-assy, Console, Rear
1991-09 → —
AE109,CE105,109 ¥14,100
58901-12400-B0 note Box Sub-assy, Console, Rear
1997-04 → —
EE103 XL;CE106,108,EE104;EE102,103 (3FC,4F) (DX,DXJ) ¥23,200
58901-12400-B0 note Box Sub-assy, Console, Rear
2000-08 → —
EE102,103 5F (DX,DXJ) ¥23,200
58901-12400-B0 note Box Sub-assy, Console, Rear
1998-04 → —
CE102 ¥23,200
58901-12400-B0 note Box Sub-assy, Console, Rear
1998-04 → —
CE107 ¥23,200
58901-12410-B0 note Box Sub-assy, Console, Rear
1998-04 → —
CE105 ¥23,500
58901-12410-B0 note Box Sub-assy, Console, Rear
1997-04 → —
AE109,CE109 ¥23,500
58905 — Door Sub-assy, Console Compartment
58905-12110-B0 note Door Sub-assy, Console Compartment
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥9,300
58905-12110-J0 note Door Sub-assy, Console Compartment
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥9,300
58905-12110-K0 note Door Sub-assy, Console Compartment
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥9,300
58905-12120-B0 note Door Sub-assy, Console Compartment
1997-04 → —
AE109,CE10#,EE10# ¥3,510
58905-12120-B0 note Door Sub-assy, Console Compartment
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,XE ¥3,510
58905-12120-J0 note Door Sub-assy, Console Compartment
1991-06 → 1993-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥3,510
58905-12120-K0 note Door Sub-assy, Console Compartment
1991-06 → 1995-05 ended
AE100,104,CE100,104,EE101 LX,XE ¥3,510
58905-12130-B0 note Door Sub-assy, Console Compartment
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥14,000
58905-12130-B0 note Door Sub-assy, Console Compartment
1991-06 → 1995-05 ended
AE101 SEG ¥14,000
58905-12130-J0 note Door Sub-assy, Console Compartment
1991-06 → 1993-05 ended
AE101 SEG ¥16,100
58905-12130-K0 note Door Sub-assy, Console Compartment
1993-12 → 1994-07 ended
AE100,104,CE100,104 SEL ¥14,000
58905-12130-K0 note Door Sub-assy, Console Compartment
1991-06 → 1995-05 ended
AE101 SEG ¥14,000
58905-12131-B2 note Door Sub-assy, Console Compartment
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥14,900
58905-12131-K1 note Door Sub-assy, Console Compartment
1994-07 → 1995-04 ended
AE100,104,CE100,104 SEL ¥14,900
58905-12132-B1 note Door Sub-assy, Console Compartment
1994-08 → 1995-04 ended
AE100,104,CE100,104,EE101 LX ¥9,100
58907 — Hinge Sub-assy, Console Compartment Door
58907-12030 Hinge Sub-assy, Console Compartment Door
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥520
58908A — Lock Sub-assy, Console Compartment Door
58908-12020-B0 note Lock Sub-assy, Console Compartment Door
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥1,680
58908-12020-J0 note Lock Sub-assy, Console Compartment Door
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥1,680
58908-12020-K0 note Lock Sub-assy, Console Compartment Door
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥1,680
58908-32020 Lock Sub-assy, Console Compartment Door
1998-04 → —
AE109,CE10#,EE102,103 ¥1,320
58908-32020 Lock Sub-assy, Console Compartment Door
1997-04 → 1998-04 ended
AE109,CE10#,EE10# ¥1,320
58908-32020 Lock Sub-assy, Console Compartment Door
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,XE ¥1,320
58908-32020 note Lock Sub-assy, Console Compartment Door
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥1,320
58916 — Mat, Box Bottom
58916-12040 Mat, Box Bottom
1991-06 → 1994-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,SEL,XE ¥620
58953A — Door, Console Compartment, Upper
58953-12040-B0 note Door, Console Compartment, Upper
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥4,300
58953-12040-J0 note Door, Console Compartment, Upper
1991-06 → 1993-05 ended
AE100,104,CE100,104 SEL ¥4,300
58953-12040-K0 note Door, Console Compartment, Upper
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥4,300
58961A — Hinge, Console Compartment Door Male
58961-12080 Hinge, Console Compartment Door Male
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥660
58961-12090 Hinge, Console Compartment Door Male
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,XE ¥820
58961-12090 Hinge, Console Compartment Door Male
1997-04 → 1998-04 ended
AE109,CE10#,EE10# ¥820
58961-12090 Hinge, Console Compartment Door Male
1998-04 → —
AE109,CE10#,EE102,103 ¥820
58964 — Stopper, Console Compartment Door, NO.1
58964-12040 Stopper, Console Compartment Door, NO.1
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥390
58964-12040 Stopper, Console Compartment Door, NO.1
1998-04 → —
AE109,CE10#,EE102,103 ¥390
58964-12040 Stopper, Console Compartment Door, NO.1
1997-04 → 1998-04 ended
AE109,CE10#,EE10# ¥390
58964-12040 Stopper, Console Compartment Door, NO.1
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,XE ¥390
58965A — Stopper, Console Compartment Door, NO.2
58965-12040 Stopper, Console Compartment Door, NO.2
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 GT,LX,SEG,XE ¥390
58965-12040 Stopper, Console Compartment Door, NO.2
1991-06 → 1995-05 ended
AE100,104,CE100,104 SEL ¥390
58965-12040 Stopper, Console Compartment Door, NO.2
1997-04 → 1998-04 ended
AE109,CE10#,EE10# ¥390
58965-12040 Stopper, Console Compartment Door, NO.2
1998-04 → —
AE109,CE10#,EE102,103 ¥390
58995A — Bracket, Console Box Mounting, NO.1
58995-12080 Bracket, Console Box Mounting, NO.1
1991-06 → —
AE10#,CE10#,EE10# MTM ¥780
58996A — Bracket, Console Box Mounting, NO.2
58996-12090 Bracket, Console Box Mounting, NO.2
1991-06 → 1997-05 ended
AE100,109,CE100,106,108,109,EE10# CTD,DX,DXJ,L,XL ¥700
58996-12090 Bracket, Console Box Mounting, NO.2
1997-05 → —
AE109,CE105,106,107,109,EE102,103 ¥700
58997 — Bracket, Console Box Mounting, NO.3
58997-12080 Bracket, Console Box Mounting, NO.3
1997-04 → 1998-04 ended
AE109,CE10#,EE10# ¥1,650
58997-12080 Bracket, Console Box Mounting, NO.3
1998-04 → —
AE109,CE10#,EE102,103 ¥1,650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
