Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01

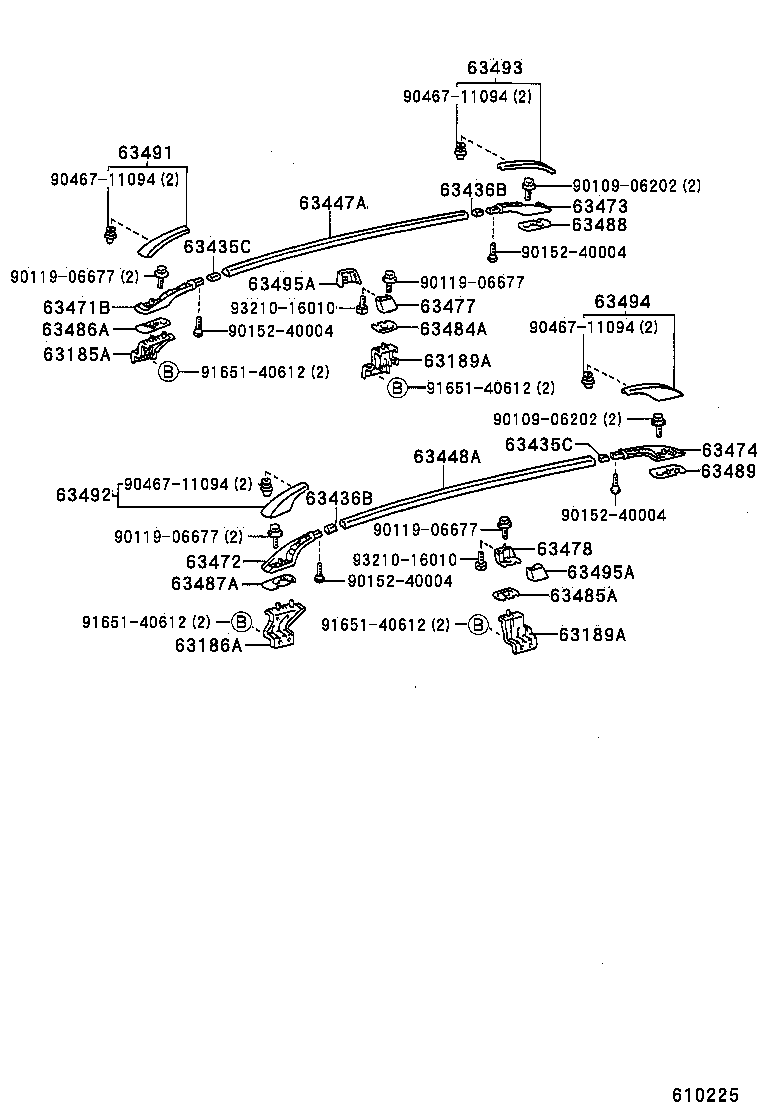

Exploded illustration 610225 63493 — COVER, ROOF RACK LEG, REAR RH (2 parts) 9046711094 — not listed in this catalogue 63491 — COVER, ROOF RACK LEG, FRONT RH (4 parts) 9046711094 — not listed in this catalogue 9010906202 — not listed in this catalogue 63436B — SEAL, ROOF CARRIER, NO.1 LH (1 parts) 63447A — ROOF RAIL, RH (2 parts) 63473 — LEG, ROOF RACK, REAR RH (1 parts) 63488 — CUSHION, ROOF RACK LEG, REAR RH (1 parts) 63435C — SEAL, ROOF CARRIER, NO.1 RH (1 parts) 9015240004 — not listed in this catalogue 9011906677 — not listed in this catalogue 63495A — COVER, ROOF RACK LEG, CENTER (8 parts) 9011906677 — not listed in this catalogue 63494 — COVER, ROOF RACK LEG, REAR LH (2 parts) 63477 — SUPPORT, ROOF RACK, CENTER RH (1 parts) 63471B — LEG, ROOF RACK, FRONT RH (1 parts) 9321016010 — not listed in this catalogue 9046711094 — not listed in this catalogue 63486A — CUSHION, ROOF RACK LEG, FRONT RH (1 parts) 63484A — CUSHION, ROOF RACK LEG, CENTER RH (1 parts) 9015240004 — not listed in this catalogue 63185A — BRACKET, ROOF RACK, FRONT RH (2 parts) 63189A — BRACKET, ROOF RACK, CENTER (4 parts) 9165140612 — not listed in this catalogue 9165140612 — not listed in this catalogue 9010906202 — not listed in this catalogue 63435C — SEAL, ROOF CARRIER, NO.1 RH (1 parts) 63474 — LEG, ROOF RACK, REAR LH (1 parts) 63448A — ROOF RAIL, LH (2 parts) 63489 — CUSHION, ROOF RACK LEG, REAR LH (1 parts) 9046711094 — not listed in this catalogue 63492 — COVER, ROOF RACK LEG, FRONT LH (2 parts) 63436B — SEAL, ROOF CARRIER, NO.1 LH (1 parts) 9015240004 — not listed in this catalogue 9011906677 — not listed in this catalogue 9011906677 — not listed in this catalogue 63478 — SUPPORT, ROOF RACK, CENTER LH (1 parts) 9321016010 — not listed in this catalogue 63472 — LEG, ROOF RACK, FRONT LH (1 parts) 63495A — COVER, ROOF RACK LEG, CENTER (8 parts) 9015240004 — not listed in this catalogue 63487A — CUSHION, ROOF RACK LEG, FRONT LH (1 parts) 63485A — CUSHION, ROOF RACK LEG, CENTER LH (1 parts) 9165140612 — not listed in this catalogue 9165140612 — not listed in this catalogue 63189A — BRACKET, ROOF RACK, CENTER (4 parts) 63186A — BRACKET, ROOF RACK, FRONT LH (2 parts)
610225 · 28 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
63185A — Bracket, Roof Rack, Front RH
63185-13020 Bracket, Roof Rack, Front RH
1994-01 → 1997-04 ended
CE108,EE104 ¥1,120
63185-13050 Bracket, Roof Rack, Front RH
1997-04 → —
CE102,108,EE104 ¥1,460
63186A — Bracket, Roof Rack, Front LH
63186-13020 note Bracket, Roof Rack, Front LH
1994-01 → 1997-04 ended
CE108,EE104 ¥1,120
63186-13050 Bracket, Roof Rack, Front LH
1997-04 → —
CE102,108,EE104 ¥1,460
63189A — Bracket, Roof Rack, Center
63189-13020 note Bracket, Roof Rack, Center
1994-01 → 1997-04 ended
CE108,EE104 ¥1,020
63189-13050 note Bracket, Roof Rack, Center
1997-04 → —
CE102,108,EE104 ¥1,410
63199-13020 note Bracket, Roof Rack, Center
1994-01 → 1997-04 ended
CE108,EE104 ¥1,020
63199-13040 note Bracket, Roof Rack, Center
1997-04 → —
CE102,108,EE104 ¥1,410
63435C — Seal, Roof Carrier, NO.1 RH
63435-13020 Seal, Roof Carrier, NO.1 RH
1994-01 → 1997-05 ended
CE108,EE104 ¥380
63436B — Seal, Roof Carrier, NO.1 LH
63436-13030 Seal, Roof Carrier, NO.1 LH
1994-01 → 1997-05 ended
CE108,EE104 ¥380
63447A — Roof Rail, RH
63447-13030 Roof Rail, RH
1994-01 → 1997-04 ended
CE108,EE104 ¥8,500
63460-13060 Roof Rail, RH
1997-04 → —
CE102,108,EE104 ¥28,700
63448A — Roof Rail, LH
63448-13030 Roof Rail, LH
1994-01 → 1997-04 ended
CE108,EE104 ¥8,500
63470-13060 Roof Rail, LH
1997-04 → —
CE102,108,EE104 ¥28,700
63471B — Leg, Roof Rack, Front RH
63471-13020 Leg, Roof Rack, Front RH
1994-01 → 1997-05 ended
CE108,EE104 ¥4,680
63472 — Leg, Roof Rack, Front LH
63472-13020 Leg, Roof Rack, Front LH
1994-01 → 1997-05 ended
CE108,EE104 ¥4,680
63473 — Leg, Roof Rack, Rear RH
63473-13030 Leg, Roof Rack, Rear RH
1994-01 → 1997-05 ended
CE108,EE104 ¥4,680
63474 — Leg, Roof Rack, Rear LH
63474-13030 Leg, Roof Rack, Rear LH
1994-01 → 1997-05 ended
CE108,EE104 ¥4,680
63477 — Support, Roof Rack, Center RH
63477-13030 Support, Roof Rack, Center RH
1994-01 → 1997-05 ended
CE108,EE104 ¥1,600
63478 — Support, Roof Rack, Center LH
63478-13030 Support, Roof Rack, Center LH
1994-01 → 1997-05 ended
CE108,EE104 ¥1,600
63484A — Cushion, Roof Rack Leg, Center RH
63484-13020 Cushion, Roof Rack Leg, Center RH
1994-01 → 1997-05 ended
CE108,EE104 ¥330
63485A — Cushion, Roof Rack Leg, Center LH
63485-13020 Cushion, Roof Rack Leg, Center LH
1994-01 → 1997-05 ended
CE108,EE104 ¥330
63486A — Cushion, Roof Rack Leg, Front RH
63486-13020 Cushion, Roof Rack Leg, Front RH
1994-01 → 1997-05 ended
CE108,EE104 ¥510
63487A — Cushion, Roof Rack Leg, Front LH
63487-13020 Cushion, Roof Rack Leg, Front LH
1994-01 → 1997-05 ended
CE108,EE104 ¥510
63488 — Cushion, Roof Rack Leg, Rear RH
63488-13030 Cushion, Roof Rack Leg, Rear RH
1994-01 → 1997-05 ended
CE108,EE104 ¥500
63489 — Cushion, Roof Rack Leg, Rear LH
63489-13030 Cushion, Roof Rack Leg, Rear LH
1994-01 → 1997-05 ended
CE108,EE104 ¥320
63491 — Cover, Roof Rack Leg, Front RH
63491-13020 Cover, Roof Rack Leg, Front RH
1994-01 → 1994-09 ended
CE108,EE104 ¥1,810
63491-13020 note Cover, Roof Rack Leg, Front RH
1994-09 → 1995-09 ended
CE108,EE104 ¥1,810
63491-13020 Cover, Roof Rack Leg, Front RH
1995-09 → 1997-04 ended
CE108,EE104 ¥1,810
63491-13050 Cover, Roof Rack Leg, Front RH
1997-04 → —
CE102,108,EE104 ¥1,810
63492 — Cover, Roof Rack Leg, Front LH
63492-13020 Cover, Roof Rack Leg, Front LH
1994-01 → 1997-04 ended
CE108,EE104 ¥1,810
63492-13050 Cover, Roof Rack Leg, Front LH
1997-04 → —
CE102,108,EE104 ¥1,810
63493 — Cover, Roof Rack Leg, Rear RH
63493-13030 Cover, Roof Rack Leg, Rear RH
1994-01 → 1997-04 ended
CE108,EE104 ¥1,800
63493-13060 Cover, Roof Rack Leg, Rear RH
1997-04 → —
CE102,108,EE104 ¥1,810
63494 — Cover, Roof Rack Leg, Rear LH
63494-13030 Cover, Roof Rack Leg, Rear LH
1994-01 → 1997-04 ended
CE108,EE104 ¥1,800
63494-13060 Cover, Roof Rack Leg, Rear LH
1997-04 → —
CE102,108,EE104 ¥1,810
63495A — Cover, Roof Rack Leg, Center
63495-13020 note Cover, Roof Rack Leg, Center
1994-01 → 1994-09 ended
CE108,EE104 ¥760
63495-13020 note Cover, Roof Rack Leg, Center
1994-09 → 1995-09 ended
CE108,EE104 ¥760
63495-13020 note Cover, Roof Rack Leg, Center
1995-09 → 1997-04 ended
CE108,EE104 ¥760
63495-13050 note Cover, Roof Rack Leg, Center
1997-04 → —
CE102,108,EE104 ¥760
63496-13020 note Cover, Roof Rack Leg, Center
1994-01 → 1994-09 ended
CE108,EE104 ¥760
63496-13020 note Cover, Roof Rack Leg, Center
1994-09 → 1995-09 ended
CE108,EE104 ¥760
63496-13020 note Cover, Roof Rack Leg, Center
1995-09 → 1997-04 ended
CE108,EE104 ¥760
63496-13050 note Cover, Roof Rack Leg, Center
1997-04 → —
CE102,108,EE104 ¥760
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
