Toyota Sprinter
1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan
Discontinued model
Data version 2003-01

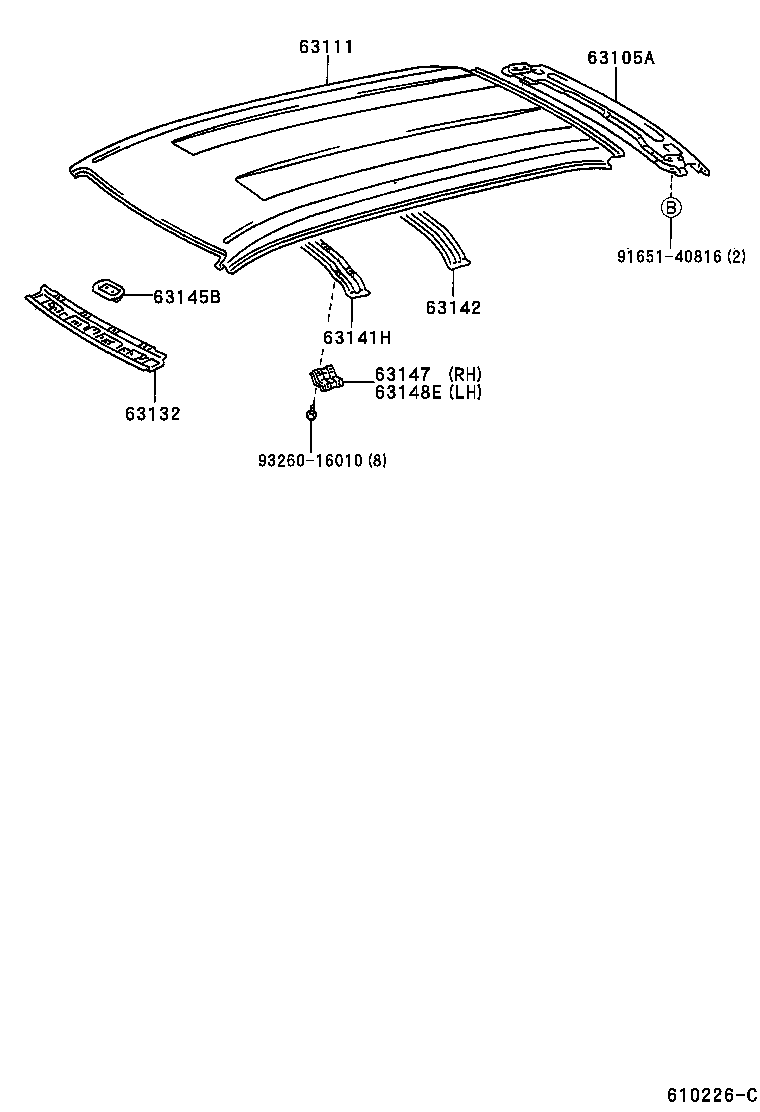

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63105A — Frame Sub-assy, Back Door Opening | ||||
| 63105-13070 |
Frame Sub-assy, Back Door Opening
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥7,500 | |
| 63105-13120 note |
Frame Sub-assy, Back Door Opening
1994-01 → —
|
CE102,108,EE104 | ¥7,900 | |
| 63111 — Panel, Roof | ||||
| 63111-12550 |
Panel, Roof
1991-06 → 1993-05
ended
|
AE10#,CE100,104,EE101 GT,SEG,SEL,XE | ¥30,500 | |
| 63111-12550 |
Panel, Roof
1993-05 → 1995-05
ended
|
AE10#,CE100,104 GT,SEG,SEL | ¥30,500 | |
| 63111-12921 |
Panel, Roof
1991-06 → 1993-05
ended
|
AE100,104,CE100,104,EE101 DX,LX | ¥30,500 | |
| 63111-12921 |
Panel, Roof
1993-05 → 1995-05
ended
|
AE100,104,CE100,104,EE101 DX,LX,XE | ¥30,500 | |
| 63111-13170 note |
Panel, Roof
1994-01 → 2000-08
ended
|
CE102,108,EE104 | ¥50,200 | |
| 63111-13171 note |
Panel, Roof
2000-08 → —
|
CE102,EE104 | ¥50,200 | |
| 63111-13190 |
Panel, Roof
1991-09 → 2000-08
ended
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥50,800 | |
| 63111-13191 |
Panel, Roof
2000-08 → —
|
AE109,CE10#,EE10# | ¥50,800 | |
| 63132 — Panel, Windshield Header, Inner | ||||
| 63102-13020 |
Panel, Windshield Header, Inner
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥3,510 | |
| 63132-12180 |
Panel, Windshield Header, Inner
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥4,230 | |
| 63141H — Reinforcement, Roof Panel, Center | ||||
| 63141-12170 |
Reinforcement, Roof Panel, Center
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥3,590 | |
| 63141-13060 |
Reinforcement, Roof Panel, Center
1991-09 → 2000-08
ended
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥4,240 | |
| 63141-13061 |
Reinforcement, Roof Panel, Center
2000-08 → —
|
AE109,CE10#,EE10# | ¥4,770 | |
| 63142 — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-13050 |
Reinforcement, Roof Panel, NO.2
1991-09 → —
|
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 | ¥4,240 | |
| 63145B — Reinforcement, Windshield Header Panel | ||||
| 63145-12100 |
Reinforcement, Windshield Header Panel
1991-06 → 1995-05
ended
|
AE10#,CE100,104,EE101 | ¥920 | |
| 63145-12100 |
Reinforcement, Windshield Header Panel
1997-04 → —
|
AE109,CE10#,EE10# | ¥920 | |
| 63147 — Bracket, Roof Panel Reinforcement | ||||
| 63147-13010 |
Bracket, Roof Panel Reinforcement
2000-08 → —
|
AE109,CE10#,EE10# | ¥910 | |
| 63148E — Bracket, Roof Panel Reinforcement, LH | ||||
| 63147-13010 |
Bracket, Roof Panel Reinforcement, LH
2000-08 → 2000-09
ended
|
AE109,CE10#,EE10# | ¥910 | |
| 63148-13050 |
Bracket, Roof Panel Reinforcement, LH
2000-09 → —
|
AE109,CE10#,EE10# | ¥910 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
