Toyota Sprinter

1991-06 → 2002-06 · chassis AE10#,CE10#,EE10# · catalogue 152130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

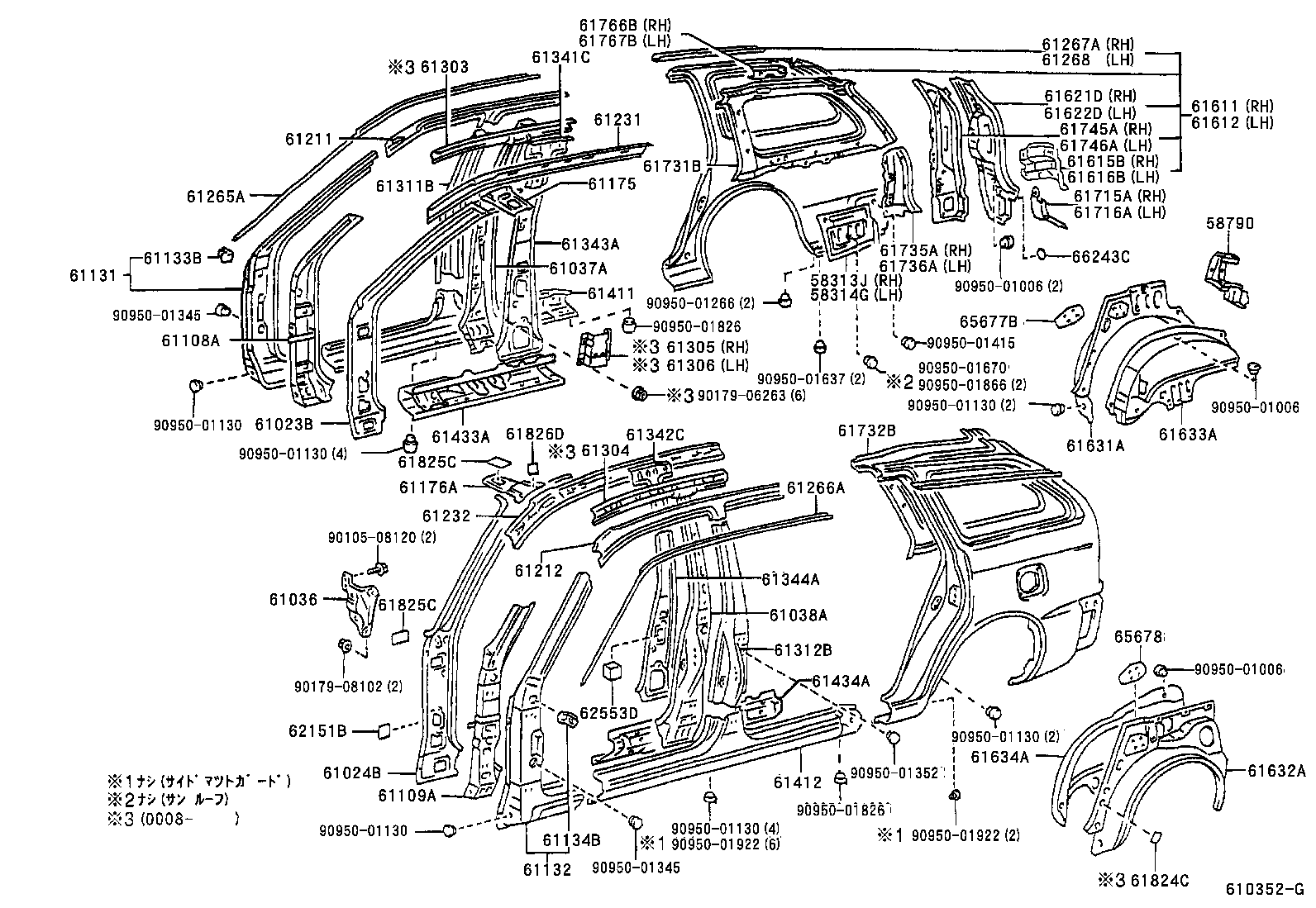

Exploded illustration 610352G 61766B — REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH (1 parts) 61767B — REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH (1 parts) 61267A — CHANNEL, ROOF DRIP SIDE, REAR RH (2 parts) 61341C — PILLAR, CENTER BODY, INNER UPPER RH (3 parts) 61268 — CHANNEL, ROOF DRIP SIDE, REAR LH (2 parts) 61303 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH (1 parts) 61621D — TROUGH, BACK DOOR OPENING, RH (1 parts) 61611 — PANEL, QUARTER, RH (6 parts) 61622D — TROUGH, BACK DOOR OPENING, LH (1 parts) 61231 — RAIL, ROOF SIDE, INNER RH (7 parts) 61612 — PANEL, QUARTER, LH (6 parts) 61745A — REINFORCEMENT, BACK DOOR OPENING, LOWER RH (1 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (2 parts) 61746A — REINFORCEMENT, BACK DOOR OPENING, LOWER LH (1 parts) 61615B — REINFORCEMENT, QUARTER PANEL, OUTER FRONT (1 parts) 61731B — PANEL, ROOF SIDE, INNER RH (5 parts) 61616B — REINFORCEMENT, QUARTER PANEL, OUTER REAR (1 parts) 61175 — REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH (2 parts) 61311B — PILLAR, CENTER BODY, OUTER RH (2 parts) 61715A — EXTENSION, ROOF SIDE, INNER UPPER RH (1 parts) 61265A — CHANNEL, ROOF DRIP SIDE, CENTER RH (2 parts) 61716A — EXTENSION, ROOF SIDE, INNER UPPER LH (1 parts) 58790 — CARRIER ASSY, JACK (1 parts) 61343A — PILLAR, CENTER BODY, INNER RH (3 parts) 61735A — PANEL, ROOF SIDE, INNER REAR RH (2 parts) 66243C — PROTECTOR, REAR BODY, NO.1 (2 parts) 61133B — BRACKET, FRONT BODY PILLAR ,OUTER RH (2 parts) 61736A — PANEL, ROOF SIDE, INNER REAR LH (2 parts) 61037A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH (3 parts) 61131 — PILLAR, FRONT BODY, UPPER OUTER RH (3 parts) 58313J — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH (2 parts) 9095001006 — not listed in this catalogue 61411 — PANEL, ROCKER, OUTER RH (4 parts) 58314G — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH (2 parts) 9095001266 — not listed in this catalogue 9095001345 — not listed in this catalogue 65677B — PATCH, WHEEL HOUSE, REAR RH (2 parts) 9095001826 — not listed in this catalogue 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (2 parts) 9095001415 — not listed in this catalogue 61305 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH (1 parts) 61306 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH (1 parts) 9095001670 — not listed in this catalogue 9095001637 — not listed in this catalogue 9095001866 — not listed in this catalogue 9017906263 — not listed in this catalogue 9095001130 — not listed in this catalogue 9095001006 — not listed in this catalogue 61023B — PILLAR SUB-ASSY, FRONT BODY, INNER RH (5 parts) 9095001130 — not listed in this catalogue 61732B — PANEL, ROOF SIDE, INNER LH (6 parts) 61826D — PLATE, NOISE CONTROL, NO.3 (2 parts) 61342C — PILLAR, CENTER BODY, INNER UPPER LH (3 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (5 parts) 61433A — REINFORCEMENT, ROCKER PANEL, OUTER RH (1 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (2 parts) 61304 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH (1 parts) 9095001130 — not listed in this catalogue 61825C — PAD, NOISE SHUTTER, NO.2 (5 parts) 61176A — REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH (2 parts) 61266A — CHANNEL, ROOF DRIP SIDE, CENTER LH (2 parts) 61232 — RAIL, ROOF SIDE, INNER LH (5 parts) 9010508120 — not listed in this catalogue 61212 — RAIL, ROOF SIDE, OUTER LH (2 parts) 61344A — PILLAR, CENTER BODY, INNER LH (3 parts) 61036 — BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH (2 parts) 61825C — PAD, NOISE SHUTTER, NO.2 (5 parts) 61038A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH (3 parts) 65678 — PATCH, WHEEL HOUSE, REAR LH (2 parts) 61312B — PILLAR, CENTER BODY, OUTER LH (2 parts) 9095001006 — not listed in this catalogue 61434A — REINFORCEMENT, ROCKER PANEL, OUTER LH (1 parts) 9017908102 — not listed in this catalogue 62553D — PAD, PILLAR, NO.3 (5 parts) 62151B — PAD, COWL SIDE SILENCER (2 parts) 9095001130 — not listed in this catalogue 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (5 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (2 parts) 61024B — PILLAR SUB-ASSY, FRONT BODY, INNER LH (2 parts) 9095001352 — not listed in this catalogue 61412 — PANEL, ROCKER, OUTER LH (4 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (2 parts) 9095001826 — not listed in this catalogue 9095001130 — not listed in this catalogue 9095001130 — not listed in this catalogue 9095001922 — not listed in this catalogue 61134B — BRACKET, FRONT BODY PILLAR OUTER, LH (2 parts) 9095001922 — not listed in this catalogue 9095001345 — not listed in this catalogue 61132 — PILLAR, FRONT BODY, UPPER OUTER LH (3 parts) 61824C — PAD, NOISE SHUTTER, NO.1 (1 parts)
610352G · 67 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
164 parts on this figure
Part number Description Fitment Price
58313J — Extension, Rear Floor Pan TO Quarter Panel, RH
58313-13110 Extension, Rear Floor Pan TO Quarter Panel, RH
1991-09 → 1996-10 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥3,880
58313-13111 Extension, Rear Floor Pan TO Quarter Panel, RH
1996-10 → —
AE109,CE10#,EE10# ¥3,880
58314G — Extension, Rear Floor Pan TO Quarter Panel, LH
58314-13100 Extension, Rear Floor Pan TO Quarter Panel, LH
1991-09 → 1996-10 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥3,260
58314-13101 Extension, Rear Floor Pan TO Quarter Panel, LH
1996-10 → —
AE109,CE10#,EE10# ¥3,260
58790 — Carrier Assy, Jack
58790-13020 Carrier Assy, Jack
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,090
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-12110 Pillar Sub-assy, Front Body, Inner RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥21,500
61023-12140 Pillar Sub-assy, Front Body, Inner RH
1991-09 → 1995-05 ended
CE106,108,109,EE106,107,108 ¥44,000
61023-12140 Pillar Sub-assy, Front Body, Inner RH
1995-05 → —
AE109,CE10#,EE10# ¥44,000
61023-12160 note Pillar Sub-assy, Front Body, Inner RH
1991-06 → 1993-08 ended
AE100,104 4FC SEL ¥21,200
61023-12160 note Pillar Sub-assy, Front Body, Inner RH
1993-08 → 1994-02 ended
AE100,104 ATM (LX,SEL) ¥21,200
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-12110 Pillar Sub-assy, Front Body, Inner LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥21,200
61024-12140 Pillar Sub-assy, Front Body, Inner LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥44,000
61036 — Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61036-12050 Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
1991-06 → 1995-05 ended
AE10#,CE10#,EE10# ¥2,870
61036-12090 Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
1995-05 → —
AE109,CE10#,EE10# ¥2,870
61037A — Reinforcement Sub-assy, Center Body Pillar, RH
61037-12050 Reinforcement Sub-assy, Center Body Pillar, RH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥10,200
61037-12060 Reinforcement Sub-assy, Center Body Pillar, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥10,100
61037-13020 Reinforcement Sub-assy, Center Body Pillar, RH
2000-08 → —
AE109,CE10#,EE10# ¥19,000
61038A — Reinforcement Sub-assy, Center Body Pillar, LH
61038-12050 Reinforcement Sub-assy, Center Body Pillar, LH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥10,200
61038-12060 Reinforcement Sub-assy, Center Body Pillar, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥10,100
61038-13020 Reinforcement Sub-assy, Center Body Pillar, LH
2000-08 → —
AE109,CE10#,EE10# ¥18,700
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-12110 Reinforce Sub-assy, Front Body Pillar, Lower RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥9,200
61108-12120 Reinforce Sub-assy, Front Body Pillar, Lower RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥9,200
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-12100 Reinforce Sub-assy, Front Body Pillar, Lower LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥9,200
61109-12110 Reinforce Sub-assy, Front Body Pillar, Lower LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥9,200
61131 — Pillar, Front Body, Upper Outer RH
61131-12350 Pillar, Front Body, Upper Outer RH
1991-09 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥21,300
61131-12370 Pillar, Front Body, Upper Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥21,200
61131-13020 Pillar, Front Body, Upper Outer RH
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥21,300
61132 — Pillar, Front Body, Upper Outer LH
61132-12360 Pillar, Front Body, Upper Outer LH
1991-09 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥21,300
61132-12380 Pillar, Front Body, Upper Outer LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥21,200
61132-13020 Pillar, Front Body, Upper Outer LH
1997-04 → 2002-06 ended
AE109,CE10#,EE10# ¥21,300
61133B — Bracket, Front Body Pillar ,Outer RH
61133-12190 Bracket, Front Body Pillar ,Outer RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥410
61133-12240 Bracket, Front Body Pillar ,Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥390
61134B — Bracket, Front Body Pillar Outer, LH
61133-12190 Bracket, Front Body Pillar Outer, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥410
61134-12210 Bracket, Front Body Pillar Outer, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥480
61175 — Reinforcement, Front Body Pillar, Inner NO.2 RH
61175-12080 Reinforcement, Front Body Pillar, Inner NO.2 RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,460
61175-12090 Reinforcement, Front Body Pillar, Inner NO.2 RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥1,440
61176A — Reinforcement, Front Body Pillar, Inner NO.2 LH
61176-12080 Reinforcement, Front Body Pillar, Inner NO.2 LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,460
61176-12090 Reinforcement, Front Body Pillar, Inner NO.2 LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥1,440
61211 — Rail, Roof Side, Outer RH
61211-12300 Rail, Roof Side, Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥7,800
61211-13050 Rail, Roof Side, Outer RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥5,100
61212 — Rail, Roof Side, Outer LH
61212-12300 Rail, Roof Side, Outer LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥7,800
61212-13050 Rail, Roof Side, Outer LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥5,100
61231 — Rail, Roof Side, Inner RH
61231-12720 note Rail, Roof Side, Inner RH
1991-06 → 1993-08 ended
AE100,104 4FC SEL ¥7,800
61231-12720 note Rail, Roof Side, Inner RH
1993-08 → 1995-05 ended
AE100,104 ATM (LX,SEL) ¥7,800
61231-12760 Rail, Roof Side, Inner RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,100
61231-13130 Rail, Roof Side, Inner RH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥4,290
61231-13131 Rail, Roof Side, Inner RH
2000-08 → —
AE109,CE10#,EE10# ¥4,290
61231-13180 note Rail, Roof Side, Inner RH
1994-01 → 2000-08 ended
CE102,108,EE104 ¥6,700
61231-13181 note Rail, Roof Side, Inner RH
2000-08 → —
CE102,EE104 ¥6,700
61232 — Rail, Roof Side, Inner LH
61232-12600 Rail, Roof Side, Inner LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥7,800
61232-13110 Rail, Roof Side, Inner LH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥4,290
61232-13111 Rail, Roof Side, Inner LH
2000-08 → —
AE109,CE10#,EE10# ¥4,290
61232-13160 note Rail, Roof Side, Inner LH
1994-01 → 2000-08 ended
CE102,108,EE104 ¥6,700
61232-13161 note Rail, Roof Side, Inner LH
2000-08 → —
CE102,EE104 ¥6,700
61265A — Channel, Roof Drip Side, Center RH
61265-12190 Channel, Roof Drip Side, Center RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,280
61265-13030 Channel, Roof Drip Side, Center RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,120
61266A — Channel, Roof Drip Side, Center LH
61266-12190 Channel, Roof Drip Side, Center LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,280
61266-13030 Channel, Roof Drip Side, Center LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,120
61267A — Channel, Roof Drip Side, Rear RH
61267-12140 Channel, Roof Drip Side, Rear RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥1,380
61267-13040 Channel, Roof Drip Side, Rear RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,000
61268 — Channel, Roof Drip Side, Rear LH
61268-12140 Channel, Roof Drip Side, Rear LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥1,380
61268-13040 Channel, Roof Drip Side, Rear LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,000
61303 — Reinforce Sub-assy, Center Body Pillar, Upper RH
61303-13010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2000-08 → —
AE109,CE10#,EE10# ¥17,000
61304 — Reinforce Sub-assy, Center Body Pillar, Upper LH
61304-13010 Reinforce Sub-assy, Center Body Pillar, Upper LH
2000-08 → —
AE109,CE10#,EE10# ¥17,000
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-13010 Reinforce Sub-assy, Center Body Pillar, Lower RH
2000-08 → 2002-06 ended
AE109,CE10#,EE10# ¥2,160
61306 — Reinforce Sub-assy, Center Body Pillar, Lower LH
61306-13010 Reinforce Sub-assy, Center Body Pillar, Lower LH
2000-08 → 2002-06 ended
AE109,CE10#,EE10# ¥2,160
61311B — Pillar, Center Body, Outer RH
61311-12190 Pillar, Center Body, Outer RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥16,900
61311-12200 Pillar, Center Body, Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥22,400
61312B — Pillar, Center Body, Outer LH
61312-12230 Pillar, Center Body, Outer LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥16,900
61312-12240 Pillar, Center Body, Outer LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥22,400
61341C — Pillar, Center Body, Inner Upper RH
61341-12090 Pillar, Center Body, Inner Upper RH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,880
61341-12100 Pillar, Center Body, Inner Upper RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,430
61341-12130 Pillar, Center Body, Inner Upper RH
2000-08 → —
AE109,CE10#,EE10# ¥3,640
61342C — Pillar, Center Body, Inner Upper LH
61342-12090 Pillar, Center Body, Inner Upper LH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,880
61342-12100 Pillar, Center Body, Inner Upper LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥3,430
61342-12130 Pillar, Center Body, Inner Upper LH
2000-08 → —
AE109,CE10#,EE10# ¥3,640
61343A — Pillar, Center Body, Inner RH
61343-12090 Pillar, Center Body, Inner RH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,840
61343-12100 Pillar, Center Body, Inner RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥4,050
61343-12200 Pillar, Center Body, Inner RH
2000-08 → —
AE109,CE10#,EE10# ¥17,000
61344A — Pillar, Center Body, Inner LH
61344-12090 Pillar, Center Body, Inner LH
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥4,050
61344-12100 Pillar, Center Body, Inner LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥4,050
61344-12200 Pillar, Center Body, Inner LH
2000-08 → —
AE109,CE10#,EE10# ¥17,000
61411 — Panel, Rocker, Outer RH
61411-12530 Panel, Rocker, Outer RH
1991-09 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥15,200
61411-12540 Panel, Rocker, Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥15,400
61411-13020 Panel, Rocker, Outer RH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥15,300
61411-13030 Panel, Rocker, Outer RH
2000-08 → —
AE109,CE10#,EE10# ¥15,200
61412 — Panel, Rocker, Outer LH
61412-12520 Panel, Rocker, Outer LH
1991-09 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥15,200
61412-12530 Panel, Rocker, Outer LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥15,400
61412-13020 Panel, Rocker, Outer LH
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥15,300
61412-13030 Panel, Rocker, Outer LH
2000-08 → —
AE109,CE10#,EE10# ¥15,200
61433A — Reinforcement, Rocker Panel, Outer RH
61401-13010 Reinforcement, Rocker Panel, Outer RH
2000-08 → —
AE109,CE10#,EE10# ¥25,800
61434A — Reinforcement, Rocker Panel, Outer LH
61402-13010 Reinforcement, Rocker Panel, Outer LH
2000-08 → —
AE109,CE10#,EE10# ¥25,800
61611 — Panel, Quarter, RH
61601-13370 note Panel, Quarter, RH
1992-01 → 1997-04 ended
CE106,EE102,106 MTM DX ¥55,300
61601-13371 note Panel, Quarter, RH
1997-08 → —
AE109,EE103 ATM DX;CE106,107,EE102 (4F,4FC,5F) +1 ¥55,300
61601-13371 note Panel, Quarter, RH
1997-04 → 1997-08 ended
CE106,EE102 MTM DX ¥55,300
61601-13400 Panel, Quarter, RH
1991-09 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥55,300
61601-13401 Panel, Quarter, RH
1997-04 → —
AE109,CE10#,EE10# ¥55,300
61601-1E916 Panel, Quarter, RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥42,000
61612 — Panel, Quarter, LH
61602-13460 note Panel, Quarter, LH
1992-01 → 1997-04 ended
CE106,EE102,106 MTM DX ¥55,300
61602-13461 note Panel, Quarter, LH
1997-04 → 1997-08 ended
CE106,EE102 MTM DX ¥55,300
61602-13461 note Panel, Quarter, LH
1997-08 → —
AE109,EE103 ATM DX;CE106,107,EE102 (4F,4FC,5F) +1 ¥55,300
61602-13480 Panel, Quarter, LH
1991-09 → 1997-04 ended
AE109,CE106,108,109,EE102,103,104,106,107,108 ¥55,300
61602-13481 Panel, Quarter, LH
1997-04 → —
AE109,CE10#,EE10# ¥55,300
61602-1E925 Panel, Quarter, LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥42,000
61615B — Reinforcement, Quarter Panel, Outer Front
61615-13020 Reinforcement, Quarter Panel, Outer Front
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,090
61616B — Reinforcement, Quarter Panel, Outer Rear
61616-13010 Reinforcement, Quarter Panel, Outer Rear
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥2,090
61621D — Trough, Back Door Opening, RH
61621-13020 Trough, Back Door Opening, RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,840
61622D — Trough, Back Door Opening, LH
61622-13020 Trough, Back Door Opening, LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥3,840
61631A — Panel, Quarter Wheel House, Outer RH
61631-12210 Panel, Quarter Wheel House, Outer RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥11,700
61631-13070 Panel, Quarter Wheel House, Outer RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥11,700
61632A — Panel, Quarter Wheel House, Outer LH
61632-12210 Panel, Quarter Wheel House, Outer LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥11,700
61632-13060 Panel, Quarter Wheel House, Outer LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥11,700
61633A — Panel, Quarter Wheel House, Inner RH
61607-12918 Panel, Quarter Wheel House, Inner RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE ¥25,400
61607-12919 Panel, Quarter Wheel House, Inner RH
1991-06 → 1995-05 ended
AE101 GT ¥25,400
61607-13070 Panel, Quarter Wheel House, Inner RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥11,700
61607-13120 note Panel, Quarter Wheel House, Inner RH
1992-01 → 2000-08 ended
CE106,EE102,106 MTM DX ¥11,700
61607-13120 note Panel, Quarter Wheel House, Inner RH
1997-08 → —
CE107,EE102 (4FC,5F) DX;AE109,CE106,EE103 ATM +1 ¥11,700
61634A — Panel, Quarter Wheel House, Inner LH
61608-12916 Panel, Quarter Wheel House, Inner LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 DX,LX,SEG,SEL,XE ¥25,400
61608-12917 Panel, Quarter Wheel House, Inner LH
1991-06 → 1995-05 ended
AE101 GT ¥25,400
61608-13070 Panel, Quarter Wheel House, Inner LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥11,700
61608-13120 note Panel, Quarter Wheel House, Inner LH
1992-01 → 2000-08 ended
CE106,EE102,106 MTM DX ¥11,700
61608-13120 note Panel, Quarter Wheel House, Inner LH
1997-08 → —
CE107,EE102 (4FC,5F) DX;AE109,CE106,EE103 ATM +1 ¥11,700
61715A — Extension, Roof Side, Inner Upper RH
61715-13020 Extension, Roof Side, Inner Upper RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥860
61716A — Extension, Roof Side, Inner Upper LH
61716-13010 Extension, Roof Side, Inner Upper LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥860
61731B — Panel, Roof Side, Inner RH
61731-12911 Panel, Roof Side, Inner RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥7,000
61731-13260 Panel, Roof Side, Inner RH
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 ¥12,400
61731-13300 Panel, Roof Side, Inner RH
1991-09 → —
CE102,108,EE104,108 ¥12,400
61731-13330 note Panel, Roof Side, Inner RH
1994-01 → —
CE108,EE104 ¥12,100
61731-13330 note Panel, Roof Side, Inner RH
1998-04 → —
CE102 ¥12,100
61732B — Panel, Roof Side, Inner LH
61732-12911 Panel, Roof Side, Inner LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥7,000
61732-13260 Panel, Roof Side, Inner LH
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 ¥12,400
61732-13310 Panel, Roof Side, Inner LH
1991-09 → —
CE102,108,EE104,108 ¥12,400
61732-13330 note Panel, Roof Side, Inner LH
1991-09 → 1994-01 ended
EE106 4F ¥12,300
61732-13340 note Panel, Roof Side, Inner LH
1994-01 → —
CE108,EE104 ¥12,100
61732-13340 note Panel, Roof Side, Inner LH
1998-04 → —
CE102 ¥12,100
61735A — Panel, Roof Side, Inner Rear RH
61735-12905 Panel, Roof Side, Inner Rear RH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,600
61735-13060 Panel, Roof Side, Inner Rear RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥4,140
61736A — Panel, Roof Side, Inner Rear LH
61736-12906 Panel, Roof Side, Inner Rear LH
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥5,600
61736-13060 Panel, Roof Side, Inner Rear LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥4,140
61745A — Reinforcement, Back Door Opening, Lower RH
61745-13070 Reinforcement, Back Door Opening, Lower RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥6,000
61746A — Reinforcement, Back Door Opening, Lower LH
61746-13070 Reinforcement, Back Door Opening, Lower LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥5,800
61766B — Reinforcement, Belt Anchor TO Roof Side, Inner RH
61766-13060 Reinforcement, Belt Anchor TO Roof Side, Inner RH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,590
61767B — Reinforcement, Belt Anchor TO Roof Side, Inner LH
61767-13050 Reinforcement, Belt Anchor TO Roof Side, Inner LH
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥1,590
61824C — Pad, Noise Shutter, NO.1
61824-12040 Pad, Noise Shutter, NO.1
2000-08 → —
EE102,103 5F (DX,DXJ) ¥220
61825C — Pad, Noise Shutter, NO.2
61815-32020 Pad, Noise Shutter, NO.2
1991-09 → 1994-01 ended
CE106,108,109,EE106,107,108 ¥760
61815-32020 Pad, Noise Shutter, NO.2
1998-04 → —
EE103 5F DX;CE10#,EE102 4FC,5F ¥760
61815-32020 Pad, Noise Shutter, NO.2
1994-01 → —
EE103 XL;AE109,CE106,108,109,EE104;EE102,103 (3FC,4F) (DX,DXJ) ¥760
61825-12010 Pad, Noise Shutter, NO.2
1991-06 → 1994-01 ended
AE10#,CE100,104,EE101 ¥190
61825-12010 Pad, Noise Shutter, NO.2
1994-01 → 1995-05 ended
AE10#,CE100,104,EE101 ¥190
61826D — Plate, Noise Control, NO.3
61824-12040 note Plate, Noise Control, NO.3
1991-06 → 1994-01 ended
AE10#,CE10#,EE10# ¥220
61827-12030 note Plate, Noise Control, NO.3
1991-08 → 1995-05 ended
AE10#,CE100,104,EE101 ¥200
62151B — Pad, Cowl Side Silencer
62151-12130 note Pad, Cowl Side Silencer
1997-04 → 2000-08 ended
AE109,CE10#,EE10# ¥1,090
62553-12120 Pad, Cowl Side Silencer
1997-04 → —
AE109,CE10#,EE10# ¥160
62553D — Pad, Pillar, NO.3
61667-12050 note Pad, Pillar, NO.3
1992-05 → —
EE103 XL;EE102,103 (3FC,4F) (DX,DXJ);AE109,CE106,108,109,EE104,106,107,108 ¥380
62151-12130 note Pad, Pillar, NO.3
1991-06 → 2000-08 ended
AE100,101,104,CE100,102,104,105,107,EE101 ¥1,090
62553-12120 note Pad, Pillar, NO.3
1991-09 → 2000-08 ended
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥160
62553-12120 Pad, Pillar, NO.3
2000-08 → —
AE109,CE10#,EE10# ¥160
67812-12050 note Pad, Pillar, NO.3
1991-09 → 1992-05 ended
CE106,108,109,EE106,107,108 —
65677B — Patch, Wheel House, Rear RH
65677-13010 Patch, Wheel House, Rear RH
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 ¥1,260
65677-13020 Patch, Wheel House, Rear RH
1991-09 → —
CE102,108,EE104,108 ¥1,090
65678 — Patch, Wheel House, Rear LH
65678-13010 Patch, Wheel House, Rear LH
1991-09 → —
AE109,CE105,106,107,109,EE102,103,106,107 ¥1,260
65678-13020 Patch, Wheel House, Rear LH
1991-09 → —
CE102,108,EE104,108 ¥1,090
66243C — Protector, Rear Body, NO.1
66243-13010 Protector, Rear Body, NO.1
1991-09 → —
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 ¥170
66243-20010 Protector, Rear Body, NO.1
1991-06 → 1995-05 ended
AE10#,CE100,104,EE101 ¥180
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
